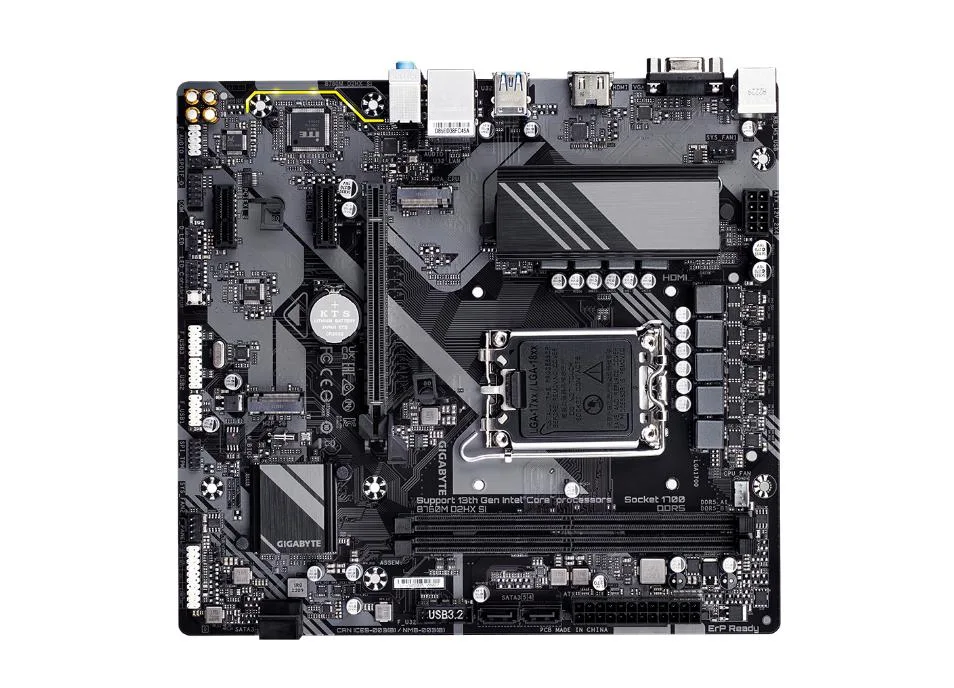

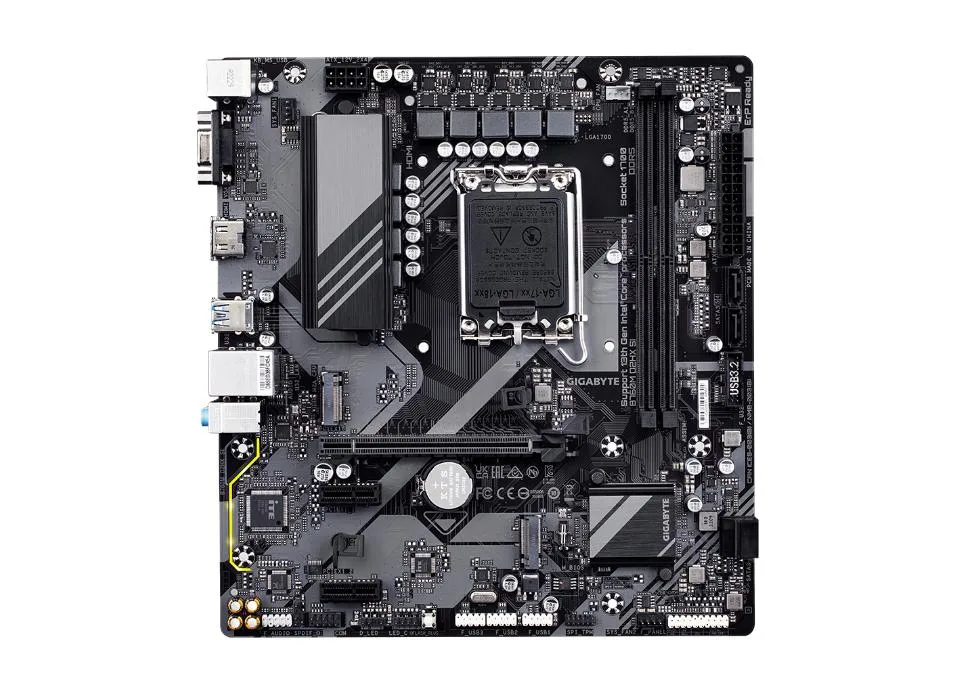

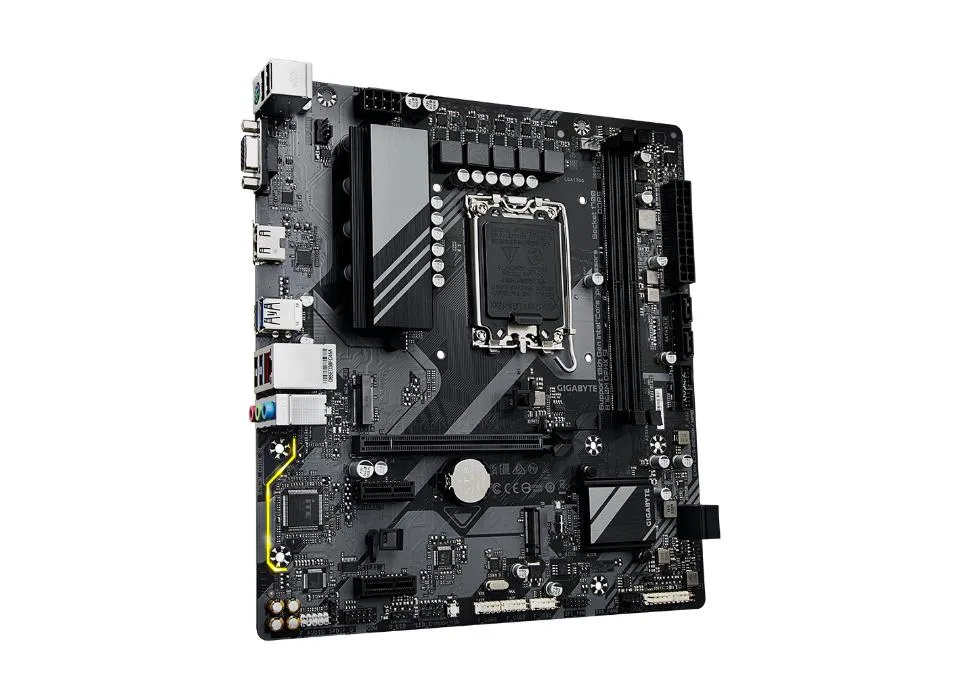

Micro-ATX motherboard in black and silver with two DDR5 slots and a metal-reinforced PCIe slot

GIGABYTE

GIGABYTE B760M D2HX SI Intel motherboard

SKU CH-KNXT-8B40N

LGA 1700 micro-ATX board with dual DDR5 slots up to 96 GB, two M.2 sockets, PCIe 4.0 x16, 2.5 GbE LAN and HDMI plus VGA outputs

  • CPU Socket TypeLGA 1700
  • ChipsetIntel B760
  • Onboard Video ChipsetIntel® HD Graphics
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport DDR5 7800(O.C.)/7600(O.C.) /7400(O.C.) /7200(O.C.) /
  • Maximum Memory Supported96GB

Option B760M D2HX SI DDR5

  • Supports 13th and 12th generation Intel processors with LGA 1700 socket
  • 6+2+1 phase power design delivers stable energy to the CPU
  • Dual-channel DDR5 up to 96 GB across two 288-pin slots
  • Two PCIe 4.0 M.2 slots provide next-generation storage speed
  • 5 Gigabit LAN offers high-speed wired networking

LGA 1700 Intel B760 micro-ATX board

This micro-ATX motherboard uses the Intel B760 chipset and an LGA 1700 socket for 12th and 13th generation Intel Core, Pentium Gold and Celeron processors. It measures 24.4cm by 22.5cm and fits standard micro-ATX cases. The board includes a 6+2+1 phase power design and Smart Fan 6 with hybrid fan headers and FAN STOP support. It is intended for compact desktop builds that need current Intel platform features.

Dual DDR5 slots up to 96 GB

Two 288-pin DDR5 slots run in dual-channel mode and support a maximum of 96 GB, with each slot accepting up to 48 GB modules. Speeds from 4800 MT/s up to 7800 MT/s are listed, all above 4800 MT/s requiring overclock profiles such as XMP. ECC un-buffered DIMMs are accepted but operate in non-ECC mode. Four SATA 6Gb/s ports provide additional drive connectivity alongside the M.2 sockets.

PCIe 4.0 x16 slot and dual M.2 sockets

One full-length PCI Express 4.0 x16 slot features an EZ-Latch quick-release mechanism for tool-free graphics card swaps. Two additional PCIe 3.0 x1 slots handle add-in cards such as sound or capture devices. Two M.2 connectors are wired for PCIe 4.0 x4 storage devices. Rear video outputs comprise one VGA port limited to 1920x1200 at 60 Hz and one HDMI 2.0 port capable of 4096x2160 at 60 Hz.

2.5 GbE LAN and USB 3.2 Gen 1

A Realtek 2.5 GbE controller provides wired networking; the listed maximum LAN speed is 100 Mbps. Rear I/O includes four USB 3.2 Gen 1 ports, two USB 2.0 ports, a PS/2 combo port, three audio jacks supporting up to 7.1 channel output and an S/PDIF header. The integrated Realtek audio codec handles high-definition 2, 4, 5.1 and 7.1 channel playback. Windows 10 and 11 64-bit are supported.

Highlights

  • Supports 13th and 12th generation Intel processors with LGA 1700 socket
  • 6+2+1 phase power design delivers stable energy to the CPU
  • Dual-channel DDR5 up to 96 GB across two 288-pin slots
  • Two PCIe 4.0 M.2 slots provide next-generation storage speed
  • 5 Gigabit LAN offers high-speed wired networking

Specifications

BrandGIGABYTE
ModelB760M D2HX SI
CPU Socket TypeLGA 1700
ChipsetIntel B760
Onboard Video ChipsetIntel® HD Graphics
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport DDR5 7800(O.C.)/7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C. ) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s
Maximum Memory Supported96GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x12 PCI-E x1 slots, supporting PCIe 3.0 and x1 operating specifications
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetIntegrated Realtek® audio chip
Audio ChannelsSupport High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF output
* The audio socket function can be redefined through the audio software. To enable 7.1-channel audio output, please enter the audio software settings
LAN ChipsetIntegrated Realtek® 2.5GbE network chip
Max LAN Speed100Mbps
Back I/O Ports1 PS/2 keyboard/mouse interface
1 VGA port
1 HDMI interface
4 USB 3.2 Gen 1 ports
2 USB 2.0/1.1 ports
1 RJ-45 network cable interface
3 audio interfaces
Windows 11Support Windows 11 64-bit
Support Windows 10 64-bit
Dimensions (W x L)Micro ATX specification; 24.4cmx 22.5cm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing 2.5 GbE network switch work with the 2.5GbE LAN port on this board?

Yes, the integrated Realtek 2.5GbE network chip connects to any standard 2.5 GbE switch or router over a Cat 5e or better cable.

How can I verify the board posts and the integrated Intel HD Graphics are active after assembly?

Connect a display to the HDMI or VGA port; a successful POST will show the BIOS splash screen at up to 4096x2160@60 Hz on HDMI or 1920x1200@60 Hz on VGA.

Does the package include Wi-Fi antennas or a CPU cooler, or must I buy them separately?

The OEM industrial packaging supplies only the motherboard; Wi-Fi antennas and a CPU cooler are not included and must be purchased separately.
