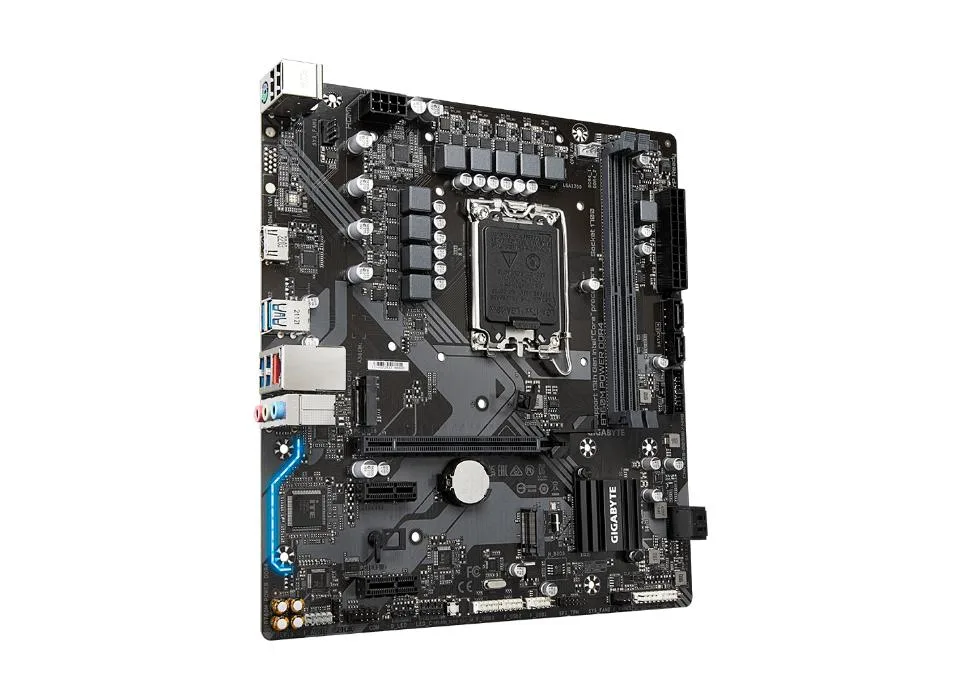

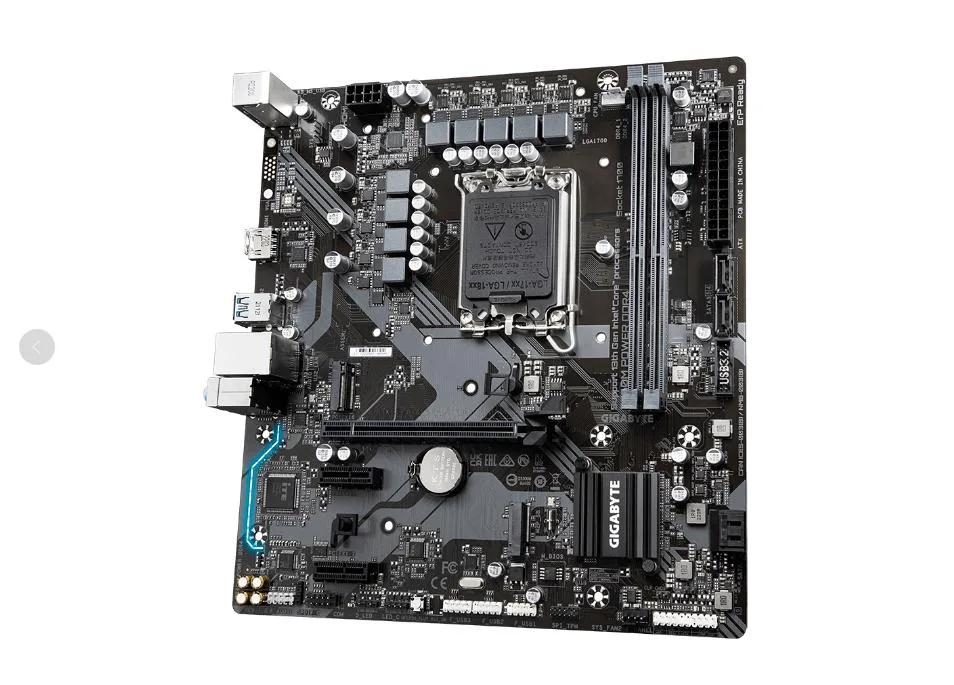

Micro-ATX motherboard, dark PCB with silver heatsinks, LGA 1700 socket, two DDR4 slots, PCIe x16 slot, two M.2 slots, HDMI port

GIGABYTE

GIGABYTE B760M POWER Intel motherboard

SKU CH-QB9X-KWP06

Micro-ATX LGA 1700 board with dual-channel DDR4, two M.2 slots, PCIe 4.0 graphics slot and 2.5 GbE LAN

  • CPU Socket TypeLGA 1700
  • ChipsetIntel B760
  • Onboard Video ChipsetIntel® HD Graphics
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardSupport DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/
  • Maximum Memory Supported64GB

Option B760M POWER DDR4

  • Supports 13th and 12th gen Intel processors with LGA 1700 socket
  • 6+2+1 phase power design delivers stable CPU performance
  • Dual-channel DDR4 up to 64 GB with XMP support
  • Two PCIe 4.0 x4 M.2 slots for fast storage
  • 5 Gigabit LAN and HDMI 2.0 for quick networking and display

LGA 1700 micro-ATX board for 12th and 13th gen Intel

The GIGABYTE B760M POWER uses the Intel B760 chipset and an LGA 1700 socket to support 12th and 13th generation Core, Pentium Gold and Celeron processors. Two 288-pin DDR4 slots accept up to 64 GB in dual-channel mode with XMP profiles. A single PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, four SATA 6 Gb/s ports and two M.2 sockets provide expansion and storage options.

Thermals noise and power draw

A 6+2+1 phase power design feeds the CPU while Smart Fan 6 monitors multiple temperature points and controls hybrid fan headers with Fan Stop capability. The 2.5 GbE LAN controller and Realtek audio codec run from the chipset without adding significant heat. Rear I/O includes HDMI 2.0 for 4096×2160 at 60 Hz, four USB 3.2 Gen 1 ports, two USB 2.0 ports, PS/2 and three audio jacks.

Sustained load behaviour

EZ-Latch on the PCIe 4.0 x16 slot allows tool-free graphics card removal during upgrades or maintenance. The board’s Micro-ATX dimensions of 24.4 cm by 22.5 cm fit compact cases while keeping the power phases and M.2 areas exposed to case airflow. Windows 10 and 11 64-bit are supported for long-term software compatibility.

Highlights

  • Supports 13th and 12th gen Intel processors with LGA 1700 socket
  • 6+2+1 phase power design delivers stable CPU performance
  • Dual-channel DDR4 up to 64 GB with XMP support
  • Two PCIe 4.0 x4 M.2 slots for fast storage
  • 5 Gigabit LAN and HDMI 2.0 for quick networking and display

Specifications

BrandGIGABYTE
ModelB760M POWER
CPU Socket TypeLGA 1700
ChipsetIntel B760
Onboard Video ChipsetIntel® HD Graphics
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupport DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C. )/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C. )/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x12 PCI-E x1 slots, supporting PCIe 3.0 and x1 operating specifications
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetIntegrated Realtek® audio chip
Audio ChannelsSupport High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF output
* The audio socket function can be redefined through the audio software. To enable 7.1-channel audio output, please enter the audio software settings
LAN ChipsetIntegrated Realtek® 2.5GbE network chip
Max LAN Speed100Mbps
Back I/O Ports1 PS/2 keyboard/mouse interface
1 HDMI interface
4 USB 3.2 Gen 1 ports
2 USB 2.0/1.1 ports
1 RJ-45 network cable interface
3 audio interfaces
Windows 11Support Windows 11 64-bit
Support Windows 10 64-bit
Dimensions (W x L)Micro ATX specification; 24.4cmx 22.5cm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the CPU on the LGA 1700 socket without bending pins?

Lift the retention lever, align the processor triangle with the socket marker, lower the CPU gently without pressure, close the frame, then lock the lever — the most common mistake is forcing the chip before the frame is fully seated.

What maintenance will the DDR4 memory slots need over time?

Reseat modules if the system fails to POST after moves, blow dust from the 288-pin contacts with compressed air, and verify XMP profiles still apply after BIOS updates — slots themselves have no moving parts to wear out.

Which limit appears first when the VRM runs under sustained load?

The 6+2+1 phase power design and Smart Fan 6 thermal monitoring will throttle the CPU before the VRM overheats, so the practical ceiling is the processor thermal limit rather than the board power delivery.
