Green micro-ATX board with silver heatsinks and four black DDR4 slots

GIGABYTE

GIGABYTE B760M DS3H AX DDR4 Intel motherboard

SKU CH-FNJ6-R98XY MPN B760M DS3H AX DDR4

Micro-ATX board for 12th and 13th Gen Intel CPUs with four DDR4 slots, dual M.2, 2.5GbE and Wi-Fi 6E

  • CPU Socket TypeLGA 1700
  • CPU TypeCore i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.
  • Maximum Memory Supported128GB

Option B760M DS3H AX DDR4

  • B760M AORUS ELITE AX
  • B760M GAMING X AX DDR4
  • B760M DS3H AX DDR4
  • B760M DS3H DDR4
  • B760I AORUS PRO DDR4
  • B760M DS3H AX
  • B760 GAMING X AX
  • B760 AORUS ELITE AX
  • B760M GAMING PLUS WIFI DDR4

Struck-through versions exist but are not stocked here.

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB in dual-channel mode
  • Two M.2 connectors with PCIe 4.0 x4/x2 support for fast storage
  • 5 Gbps LAN plus Wi-Fi 6E give high-speed wired and wireless networking
  • Q-Flash Plus updates the BIOS without a CPU, memory or GPU installed

LGA 1700 B760 micro-ATX board

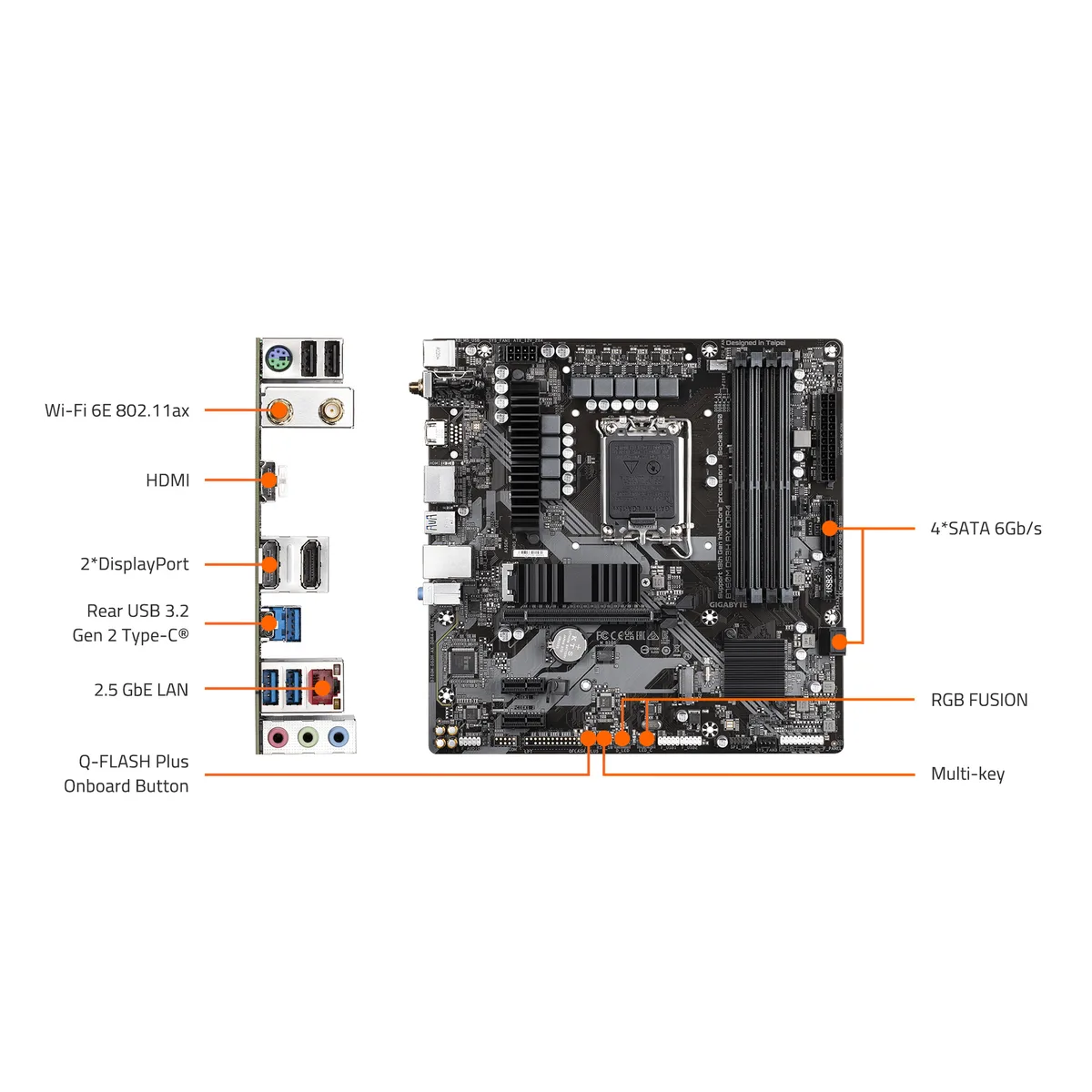

The GIGABYTE B760M DS3H AX DDR4 is a Micro ATX motherboard built around the Intel B760 chipset and LGA 1700 socket. It accepts 12th and 13th Gen Intel Core i3, i5, i7 and i9 processors. Four 288-pin DDR4 slots support dual-channel memory up to 128 GB with a wide range of overclocked speeds. The board provides one PCIe 4.0 x16 slot, two M.2 2280 connectors wired for PCIe 4.0 x4 or x2, four SATA 6 Gb/s ports, USB 3.2 Gen 2 Type-C, 2.5 GbE LAN and Wi-Fi 6E.

Best suited for DDR4 builders

This board suits builders reusing DDR4 kits or choosing DDR4 for cost reasons while still wanting modern connectivity such as PCIe 4.0 storage, 2.5 GbE and Wi-Fi 6E. The 6+2+1 hybrid digital VRM and M.2 Thermal Guard handle mainstream CPUs comfortably. Overclockers chasing extreme memory frequencies or users needing more than two M.2 slots or a full-size ATX layout should look elsewhere.

128 GB DDR4 and dual M.2 headroom

The four slots give 128 GB total capacity, enough for heavy multitasking and content creation workloads. Two PCIe 4.0 M.2 sockets allow a fast OS drive plus a large secondary NVMe drive without sharing bandwidth with the GPU slot. Four SATA ports add room for bulk hard drives. The single x16 slot limits multi-GPU setups, and the VRM is sized for stock or mildly boosted Core i5 and i7 operation rather than sustained all-core loads on flagship i9 chips.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB in dual-channel mode
  • Two M.2 connectors with PCIe 4.0 x4/x2 support for fast storage
  • 5 Gbps LAN plus Wi-Fi 6E give high-speed wired and wireless networking
  • Q-Flash Plus updates the BIOS without a CPU, memory or GPU installed

Specifications

BrandGIGABYTE
ModelB760M DS3H AX DDR4
CPU Socket TypeLGA 1700
CPU TypeCore i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
Form FactorMicro ATX
Shipping weight1.10 kg
Package size265 × 265 × 54 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR4 memory kit do I need to populate the four 288-pin slots on this B760M DS3H AX DDR4?

Any DDR4 kit rated from 2133 up to 5333 MT/s works; the board runs dual-channel across the four slots and supports a total of 128 GB.

Will my existing PCIe 3.0 graphics card and SATA SSDs run without changes on the PCIe 4.0 x16 slot and the four SATA 6Gb/s ports?

Yes, the PCIe 4.0 x16 slot and the four SATA 6Gb/s ports are backward compatible, so older GPUs and SATA drives operate at their native speeds.

How can I confirm the WiFi 6E and 2.5GbE LAN are active after the first boot?

Open Device Manager and verify that a Wi-Fi 6E adapter and a 2.5 Gbps Ethernet controller appear without error icons.
