Dark green micro-ATX motherboard with black heatsinks, four DDR4 slots, two M.2 shields and silver PCIe x16 slot

GIGABYTE

GIGABYTE B760M GAMING PLUS WIFI DDR4 Intel motherboard

SKU CH-GANY-KSAWM MPN B760M GAMING PLUS WIFI DDR4

Micro-ATX board for Intel 12th, 13th and 14th Gen CPUs with four DDR4 slots, two PCIe 4.0 M.2 sockets, Wi-Fi 6 and 1GbE LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 13th Gen (LGA 1700) / Intel Core 14th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Maximum Memory Supported128GB

Option B760M GAMING PLUS WIFI DDR4

  • B760M AORUS ELITE AX
  • B760M GAMING X AX DDR4
  • B760M DS3H AX DDR4
  • B760M DS3H DDR4
  • B760I AORUS PRO DDR4
  • B760M DS3H AX
  • B760 GAMING X AX
  • B760 AORUS ELITE AX
  • B760M GAMING PLUS WIFI DDR4

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel processors on LGA 1700 socket
  • Dual-channel DDR4 with four slots up to 128 GB and XMP 2.0 profiles
  • Hybrid 4+1+1 phase digital VRM for stable power delivery
  • Two PCIe 4.0 x4 M.2 sockets plus four SATA 6 Gb/s ports
  • Wi-Fi 6 802.11ax, Bluetooth 5.3 and GbE LAN with front USB 3.2 Gen 1 Type-C

LGA 1700 DDR4 motherboard for 12th to 14th Gen Intel

This micro-ATX board uses the Intel B760 chipset and an LGA 1700 socket to support Core 12th, 13th and 14th Gen processors plus Celeron and Pentium Gold. Four 288-pin slots run dual-channel DDR4 at 3200 with XMP 2.0 profiles up to 5333. A hybrid 4+1+1 phase digital VRM delivers stable power for daily workloads and moderate overclocking.

PCIe 4.0 lanes and storage limits

The top x16 slot operates at PCIe 4.0 x16 for current graphics cards. Two x1 slots remain at PCIe 3.0 x1 for add-in cards. Two M.2 2280 sockets each support PCIe 4.0 x4 or x2 SSDs. Four SATA 6Gb/s ports provide RAID 0, 1, 5 and 10. Front-panel USB 3.2 Gen 1 Type-C runs at 5Gb/s.

Wi-Fi 6 and build practicalities

Integrated Wi-Fi 802.11ax and Bluetooth 5.3 join a 1Gbps LAN port for network flexibility. Smart Fan 6 uses multiple sensors and hybrid headers with fan-stop for quiet cooling. Q-Flash Plus updates the BIOS without a CPU, memory or graphics card installed. HDMI and DisplayPort outputs serve integrated graphics. 7.1-channel audio covers surround sound needs.

Highlights

  • Supports 12th, 13th and 14th Gen Intel processors on LGA 1700 socket
  • Dual-channel DDR4 with four slots up to 128 GB and XMP 2.0 profiles
  • Hybrid 4+1+1 phase digital VRM for stable power delivery
  • Two PCIe 4.0 x4 M.2 sockets plus four SATA 6 Gb/s ports
  • Wi-Fi 6 802.11ax, Bluetooth 5.3 and GbE LAN with front USB 3.2 Gen 1 Type-C

Specifications

BrandGIGABYTE
ModelB760M GAMING PLUS WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
Memory FeatureSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx1
PCI Express 4.0 x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x12 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

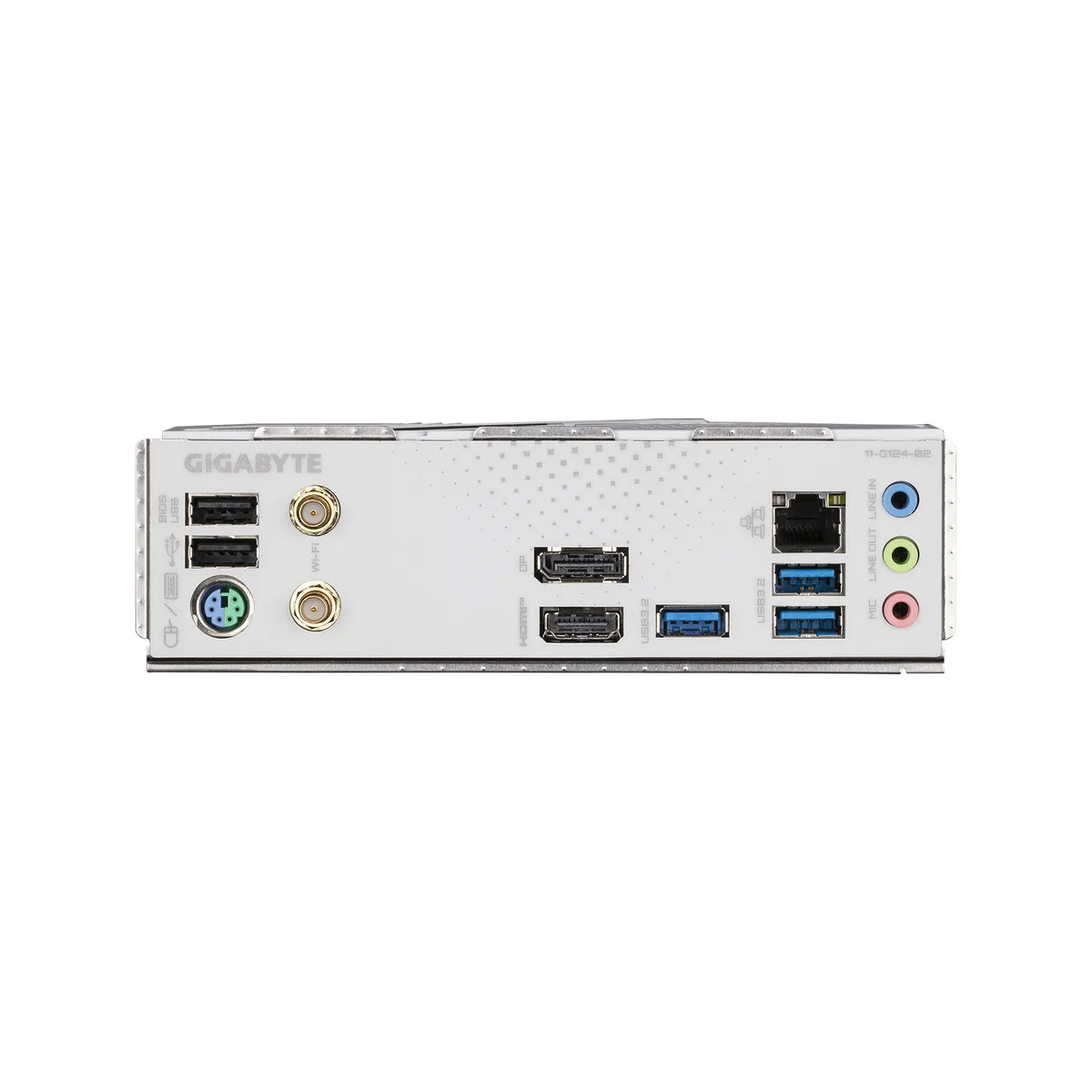

Back I/O Ports2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Shipping weight1.81 kg
Package size274 × 269 × 76 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

DDR4 3200 or 5333 MHz O.C. — which speed should I pick for this board?

The board runs DDR4 3200 natively and supports XMP 2.0 profiles up to 5333 MHz; choose 3200 for plug-and-play stability or a rated 5333 kit if you plan to enable XMP in BIOS.

The spec says PCIe 4.0 x16 — what does that deliver for a graphics card in this board?

The single x16 slot is wired for PCIe 4.0 x16, so a compatible GPU gets the full 4.0 bandwidth instead of being limited to 3.0 speeds.

What does Wi-Fi 6 802.11ax actually cap at on this motherboard?

The integrated Wi-Fi 6 controller tops out at the 802.11ax standard rate, while the wired port is a 1 Gbps Ethernet connection.
