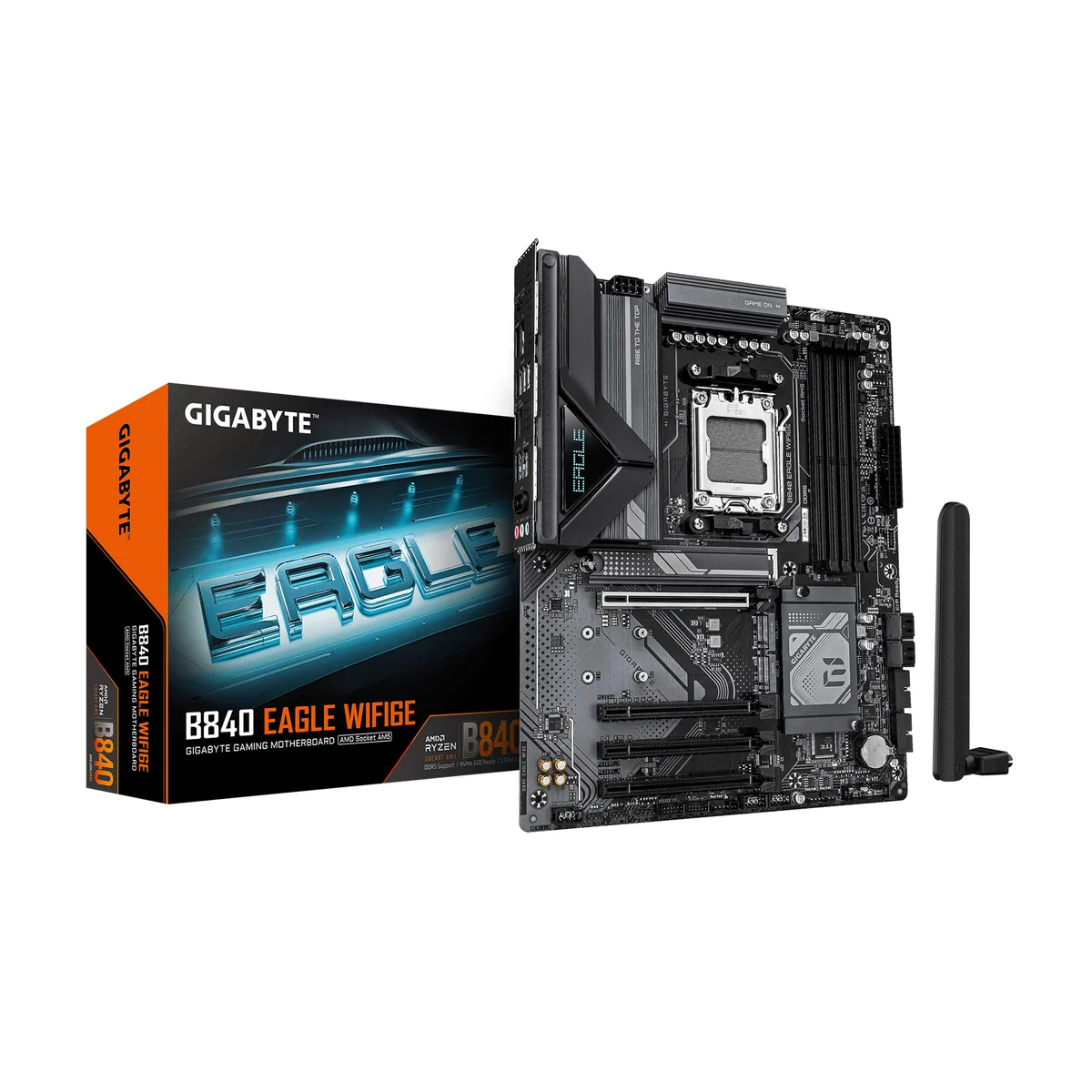

Rectangular ATX motherboard in matte black with silver heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE B840 EAGLE WIFI6E AMD motherboard

SKU CH-D8M8-FCDNS MPN B840 EAGLE WIFI6E

Socket AM5 ATX board with 8+2+2 digital VRM, three M.2 slots, Wi-Fi 6E, 2.5 GbE LAN and USB 3.2 Gen 2 Type-C for Ryzen 9000, 8000 and 7000 CPUs

  • CPU Socket TypeAM5
  • ChipsetAMD B840
  • Channel SupportedDual Channel
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered
  • Audio ChipsetRealtek Audio CODEC
  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 8+2+2 digital VRM phases with premium chokes for stable power delivery
  • Three M.2 slots including two PCIe 4.0 and one PCIe 3.0 for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN with Bluetooth 5.3 for high-speed connectivity
  • EZ-Latch PCIe and M.2 plus Q-Flash Plus for tool-free DIY assembly

Socket AM5 platform

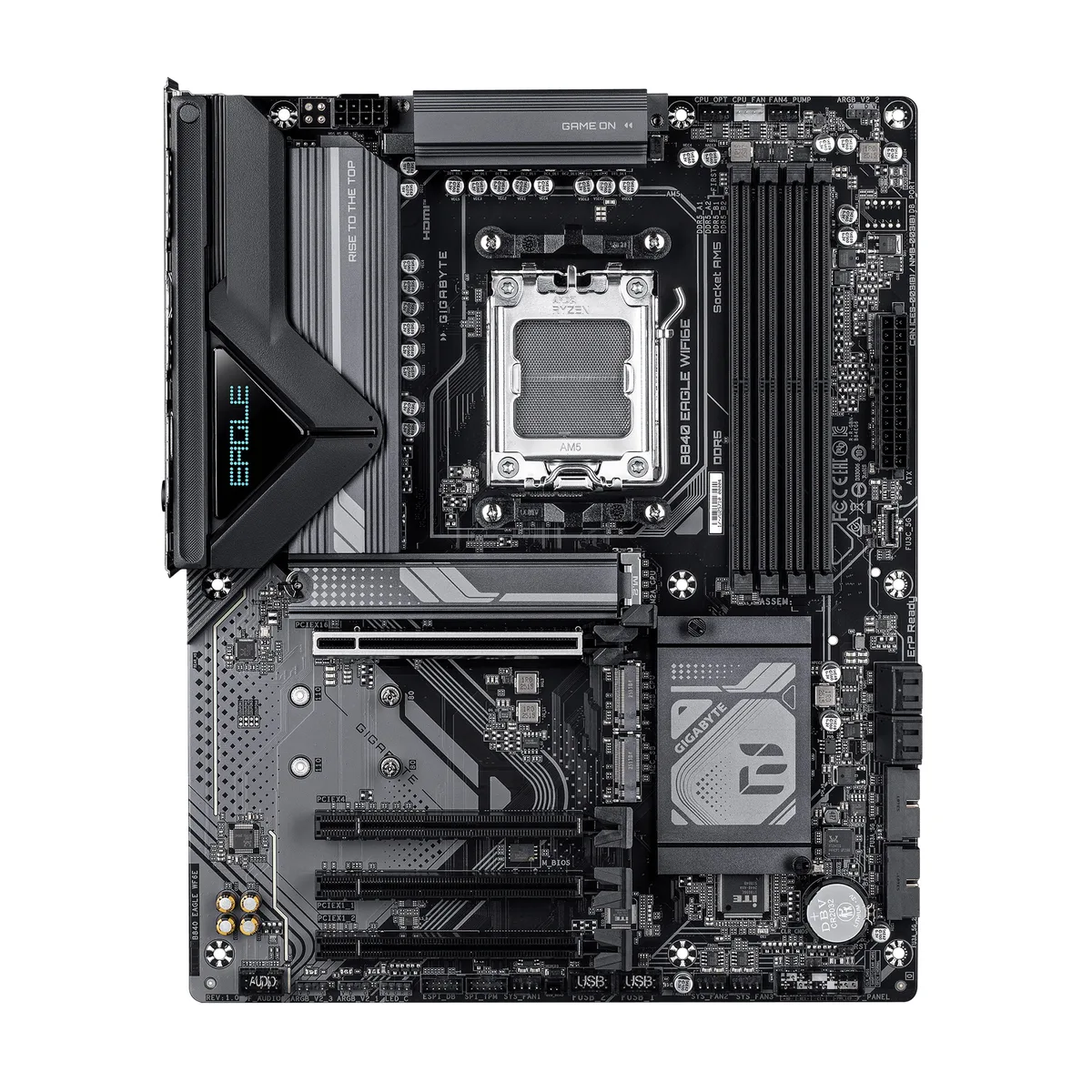

This GIGABYTE B840 EAGLE WIFI6E board uses the AMD B840 chipset on an ATX form factor. It supports Ryzen 9000, 8000, and 7000 series processors in the AM5 socket. Dual-channel DDR5 memory and a 8+2+2 digital VRM design deliver stable power for gaming and productivity builds.

PCIe 4.0 x16 graphics slot

The single PCIe 4.0 x16 slot determines which graphics card you can install and the bandwidth available. Two PCIe 4.0 M.2 slots and one PCIe 3.0 M.2 slot provide high-speed storage options. The rear I/O includes DisplayPort and HDMI outputs for processors with integrated graphics.

Wi-Fi 6E and 2.5GbE LAN

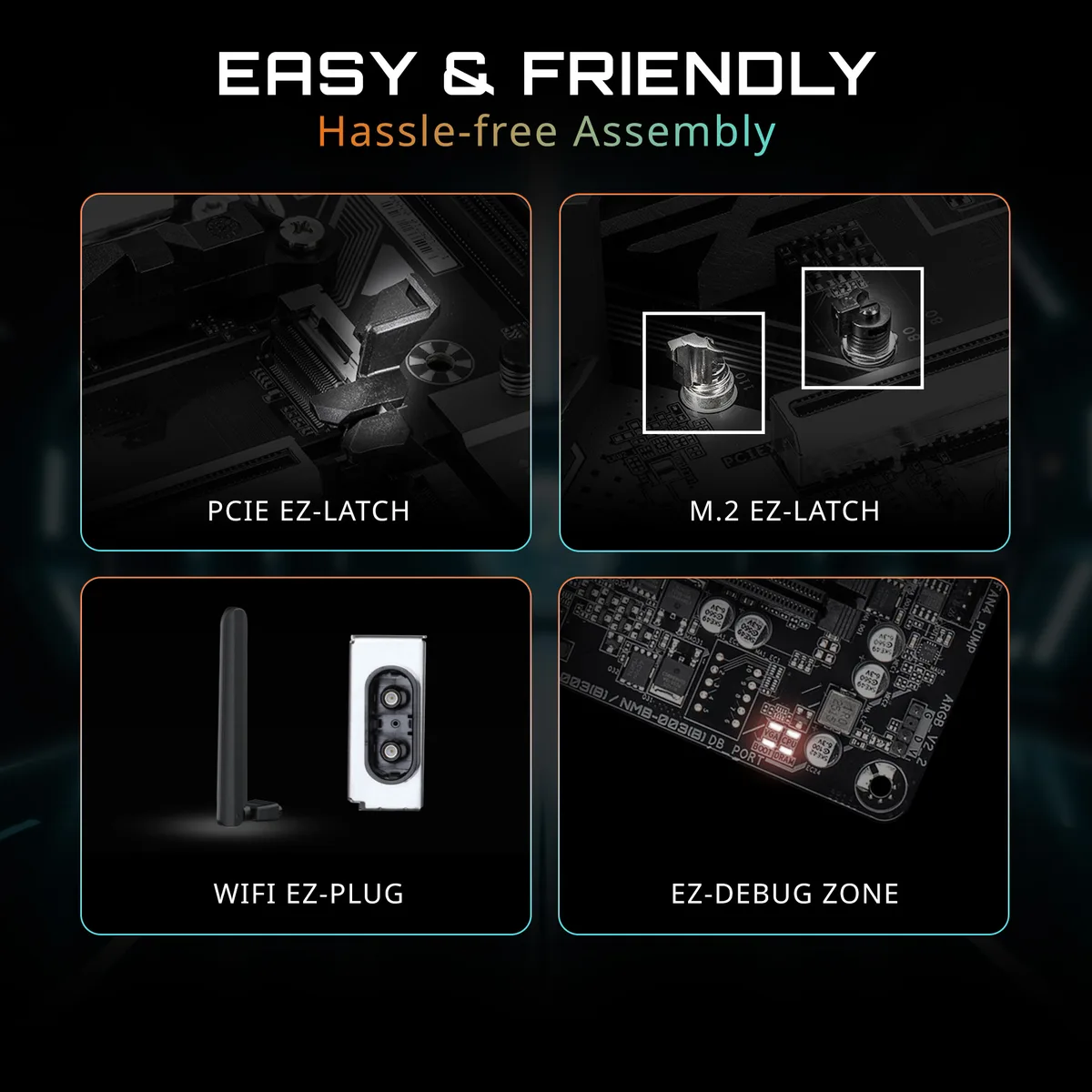

Onboard Wi-Fi 6E uses the 6 GHz band to reduce congestion, while Bluetooth 5.3 handles peripherals. A 2.5GbE LAN port adds wired throughput. EZ-Latch mechanisms for PCIe and M.2 plus a WIFI EZ-Plug antenna simplify assembly, and Q-Flash Plus updates the BIOS without a CPU or memory installed.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 8+2+2 digital VRM phases with premium chokes for stable power delivery
  • Three M.2 slots including two PCIe 4.0 and one PCIe 3.0 for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN with Bluetooth 5.3 for high-speed connectivity
  • EZ-Latch PCIe and M.2 plus Q-Flash Plus for tool-free DIY assembly

Specifications

BrandGIGABYTE
CPU Socket TypeAM5
ChipsetAMD B840
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
BluetoothYes

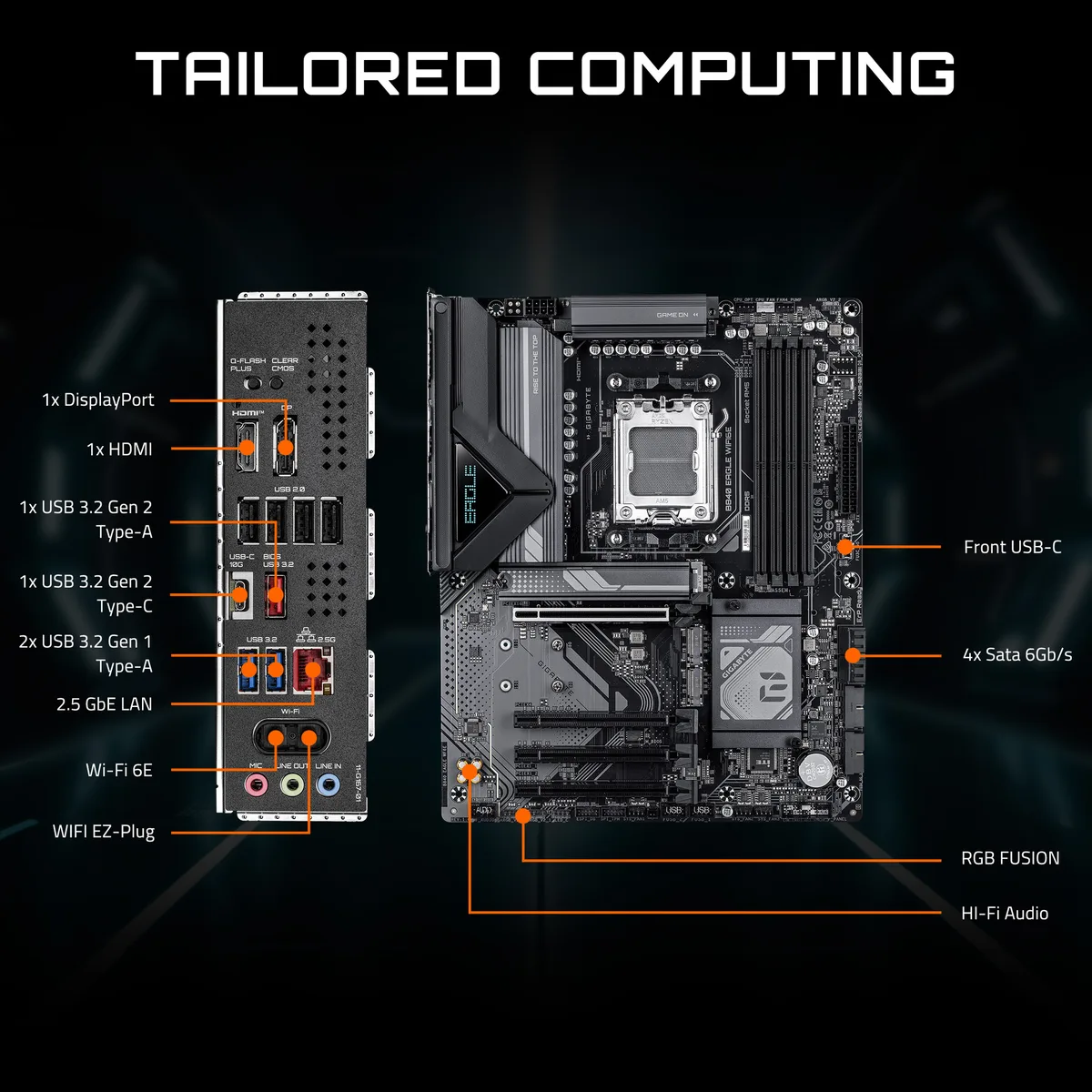

Back I/O Ports1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x DisplayPort, 1 x HDMI, 1 x USB Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x RJ-45, 2 x antenna connectors, 3 x audio jacks
DisplayPort1 x DisplayPort
Audio Ports3 Ports
Form FactorATX
Dimensions (W x L)30.5cm x 24.4cm
Shipping weight1.59 kg
Package size335 × 269 × 79 mm

Questions about this item

How much can X3D Turbo Mode lift gaming frame rates on a Ryzen 9000 CPU?

The BIOS feature can raise gaming FPS by up to 18 percent on Ryzen 9000 processors, though the exact gain varies by game.

What practical speed ceiling does the Wi-Fi 6E and 2.5 GbE LAN combination impose?

Wi-Fi 6E adds the 6 GHz band for extra bandwidth and less congestion, while the wired port caps at 2.5 Gbps for high-throughput local traffic.

What clearance and mounting points does the ATX board need inside a case?

It measures 30.5 cm by 24.4 cm and uses the standard ATX screw pattern, so any ATX-compatible chassis with matching standoffs will fit.
