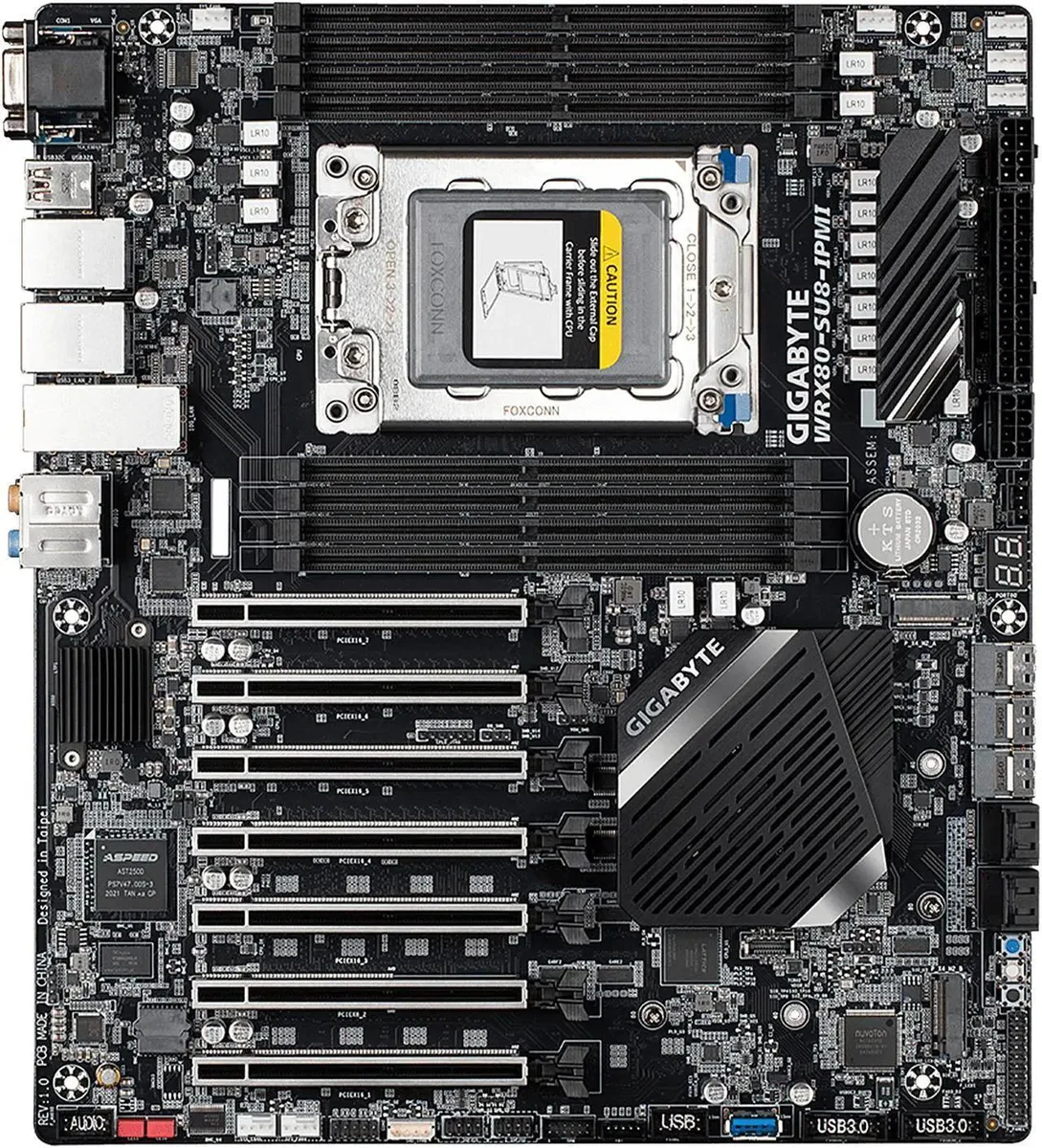

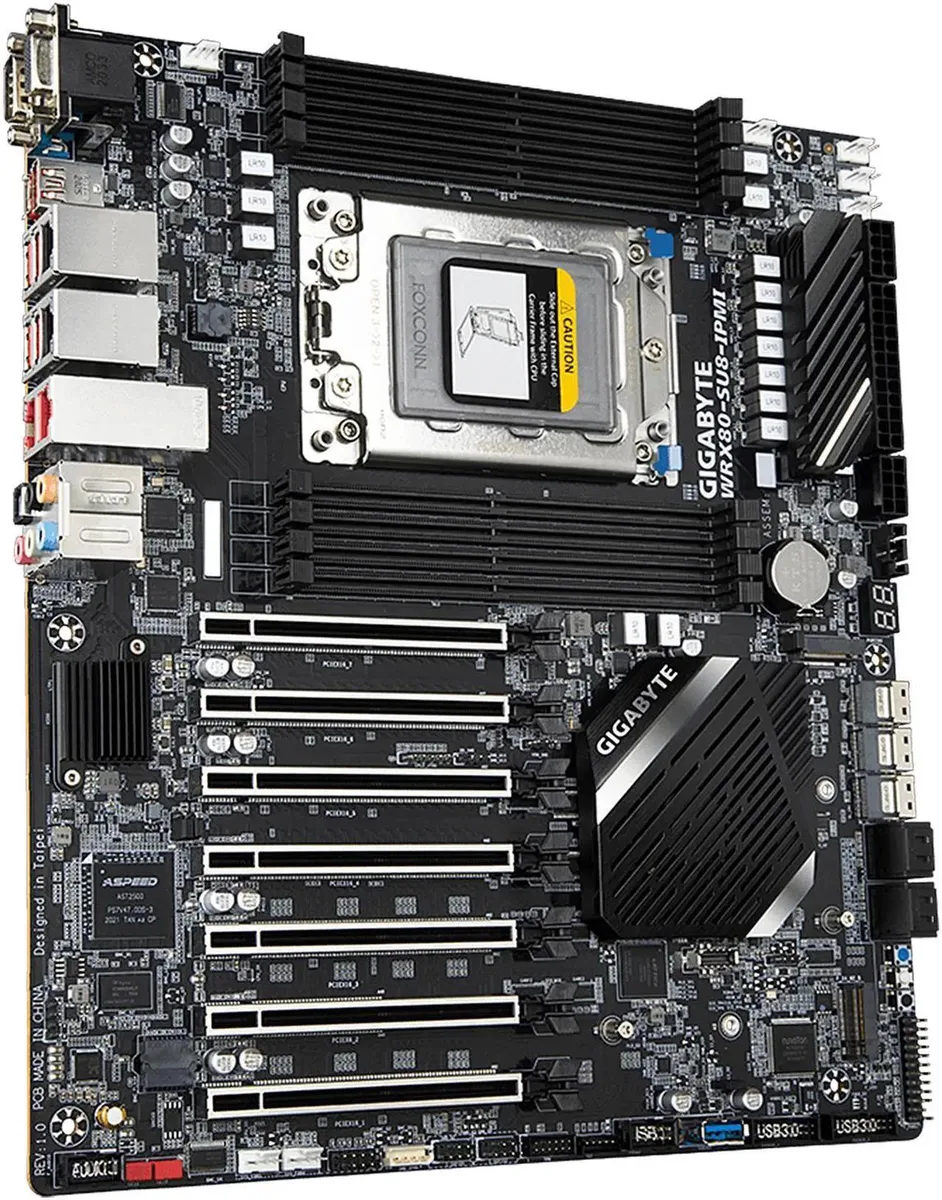

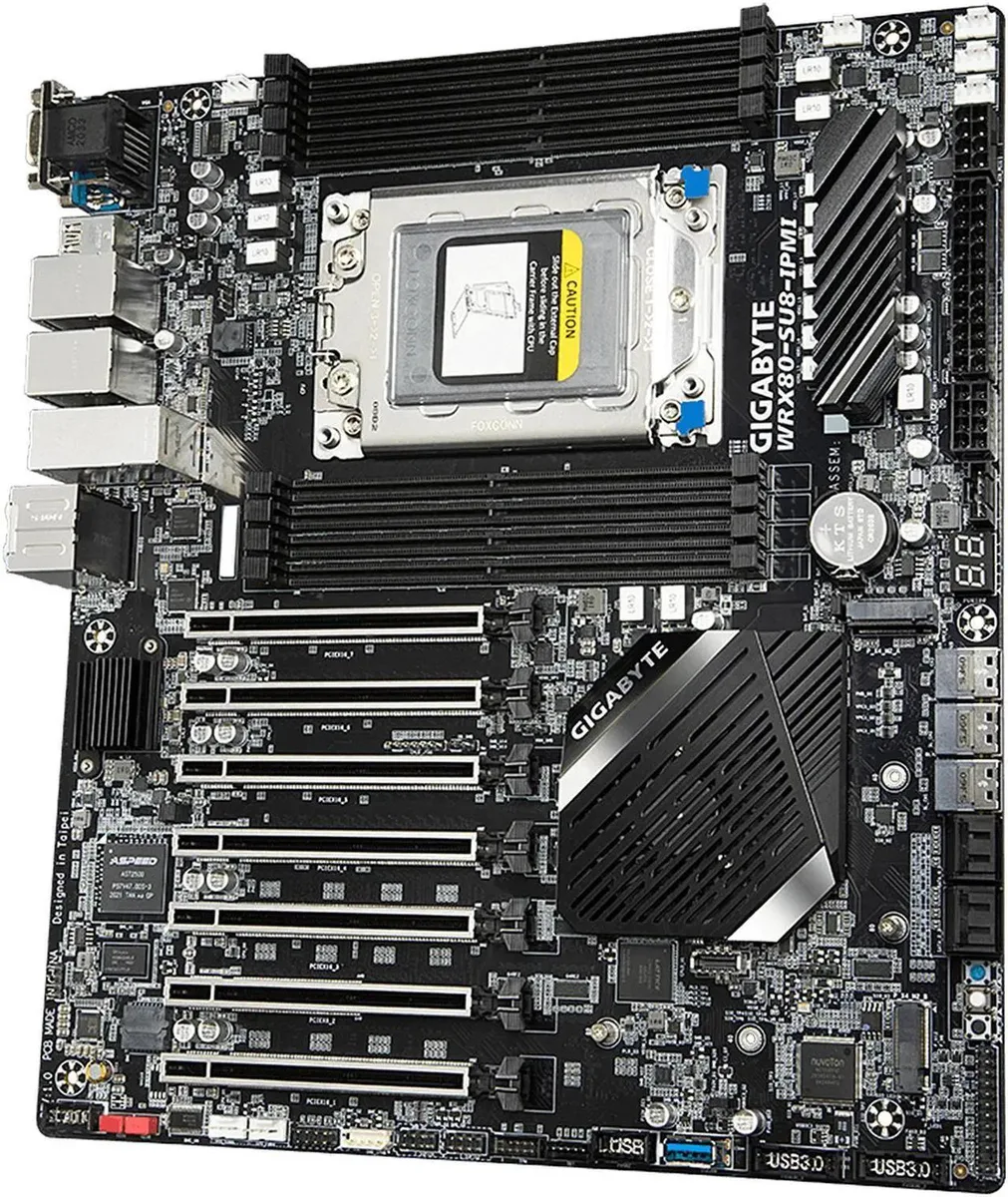

GIGABYTE GA-WRX80-SU8-IPMI (rev. 1.0) AMD motherboard
AMD WRX80 workstation board with sWRX8 socket, eight-channel DDR4 RDIMM, seven PCIe 4.0 x16 slots, dual 10GbE plus dual GbE LAN, and IPMI remote management
- CPU Socket TypesWRX8
- CPU TypeSupports AMD Ryzen Threadripper PRO 3000WX Processors
- ChipsetAMD WRX80
- Number of Memory Slots8x288pin (DDR4)
- Memory StandardDDR4 3200 / 2933 / 2600
- Channel SupportedEight Channel
- Supports AMD Ryzen Threadripper PRO 3000WX processors via sWRX8 4094 socket
- Eight-channel DDR4 RDIMM across 8 DIMM slots with ECC
- Aspeed AST2500 BMC enables remote server management
- Dual Intel 10GbE plus dual 1GbE LAN for high-throughput networking
- Seven PCIe 4.0 x16 slots for multi-GPU and expansion cards
sWRX8 workstation motherboard for Threadripper PRO
This GIGABYTE board uses the AMD WRX80 chipset and the sWRX8 4094 socket to support AMD Ryzen Threadripper PRO 3000WX processors. Eight DDR4 channels accept up to eight registered ECC DIMMs at 3200, 2933 or 2600 speeds. Seven PCIe 4.0 x16 slots provide expansion capacity for multi-GPU or accelerator configurations.
Eight-channel DDR4 limits and storage interfaces
Registered ECC DDR4 RDIMMs are required; unbuffered or non-ECC modules will not work. The eight-channel architecture delivers maximum bandwidth only when all eight slots are populated with matching sticks. Two M.2 sockets accept 2242 or 2280 drives in PCIe 4.0 x4 or SATA mode, while three slimSAS connectors add further PCIe 4.0 x4 or SATA pathways.
Seven PCIe 4.0 x16 slots decide GPU density
The seven full-length PCIe 4.0 x16 slots are the single specification that determines how many double-width graphics cards or compute accelerators can be installed simultaneously. Each slot is wired for x16 electrical connectivity from the chipset and CPU lanes, enabling full bandwidth for every occupied slot.
Highlights
- Supports AMD Ryzen Threadripper PRO 3000WX processors via sWRX8 4094 socket
- Eight-channel DDR4 RDIMM across 8 DIMM slots with ECC
- Aspeed AST2500 BMC enables remote server management
- Dual Intel 10GbE plus dual 1GbE LAN for high-throughput networking
- Seven PCIe 4.0 x16 slots for multi-GPU and expansion cards
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GA-WRX80-SU8-IPMI (rev. 1.0) |
| CPU Socket Type | sWRX8 |
| CPU Type | Supports AMD Ryzen Threadripper PRO 3000WX Processors |
| Chipset | AMD WRX80 |
| Number of Memory Slots | 8x288pin (DDR4) |
| Memory Standard | DDR4 3200 / 2933 / 2600 |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | 7 x PCI Express 4.0 x16 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280; Supports PCIe gen4 x4 or SATA mode) 2 x slimSAS (PCIe gen4 x4 or 4 x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dual Intel X550 |
| Second LAN Chipset | Dual Intel i210AT |
| Max LAN Speed | 2 x 10Gbps + 2 x 1Gbps |
| Back I/O Ports | 1 x D-sub port 1 x serial port 1 x USB 3.2 Gen 2 Type-C port (red) 5 x USB 3.2 Gen 2 Type-A port (red) 2 x GbE RJ-45 ports 2 x 10GbE RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 vertical connector 2 x USB 3.2 Gen 1 header 1 x USB 2.0 header |
| Other Connectors | 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module(TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper 2 x SATA SGPIO headers 1 x BMC_VGA jumper 1 x BMC_WATCHD jumper 1 x SMB_IPMB connector 1 x PMBUS header 1 x Speaker |
| Form Factor | CEB |
| LED Lighting | None RGB |
| Dimensions (W x L) | 12.0" x 10.5" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V CPU power connector 1 x 8-pin ATX 12V GPU power connector |
| Features | I/O Controller: ASPEED AST2500 BMC chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. Operating Properties: Operating temperature: 10°C to 40°C Operating humidity: 8 - 80% Non-operating temperature: -40°C to 70°C Non-operating humidity: 5% - 95% Support OS: Windows 10 Linux |
Questions about this item
Will this board accept standard unbuffered DDR4 DIMMs?
No, the eight 288-pin slots require registered ECC DDR4 RDIMMs only.
How many full-length graphics cards can run at PCIe 4.0 x16 simultaneously?
Seven physical slots are wired for PCIe 4.0 x16, so up to seven cards can operate at that speed.
What cable or adapter is needed to use the slimSAS storage ports?
Each slimSAS connector carries PCIe 4.0 x4 or four SATA III lanes; you need a slimSAS-to-U.2 or slimSAS-to-four-SATA cable matching your drive type.
