ATX motherboard black PCB orange accents metal heatsinks

GIGABYTE

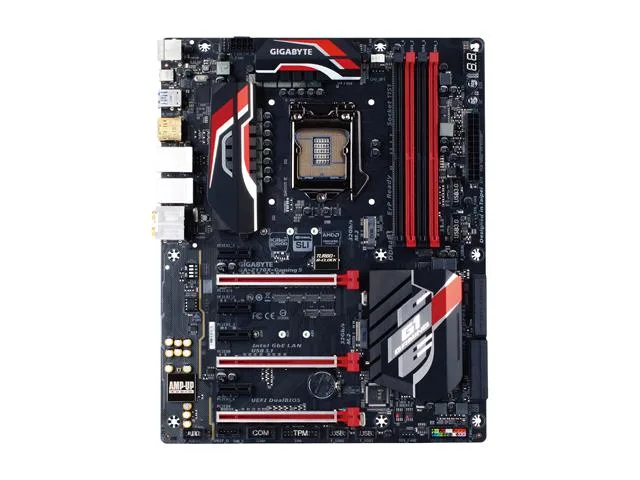

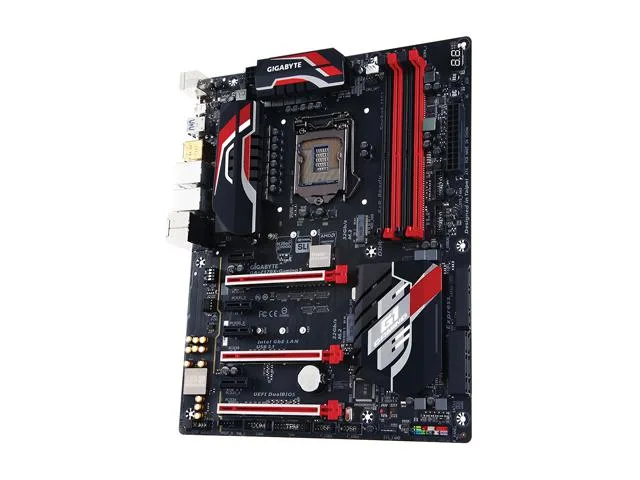

GIGABYTE GA-Z170X-Gaming 5 rev. 1.0 LGA 1151 Intel motherboard

SKU CH-6M9T-93PN1

ATX Intel Z170 board with LGA 1151 socket, four DDR4 slots up to 64 GB, dual x16 PCIe 3.0 slots, two M.2 connectors, six SATA 6 Gb/s ports, Realtek ALC1150 audio and Intel Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU Technologies* Not Compatible with Intel 8th Gen CPUs
  • ChipsetIntel Z170
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/
  • Supports 6th and 7th generation Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 3466 MHz overclocked across four 288-pin slots
  • Realtek ALC1150 audio delivers 7.1-channel high-definition sound
  • Two M.2 Socket 3 connectors accept 2242, 2260 and 2280 SATA and PCIe SSDs
  • Intel Gigabit LAN provides wired network connectivity

Z170 ATX motherboard for LGA 1151 CPUs

This GIGABYTE GA-Z170X-Gaming 5 board uses the Intel Z170 chipset and an LGA 1151 socket. It supports 6th and 7th Generation Core i7, i5, i3, Pentium and Celeron processors. The ATX form factor fits standard chassis and provides four 288-pin DDR4 slots for up to 64 GB of dual-channel memory.

Gamers and overclockers who need multi-GPU options

The Z170 chipset enables CPU and memory overclocking plus multi-GPU support across three x16-length slots. Builders locked to non-K CPUs or seeking 8th Generation compatibility should choose a different platform because this board is not compatible with Intel 8th Gen processors.

One x16 slot at full bandwidth or two at x8

A single graphics card runs at PCI Express 3.0 x16 in the top slot. Adding a second card in the middle slot drops both to x8 mode, while the third x16-length slot shares bandwidth with an M.2 drive and runs at x4 when free.

Highlights

  • Supports 6th and 7th generation Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 3466 MHz overclocked across four 288-pin slots
  • Realtek ALC1150 audio delivers 7.1-channel high-definition sound
  • Two M.2 Socket 3 connectors accept 2242, 2260 and 2280 SATA and PCIe SSDs
  • Intel Gigabit LAN provides wired network connectivity

Specifications

BrandGIGABYTE
SeriesG1 Gaming
ModelGA-Z170X-Gaming 5 (rev. 1.0)
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies* Not Compatible with Intel 8th Gen CPUs
ChipsetIntel Z170
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/ 2666*/ 2400*/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16) / * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. / 1 x PCI Express x16 slot, running at x8 (PCIEX8) / * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. / 1 x PCI Express x16 slot, running at x4 (PCIEX4) / * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
PCI Express x14 x PCI Express x1 slots / (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
SATA Express3 x SATA Express connectors
M.22 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetIntel GbE LAN chip
Second LAN ChipsetKiller E2201 chip
Max LAN Speed2 x 1Gbps
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ452 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB Type-C port, with USB 3.1 support / 1 x USB 3.1 Type-A port (red)
USB 3.03 x USB 3.0
USB 1.1/2.04 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB2 x USB 3.0/2.0 headers / 2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header / 1 x water cooling fan header (CPU_OPT) / 3 x system fan headers / 1 x front panel header / 1 x front panel audio header / 1 x Trusted Platform Module (TPM) header / 1 x Thunderbolt add-in card connector / 1 x serial port header / 1 x Clear CMOS jumper / 1 x ECO button / 1 x OC button / 1 x audio gain control switch
Form FactorATX
Dimensions (W x L)12.01" x 9.61"
Power Pin1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology: / Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies / Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies / / I/O Controller: / iTE I/O Controller Chip / / H/W Monitoring: / System voltage detection / CPU/System/Chipset temperature detection / CPU/CPU OPT/System fan speed detection / CPU/System/Chipset overheating warning / CPU/CPU OPT/System fan fail warning / CPU/CPU OPT/System fan speed control / * Whether the fan speed control function is supported will depend on the cooler you install. / / BIOS: / 2 x 128 Mbit
Package ContentsGA-Z170X-Gaming 5 motherboard / Four SATA cables / Motherboard driver disk / I/O Shield / User's Manual / One 2-Way SLI bridge connector / Quick Installation Guide / One G Connector

Questions about this item

How do I install the CPU into the LGA 1151 socket, and which step do people get wrong?

Lift the socket lever, align the processor triangle with the socket marker, place the CPU gently without pressure, then lower and lock the lever — the common mistake is forcing the chip before the lever is fully open.

What maintenance or replacement will the Realtek ALC1150 audio chipset need later?

The onboard audio codec is soldered and requires no scheduled maintenance; if it fails the board must be serviced or replaced, as the chip cannot be swapped by the user.

What limit appears first when the PCIEX16 slot shares bandwidth with the PCIEX8 slot under sustained multi-GPU use?

Populating the PCIEX8 slot forces the PCIEX16 slot to run at x8 instead of x16, halving the graphics link bandwidth for the primary card.
