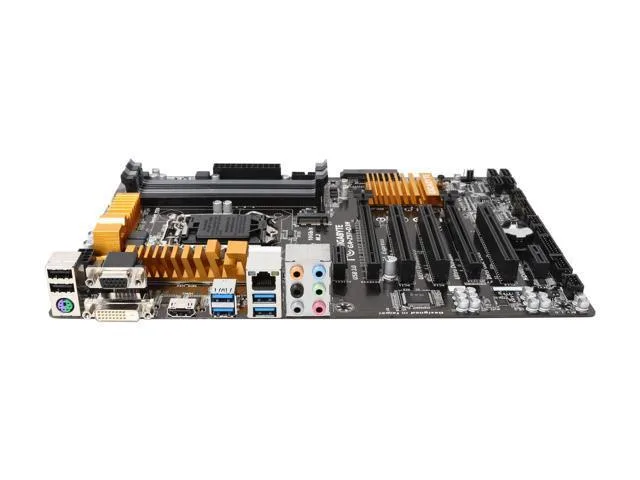

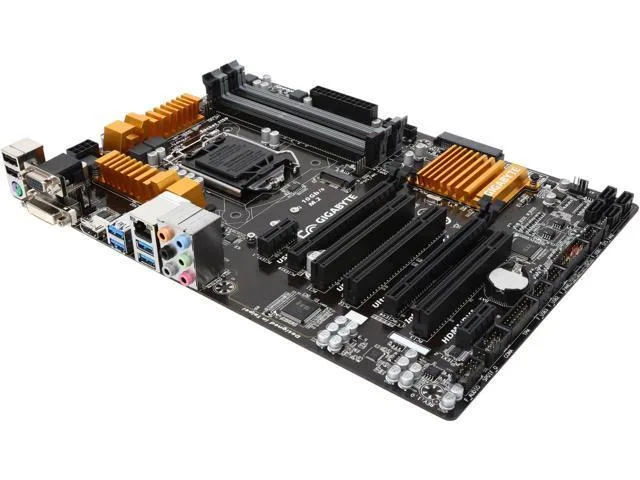

Gigabyte Z97 ATX board, black PCB, silver heatsinks, LGA 1150 socket, four DDR3 slots, multiple PCIe and PCI slots

GIGABYTE

GIGABYTE GA-Z97-D3H LGA 1150 Z97 DDR3 32GB ATX Intel motherboard

SKU CH-Q0W5-7HQDM

ATX board for LGA 1150 CPUs with Z97 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16, M.2, SATA Express and six SATA 6 Gb/s ports

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • ChipsetIntel Z97
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4 x 240
  • Memory StandardDDR3 3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2
  • Supports 4th and 5th Gen Intel Core CPUs via LGA 1150 socket
  • Intel Z97 chipset enables CPU and memory overclocking
  • Four DDR3 slots accept up to 32 GB at speeds up to 3100 MT/s
  • Six SATA 6 Gb/s ports plus SATA Express and M.2 for fast storage
  • Intel i217V Gigabit LAN and Realtek ALC1150 115 dB SNR 7.1 audio

Socket and Chipset

This motherboard uses the LGA 1150 socket and the Intel Z97 chipset. It supports 4th and 5th Generation Intel Core i7, i5, i3, Pentium and Celeron processors. The ATX form factor provides expansion room for multiple add-in cards and storage devices.

Ideal Build Scenarios

Builders wanting DDR3 memory support up to 32GB across four slots will find this board suitable. The single PCI Express 3.0 x16 slot fits one graphics card, while three legacy PCI slots accommodate older expansion cards. Users needing integrated Wi-Fi or more than one M.2 slot should look at something else.

Deciding Specification

The board offers one M.2 connection and six SATA 6Gb/s ports alongside a single SATA Express interface. This mix lets you install a fast M.2 SSD while retaining plenty of traditional SATA connectors for hard drives or additional SSDs.

Highlights

  • Supports 4th and 5th Gen Intel Core CPUs via LGA 1150 socket
  • Intel Z97 chipset enables CPU and memory overclocking
  • Four DDR3 slots accept up to 32 GB at speeds up to 3100 MT/s
  • Six SATA 6 Gb/s ports plus SATA Express and M.2 for fast storage
  • Intel i217V Gigabit LAN and Realtek ALC1150 115 dB SNR 7.1 audio

Specifications

BrandGIGABYTE
SeriesComes with motherboard and IO shield! 100% Tested Well Before Shipping(Pins Included)! Please take the video while opening the box, otherwise we won't accept refund for bent pins.
ModelGA-Z97-D3H
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
ChipsetIntel Z97
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4 x 240
Memory StandardDDR3 3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333
Maximum Memory Supported32GB
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Express x12 x PCI Express x1
PCI Slots3 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
SATA Express1 x SATA Express
M.21 x M.2
SATA RAID0/1/5/10
Audio Channels7.1 Channels
LAN ChipsetIntel i217V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D1 x VGA
HDMI1 x HDMI
RJ451 x RJ45
Other Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling fan header (CPU_OPT)3 x system fan headers1 x front panel header1 x front panel audio header1 x serial port header1 x Trusted Platform Module (TPM) header1 x S/PDIF Out header1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 8.4"
Power Pin24 Pin
FeaturesSupports 4th and 5th Generation Intel Core processorsExtreme multi graphics supportSATA Express support for 10 Gb/s data transferM.2 for SSDs drives with up to 10 Gb/s data transferIntel GbE LAN with CFOS internet accelerator softwareRealtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifierLong lifespan Durable Solid capsAPP Center including EasyTune and Cloud Station utilitiesGIGABYTE UEFI DualBIOS
Package ContentsREFURBISHED items may not come with accessories, installation discs or documentation.
