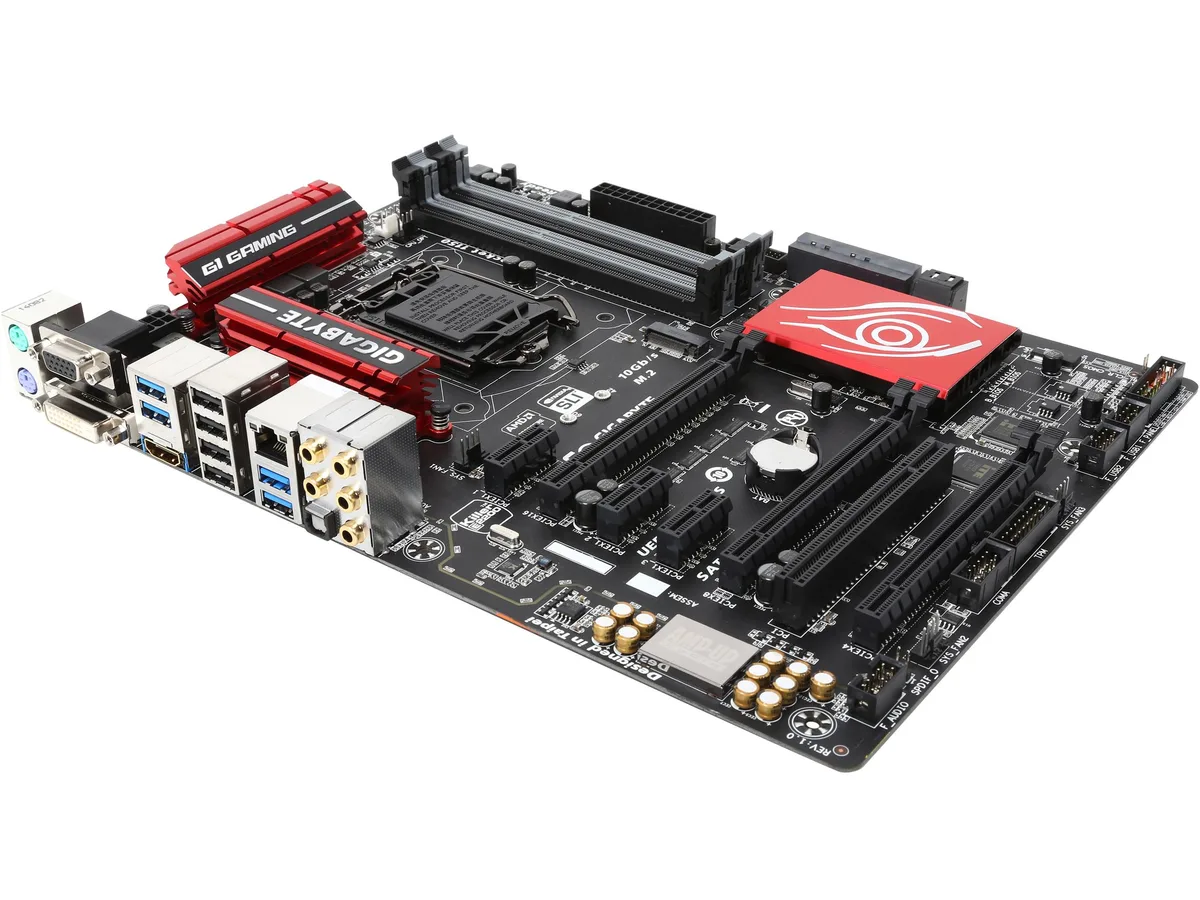

Black ATX motherboard with grey sockets and gold accents

GIGABYTE

GIGABYTE GA-Z97X-Gaming 5 rev 1.0 LGA 1150 Intel motherboard

SKU CH-N6NF-FYVVW

ATX Z97 board for LGA 1150 CPUs with four DDR3 slots up to 32 GB, one PCIe 3.0 x16, one PCIe x4, three PCIe x1, six SATA 6Gb/s, SATA Express, M.2 and Realtek ALC1150 7.1 audio

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • ChipsetIntel Z97
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 3200*(*O.C.)/ 3100*/ 3000*/ 2933*/ 2800*/ 2666*/ 2600*/
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory across four slots
  • PCI Express 3.0 x16 slot runs at full x16 for graphics
  • Additional PCI Express x16 slot at x4 shares bandwidth with x1 slots
  • Realtek ALC1150 audio provides 7.1-channel output
  • M.2 connector accepts 2242, 2260 and 2280 SATA and PCIe SSDs

G1 Gaming Z97 ATX Motherboard

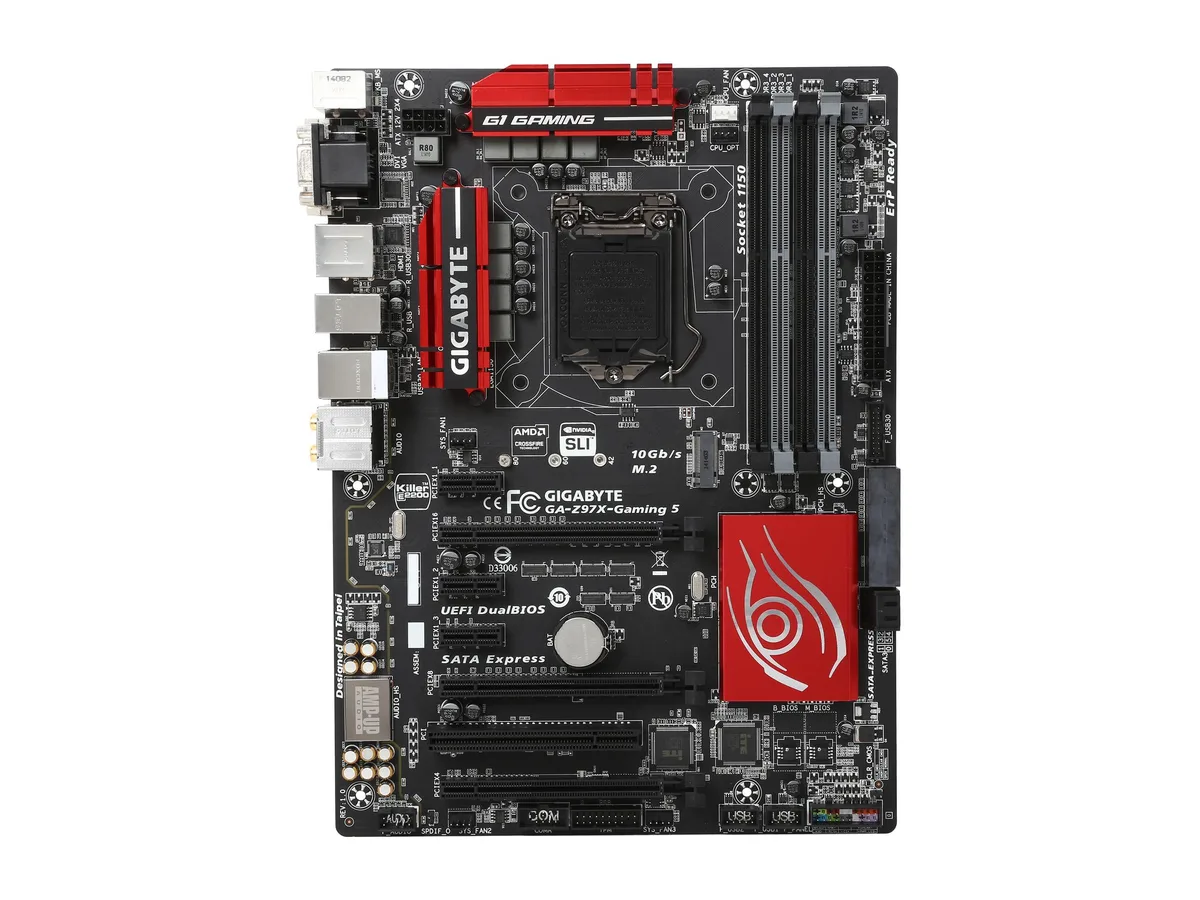

The GIGABYTE GA-Z97X-Gaming 5 revision 1.0 is an ATX motherboard built on the Intel Z97 chipset for LGA 1150 processors. It supports Core i7, i5, i3, Pentium and Celeron CPUs and provides four 240-pin slots for dual-channel DDR3 memory up to 32 GB.

Suited to LGA 1150 builders and upgraders

This board fits builders assembling a new LGA 1150 system or upgrading an existing Z97 platform. Users who require a newer CPU socket or a different memory type should select a motherboard designed for that platform.

Single PCI Express 3.0 x16 slot at x16

The primary PCI Express 3.0 x16 slot runs at full x16 electrical speed for a single graphics card. A second x16-sized slot operates at x4 and shares bandwidth with the three x1 slots, limiting multi-GPU expansion.

Highlights

  • Supports up to 32GB DDR3 memory across four slots
  • PCI Express 3.0 x16 slot runs at full x16 for graphics
  • Additional PCI Express x16 slot at x4 shares bandwidth with x1 slots
  • Realtek ALC1150 audio provides 7.1-channel output
  • M.2 connector accepts 2242, 2260 and 2280 SATA and PCIe SSDs

Specifications

BrandGIGABYTE
SeriesG1 Gaming
ModelGA-Z97X-Gaming 5 (rev. 1.0)
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
ChipsetIntel Z97
Number of Memory Slots4x240pin
Memory StandardDDR3 3200*(*O.C.)/ 3100*/ 3000*/ 2933*/ 2800*/ 2666*/ 2600*/ 2500*/ 2400*/ 2200*/ 2133*/ 2000*/ 1866*/ 1800*/ 1600/ 1333
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16) / * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. / / 1 x PCI Express x16 slot, running at x8 (PCIEX8) / * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. / / (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
PCI Express x161 x PCI Express x16 slot, running at x4 (PCIEX4) / * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed. / * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4.
PCI Express x13 x PCI Express x1 slots / (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
PCI Slots1 x PCI Slot
Serial ATA (SATA)6 x SATA 6Gb/s connectors / (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
SATA Express1 x SATA Express connector
M.21 x M.2 PCIe connector / (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetQualcomm Atheros Killer E2201
Max LAN Speed1Gbps

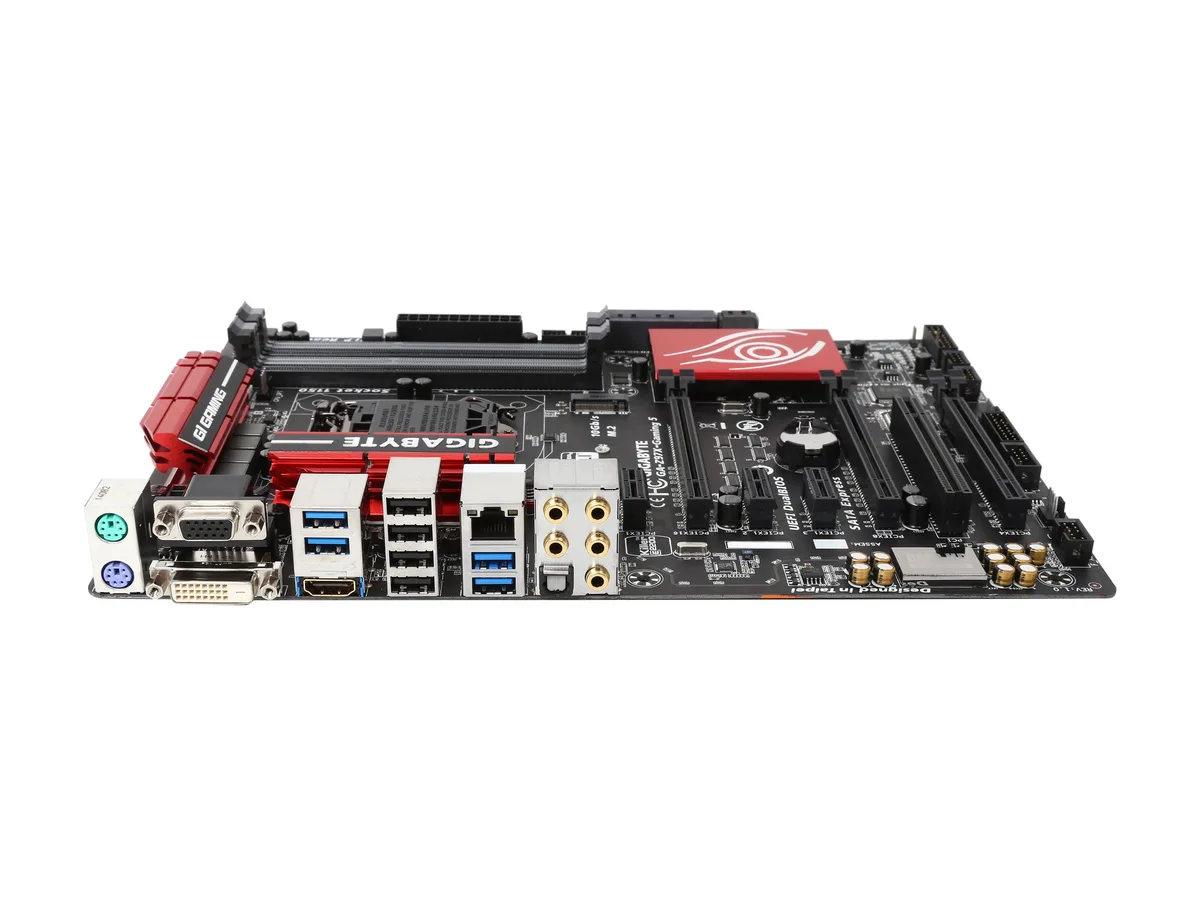

Back I/O Ports1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 keyboard port / 1 x PS/2 mouse port
Video Ports1 x D-Sub port / 1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0/2.0 ports
USB 1.1/2.04 x USB 2.0/1.1 ports
S/PDIF Out1 x Optical
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB1 x USB 3.0/2.0 header / 2 x USB 2.0/1.1 headers
Other Connectors1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x CPU fan header / 1 x water cooling fan header (CPU_OPT) / 3 x system fan headers / 1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header / 1 x serial port header / 1 x Clear CMOS jumper / 1 x Trusted Platform Module (TPM) header
Form FactorATX
Dimensions (W x L)12.0" x 8.9"
Power Pin24 Pin
FeaturesSupports 4th and 5th Generation Intel Core processors / Creative SoundBlaster X-Fi MB3 gaming audio suite / Audio Noise Guard with LED path lighting / Gold plated display and audio ports / High end Nichicon audio capacitors / Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier / Killer E2200 gaming networking platform / Extreme multi graphics support / SATA Express support for 10 Gb/s data transfer / M.2 for SSDs drives with up to 10 Gb/s data transfer / Long lifespan Durable Black Solid caps / APP Center including EasyTune and Cloud Station utilities / GIGABYTE UEF

Questions about this item

What DDR3 memory speeds does the GA-Z97X-Gaming 5 rev 1.0 support for the four 240-pin slots?

The board runs DDR3 at 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2500, 2600, 2666, 2800, 2933, 3000, 3100 and up to 3200 when overclocked across its four slots for a 32 GB maximum in dual-channel mode.

If I keep a PCI Express 2.0 x1 card, will it still work when I add a device in the PCIEX4 slot?

Installing a PCIe x4 card in the PCIEX4 slot disables all three PCI Express x1 slots because they share bandwidth, so the older x1 card would no longer function.

How can I confirm the Realtek ALC1150 audio is delivering 7.1-channel output after setup?

Open the Realtek audio console in Windows, select 7.1-channel in the speaker configuration tab and run the built-in speaker test; each of the eight channels should play a distinct tone.
