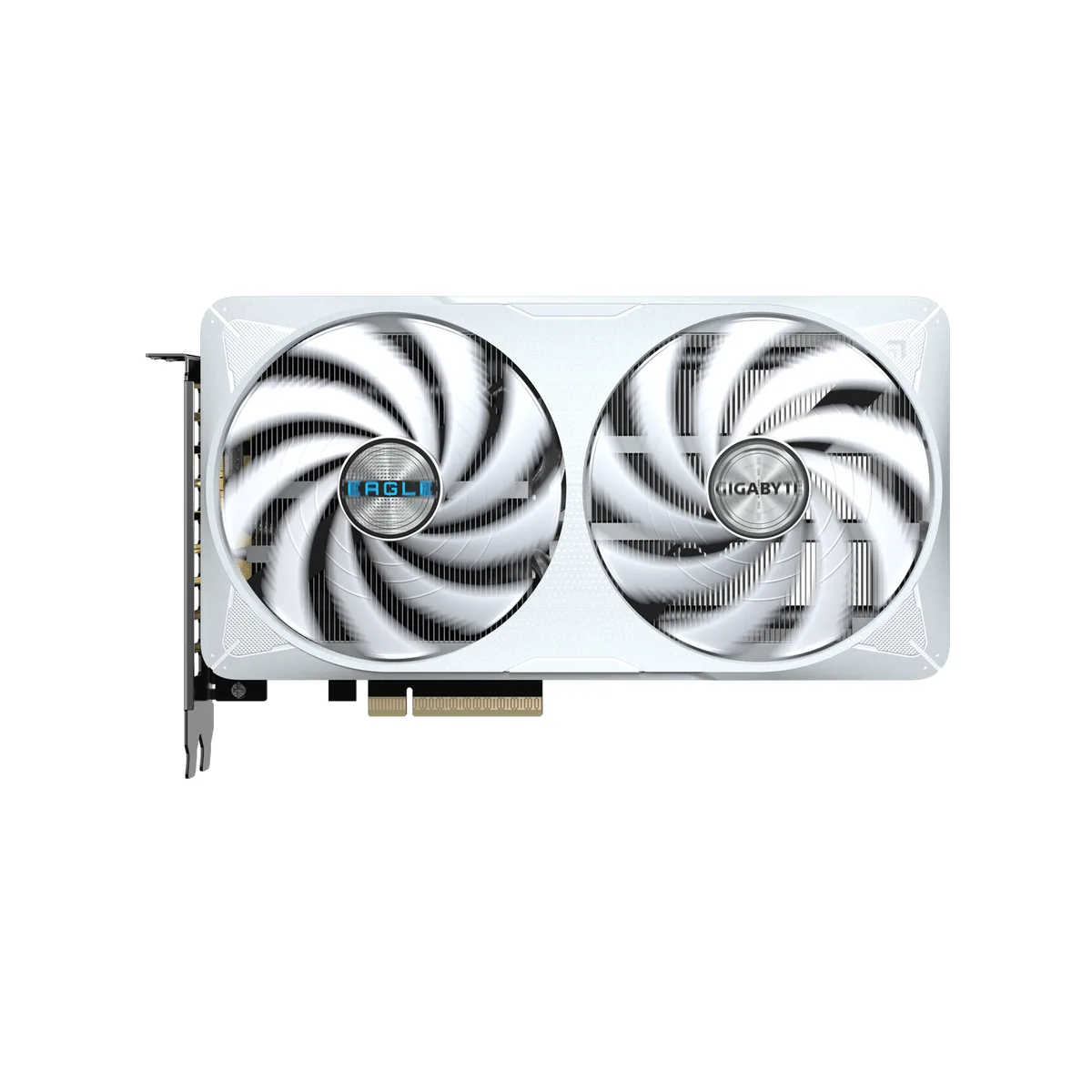

White dual-fan ATX graphics card, 215 mm long, 2-slot design

GIGABYTE

GIGABYTE GV-N506TEAGLEOC ICE-16GD GeForce RTX 5060 Ti 16GB graphics card

SKU CH-520Y-9XDYH MPN GV-N506TEAGLEOC ICE-16GD

Refurbished RTX 5060 Ti with 16 GB GDDR7 memory, 2617 MHz core clock and dual-fan cooling in a white two-slot design

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2617 MHz
  • Effective Memory Clock28 GHz
  • 16 GB GDDR7 memory supports high-resolution textures
  • Core clock of 2617 MHz delivers strong compute performance
  • PCI Express 5.0 x8 interface provides high bandwidth
  • Four display outputs enable multi-monitor setups
  • 180 W TDP fits a 650 W power supply

Eagle RTX 5060 Ti 16GB overview

The GIGABYTE Eagle GeForce RTX 5060 Ti GV-N506TEAGLEOC ICE-16GD is a PCI Express 5.0 x8 graphics card built for 1440p gaming and creative workloads. It pairs a 2617 MHz core clock with 16GB of GDDR7 memory across a 128-bit interface. The white dual-fan cooler fits a standard ATX form factor at 215 mm length.

Sustained load behaviour

Under continuous load the 180W TDP is managed by the dual-fan thermal solution without throttling the 2617 MHz boost clock. The 28 GHz effective memory clock feeds the 128-bit bus steadily, keeping frame times consistent in extended sessions. A 650W power supply is recommended for stable delivery through the single 8-pin connector.

Thermals noise and power

The card draws up to 180W from the 8-pin connector while the two fans maintain acceptable temperatures at moderate acoustic levels. Idle power drops significantly when the display outputs are inactive. The 2-slot, 40 mm thick profile allows adequate airflow in most mid-tower cases.

Highlights

  • 16 GB GDDR7 memory supports high-resolution textures
  • Core clock of 2617 MHz delivers strong compute performance
  • PCI Express 5.0 x8 interface provides high bandwidth
  • Four display outputs enable multi-monitor setups
  • 180 W TDP fits a 650 W power supply

Specifications

BrandGIGABYTE
SeriesEagle
ModelGV-N506TEAGLEOC ICE-16GD
Part NumberGV-N506TEAGLEOC ICE-16GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2617 MHz
Effective Memory Clock28 GHz
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorWhite
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length215 mm
Card Dimensions (L x H)215 x 122 x 40 mm
Slot Width2 Slots
Shipping weight0.41 kg
Package size333 × 241 × 61 mm

Questions about this item

How much heat does the 180W TDP and dual-fan cooler push into the case during long sessions?

The card is rated at 180W thermal design power and uses a dual-fan cooler; case airflow will determine actual temperatures.

My power supply only has a single 8-pin PCIe cable — is that enough?

Yes, the board draws auxiliary power through one 8-pin connector and the maker recommends a 650W unit.

Will the PCI Express 5.0 x8 interface run at full speed on my PCIe 4.0 motherboard?

It will operate at PCIe 4.0 x8 speeds on a 4.0 board, which still provides ample bandwidth for the GPU.
