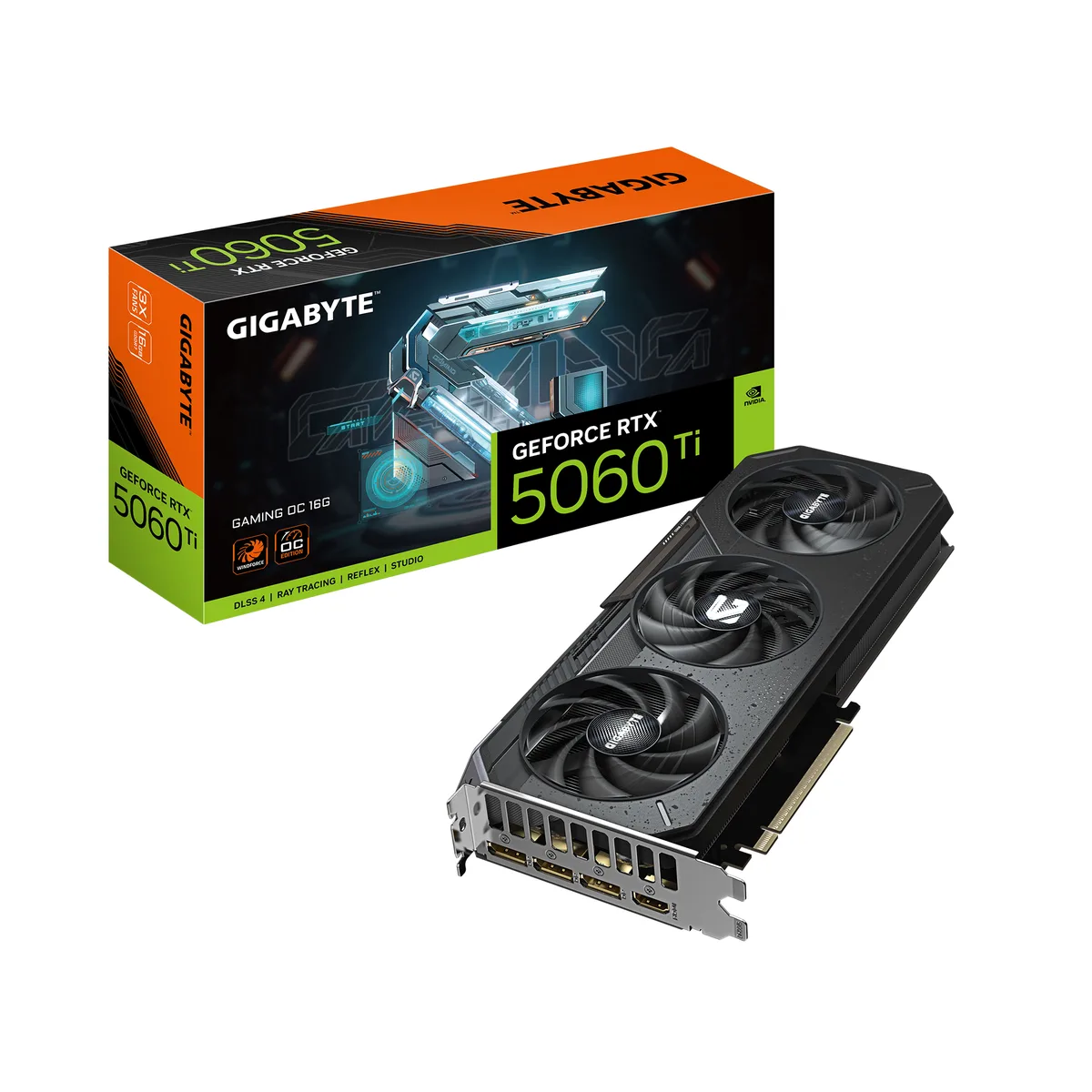

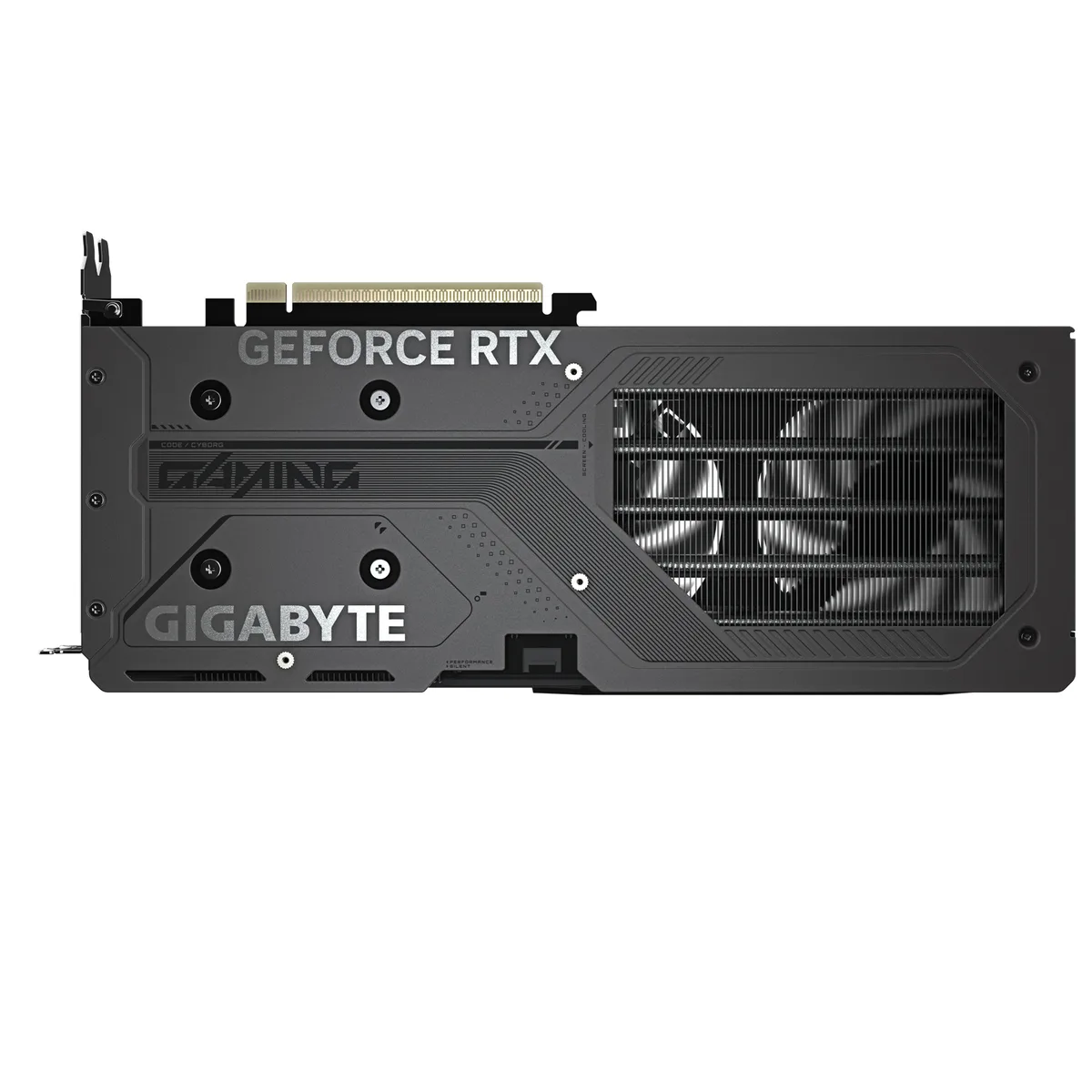

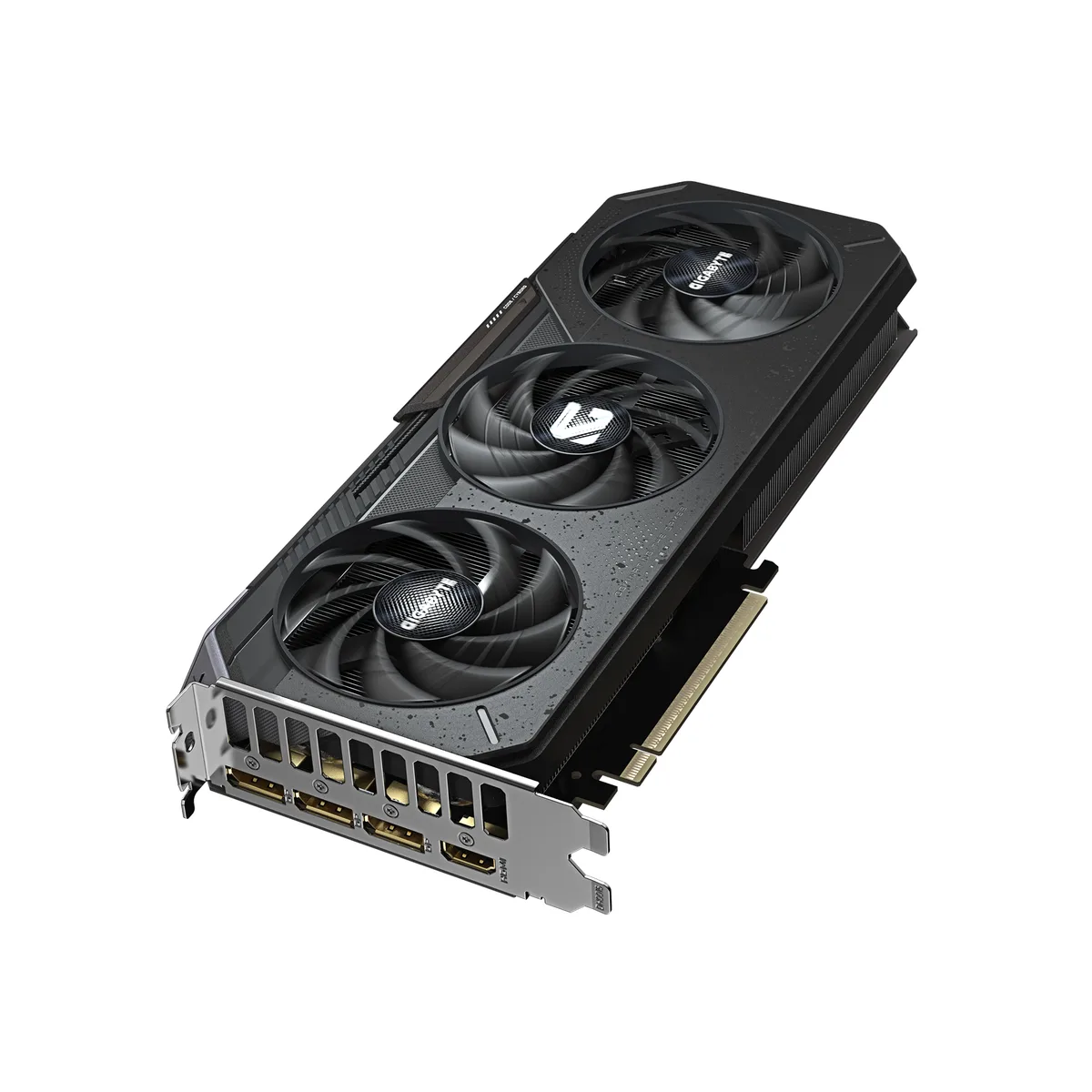

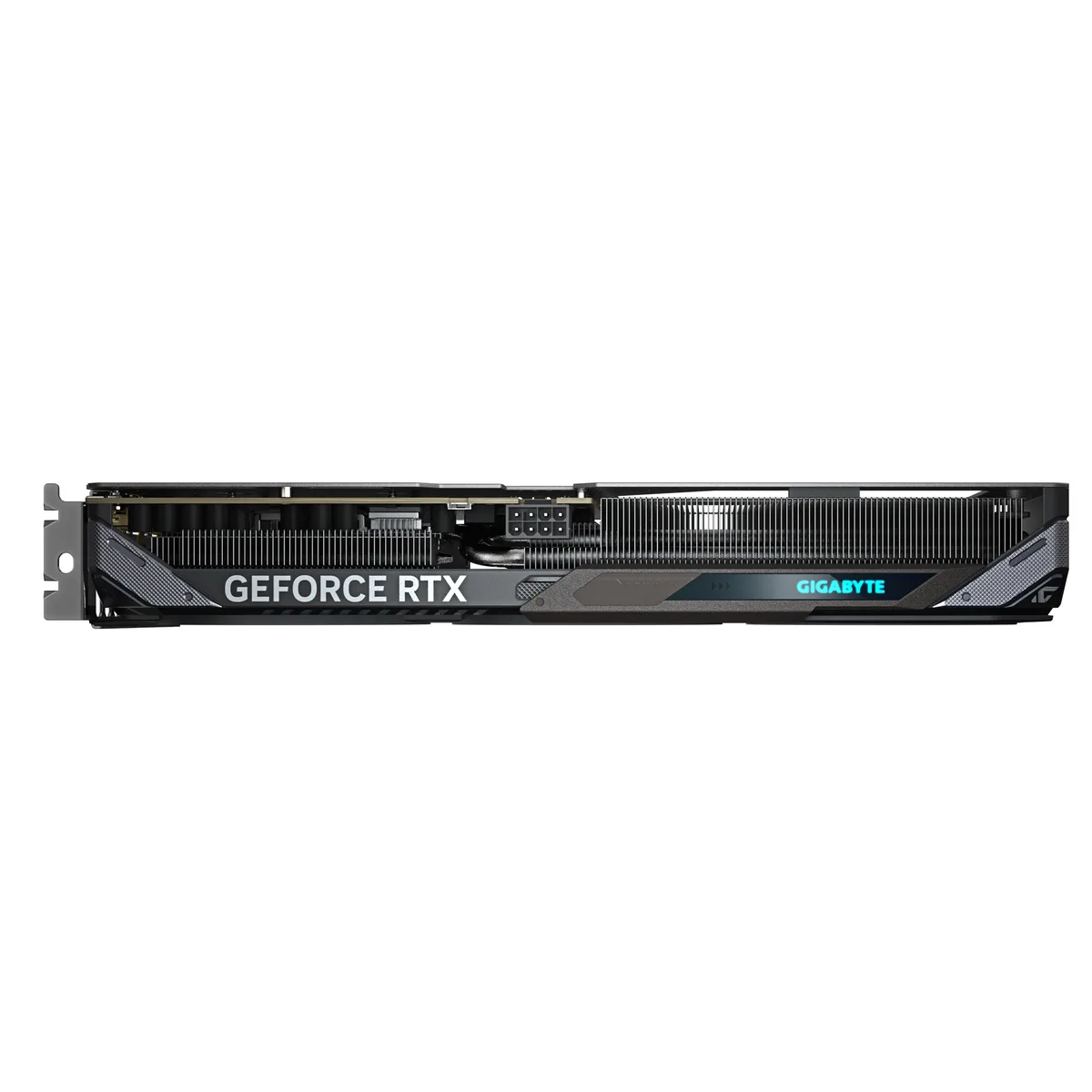

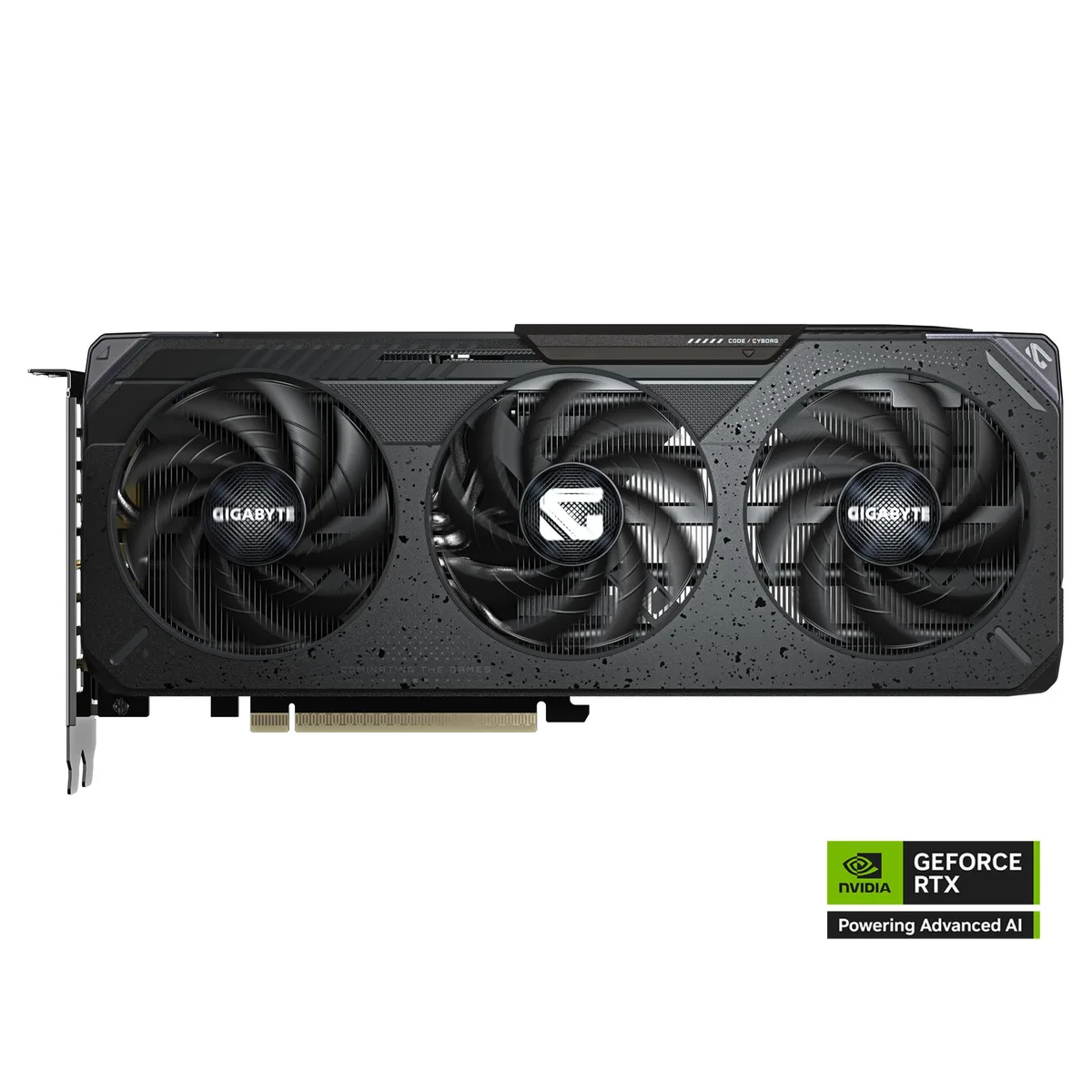

Black triple-fan graphics card with metal backplate, 281 mm long, two-slot design

GIGABYTE

GIGABYTE GV-N506TGAMING OC-16GD GeForce RTX 5060 Ti 16GB graphics card

SKU CH-BQM8-9Z9V7 MPN GV-N506TGAMING OC-16GD

GeForce RTX 5060 Ti graphics card with 16GB GDDR7 memory, 2647 MHz core clock and triple-fan cooling for 1440p gaming

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2647 MHz
  • Effective Memory Clock28 GHz

Option Gaming

Struck-through versions exist but are not stocked here.

Edition RTX 5060 Ti 16GB OC

Struck-through versions exist but are not stocked here.

  • 16GB GDDR7 memory enables high-resolution textures
  • 2647 MHz core clock delivers responsive gaming performance
  • PCI Express 5.0 x8 interface provides high-bandwidth data transfer
  • Triple-fan cooler maintains thermal control under load
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

RTX 5060 Ti 16GB Gaming Card

This GIGABYTE Gaming model equips the GeForce RTX 5060 Ti with 16GB of GDDR7 memory on a 128-bit bus. The core runs at 2647 MHz while the effective memory clock reaches 28 GHz. It targets 1440p gaming and content creation workloads that benefit from the larger frame buffer and PCI Express 5.0 x8 bandwidth.

PCIe 5.0 x8 Installation Notes

The card fits a standard ATX slot and occupies two expansion slots with a length of 281 mm. A single 8-pin power connector feeds the 180 W thermal design power alongside a 650 W recommended PSU. Ensure the case clears 281 mm and the motherboard supplies a PCIe 5.0 x8 link for full throughput.

DisplayPort 2.1b and HDMI 2.1b Ready

Three DisplayPort 2.1b outputs and one HDMI 2.1b port drive up to four monitors at 7680 x 4320 resolution. Verify your display cables and monitor inputs match these standards to enable high refresh rates and HDR. DirectX 12 Ultimate and OpenGL 4.6 support are confirmed for modern titles.

Highlights

  • 16GB GDDR7 memory enables high-resolution textures
  • 2647 MHz core clock delivers responsive gaming performance
  • PCI Express 5.0 x8 interface provides high-bandwidth data transfer
  • Triple-fan cooler maintains thermal control under load
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-N506TGAMING OC-16GD
Part NumberGV-N506TGAMING OC-16GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2647 MHz
Effective Memory Clock28 GHz
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length281 mm
Card Dimensions (L x H)281 x 119 x 40 mm
Slot Width2 Slots
Shipping weight1.27 kg
Package size368 × 191 × 81 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the card is running at its 2647 MHz core clock and 28 GHz memory clock after installation?

Open GPU-Z or the NVIDIA control panel and check the sensor tab while a 3D load is running; the core should read 2647 MHz and the effective memory 28 GHz.

What comes in the box with the GV-N506TGAMING OC-16GD and what must I source separately?

The package contains the triple-fan graphics card and documentation; you must supply an 8-pin PCIe power cable from a 650 W or larger PSU.

Which version of the RTX 5060 Ti should I choose if I need 16 GB of GDDR7 on a 128-bit bus?

This Gaming OC model is the only listed version with 16 GB GDDR7 across a 128-bit interface, matching the 5060 Ti specification.
