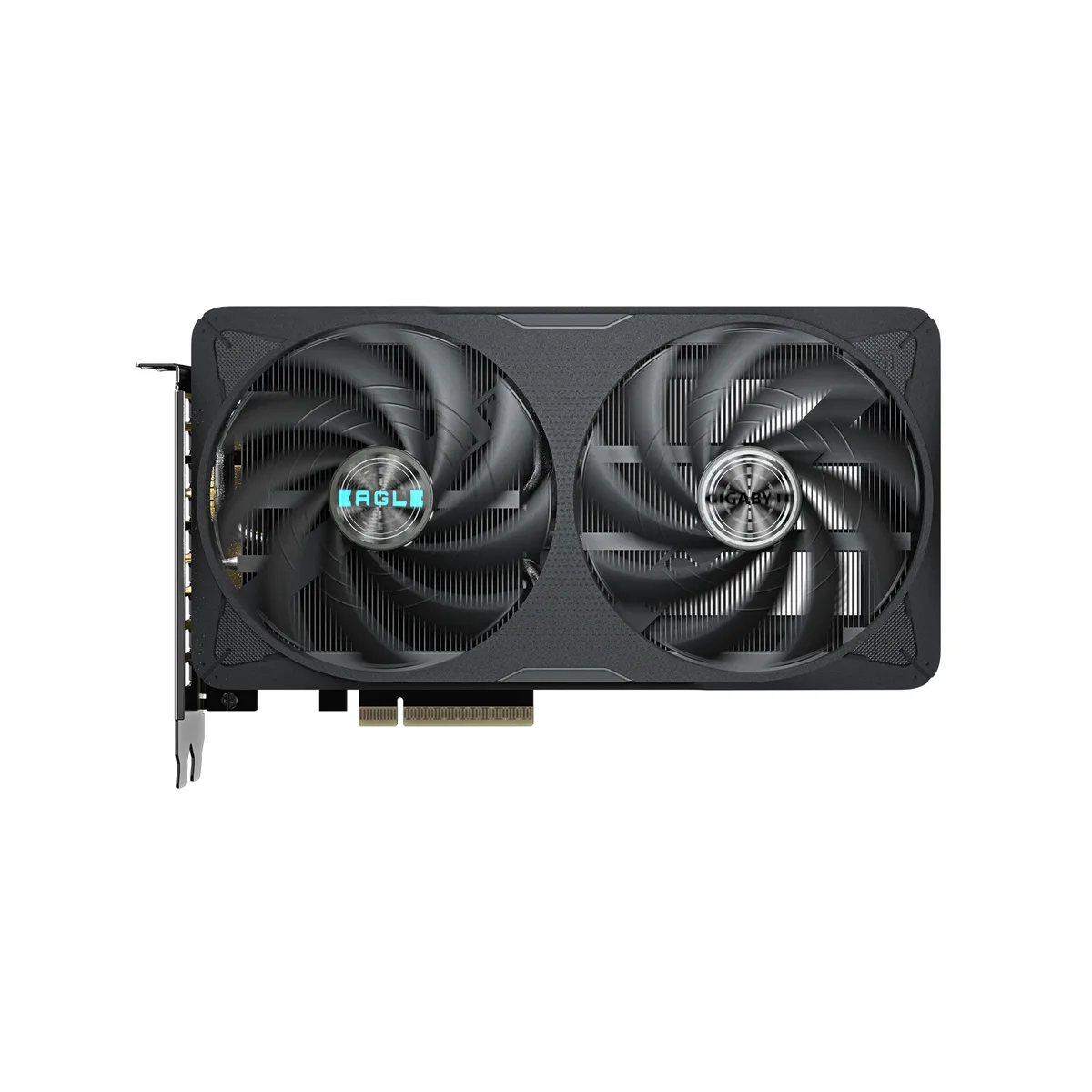

Black dual-fan graphics card, silver accents, 208mm long

GIGABYTE

GIGABYTE GV-N506TWF2OC-8GD GeForce RTX 5060 Ti graphics card

SKU CH-XWWA-BFBQ2 MPN GV-N506TWF2OC-8GD

Delivers 4608 CUDA cores and 8 GB of 128-bit GDDR7 memory on a PCIe 5.0 x8 interface with a 2587 MHz core clock

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2587 MHz
  • CUDA Cores4608

Option WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5060 Ti 8GB OC

Struck-through versions exist but are not stocked here.

  • GDDR7 memory delivers 28 GHz bandwidth for high-resolution textures
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x8 interface doubles host bandwidth versus 4.0
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan WindForce cooler handles 180 W TDP in a 208 mm card

WindForce GeForce RTX 5060 Ti graphics card

The GIGABYTE GV-N506TWF2OC-8GD is a PCI Express 5.0 x8 add-in board built around the NVIDIA GeForce RTX 5060 Ti GPU. It targets gamers and creators who need 4608 CUDA cores and 8GB of GDDR7 memory for 1440p gaming or entry-level content creation workloads. A dual-fan WindForce cooler keeps the 180W TDP in check inside standard ATX cases.

128-bit GDDR7 memory interface

The single specification that decides fit is the 128-bit memory bus paired with 8GB GDDR7 running at a 28 GHz effective clock. This combination sets the practical bandwidth ceiling for texture-heavy scenes and large frame buffers. If your workload demands wider bus widths or more VRAM, a different tier of card is required.

Dual-fan thermal profile at 180W

Under typical gaming loads the double-fan cooler maintains the 2587 MHz core clock while drawing up to 180W through a single 8-pin power connector. A 650W power supply is the recommended baseline for system stability. The 2-slot, 208mm long form factor fits most mid-tower chassis without clearance issues.

Highlights

  • GDDR7 memory delivers 28 GHz bandwidth for high-resolution textures
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x8 interface doubles host bandwidth versus 4.0
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan WindForce cooler handles 180 W TDP in a 208 mm card

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N506TWF2OC-8GD
Part NumberGV-N506TWF2OC-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2587 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length208 mm
Card Dimensions (L x H)208 x 120 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size292 × 216 × 51 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 2587 MHz core clock behave once the card is installed in a system?

The 2587 MHz figure is the rated boost clock; actual frequency in a real machine will vary with workload, temperature and power headroom, typically sustaining near that level in demanding 3D tasks while dropping lower at idle or under light load.

What does the PCI Express 5.0 x8 interface limit in practice?

The x8 electrical width caps peak bandwidth to half of a full x16 link, so the card cannot exceed that ceiling even on a PCIe 5.0 platform, though most current games show negligible impact at 1080p and 1440p resolutions.

What clearance and power connections are needed to fit this 208 mm dual-slot card?

The card measures 208 mm long, occupies two expansion slots and requires a single 8-pin PCIe power connector; ensure your case has at least 208 mm of GPU clearance and a 650 W or larger PSU with the necessary cable.
