GIGABYTE
GIGABYTE H470 HD3 Intel motherboard
ATX board for LGA 1200 10th Gen Intel Core with dual M.2 NVMe PCIe 3.0 x4, four DDR4 slots up to 128 GB, Intel GbE LAN, USB 3.2 Gen 2 Type-C, and 7.1-channel Realtek ALC887 audio
- CPU Socket TypeLGA 1200
- CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
- ChipsetIntel H470
- Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
- Supports 10th Gen Intel Core processors via LGA 1200 socket
- Dual NVMe PCIe Gen3 x4 M.2 connectors for fast storage
- Four DDR4 DIMM slots enable up to 128 GB dual-channel memory
- Intel GbE LAN with cFosSpeed software optimises network traffic
- Smart Fan 5 with hybrid headers and Fan Stop for quiet cooling
Socket LGA 1200 Intel H470 ATX Motherboard

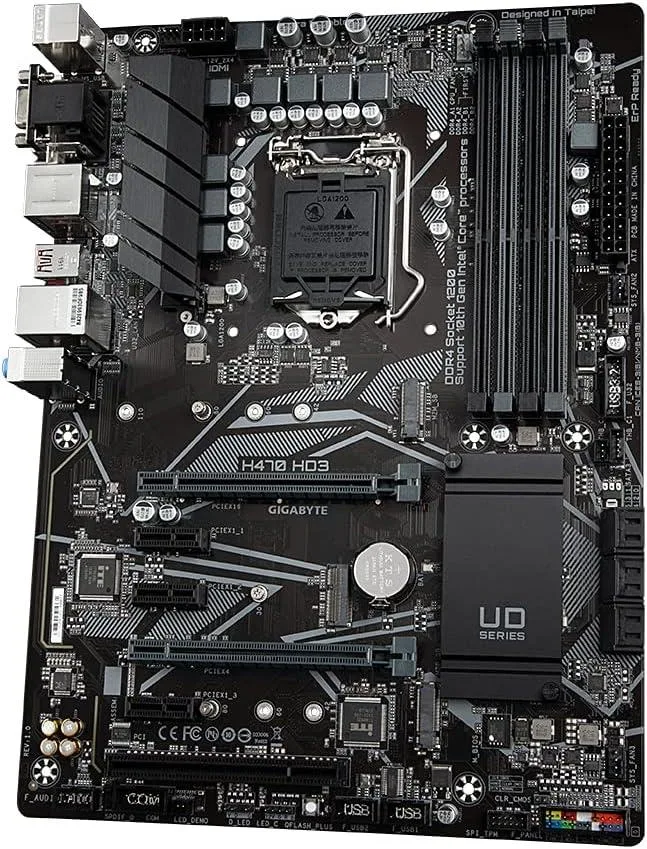

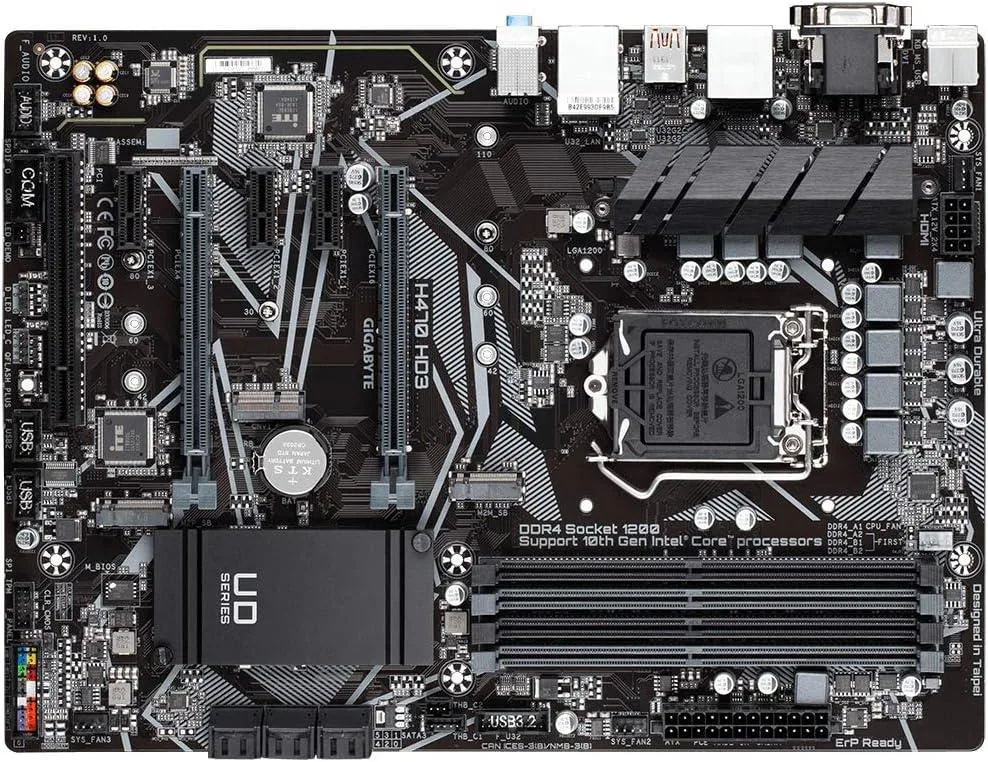

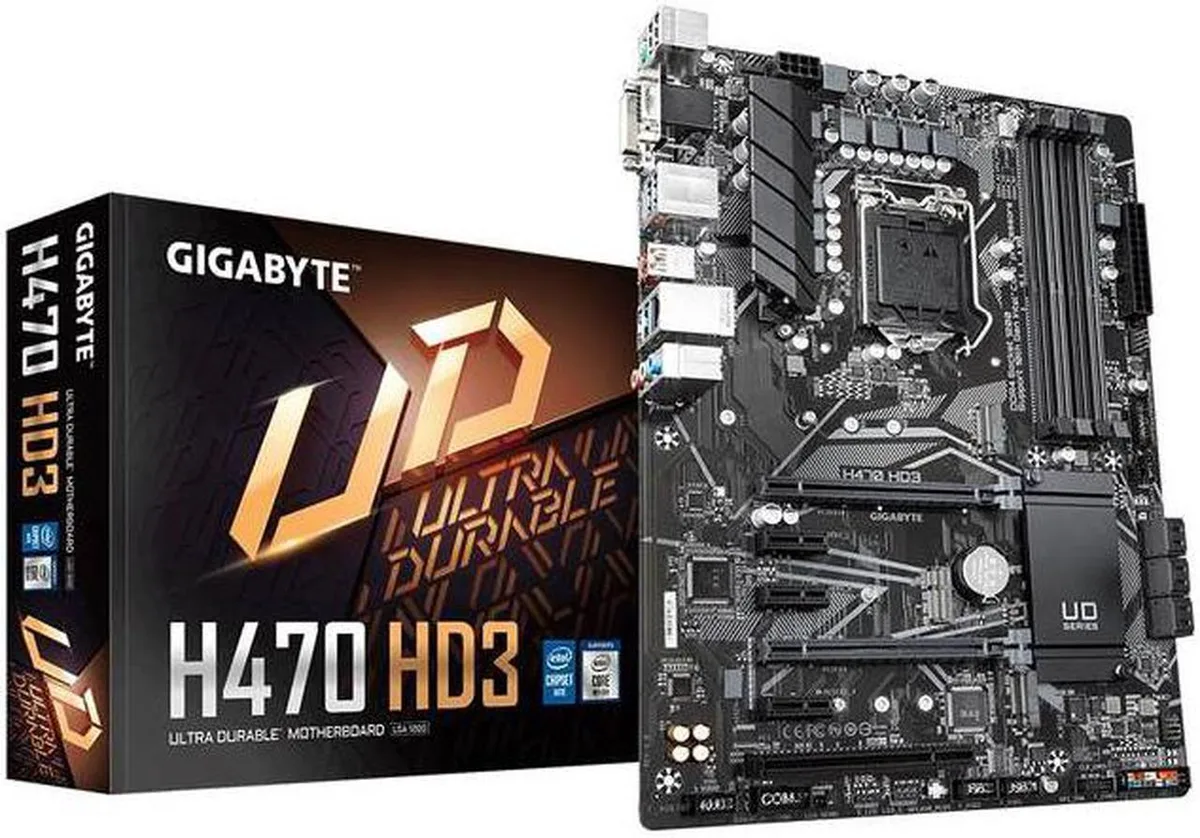

The GIGABYTE H470 HD3 is an ATX motherboard built for 10th Generation Intel Core i9, i7, i5 and i3 processors in the LGA 1200 package. It also supports Pentium and Celeron CPUs using the same socket. The board provides four 288-pin DDR4 slots with a maximum capacity of 128 GB running in dual-channel mode.
6+2 Phase Digital VRM with Lower RDS(on) MOSFETs
A direct 6+2 phase digital PWM design uses Lower RDS(on) MOSFETs to deliver precise power to the CPU under sustained load. Smart Fan 5 employs multiple temperature sensors and hybrid fan headers with Fan Stop to keep thermals controlled during extended workloads. Anti-sulfur resistors add long-term durability to the power circuitry.
Dual M.2 Slots and PCIe 3.0 Expansion Check
Two M.2 Socket 3 connectors accept 2242, 2260, 2280 and 22110 form-factor drives with PCIe x4/x2 or SATA interfaces. One slot is wired for Intel Optane Memory acceleration only. The board also offers one PCIe 3.0 x16 slot, three PCIe 3.0 x1 slots and a legacy PCI slot for add-in cards.
Highlights
- Supports 10th Gen Intel Core processors via LGA 1200 socket
- Dual NVMe PCIe Gen3 x4 M.2 connectors for fast storage
- Four DDR4 DIMM slots enable up to 128 GB dual-channel memory
- Intel GbE LAN with cFosSpeed software optimises network traffic
- Smart Fan 5 with hybrid headers and Fan Stop for quiet cooling
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | H470 HD3 |
| CPU Socket Type | LGA 1200 |
| CPU Type | Support for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Chipset | Intel H470 |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512MB |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Express x1 | 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) |
| Intel Optane Ready | Intel Optane Memory Ready * System Acceleration with Intel Optane Memory enabled on the M2M_SB connector only. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN chip |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Onboard USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported fu |
Questions about this item
How much power does the 6+2 phase VRM draw when a 10-core CPU runs all day?
The 6+2 phase digital PWM with lower RDS(on) MOSFETs is designed to deliver precise power to 10-core Intel CPUs, but the board does not publish a sustained VRM power-draw figure.
What cooler mounting hardware is required for the LGA 1200 socket?
The motherboard uses the LGA 1200 socket; you must supply a cooler that explicitly lists LGA 1200 compatibility.
Will a PCIe 3.0 x4 NVMe SSD on the M2M_SB slot share bandwidth with the PCI Express x16 graphics slot?
The M2M_SB connector provides PCIe 3.0 x4 directly from the chipset, while the PCIEX16 slot runs at x16 from the CPU, so the two do not share lanes.
