Green server motherboard with large silver CPU socket and eight black memory slots

GIGABYTE

GIGABYTE MC62-G40-5965WX01 server motherboard with Threadripper PRO 5965WX 24-core 48-thread

SKU CH-KTYB-N4558 MPN MC62-G40-5965WX01

Server motherboard with integrated 24-core 48-thread Threadripper PRO 5965WX, eight-channel DDR4 to 2 TB, seven PCIe 4.0 x16 slots, dual 10 GbE LAN and four SATA plus three SlimSAS ports

  • CPU Socket TypeSocket sWRX8
  • CPU TypeSupports AMD Ryzen Threadripper PRO 5000WX Series Processors
  • Number of Processor Support1
  • CPU FeaturesUp to 64 cores, 128 threads TDP up to 280W
  • North BridgeAMD WRX80
  • Number of DDR4 Slots8 x 288-pin

Model

  • 5955WX
  • 5965WX

Struck-through versions exist but are not stocked here.

  • 24-core Threadripper PRO 5965WX handles heavy multi-threaded workloads
  • Eight-channel DDR4 3200 supports up to 2 TB registered ECC memory
  • Seven PCIe 4.0 x16 slots enable multi-GPU and accelerator configurations
  • Dual 10 GbE plus 1 GbE LAN with dedicated management port
  • Four SATA, three SlimSAS and two M.2 storage slots provide flexible drive options

Workstation platform bundle

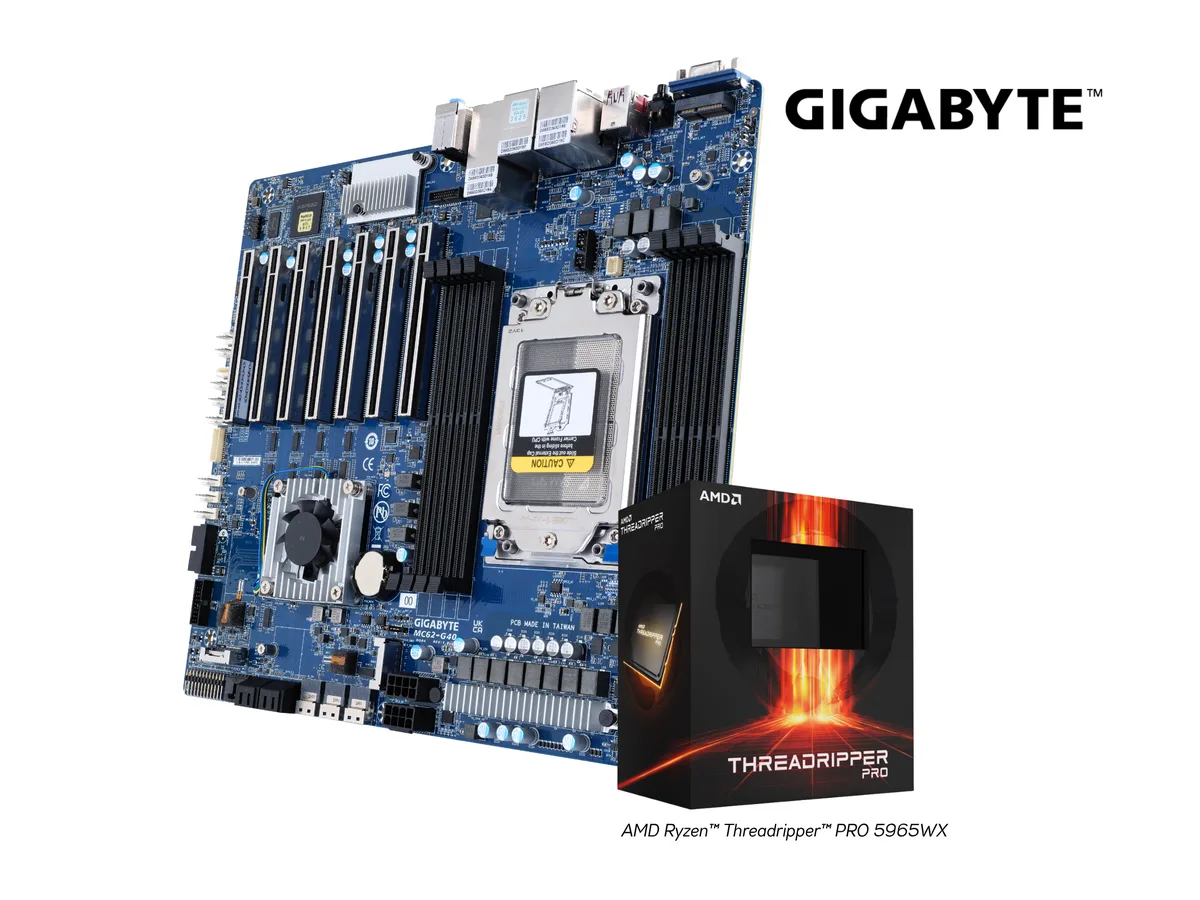

The GIGABYTE MC62-G40 motherboard arrives with an AMD Ryzen Threadripper PRO 5965WX processor already installed. The 24-core, 48-thread CPU runs at a 3.8 GHz base clock and can boost up to 4.5 GHz. This combination targets professionals who need a validated, single-socket workstation foundation without separate component assembly.

Professionals needing up to 64 cores and 128 threads

The board supports Threadripper PRO 5000WX and 3000WX series processors up to 64 cores and 128 threads with a 280W TDP limit. Eight-channel DDR4 3200 memory scales to 2TB using registered ECC modules across eight slots. Builders who require dual-processor configurations or memory capacities beyond 2TB should evaluate alternative platforms.

Eight-channel DDR4 3200 with ECC

Memory subsystem uses eight 288-pin slots running DDR4 3200 in eight-channel mode with mandatory registered ECC DIMMs. Maximum supported capacity is 2TB. This specification determines whether the platform meets workload requirements for memory bandwidth, error correction and total capacity.

Highlights

  • 24-core Threadripper PRO 5965WX handles heavy multi-threaded workloads
  • Eight-channel DDR4 3200 supports up to 2 TB registered ECC memory
  • Seven PCIe 4.0 x16 slots enable multi-GPU and accelerator configurations
  • Dual 10 GbE plus 1 GbE LAN with dedicated management port
  • Four SATA, three SlimSAS and two M.2 storage slots provide flexible drive options

Specifications

BrandGIGABYTE
ModelMC62-G40
CPU Socket TypeSocket sWRX8
CPU TypeSupports AMD Ryzen Threadripper PRO 5000WX Series Processors
Supports AMD Ryzen Threadripper PRO 3000WX Series Processors
Number of Processor Support1
CPU FeaturesUp to 64 cores, 128 threads
TDP up to 280W
North BridgeAMD WRX80
Number of DDR4 Slots8 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported2TB
Channel SupportedEight Channel
ECC SupportedYes
RegisteredYes
PCI Express 4.0 x16Slot_7: PCIe x16 (Gen4 x16) slot
Slot_6: PCIe x16 (Gen4 x16) slot
Slot_5: PCIe x16 (Gen4 x16) slot
Slot_4: PCIe x16 (Gen4 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x16 (Gen4 x8) slot
Slot_1: PCIe x16 (Gen4 x16) slot
SATA4 x SATA 6.0Gb/s
Additional SATA RAID0/1/5/10
SAS3 x SlimSAS connector (PCIe Gen4 x4 or SATA)
M.22 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4 or SATA, from CPU
- Support 2242/2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- Supports 2230 cards
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
Number of LAN2
LAN ChipsetIntel X550-AT2
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I210-AT
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 10Gbps + 1Gbps
Back I/O Ports1 x USB 3.2 Gen 2x1 (Type-C)(FCH)
4 x USB 3.2 Gen 2x1 (Type-A)(CPU)
1 x USB 3.2 Gen 2x1 (Type-A)(FCH)
1 x VGA
2 x RJ45 (10Gb/s)
1 x RJ45 (1Gb/s)
1 x MLAN
3 x Audio jacks
1 x ID button with LED
Onboard USB2 x USB 3.2 Gen1 x2 headers
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x FCH fan header
8 x System fan headers
2 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
3 x SlimSAS connectors
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header
Form FactorCEB
Dimensions (W x L)12.0" x 10.5"
Package Contents1 x MC62-G40
1 x I/O shield
1 x Quick start guide
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
4 x SATA 6Gb/s cables (500mm)
Contains Embedded BatteryNo
Shipping weight2.00 kg
Package size363 × 330 × 81 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 24-core 5965WX bundle or a different Threadripper PRO for this sWRX8 board?

The bundle includes the 5965WX at 3.8 GHz base and 4.5 GHz boost with 24 cores and 48 threads. The board also supports 5000WX and 3000WX series up to 64 cores and 128 threads at 280 W TDP.

What does the 4.5 GHz boost clock mean when the 5965WX is installed in this motherboard?

The 5965WX can reach 4.5 GHz boost on this WRX80 board with eight-channel DDR4-3200 and 280 W TDP headroom, subject to cooling and workload.

How many PCIe 4.0 lanes does the WRX80 chipset provide for the seven x16 slots and SlimSAS connectors?

The board wires five slots at Gen4 x16, one at Gen4 x8, and three SlimSAS at Gen4 x4, all fed from the CPU and WRX80 chipset.
