Green rectangular ATX server motherboard with eight DDR5 slots, five PCIe x16 slots and three SlimSAS connectors

GIGABYTE

GIGABYTE MS04-CE0 server motherboard LGA 4710 8-channel DDR5 8000

SKU CH-FWM5-NSZ8K MPN MS04-CE0

Single-socket LGA 4710 board with eight-channel DDR5 8000, five PCIe 5.0 x16 slots, three SlimSAS for twelve SATA drives, two M.2 slots and dual 1 GbE LAN

  • CPU Socket TypeLGA 4710
  • CPU TypeSupports Intel Xeon 6 Processors - Intel Xeon 6700E-Series P
  • Number of Processor Support1
  • CPU FeaturesSingle processor, TDP up to 350W
  • Memory Slots8 x DDR5 288-pin
  • Memory StandardDDR5 8000
  • Supports Intel Xeon 6 processors up to 350W TDP via LGA 4710 socket
  • Eight-channel DDR5 8000 memory across eight DIMM slots for high bandwidth
  • Five PCIe 5.0 expansion slots including four x16 and one x8 for accelerators
  • Twelve SATA 6Gb/s ports through three SlimSAS connectors for dense storage
  • Dual 1GbE LAN ports with dedicated management LAN for remote administration

Single-socket Xeon 6 platform

The GIGABYTE MS04-CE0 is an ATX server motherboard built for the LGA 4710 socket and Intel Xeon 6 processors with a TDP ceiling of 350 W. It targets deployments that need eight-channel DDR5 8000 memory and a dense mix of PCIe 5.0 expansion plus onboard storage connectivity in a single-processor chassis.

Sustained throughput with eight-channel memory

Eight DDR5 288-pin slots run in eight-channel mode with registered DIMM support, feeding the CPU up to 136 PCIe 5.0 lanes for continuous data movement. Four x16 slots and one x8 slot all operate at Gen5 speeds, while two M.2 connectors add PCIe Gen5 x2 paths and three SlimSAS ports expose twelve SATA 6 Gb/s lanes for high-volume storage traffic.

Standard ATX mounting with server cabling

The board fits a regular ATX hole pattern and uses a 24-pin plus dual 8-pin EPS power arrangement common in 1U and 2U rack cases. Installers must route the SlimSAS cables to backplanes or drive cages and ensure the chosen cooler clears the eight DIMM slots, which sit close to the socket on this density-optimised layout.

Highlights

  • Supports Intel Xeon 6 processors up to 350W TDP via LGA 4710 socket
  • Eight-channel DDR5 8000 memory across eight DIMM slots for high bandwidth
  • Five PCIe 5.0 expansion slots including four x16 and one x8 for accelerators
  • Twelve SATA 6Gb/s ports through three SlimSAS connectors for dense storage
  • Dual 1GbE LAN ports with dedicated management LAN for remote administration

Specifications

BrandGIGABYTE
ModelMS04-CE0
CPU Socket TypeLGA 4710
CPU TypeSupports Intel Xeon 6 Processors
- Intel Xeon 6700E-Series Processors
- Intel Xeon 6700P-Series Processors
- Intel Xeon 6500P-Series Processors
Number of Processor Support1
CPU FeaturesSingle processor, TDP up to 350W
Memory Slots8 x DDR5 288-pin
Memory StandardDDR5 8000
Channel SupportedEight Channel
RegisteredYes
PCI Express 5.0 x16Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)
SAS3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.22 x M.2 (2280/22110), PCIe Gen5 x2
LAN ChipsetIntel I210-AT
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I210-AT
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

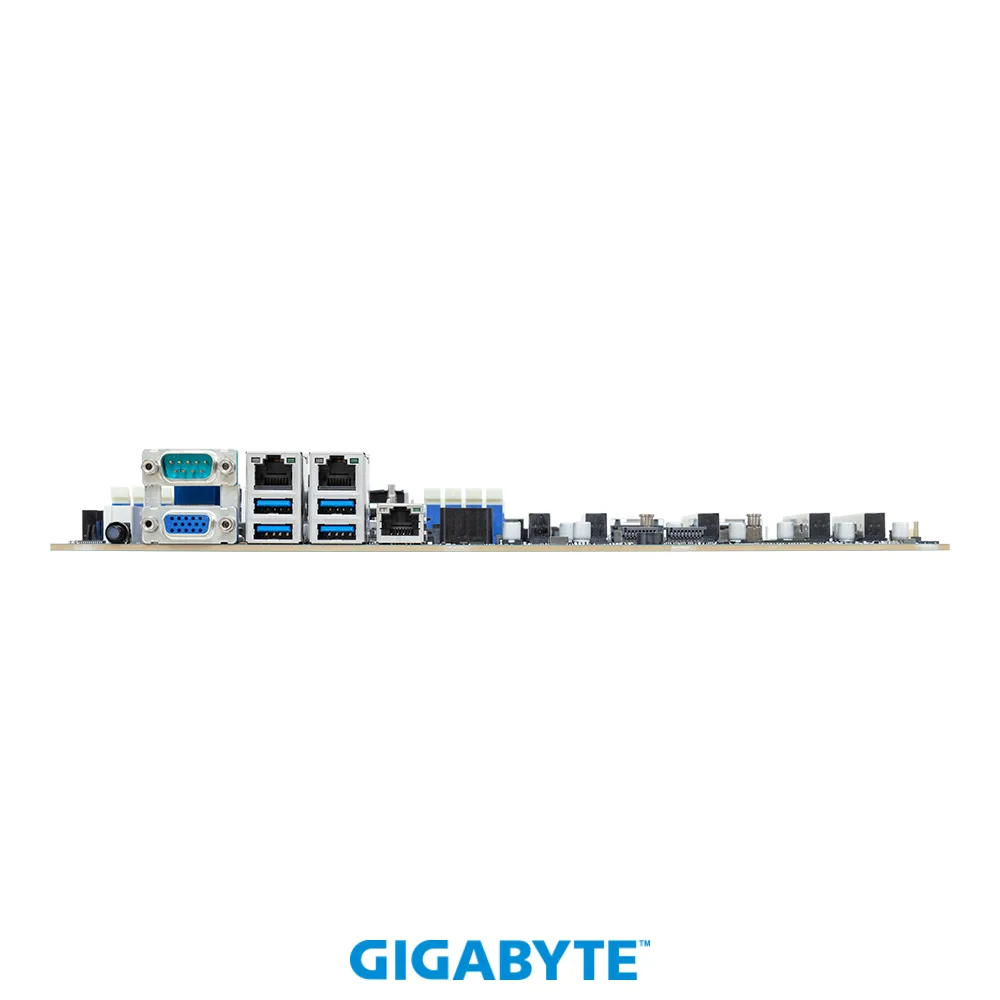

Back I/O Ports4 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Onboard USB1 x USB 3.2 Gen1 x2 header
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Package Contents1 x MS04-CE0
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Shipping weight1.81 kg
Package size356 × 330 × 76 mm

Questions about this item

How much power and heat should I plan for when this board runs a 350 W Xeon 6 processor all day?

The socket is rated for up to 350 W TDP, so the cooling solution must handle that continuous thermal load; power draw will scale with the installed processor and full 8-channel DDR5 8000 population.

Which memory modules and CPU cooler mounting hardware do I need to have on hand before this board will post?

You need eight registered DDR5 8000 RDIMM or MCR DIMM modules and a cooler compatible with the LGA 4710 socket and its 350 W TDP limit.

Will my existing SATA SSDs and PCIe 4.0 add-in cards work at full speed in the SlimSAS and PCIe Gen5 slots?

Twelve SATA 6 Gb/s drives connect through the three SlimSAS 4i ports, and PCIe 4.0 cards will operate at Gen4 speeds in the five Gen5 x16/x8 slots.
