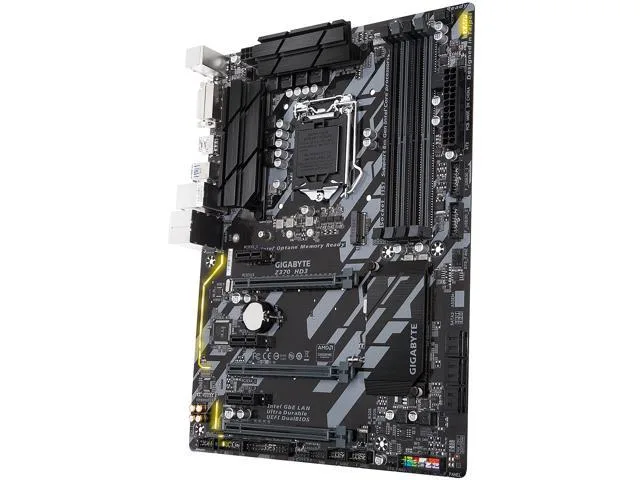

ATX motherboard with black PCB silver heatsinks and silver I/O shield

GIGABYTE

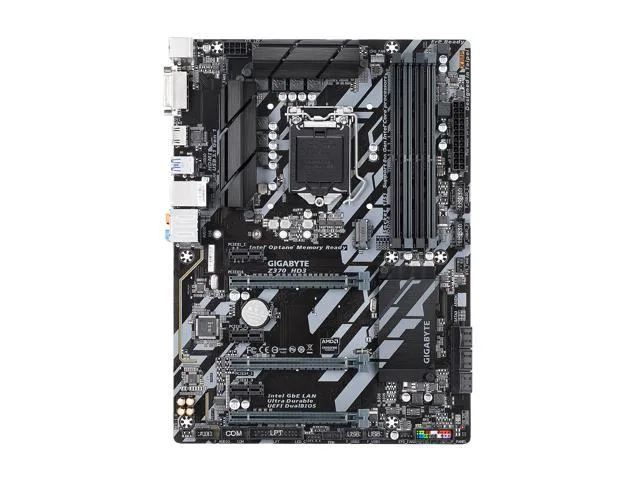

GIGABYTE Z370 HD3 (rev. 1.0) Intel motherboard

SKU CH-1P95-AX860

ATX board for 8th Gen Intel Core CPUs with four DDR4 slots up to 64 GB, one PCIe x16 slot, six SATA ports, one M.2 socket, HDMI and DVI video outputs, Intel gigabit LAN and Realtek 7.1 audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeOnly Support for 8th Generation Intel Core i7 / i5 / i3 proc
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.
  • Supports 8th generation Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • HDMI and DVI-D outputs drive integrated graphics at 1920x1200
  • Six SATA 6 Gb/s ports plus one M.2 slot for storage expansion
  • Intel gigabit LAN and Realtek ALC892 audio with 7.1-channel support

Z370 chipset for 8th Gen Intel Core

This ATX motherboard uses the Intel Z370 chipset and the LGA 1151 socket limited to 300 Series processors. It accepts 8th Generation Core i7, i5 and i3 CPUs only and will not work with earlier LGA 1151 chips. Four 288pin DDR4 slots support up to 64GB in dual channel mode. The board targets builders who want a mainstream platform with overclocking headroom for 8th Gen CPUs.

Sustained load with Smart Fan 5 cooling

The VRM area and chipset are managed by Smart Fan 5 headers that adjust speed based on multiple onboard temperature sensors. Under prolonged heavy CPU or memory loads the fan curves ramp gradually to keep component temperatures stable without sudden noise spikes. Six SATA 6Gb/s ports and one M.2 Socket 3 M key connector handle storage traffic continuously at rated speeds. The Intel GbE LAN chip maintains 1Gbps throughput during long transfers.

ATX layout with standard mounting and clear I/O

The board follows the ATX form factor with standard screw holes that align with common chassis standoffs. Back I/O includes HDMI, DVI-D, PS/2 combo, two USB 2.0/1.1 and four USB 3.1 Gen 2 Type-A ports. Installers sometimes forget that the DVI-D port does not accept a D-Sub adapter, so a native DVI-D or HDMI display cable is required. The single full-length PCI Express 3.0 x16 slot and two x4 slots leave enough room for dual-slot graphics cards when populated correctly.

Highlights

  • Supports 8th generation Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB across four slots
  • HDMI and DVI-D outputs drive integrated graphics at 1920x1200
  • Six SATA 6 Gb/s ports plus one M.2 slot for storage expansion
  • Intel gigabit LAN and Realtek ALC892 audio with 7.1-channel support

Specifications

BrandGIGABYTE
ModelZ370 HD3 (rev. 1.0)
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeOnly Support for 8th Generation Intel Core i7 / i5 / i3 processors in the LGA1151 package* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1GB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
PCI Express x13 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channelSupport for S/PDIF Out
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports
USB 1.1/2.02 x USB 2.0
Audio Ports6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Onboard USB2 x USB 3.1 Gen 1 headers2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x parallel port header1 x serial port header1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported

Questions about this item

How does the Smart Fan 5 Cooling on the Z370 HD3 handle heat during all-day loads?

Smart Fan 5 Cooling uses multiple temperature headers and hybrid fan pins to adjust speeds automatically, keeping the Intel Z370 chipset and VRM area cool under sustained 8th Gen Core workloads

Which CPU and memory must I already have for this LGA 1151 (300 Series) board to post?

You need an 8th Generation Intel Core i7, i5 or i3 processor in the LGA1151 package plus DDR4 modules — 288-pin, up to 64 GB across four slots, running at 2133 to 4000 MT/s (OC)

Can I keep my existing SATA SSDs and PCIe 3.0 add-in cards when moving to this Z370 HD3?

Yes — six SATA 6Gb/s ports support current SSDs and HDDs, while one PCIe 3.0 x16 slot and three PCIe 3.0 x1 slots accept existing graphics, sound or networking cards
