GIGABYTE
GIGABYTE Z390 M GAMING Intel motherboard
Micro-ATX Z390 board for Intel 8th and 9th Gen CPUs with dual-channel DDR4 to 64 GB, one full-size PCIe 3.0 x16 slot, two M.2 sockets and six SATA 6Gb/s ports
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupport for Intel 9000 Processors and 8th Generation Intel C
- ChipsetIntel Z390
- Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: 1
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 2666/ 2400/ 2133
- Supports Intel 8th & 9th Gen CPUs via LGA 1151 socket
- Up to 64GB DDR4 2666 across four 288-pin slots
- Dual M.2 slots for 2242/2260/2280/22110 SSDs
- 10+2 phase digital VRM with Smart Fan 5 cooling
- Intel Gigabit LAN plus Realtek ALC892 7.1 audio

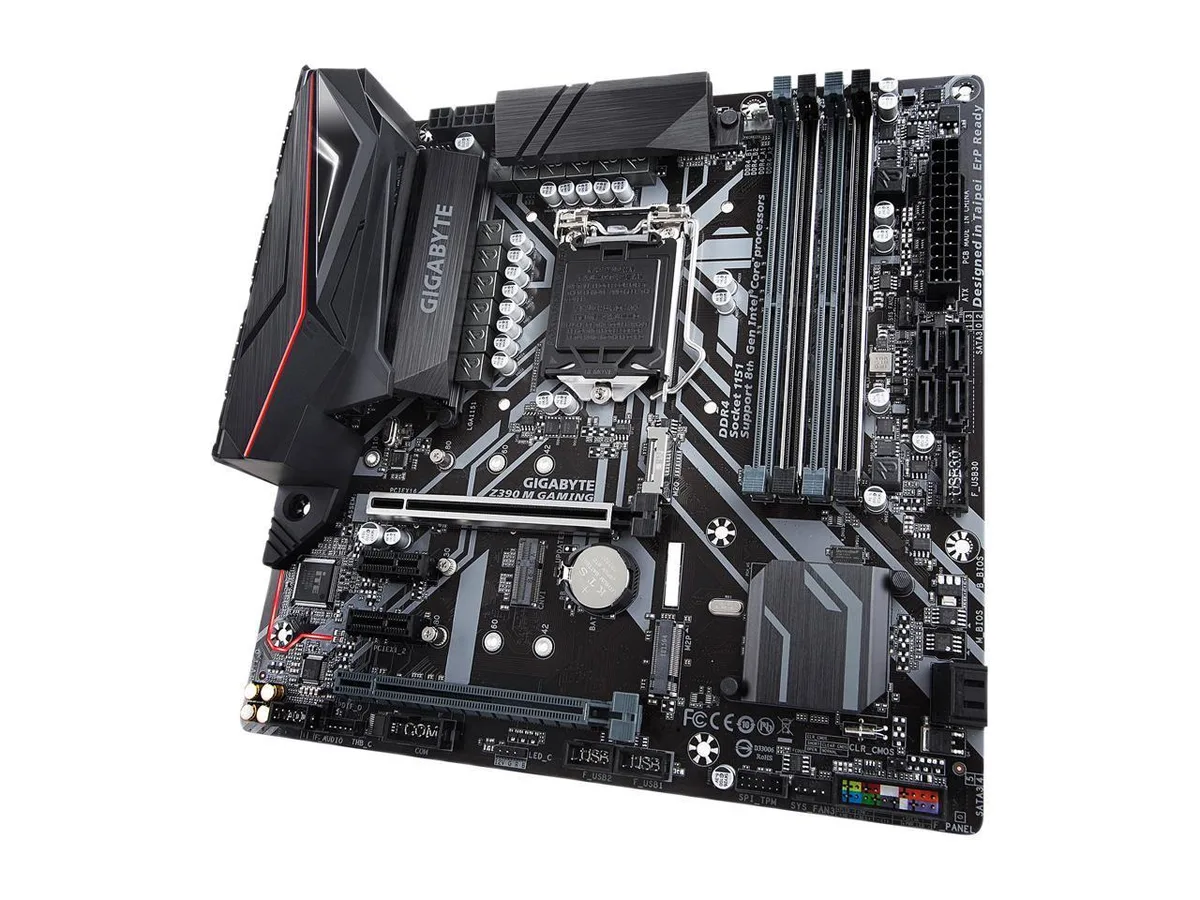

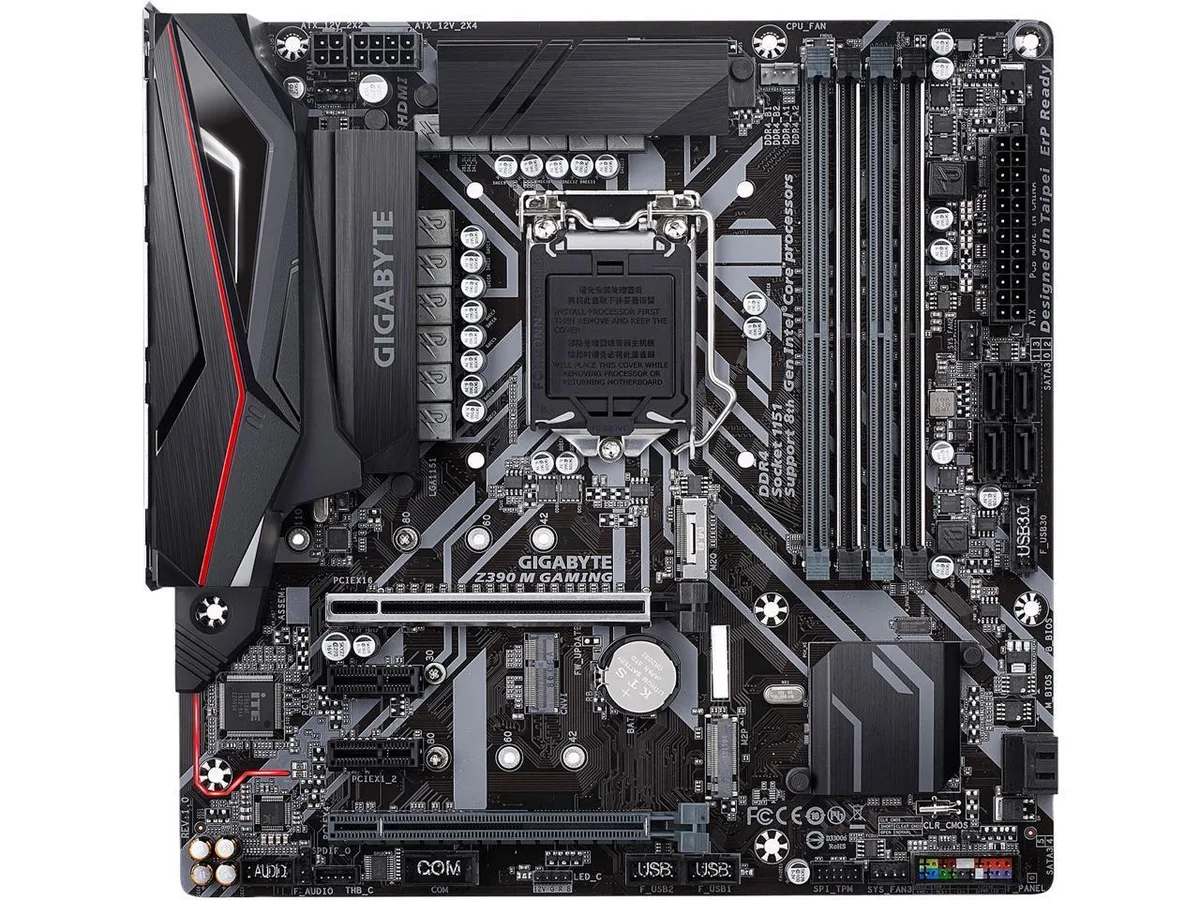

Socket LGA 1151 Z390 micro-ATX board
This GIGABYTE motherboard fits micro-ATX cases and accepts Intel 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron processors in the LGA 1151 package. The Intel Z390 chipset provides a 10+2 phase digital VRM and an integrated I/O shield. It targets builders who want a compact platform with full overclocking features.
Four DDR4 slots up to 64 GB dual channel
Four 288-pin slots support DDR4 at 2666, 2400 and 2133 MHz in dual-channel mode for a maximum of 64 GB. That capacity handles gaming, content creation and heavy multitasking with headroom to spare. Only workloads that demand more than 64 GB or require ECC memory will outgrow this configuration.
Single PCI Express 3.0 x16 slot for graphics
One full-length PCI Express 3.0 x16 slot runs at x16 electrical, so a discrete graphics card receives the full bandwidth the chipset provides. Two additional x1 slots and two M.2 sockets (one PCIe x4, one SATA/PCIe) remain for add-in cards and storage. If a build needs multiple x16 GPUs this board cannot accommodate them.
Highlights
- Supports Intel 8th & 9th Gen CPUs via LGA 1151 socket
- Up to 64GB DDR4 2666 across four 288-pin slots
- Dual M.2 slots for 2242/2260/2280/22110 SSDs
- 10+2 phase digital VRM with Smart Fan 5 cooling
- Intel Gigabit LAN plus Realtek ALC892 7.1 audio

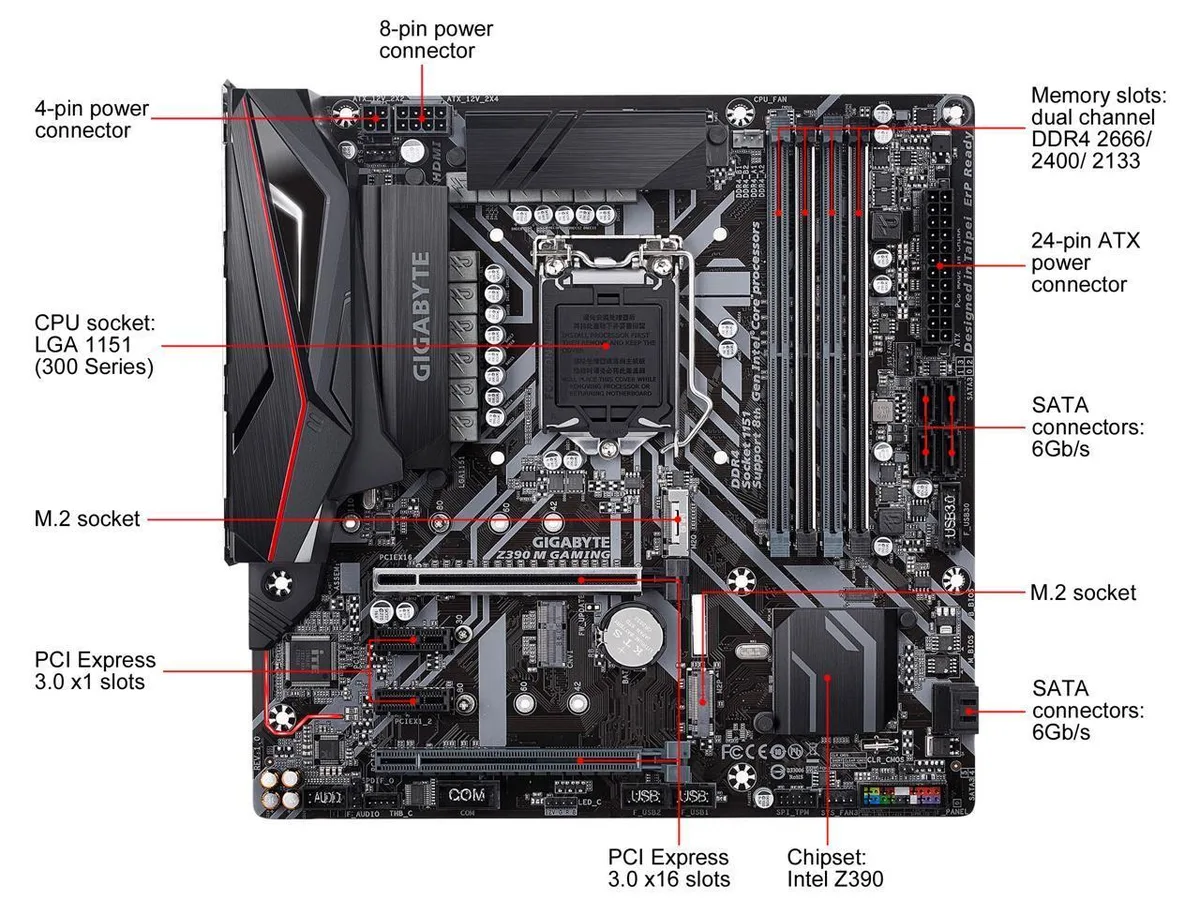

Specifications
| Brand | GIGABYTE |
|---|---|
| Model | Z390 M GAMING |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Support for Intel 9000 Processors and 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Express x1 | 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Other Slots | 1 x M.2 Socket 1 connector for an Intel CNVi (CNVI) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN chip |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports |
| USB Type-C | 1 x USB Type-C port, with USB 3.1 Gen 2 support |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (SPI_TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboar |
Questions about this item
Will the LGA 1151 socket accept my existing 8th or 9th Gen Intel Core i7 processor?
The socket supports Intel 9000 series and 8th Generation Core i7, i5, i3, Pentium and Celeron processors in the LGA1151 package.
How can I confirm the integrated graphics are active after installing the board?
Connect a display to the HDMI or DVI-D port; the Intel HD Graphics driver will report the active resolution and 60 Hz refresh rate.
What comes in the box and what must I source separately?
Only the motherboard and integrated I/O shield are included; mounting screws, DDR4 memory, a CPU cooler and storage drives are not supplied.
