Goldshell DG Max 6.5 GH/s 3400 W Scrypt ASIC mining hardware

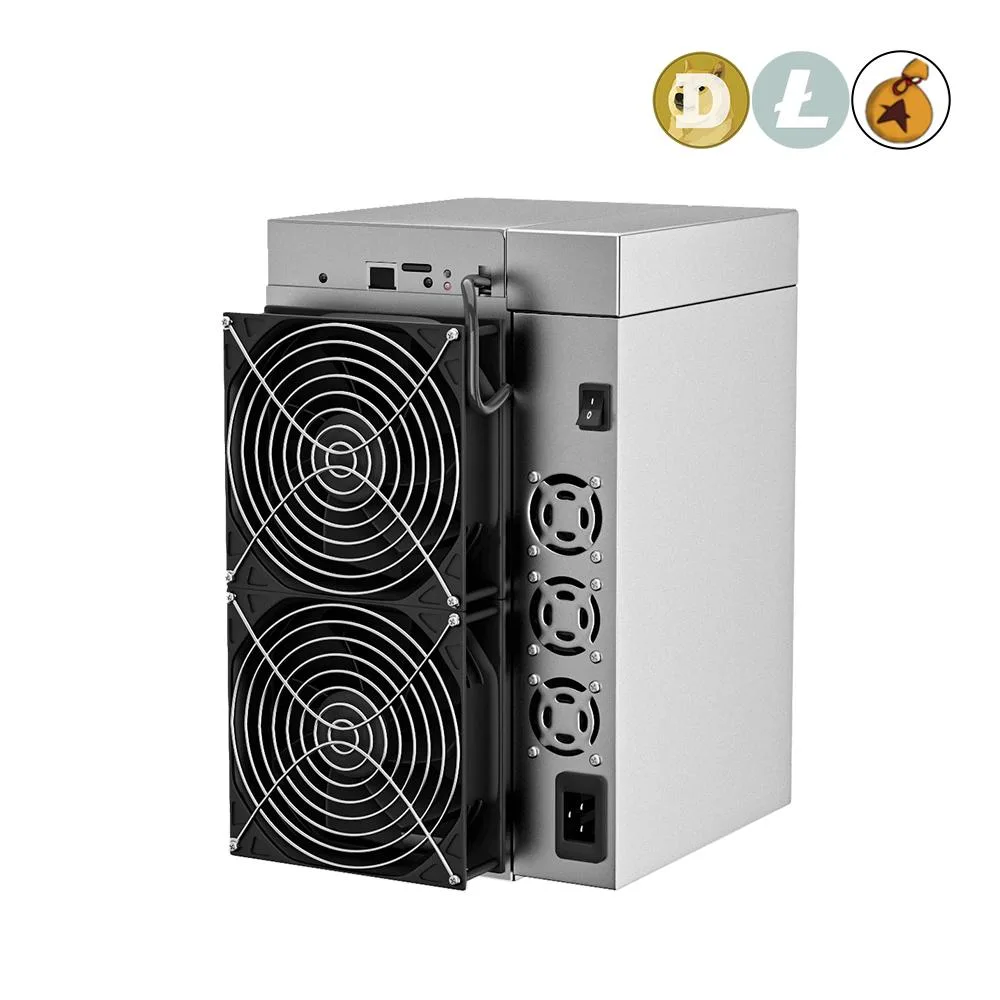

Goldshell DG Max Scrypt ASIC Miner

The Goldshell DG Max is an ASIC miner built for the Scrypt algorithm and targets coins such as Litecoin, Dogecoin and Bells. It delivers a default hashrate of 6.5 GH/s with a five percent tolerance and ships with its power supply included. The unit is intended for operators who want a dedicated Scrypt device rather than a general-purpose computer. Its form factor fits on a standard rack shelf or sturdy bench.

Thermals Noise and Power Draw

Rated power consumption is 3450 W with a five percent tolerance which equals 0.53 J/MH at the default hashrate. The machine runs on an input range of 180 V to 280 V and draws current through a 16 A power cable. Operating temperature is specified from 0 °C to 35 °C at up to 65 percent relative humidity. Acoustic output is listed at 55 dB while the internal fans spin at 6000 rpm.

Build Connectors and Daily Use

The chassis measures 264 mm by 200 mm by 290 mm and weighs 13.5 kg while the shipping carton is 370 mm by 305 mm by 450 mm. Network connectivity is provided by a single Ethernet port with no Wi-Fi or additional interfaces. The supplied 16 A power cable matches the unit’s voltage window and removes the need to source a separate lead. Routine operation consists of wiring power, plugging Ethernet and monitoring the dashboard for temperature and hashrate stability.
