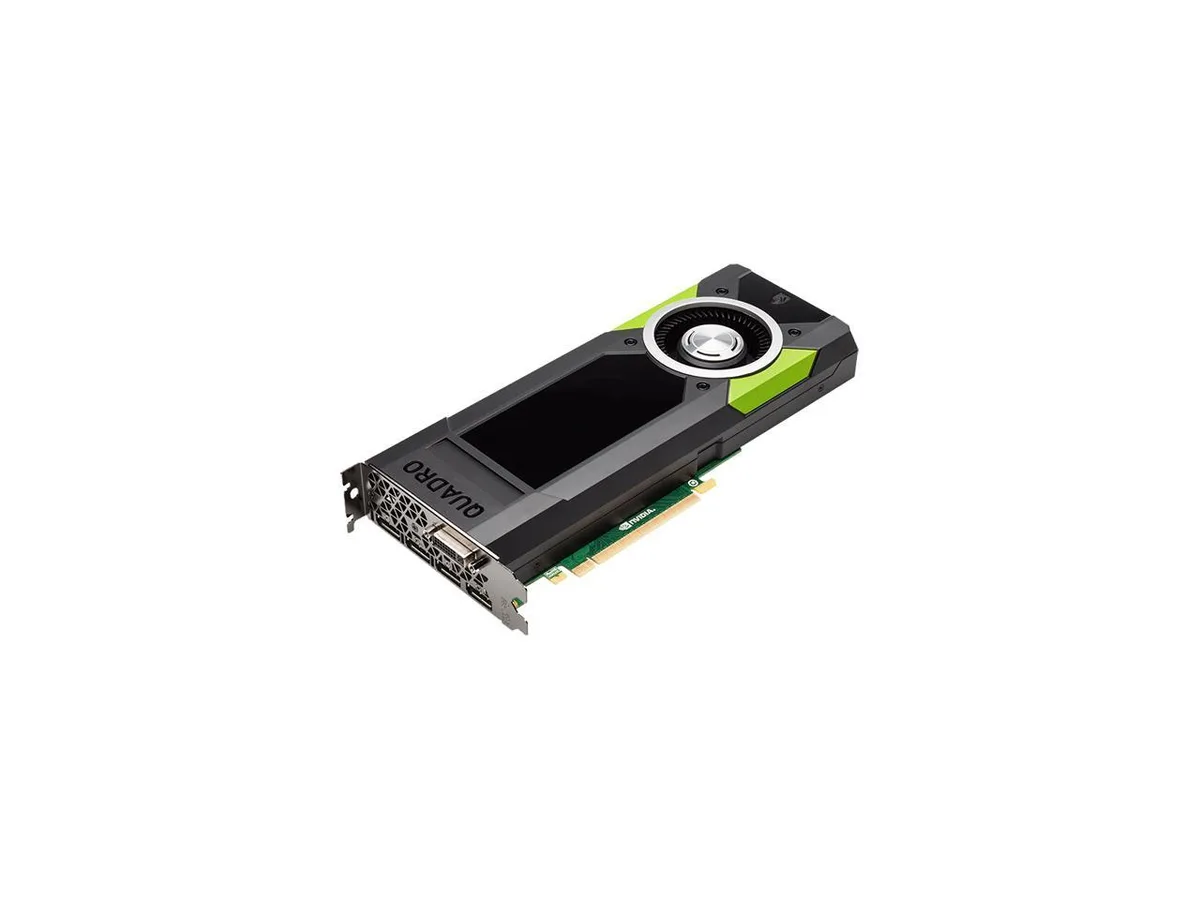

Full-height graphics card with silver fan shroud and metal backplate, four DisplayPort and one DVI outputs visible

HP

HP M9R60A Quadro M5000 8GB GDDR5 workstation graphics card

SKU CH-9R6V-WG1D7

Delivers professional workstation performance with 2048 CUDA cores, 8GB 256-bit GDDR5 ECC memory, and support for up to four 4K displays

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro M5000
  • CUDA Cores2048
  • Memory Size8GB
  • Memory Interface256-bit
  • 8 GB GDDR5 with ECC handles large models and datasets reliably
  • 2048 CUDA cores on Maxwell architecture accelerate professional rendering and compute
  • Four DisplayPort outputs drive up to four 4K displays at 60 Hz
  • PCI Express 3.0 x16 interface fits full-height workstation slots
  • Certified across 200 professional applications for manufacturing, media and science workflows

HP Quadro M5000 8 GB workstation GPU

The HP M9R60A puts an NVIDIA Quadro M5000 with 2048 CUDA cores and 8 GB of GDDR5 memory on a PCI Express 3.0 x16 slot. It targets engineers, designers and media professionals who need certified drivers for CAD, simulation and content-creation applications. ECC memory adds data-integrity protection for long compute runs.

Verify slot, power and OS before ordering

Your motherboard must provide a full-height PCI Express 3.0 x16 slot and enough auxiliary power connectors for the card. The supported operating systems are Windows 10, 8.1, 8, 7 (all 32-bit and 64-bit) and Linux with full OpenGL 4.5 implementation. Confirm that your chassis can accommodate a full-height, dual-slot board with an onboard fan.

Four-display 4K output fits multi-monitor workflows

Four DisplayPort 1.2 outputs and one dual-link DVI connector drive up to four 4096 x 2160 displays at 60 Hz with 30-bit colour. Quadro Sync support lets you frame-lock multiple panels for visualisation walls. The 256-bit memory interface and ECC VRAM free up system memory when handling large models or datasets.

Highlights

  • 8 GB GDDR5 with ECC handles large models and datasets reliably
  • 2048 CUDA cores on Maxwell architecture accelerate professional rendering and compute
  • Four DisplayPort outputs drive up to four 4K displays at 60 Hz
  • PCI Express 3.0 x16 interface fits full-height workstation slots
  • Certified across 200 professional applications for manufacturing, media and science workflows

Specifications

BrandHP
ModelM9R60A
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro M5000
CUDA Cores2048
Memory Size8GB
Memory Interface256-bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
DisplayPort4
DVI1
Digital Resolution4096 x 2160
Max Displays Per Board4
CoolerWith Fan
Virtual Reality ReadyYes
Dual-Link DVI SupportedYes
HDCP ReadyYes
Operating Systems SupportedMicrosoft Windows 10 (64-bit and 32-bit) Microsoft Windows 8 & 8.1 (64-bit and 32-bit) Microsoft Windows 7 (64-bit and 32-bit) Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
System RequirementsMax Power Consumption: 150W
Form FactorFull Height
Dimensions (L x H)10.5" x 4.4"
Slot WidthDual Slot

Questions about this item

Does the HP M9R60A Quadro M5000 ship with any cables, brackets or software media, or must I purchase them separately?

The card is supplied as a full-height PCI Express 3.0 x16 board with an onboard fan cooler. DisplayPort and DVI cables, mounting brackets and driver discs are not included and must be sourced separately.

Should I choose the 8 GB 256-bit GDDR5 version or a different capacity for large model rendering?

This model provides 8 GB of 256-bit GDDR5 memory with ECC support, the only capacity offered for the Quadro M5000. It targets large, complex models and massive datasets that benefit from error-correcting memory.

What does the 4096 x 2160 resolution figure mean when the card is installed in a workstation?

Each of the four DisplayPort outputs can drive a 4096 x 2160 display at 60 Hz with 30-bit colour. Up to four such panels are supported simultaneously, and outputs can be paired for resolutions beyond 4K.
