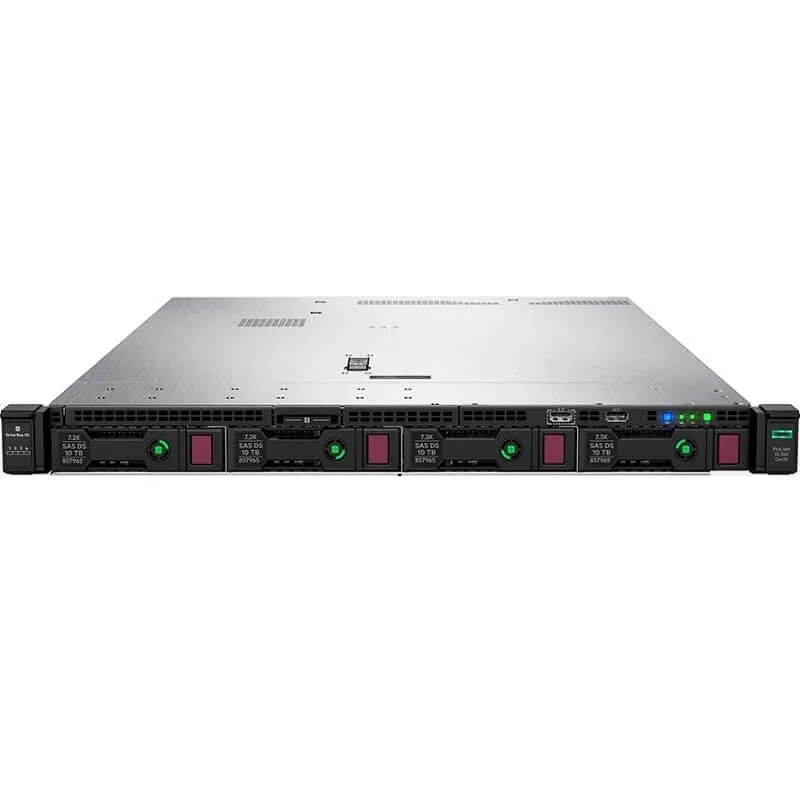

Silver 1U rack server with four front drive bays and dual redundant power supplies

HP

HP ProLiant DL360 Gen9 1U Rack Server 2× Xeon E5-2620 v3 2.4 GHz 8 GB DDR4 4× 1 TB SAS H240ar

SKU CH-5B1T-6GD72

1U rack server with dual Xeon E5-2620 v3 CPUs, 8 GB DDR4, four 1 TB SAS drives and redundant power

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 8GB

Struck-through versions exist but are not stocked here.

HDD 4 x 1TB SAS

Struck-through versions exist but are not stocked here.

  • Dual Xeon E5-2620 v3 processors deliver 24 threads for multi-threaded workloads
  • 8 GB DDR4 ECC memory with 24 slots for future expansion
  • Four 1 TB 3.5-inch SAS drives provide 4 TB raw capacity
  • Smart HBA H240ar controller supports RAID 0/1/5/6/10/50/60
  • Dual 500 W redundant power supplies maintain uptime during failures

HP ProLiant DL360 Gen9 1U Server

The HP ProLiant DL360 Gen9 is a 1U rack server built for space-constrained data centres. It ships with dual Intel Xeon E5-2620 v3 six-core processors running at 2.4 GHz. The system includes 8 GB of DDR4 ECC registered memory and four 1 TB 7.2K SAS drives. A Smart HBA H240ar controller provides RAID 0, 1, 5, 6, 10, 50 and 60 support. Dual 500 W redundant power supplies are fitted. No operating system is included.

Installation and common issues

The 1U chassis slides into a standard rack using the supplied rails. Memory installs into 24 DDR4 DIMM slots, twelve per processor, and supports modules up to 64 GB at 2400 MT/s. The four large-form-factor drive bays accept 3.5-inch SAS or SATA drives with included trays. A frequent issue is populating DIMM slots unevenly across the two CPUs, which reduces memory bandwidth. Another is forgetting to configure the H240ar RAID volume before installing an operating system.

Pre-order checklist

Verify that your rack provides 1U of vertical space and sufficient depth for the server chassis. Confirm the facility can supply power to two 500 W redundant supplies on separate circuits. Ensure you have SAS or SATA cables compatible with the H240ar controller if you plan to add drives beyond the four included. Check that any additional DDR4 memory you intend to buy is ECC registered and rated for 2400 MT/s. The Matrox G200 graphics output is basic; plan for headless management via iLO if a display is not required.

Highlights

  • Dual Xeon E5-2620 v3 processors deliver 24 threads for multi-threaded workloads
  • 8 GB DDR4 ECC memory with 24 slots for future expansion
  • Four 1 TB 3.5-inch SAS drives provide 4 TB raw capacity
  • Smart HBA H240ar controller supports RAID 0/1/5/6/10/50/60
  • Dual 500 W redundant power supplies maintain uptime during failures

Specifications

BrandHP
SeriesProLiant
ModelProliant DL360 G9
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
MAX Processors2
ChipsetIntel C610
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Storage ControllerHP Smart HBA H240ar Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media DrivesNone
GPU TypeMatrox G200
Video Memory16MB
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 2 PCIe 3.0 Slots (1 & 2) available: 1x Full-Height Half Length, 1x Half-Lenth Half Height. Optional PCIe 3.0 slot 3 - Full-Height Half Height (Secondary PCIe Riser and dual CPU required).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the H240ar controller detects all four 1 TB SAS drives after installation?

The H240ar RAID BIOS will display each 3.5-inch drive on its SAS ports; confirm all four appear and build a RAID 0/1/5/6/10/50/60 volume before installing an OS.

What ships in the box and what must I source separately?

The 1U chassis includes two E5-2620 v3 CPUs, 8 GB DDR4 ECC RDIMM, four 1 TB 7.2K SAS drives with trays, H240ar controller, and dual 500 W redundant power supplies; no operating system or rack rails are included.

Which memory capacity should I choose for the 24 DIMM slots?

The board accepts 4 GB, 8 GB, 16 GB, 32 GB or 64 GB DDR4 ECC Registered modules up to 2400 MT/s; populate in matched pairs per processor to reach the 3 TB maximum.
