Silver 1U rack server front with four 3.5-inch drive bays

HP

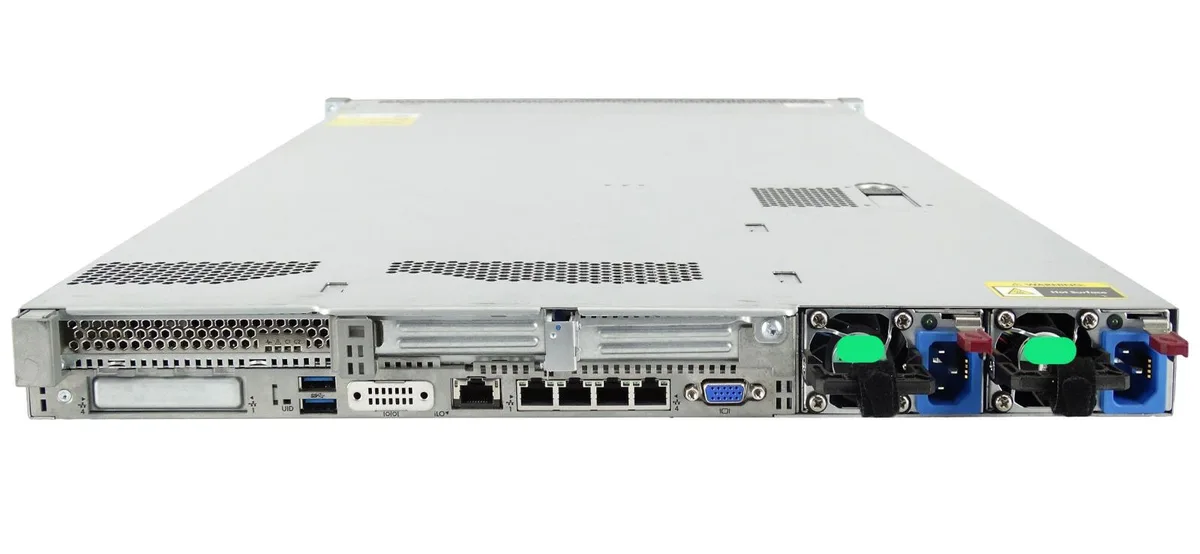

HP ProLiant DL360 Gen9 1U Rack Server 2x E5-2620 v3 2.4 GHz 64GB 2x 300GB 15K SAS H240ar

SKU CH-QYHR-AKYMF

1U rack server with dual 6-core Xeon CPUs at 2.4 GHz, 64 GB DDR4, two 300 GB 15K SAS drives and redundant 500 W power supplies

  • TypeRack
  • Rack Height1U
  • Hot-swap Fans7
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • CPU Speed2.40 GHz

Installed Memory Size 64GB

Struck-through versions exist but are not stocked here.

HDD 2 x 300GB 15K

Struck-through versions exist but are not stocked here.

  • Dual six-core Xeon CPUs at 2.4 GHz for parallel workloads
  • 64 GB DDR4 ECC memory installed across 24 DIMM slots
  • Two 300 GB 15 K SAS drives for fast sequential access
  • Smart HBA H240ar supports RAID 0, 1, 5, 6, 10, 50, 60
  • Redundant 500 W hot-swap power supplies keep the 1U server running

Dual Xeon E5-2620 v3 1U Server

The HP ProLiant DL360 Gen9 is a 1U rack server built for dense compute environments. It ships with two six-core Intel Xeon E5-2620 v3 processors running at 2.4 GHz and 64 GB of DDR4 ECC registered memory. A Smart HBA H240ar controller manages storage, and two 300 GB 15K SAS drives are installed in the four available 3.5-inch LFF bays. Redundant 500 W power supplies and seven hot-swap fans support continuous operation.

Verify Rack Depth and Power Phases

Confirm that your rack can accommodate a 1U chassis with redundant power supplies and seven hot-swap fans. The system uses two 500 W supplies, so available PDU outlets and circuit capacity must match. The H240ar controller provides 12 Gb SAS and 6 Gb SATA connectivity with RAID 0, 1, 5, 6, 10, 50, 60; ensure your backplane and cabling support these modes. Memory runs up to 2400 MT/s depending on the installed processor capability, and all 24 DIMM slots are currently populated.

Sustained Load Thermal Stability

Under sustained load the dual 64 GB memory configuration and dual 2.4 GHz CPUs draw consistent power across both sockets. Seven hot-swap fans and redundant 500 W supplies are designed to maintain airflow and voltage regulation during extended workloads. The 15K SAS drives deliver steady IOPS for database or virtualisation tasks without the thermal throttling seen in burst-only benchmarks. Maximum memory capacity of 3 TB is supported across 24 slots for future expansion.

Highlights

  • Dual six-core Xeon CPUs at 2.4 GHz for parallel workloads
  • 64 GB DDR4 ECC memory installed across 24 DIMM slots
  • Two 300 GB 15 K SAS drives for fast sequential access
  • Smart HBA H240ar supports RAID 0, 1, 5, 6, 10, 50, 60
  • Redundant 500 W hot-swap power supplies keep the 1U server running

Specifications

BrandHP
SeriesProLiant
ModelProliant DL360 G9
TypeRack
Rack Height1U
Hot-swap Fans7
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
CPU Speed2.40 GHz
CPU SocketFCLGA2011-3
Number of CPU Cores6-Core Processor
CPU FeaturesVT-x VT-d EPT
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Hard Drive (Installed)300GB
Storage ControllerHP Smart HBA H240ar Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity12.0TB
Media DrivesNone
GPU TypeMatrox G200
Video Memory16MB
Ethernet ControllerHPE Embedded 1Gb Ethernet 4-port 331i Adapter
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 2 PCIe 3.0 Slots (1 & 2) available: 1x Full-Height Half Length, 1x Half-Lenth Half Height. Optional PCIe 3.0 slot 3 - Full-Height Half Height (Secondary PCIe Riser and dual CPU required).
Management PortiLO4
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server ship with drive trays and rails, or must they be ordered separately?

Two 3.5" 300 GB 15K SAS drives are installed with trays included; no rails are mentioned so plan to source them separately.

Should I choose the 64 GB DDR4 configuration or add more modules for the 3 TB maximum?

64 GB DDR4 is factory-installed across 24 slots; adding identical ECC registered DDR4 modules up to 2400 MT/s expands capacity toward the 3 TB limit.

What does the 12 Gb SAS H240ar controller deliver for the installed 6 Gb SAS drives?

The H240ar runs the two 300 GB 15K drives at their native 6 Gbps while supporting RAID 0/1/5/6/10/50/60 for future faster SAS or SATA devices.
