HPE

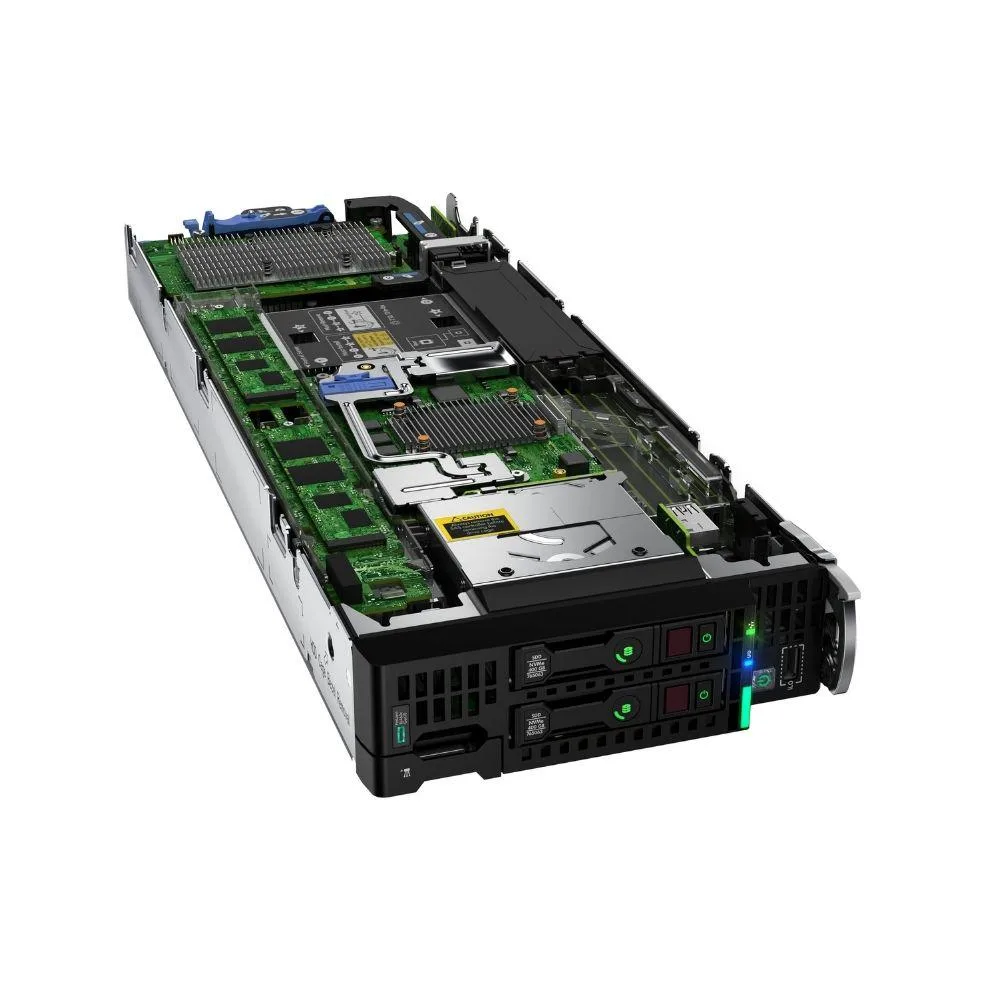

HPE BL460c G10 blade server 2× Xeon Gold 5120 128 GB DDR4 2× 900 GB SAS
Dual-processor blade server with 128 GB DDR4 and two 900 GB SAS drives
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.2 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size128GB
- Dual Xeon Gold 5120 processors deliver 28 total cores at 2.2 GHz
- 128 GB DDR4 ECC memory provides high-capacity error-corrected performance
- 8 TB SAS storage on Smart Array P204i-b controller ensures reliable data access
- Integrated iLO Advanced remote management enables full out-of-band control
- FlexFabric 20 Gb 2-port adapter supplies high-throughput network connectivity
Dual-socket Xeon Gold 5120 blade server
The HPE BL460c G10 is a dual-processor blade fitted with two Xeon Gold 5120 CPUs running at 2.2 GHz and 14 cores each. It ships with 128 GB of DDR4 memory and two 900 GB SAS hard drives managed by a Smart Array P204i-b SR controller. This configuration targets virtualisation hosts and database workloads that need high core counts in a dense enclosure.
Installs into a supported c-Class enclosure
The blade slides into an HPE c-Class chassis and connects through its mid-plane for power, cooling and networking. No cable routing is required inside the blade itself. The main installation risk is firmware mismatch between the blade iLO, the Onboard Administrator and the enclosure interconnect modules; all firmware should be aligned before the blade joins a production cluster.
Limited to two 2.5-inch drive bays
The server accepts only two 2.5-inch SAS drives, so raw local capacity tops out at 1.8 TB with the supplied 900 GB units. Memory slots are fully populated at 128 GB, leaving no room for expansion without removing existing modules. The integrated FlexFabric 20 Gb 2-port adapter provides network connectivity, but additional mezzanine cards would be needed for Fibre Channel or extra Ethernet ports.
Highlights
- Dual Xeon Gold 5120 processors deliver 28 total cores at 2.2 GHz
- 128 GB DDR4 ECC memory provides high-capacity error-corrected performance
- 8 TB SAS storage on Smart Array P204i-b controller ensures reliable data access
- Integrated iLO Advanced remote management enables full out-of-band control
- FlexFabric 20 Gb 2-port adapter supplies high-throughput network connectivity
Specifications
| Brand | HP |
|---|---|
| Series | Proliant BL |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 128GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 128GB |
| Hard Drive (Installed) | 1.800,00 |
| Storage Controller | HP Smart Array P204i-b SR Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | Integrated Lights-Out (iLO) Advanced |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions about this item
How can I verify the dual Xeon Gold 5120 processors are running at 2.2 GHz after installation?
Check the BIOS or iLO remote management console; both will show each CPU at 2.2 GHz with 14 cores and 19.25 MB cache.
Which components are included and what must I source separately for this BL460c G10 blade?
The unit ships with two Xeon Gold 5120 CPUs, 128 GB DDR4 ECC registered memory, two 900 GB SAS 2.5" 10K drives, Smart Array P204i-b SR controller and FlexFabric 20 Gb 2-port 650FLB adapter; rails and enclosure are sold separately.
Should I choose the 128 GB DDR4 configuration or a different capacity for this server?
128 GB DDR4 is the maximum supported capacity for this model, so no larger option exists; select this version when you need the full memory limit.
