HPE
HPE DL380 Gen9 12LFF 2x Xeon E5-2620 v3 64GB DDR4 rack server
A 12-bay 3.5-inch rack server with dual 2.4 GHz Xeon E5-2620 v3 processors and 64 GB DDR4 memory, ready for custom storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size64GB
- Dual Xeon E5-2620 v3 processors deliver 12 cores at 2.4GHz for demanding workloads
- 64GB DDR4 ECC registered memory supports large datasets and virtualisation
- 12 LFF 3.5" drive bays with P440ar SAS controller enable high-capacity storage arrays
- Dual 800W hot-plug power supplies and Intel 10GbE/1GbE networking ensure resilient operation
- HPE iLO Advanced remote management provides full out-of-band server control

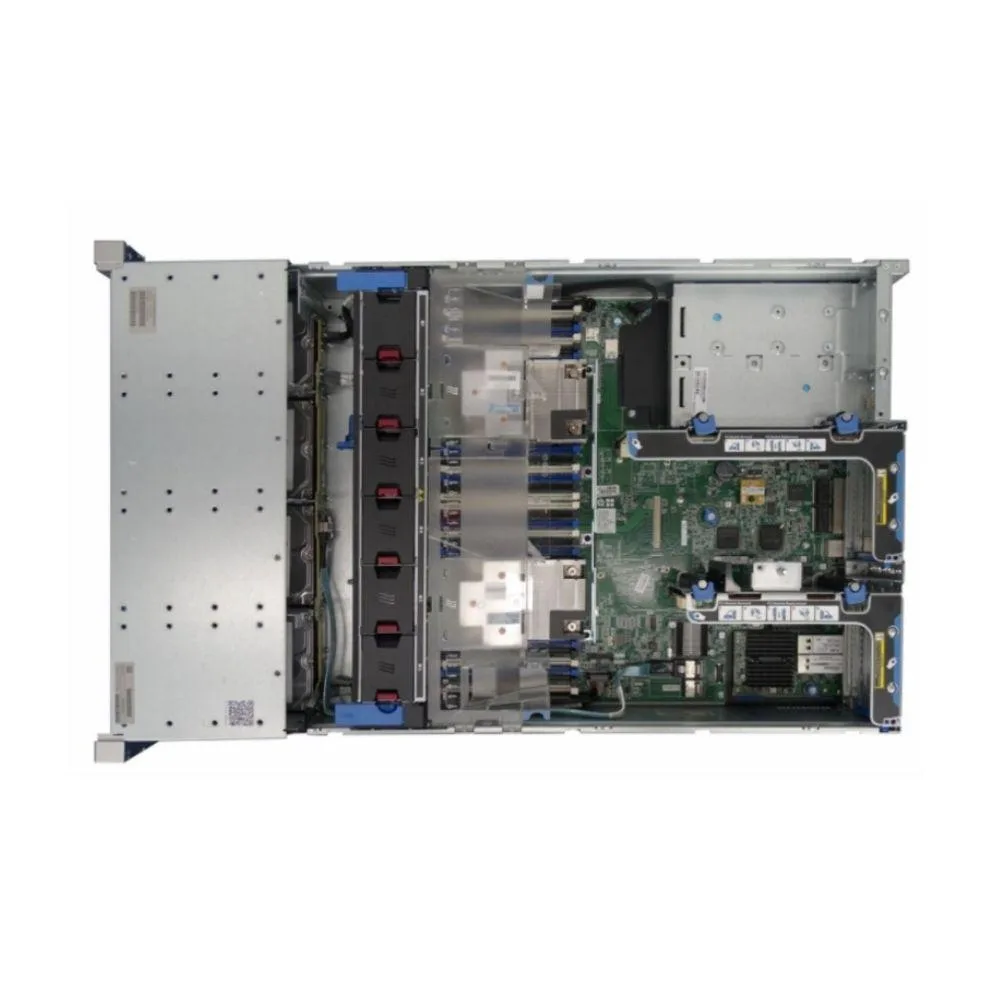

Rack server with twelve 3.5-inch bays
This HPE ProLiant DL380 Gen9 chassis arrives new and ready for deployment in a 2U form factor. Two Xeon E5-2620 v3 processors running at 2.4GHz deliver twelve cores and 15MB cache each. Sixty-four gigabytes of DDR4 ECC registered memory are installed across the available slots. The P440ar SAS controller with expander manages up to twelve SATA drives.
Suits workloads needing dense local storage
The twelve large-form-factor bays support high-capacity SATA hard drives for backup, archive or media repositories. Dual 800W hot-plug power supplies provide redundancy for continuous operation. Integrated iLO Advanced enables out-of-band monitoring and firmware updates without physical access. Buyers who need PCIe U.2 or M.2 slots should look at a different platform.
Twelve 3.5-inch drive bays with SAS expander
The chassis supports a maximum of twelve 3.5-inch SATA drives connected through the P440ar controller and integrated SAS expander. This bay count and controller combination determines how many spindles you can address without adding external enclosures.
Highlights
- Dual Xeon E5-2620 v3 processors deliver 12 cores at 2.4GHz for demanding workloads
- 64GB DDR4 ECC registered memory supports large datasets and virtualisation
- 12 LFF 3.5" drive bays with P440ar SAS controller enable high-capacity storage arrays
- Dual 800W hot-plug power supplies and Intel 10GbE/1GbE networking ensure resilient operation
- HPE iLO Advanced remote management provides full out-of-band server control
Specifications
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 6,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
What does the 2.4 GHz base clock on the two Xeon E5-2620 v3 processors mean for real workloads?
Each processor runs six cores at 2.4 GHz, giving twelve cores total for parallel tasks such as virtualization or database threads.
What storage interface does the P440ar controller use and what speed does it cap at?
The P440ar connects drives over 12 Gb/s SAS lanes; SATA drives attached to it will run at their native 6 Gb/s limit.
What physical space does the 12-bay 3.5-inch chassis need in a rack?
The chassis measures 36 by 24 by 10 inches and weighs 40 units; a rail kit can be requested for sliding mounting.
