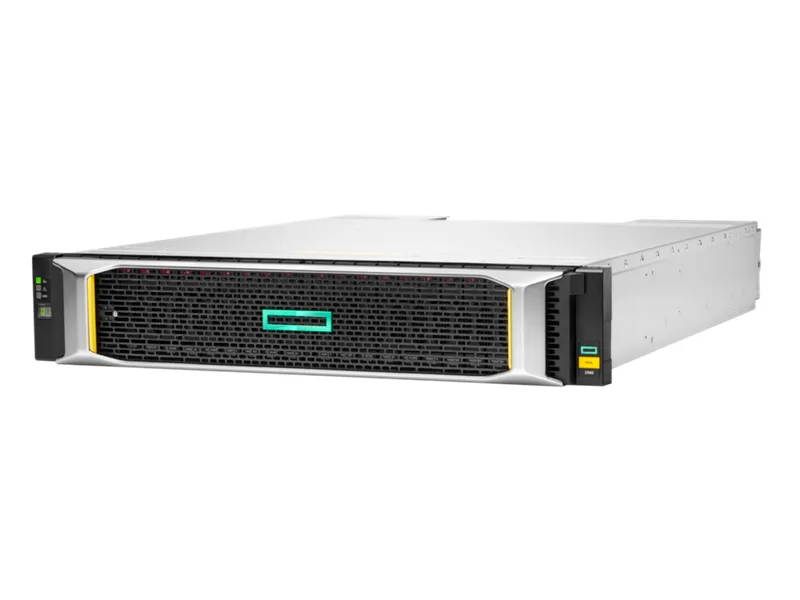

Rack-mount 2U storage array with twelve front drive bays and dual controller modules at the rear

HPE

HPE MSA 2060 SAN Storage 12x20TB HDD 240TB 2x16Gb FC P79252-B25

SKU CH-8H2T-027M0 MPN P79252-B25

A 2U storage array with twelve 20 TB SAS drives, dual 16 Gb Fibre Channel controllers and four transceivers delivering 240 TB raw capacity

  • WorkloadStorage Server
  • TypeSmall Form Factor
  • Rack Height2U
  • Hard Drive (Installed)240TB (12 x 20TB)
  • Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
  • HDD InterfaceSAS

HDD 240TB (12 x 20TB)

Option 2 x 16 Gb Fibre Channel 4-port controllers

  • 240 TB raw capacity from twelve 20 TB SAS drives
  • Dual 16 Gb Fibre Channel controllers with four ports each
  • 2U rack form factor fits dense server rooms
  • Expandable to 2.83 PB raw with additional enclosures
  • Certified for Windows Server 2022, 2019, 2016, VMware vSphere 6.7, Red Hat 8, SLES 15

HPE MSA 2060 SAN Storage 240TB

The HPE MSA 2060 is a 2U rack-mount storage array populated with twelve 20TB SAS hard drives for 240TB of raw capacity. It includes dual 16Gb Fibre Channel 4-port controllers and four SFP+ transceivers for immediate SAN connectivity. Designed for small or remote offices, it delivers flash-ready hybrid performance with redundant 580W power supplies.

Suits entry shared storage; not for block mirroring

This system fits organisations that need affordable, easy-to-manage shared storage with Fibre Channel host access and the option to expand using SFF or LFF enclosures. It supports Windows Server 2016 through 2022, VMware vSphere 6.7, Red Hat 8 and SUSE SLES 15. Buyers who require native storage mirroring or Systems Insight Manager integration should evaluate other platforms.

Dual 16Gb FC 4-port controllers decide fit

The array ships with two 16Gb Fibre Channel 4-port controllers, providing eight host ports for SAN attachment. If your infrastructure uses a different host protocol such as iSCSI or 12Gb SAS, this specific model will not match your cabling and HBA requirements. Confirm the host interface before purchase.

Highlights

  • 240 TB raw capacity from twelve 20 TB SAS drives
  • Dual 16 Gb Fibre Channel controllers with four ports each
  • 2U rack form factor fits dense server rooms
  • Expandable to 2.83 PB raw with additional enclosures
  • Certified for Windows Server 2022, 2019, 2016, VMware vSphere 6.7, Red Hat 8, SLES 15

Specifications

BrandHPE
SeriesMSA 2060 Gen6
ModelP79252-B25
WorkloadStorage Server
TypeSmall Form Factor
Rack Height2U
Hard Drive (Installed)240TB (12 x 20TB)
Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
HDD InterfaceSAS
Max HDD CapacityMaximum array raw capacity of 2.83 PB (all LFF) and 1.9 PB (SFF & LFF)

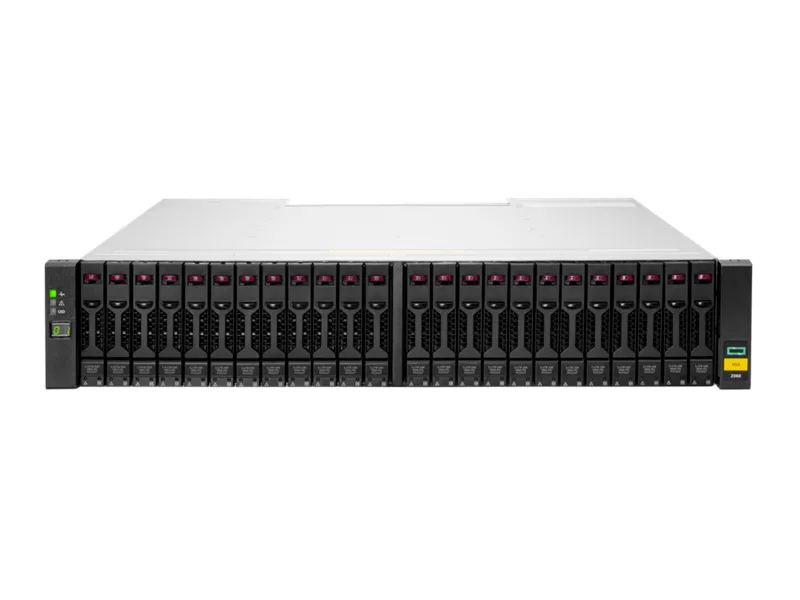

Expansion Bays24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination)
Compatible/Certified OSWindows Server 2022
Windows Server 2019
Windows Server 2016
VMWare vSphere 6.7
Red Hat Linux 8
SuSE SLES 15
Power CharacteristicsTwo 580W redundant power supplies
Dimensions3.5" x 17.5" x 20.0"
Weight11 lbs.
Package ContentsHPE MSA 16 Gb Short Wave Fibre Channel SFP+ 4-pack Transceivers
Shipping weight13.61 kg
Package size762 × 635 × 254 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 12-bay LFF or the 24-bay SFF enclosure for expansion?

The base unit holds 12 LFF drives; you can add up to nine 12-bay LFF enclosures or 24-bay SFF enclosures in any mix.

What does the 395,000 IOPS figure mean for my workloads?

That is the peak array performance with a full flash configuration; actual IOPS will vary with your drive mix and workload profile.

How does the 16 Gb Fibre Channel interface limit real throughput?

Each of the eight controller ports runs at 16 Gb/s Fibre Channel, so aggregate bandwidth is capped by the number of active host links.
