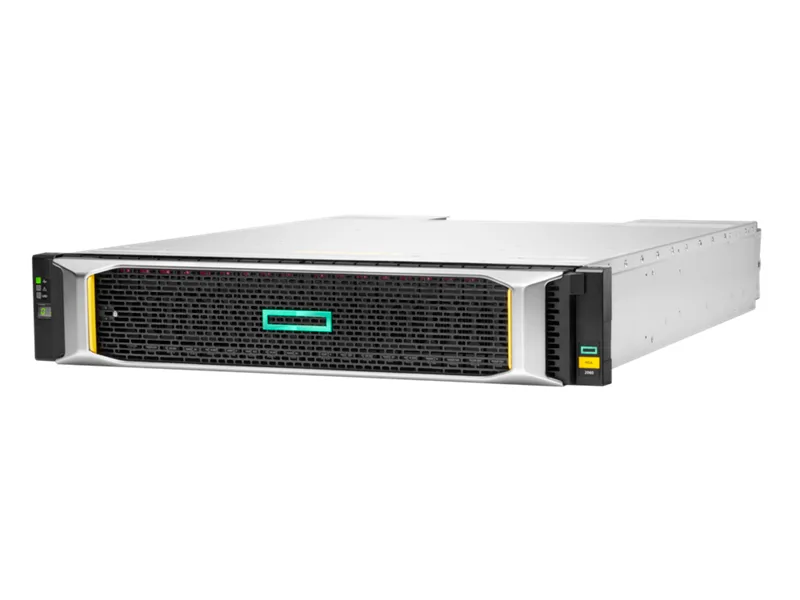

Black 2U rack storage array with twelve drive trays visible

HPE

HPE MSA 2060 SAN Storage System 28.8TB 12x2.4TB SAS 2U P79247-B25

SKU CH-PZZA-DC5HN MPN P79247-B25

A 2U SAN storage array with 28.8 TB of installed SAS capacity across twelve 2.4 TB drives, dual 16 Gb Fibre Channel controllers and twenty-four drive bays for expansion

  • WorkloadStorage Server
  • TypeSmall Form Factor
  • Rack Height2U
  • Hard Drive (Installed)28.8TB (12 x 2.4TB)
  • Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
  • HDD InterfaceSAS

HDD 28.8TB (12 x 2.4TB)

Option 2 x 16 Gb Fibre Channel 4-port controllers

  • 8 TB installed capacity with 12 x 2.4 TB SAS drives
  • Dual 16 Gb Fibre Channel controllers for high-throughput connectivity
  • Scales to 24 drives in 2U with up to 9 expansion enclosures
  • Two 580 W redundant power supplies maintain uptime
  • Certified for Windows Server 2016, 2019, 2022 and VMware vSphere 6.7

Ready-to-run SAN array

The HPE MSA 2060 ships as a 2U rack-mount system with twelve 2.4TB SAS hard drives factory-installed for 28.8TB raw capacity. Dual 16Gb Fibre Channel controllers and four SFP+ transceivers are included so the array can serve block storage immediately. It targets small or remote offices that want shared storage without a complex deployment.

Verify host and rack readiness

Confirm your servers have 16Gb Fibre Channel HBAs and matching cabling for the four controller ports. The enclosure occupies 2U of rack space and draws power from two redundant 580W supplies, so check available U-height and PDU capacity. Supported operating environments include Windows Server 2016, 2019, 2022, VMware vSphere 6.7, Red Hat Linux 8 and SUSE SLES 15.

Scale within the same chassis

Twelve front bays remain free for additional SAS SSDs or HDDs, and up to nine expansion enclosures can be attached to grow raw capacity toward the stated maximum. RAID levels 0, 1, 5, 6 and 10 are available on the controller to protect data as the pool expands. A Gigabit Ethernet management port provides out-of-band access for monitoring and firmware updates.

Highlights

  • 8 TB installed capacity with 12 x 2.4 TB SAS drives
  • Dual 16 Gb Fibre Channel controllers for high-throughput connectivity
  • Scales to 24 drives in 2U with up to 9 expansion enclosures
  • Two 580 W redundant power supplies maintain uptime
  • Certified for Windows Server 2016, 2019, 2022 and VMware vSphere 6.7

Specifications

BrandHPE
SeriesMSA 2060 Gen6
ModelP79247-B25
WorkloadStorage Server
TypeSmall Form Factor
Rack Height2U
Hard Drive (Installed)28.8TB (12 x 2.4TB)
Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
HDD InterfaceSAS
Max HDD CapacityMaximum array raw capacity of 1.78 PB (all SFF) and 2.71 PB (SFF & LFF)
Expansion Bays24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination)
Compatible/Certified OSWindows Server 2022
Windows Server 2019
Windows Server 2016
VMWare vSphere 6.7
Red Hat Linux 8
SuSE SLES 15
Power CharacteristicsTwo 580W redundant power supplies
Dimensions3.5" x 17.5" x 20.0"
Weight11 lbs.
Package ContentsHPE MSA 16 Gb Short Wave Fibre Channel SFP+ 4-pack Transceivers
Shipping weight13.61 kg
Package size762 × 635 × 254 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the P79247-B25 ship with drives and transceivers already installed?

The array arrives with twelve 2.4 TB SAS drives and four 16 Gb Fibre Channel SFP+ transceivers pre-installed.

How many additional drives can be added to the 2U chassis?

The enclosure holds 24 SFF bays, so twelve more drives can be added without extra enclosures.

What raw capacity does the factory-installed drive set provide?

The twelve installed drives deliver 28.8 TB of raw capacity before RAID overhead.
