HPE
HPE P55246-B21 ProLiant DL380 Gen10 Plus 2U Rack Server Xeon Silver 4310 2.1 GHz 12-core 32 GB DDR4
2U rack server with a 12-core Xeon Silver 4310 at 2.1 GHz, 32 GB DDR4, Broadcom 12G SAS/NVMe controller with 4 GB cache, and dual 10 Gb SFP+ networking
- TypeSmall Form Factor
- Rack Height2U
- CPU TypeIntel Xeon Silver
- CPU Speed4310 (2.10 GHz)
- Number of CPU Cores12-Core Processor
- Cache Memory18 MB L3 Cache
- 12-core Xeon Silver 4310 at 2.10 GHz handles parallel workloads
- 32 GB HPE DDR4 SmartMemory delivers reliable capacity for virtualisation
- Broadcom MR416i-p controller with 4 GB cache accelerates SAS and NVMe storage
- Dual 10 Gb SFP+ OCP3 ports provide high-speed network connectivity
- HPE iLO Standard with intelligent provisioning simplifies remote server management

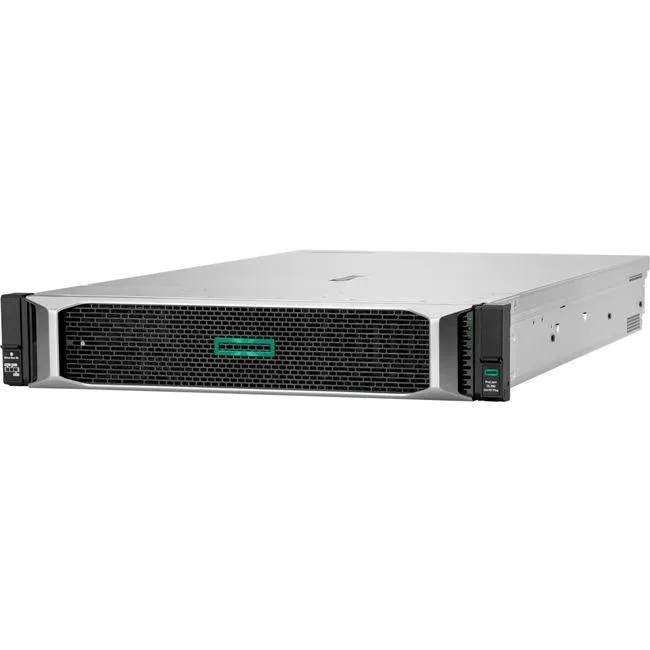

ProLiant DL380 Gen10 Plus 2U rack server
The HPE ProLiant DL380 Gen10 Plus is a 2U rack server built for virtualisation, database and cloud workloads. It ships with one Intel Xeon Silver 4310 processor running at 2.1 GHz with 12 cores and 18 MB L3 cache. The system includes 32 GB of HPE DDR4 SmartMemory in a single module. Remote management is provided through embedded iLO Standard with intelligent provisioning and HPE OneView Standard.
32 GB DDR4 with twelve DIMM slots for expansion
The installed 32 GB DDR4 SmartMemory module occupies one slot, leaving eleven open for growth. Memory scales to large capacities when all slots are populated, supporting diverse workloads from containers to big data analytics. Optional Intel Optane Persistent Memory 200 Series modules add 128 GB to 512 GB of non-volatile capacity for supported applications. The single-processor configuration limits maximum memory to the first processor's twelve channels.
Broadcom MegaRAID MR416i-p controller
The Broadcom MegaRAID MR416i-p x16 lane controller manages SAS 12G, SATA III and NVMe drives with 4 GB of backed cache. A 96 W lithium-ion battery with a 145 mm cable protects cached writes during power loss. Eight expansion slots provide room for additional storage or networking cards. No drives are installed, so buyers must populate bays with compatible media.
Highlights
- 12-core Xeon Silver 4310 at 2.10 GHz handles parallel workloads
- 32 GB HPE DDR4 SmartMemory delivers reliable capacity for virtualisation
- Broadcom MR416i-p controller with 4 GB cache accelerates SAS and NVMe storage
- Dual 10 Gb SFP+ OCP3 ports provide high-speed network connectivity
- HPE iLO Standard with intelligent provisioning simplifies remote server management
Specifications
| Brand | HPE |
|---|---|
| Series | DL380 Gen10 Plus 4310 |
| Model | P55246-B21 |
| Type | Small Form Factor |
| Rack Height | 2U |
| CPU Type | Intel Xeon Silver |
| CPU Speed | 4310 (2.10 GHz) |
| Number of CPU Cores | 12-Core Processor |
| Cache Memory | 18 MB L3 Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 32GB |
| Memory Type | HPE DDR4 SmartMemory |
| Hard Drive (Installed) | None |
| Storage Controller | Broadcom MegaRAID MR416i-p x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable |
| HDD Interface | SATA III |
| Remote Management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses) |
| LAN Ports | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE |
| Expansion Slots | 8 |
| Dimensions | 3.44" x 17.54" x 28.00" |
| Shipping weight | 28.77 kg |
| Package size | 968 × 599 × 269 mm |
Questions about this item
Will the Broadcom MegaRAID MR416i-p controller with 4GB cache and 12Gb/s SAS work with my existing SATA III drives?
The controller supports SATA III interface, so your existing SATA drives will connect and function normally through the 12Gb/s SAS backplane.
How can I verify the Intel Xeon Silver 4310 12-core processor and 32GB DDR4 SmartMemory are recognised after installation?
Check the HPE iLO Standard web interface or run the intelligent provisioning tool; both will display the detected CPU cores, 2.1 GHz speed, 18 MB L3 cache and the single 32 GB DDR4 module.
Does the server ship with any drive trays, rails or SFP+ modules for the 10Gb OCP3 adapter?
The unit includes the chassis, one Xeon Silver 4310, 32 GB DDR4 SmartMemory, the MR416i-p controller with 96W battery and 145mm cable, four hot-plug fans and the Broadcom 57412 10Gb 2-port SFP+ OCP3 adapter; drive trays, rails and SFP+ transceivers are not included.
