HPE

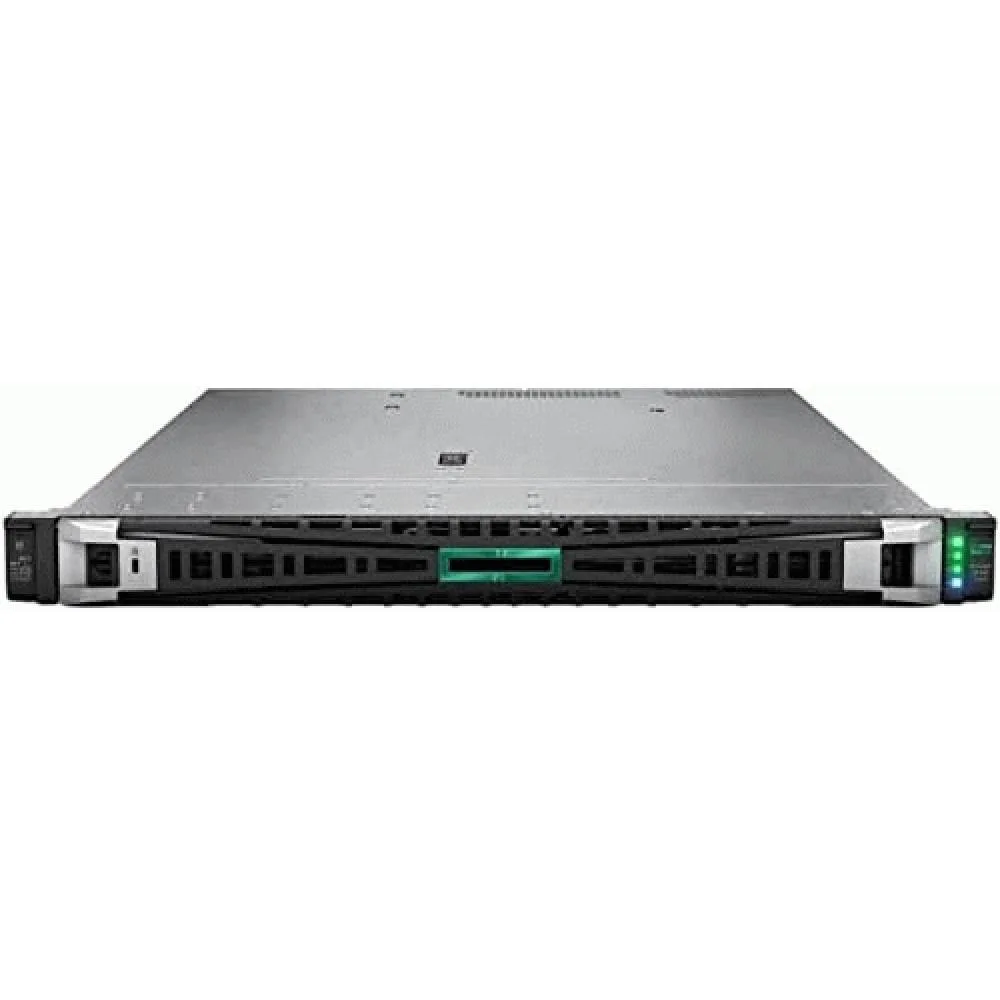

HPE ProLiant DL320 G11 1U Rack Server Intel Xeon Silver 4410Y 16GB DDR5 8 SFF 500W P57687-B21
Compact 1U rack server with Xeon Silver 4410Y, 16GB DDR5 and eight hot-swap SFF bays for dense compute workloads
- TypeRack
- Rack Height1U
- SecurityUEFI Secure Boot and Secure Start support Tamper-free update
- CPU TypeIntel Xeon Silver
- CPU Speed4410Y (2.0GHz)
- # of Processors Installed1
- 1U rack form factor fits dense deployments
- Intel Xeon Silver 4410Y at 2.0 GHz powers workloads
- 16 GB DDR5 memory supports 4800 MT/s speeds
- 8 hot-swappable SFF bays with SAS controller
- 500 W power supply delivers efficient operation
Compact 1U rack server for single-socket workloads
The HPE ProLiant DL320 G11 occupies one rack unit and ships with one Intel Xeon Silver 4410Y processor running at 2.0 GHz. Sixteen gigabytes of DDR5 memory are installed across sixteen available slots. The platform targets IT infrastructure, virtualization, content delivery and edge AI deployments that need density without a second socket.
Eight hot-swap bays with SAS controller and 500 W
Eight small-form-factor drive bays support hot-swappable SAS storage managed by an MR408i-o controller. A single 500 W power supply delivers power to the chassis. UEFI Secure Boot, tamper-free signed firmware updates and an immutable silicon root of trust protect the boot chain. FIPS 140-2 validation and secure erase of NAND and user data address compliance requirements.
Single-socket limit caps CPU expansion at 32 cores
The Intel C741 chipset and single-processor design restrict the server to one Xeon scalable processor with a maximum of 32 cores. Memory scales to 2.04 TB of DDR5 at 4800 MT/s across the sixteen slots. Gigabit Ethernet provides baseline connectivity. Buyers who need dual-socket compute or higher core counts must look beyond this 1P platform.
Highlights
- 1U rack form factor fits dense deployments
- Intel Xeon Silver 4410Y at 2.0 GHz powers workloads
- 16 GB DDR5 memory supports 4800 MT/s speeds
- 8 hot-swappable SFF bays with SAS controller
- 500 W power supply delivers efficient operation
Specifications
| Brand | HPE |
|---|---|
| Series | ProLiant |
| Model | ProLiant DL320 G11 |
| Part Number | P57687-B21 |
| Type | Rack |
| Rack Height | 1U |
| Security | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Secure Recovery - recover critical firmware to a known good state on detection o |
| CPU Type | Intel Xeon Silver |
| CPU Speed | 4410Y (2.0GHz) |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Chipset | Intel C741 |
| Installed Memory Size | 16GB |
| Memory Type | DDR5 |
| Max Memory Capacity | 2TB |
| Number of Memory Slots | 16 |
| Storage Controller | MR408i-o |
| Expansion Bays | 8 |
| Compatible/Certified OS | Windows Server Red Hat Enterprise Linux SuSE Linux Enterprise Server Ubuntu Oracle Linux Citrix XenServer CentOS |
| Shipping weight | 18.14 kg |
| Package size | 902 × 603 × 229 mm |
Questions about this item
What PCIe generation does the Intel C741 chipset provide for the expansion slots?
The Intel C741 chipset delivers PCIe Gen5 lanes to the rear expansion slots, so add-in cards can run at full Gen5 speed if the processor also supports it.
What physical space and mounting hardware does the 1U chassis require?
The server occupies a single 1U rack position and ships with sliding rails that mount to standard square-hole or round-hole 4-post racks.
How is the MR408i-o storage controller installed, and what step is often missed?
The MR408i-o plugs into the dedicated OCP 3.0 mezzanine slot on the system board; the step many miss is cabling the SAS connectors from the controller to the 8 SFF backplane before powering on.
