HPE ProLiant DL380 Gen9 8SFF 2x Xeon E5-2650L v4 512GB DDR4 rack server
Rack server with two 14-core 1.7 GHz Xeon CPUs, 512 GB DDR4 memory, P440 SAS controller and eight 2.5-inch drive bays
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed1.7 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size512GB
- Dual 14-core Xeon processors at 1.7 GHz deliver high thread count
- 512 GB DDR4 ECC memory supports large virtualisation workloads
- Eight 2.5-inch drive bays with P440 SAS controller enable flexible storage
- Dual 10 GbE and dual 1 GbE ports provide high-throughput networking
- HPE iLO Advanced remote management simplifies lights-out administration

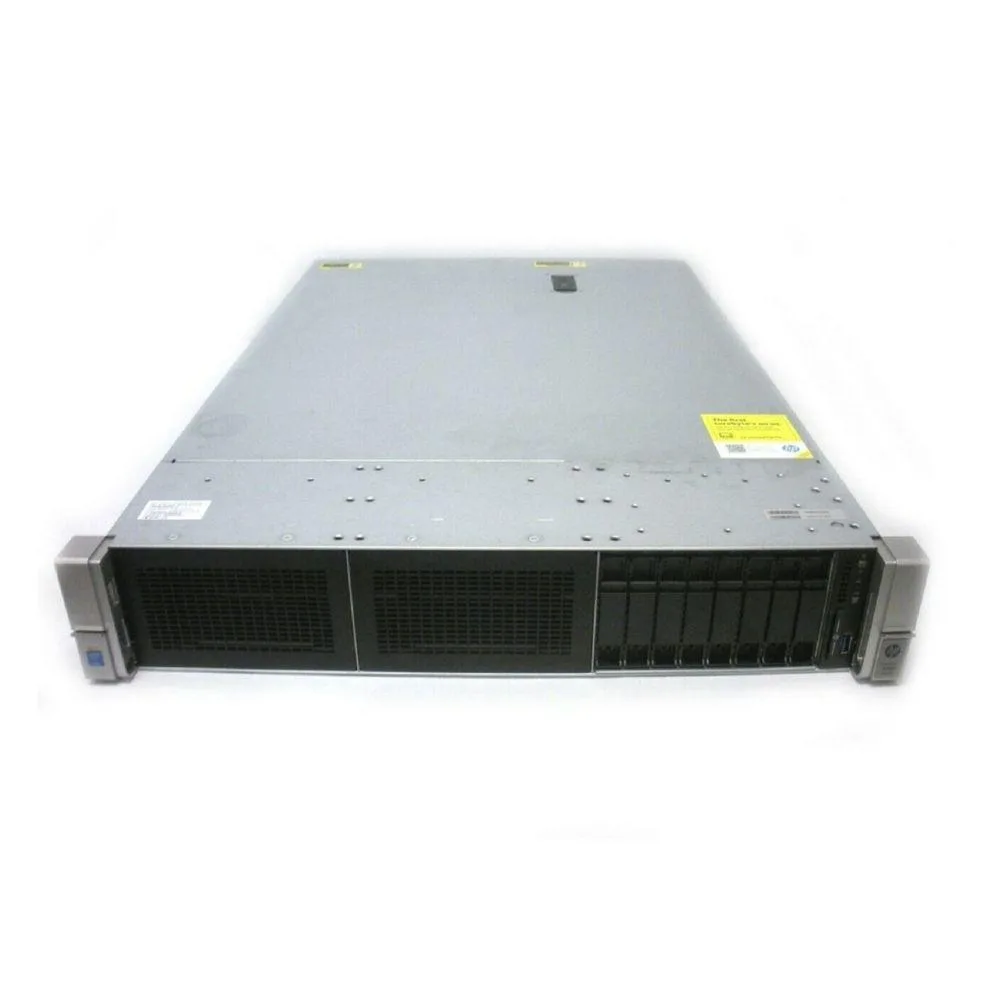

HPE ProLiant DL380 Gen9 8SFF rack server
This 2U rack server ships with two Xeon E5-2650L v4 processors running at 1.7 GHz and 512 GB of DDR4 ECC registered memory. The 8SFF chassis supports up to eight 2.5-inch drive bays and includes an HPE Smart Array P440 SAS controller. Integrated graphics and HPE iLO Advanced remote management are standard. The unit is new with all firmware updated to the latest stable version.
Verify rack depth and power connections before
The chassis measures 36 x 24 x 10 inches and weighs 40 pounds, so confirm your rack depth and weight capacity. Two 500 W Flex Slot power supplies are installed; check that your PDUs provide the correct IEC connectors and phase balance. Network connectivity includes two 10 GbE and two 1 GbE ports via Intel I350/X540 adapters. No drives are included; plan SATA or SAS media separately.
Thermals noise and power draw in normal use
Dual 500 W power supplies share the load, drawing roughly half capacity under typical workloads. Redundant fans adjust speed based on inlet temperature and CPU utilisation, keeping acoustic output moderate for a data-centre environment. The low-power Xeon L-series processors (14 cores each, 35 MB cache) help limit heat density. iLO Advanced provides real-time thermal monitoring and alerting.
Highlights
- Dual 14-core Xeon processors at 1.7 GHz deliver high thread count
- 512 GB DDR4 ECC memory supports large virtualisation workloads
- Eight 2.5-inch drive bays with P440 SAS controller enable flexible storage
- Dual 10 GbE and dual 1 GbE ports provide high-throughput networking
- HPE iLO Advanced remote management simplifies lights-out administration
Specifications
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 1.7 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 512GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 2,00 |
| Storage Controller | HPE Smart Array P440 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
Does the server ship with drives installed or do I need to purchase 2.5" SAS or SATA drives separately?
The chassis provides eight 2.5-inch bays but no drives are installed; you must add compatible SAS or SATA drives yourself.
With 512 GB DDR4 already fitted and a 3 TB maximum, which capacity should I choose for virtualization workloads?
512 GB supports heavy consolidation; add more DDR4 ECC registered modules only if your VM density demands exceed that ceiling.
What does the dual 14-core 1.7 GHz Xeon setup deliver for multi-threaded applications in this 2U rack?
Twenty-eight cores at 1.7 GHz with 35 MB cache per processor provide high thread throughput for parallel workloads within the 2U form factor.
