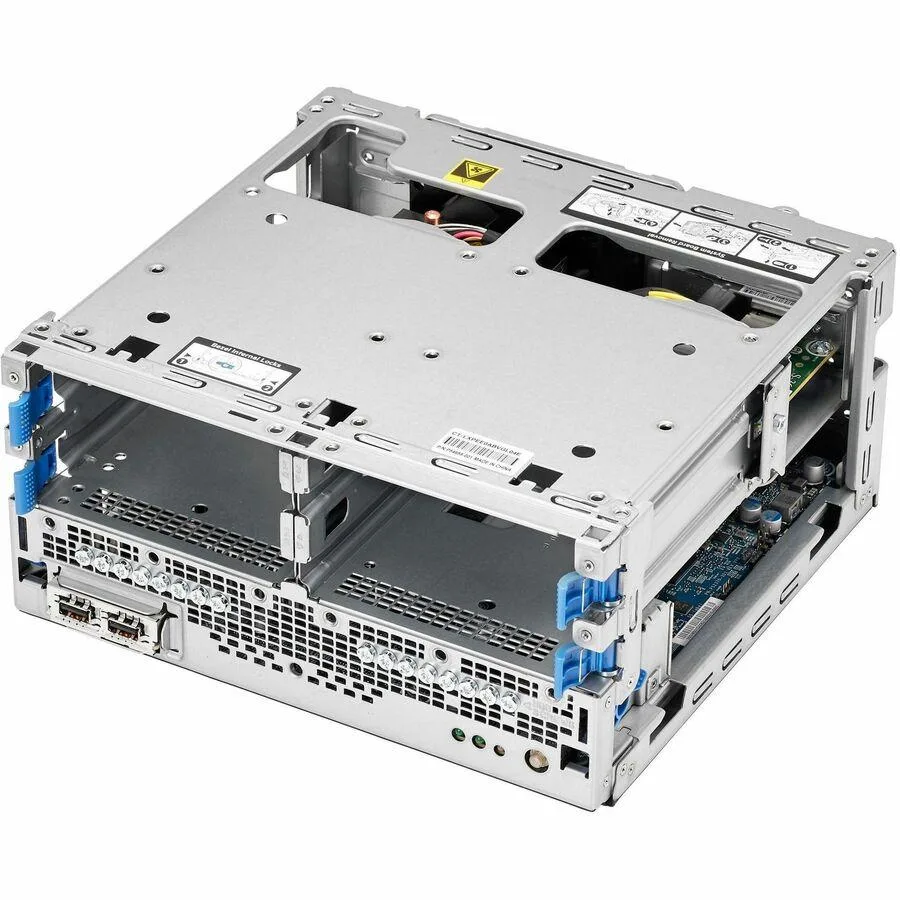

Compact silver ultra micro tower server with four front drive bays

HPE

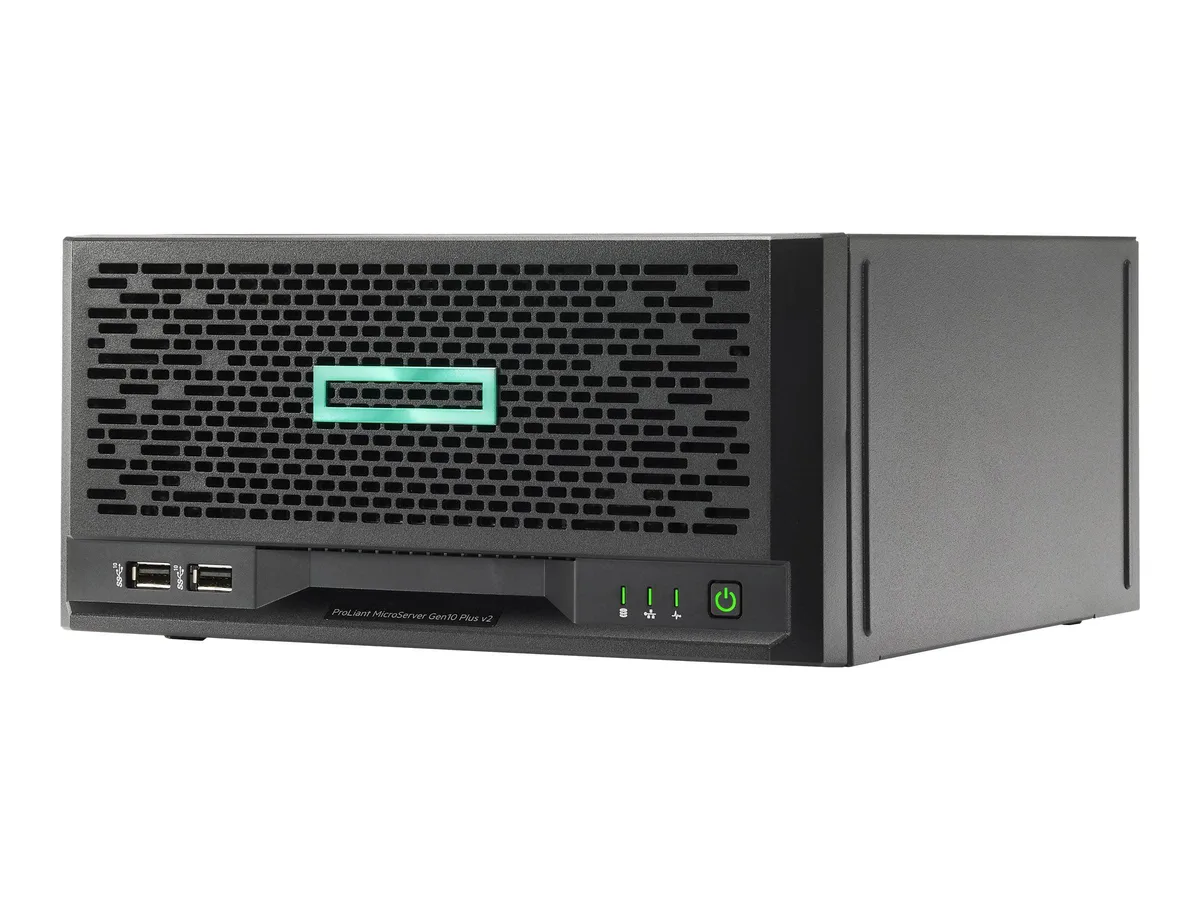

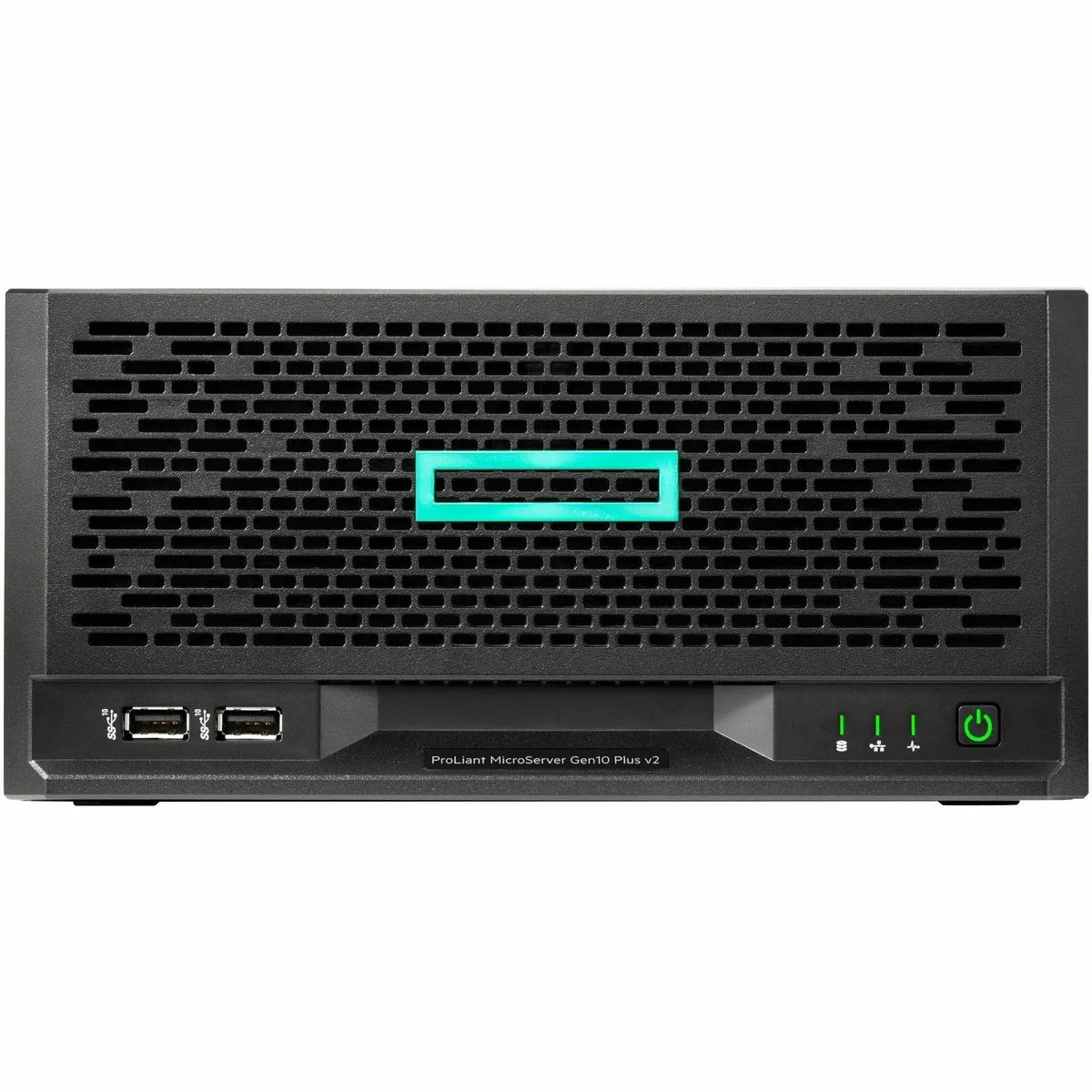

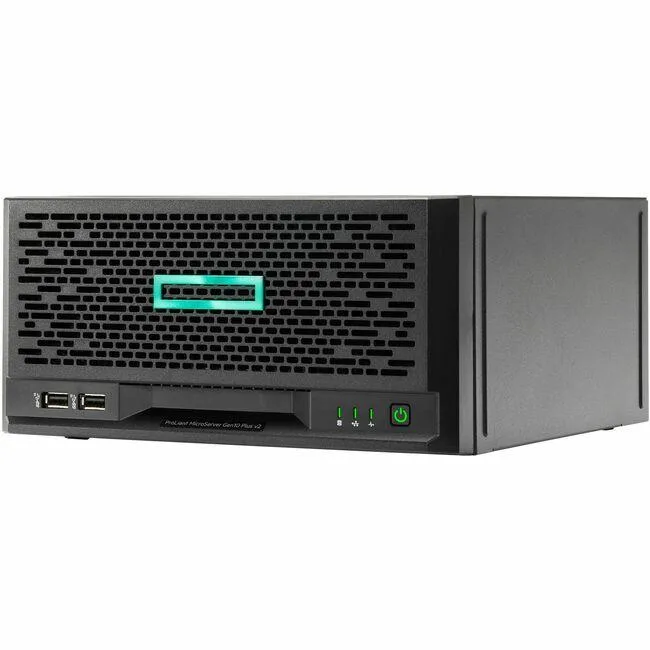

HPE ProLiant MicroServer Gen10 Plus v2 P69102-005 Intel Pentium G6405 16GB DDR4 4-bay rack server

SKU CH-DZCD-XRJH4 MPN P69102-005

Compact tower server with a dual-core Intel Pentium Gold G6405, 16 GB DDR4 memory, four LFF drive bays, embedded quad-port 1 Gb Ethernet and a low-profile PCIe 4.0 slot

  • TypeUltra Micro Tower
  • CPU TypeIntel Pentium Gold
  • CPU SpeedG6405 (4.10 GHz)
  • Number of CPU CoresDual-Core Processor
  • Cache MemoryIntel Smart Cache 4 MB
  • # of Processors Installed1

Installed Memory Size 16GB

CPU Model Pentium Gold G6405

  • Dual-core Pentium G6405 at 4.1 GHz for responsive compute
  • 16 GB DDR4 memory supports multitasking workloads
  • Four LFF non-hot-plug bays provide flexible storage capacity
  • Embedded Intel VROC SATA software RAID protects data
  • Quad-port 1 Gb Intel i350 network controller enables multiple connections

Compact tower server for small workloads

The HPE ProLiant MicroServer Gen10 Plus v2 arrives as an ultra-micro tower with an Intel Pentium Gold G6405 dual-core processor running at 4.1 GHz and 16 GB of DDR4 memory. It targets small businesses or remote offices needing a quiet, entry-level platform for file, print or light application serving. Four large form factor non-hot-plug drive bays provide internal storage capacity without a rack footprint.

External 180 W adapter handles thermals and power

A 180 W external power adapter keeps the chassis free of an internal supply, reducing heat and acoustic output inside the 4.68 by 9.65 by 9.65 inch enclosure. The 58 W processor and passive cooling layout suit always-on operation in noise-sensitive spaces such as open-plan offices or reception areas. Power draw stays modest under typical file-serving loads.

Single low-profile PCIe 4.0 slot

One low-profile PCIe 4.0 expansion slot allows a storage controller, 10 Gb NIC or other add-in card, while the embedded Intel i350-AM4 controller delivers four 1 Gb Ethernet ports for link aggregation or segregated networks. The embedded Intel VROC SATA software RAID manages the four drive bays without consuming the slot. Builders needing hot-plug bays, a second processor or additional PCIe lanes must look elsewhere.

Highlights

  • Dual-core Pentium G6405 at 4.1 GHz for responsive compute
  • 16 GB DDR4 memory supports multitasking workloads
  • Four LFF non-hot-plug bays provide flexible storage capacity
  • Embedded Intel VROC SATA software RAID protects data
  • Quad-port 1 Gb Intel i350 network controller enables multiple connections

Specifications

BrandHPE
SeriesProLiant MicroServer Gen10 Plus v2
ModelP69102-005
TypeUltra Micro Tower
CPU TypeIntel Pentium Gold
CPU SpeedG6405 (4.10 GHz)
Number of CPU CoresDual-Core Processor
Cache MemoryIntel Smart Cache 4 MB
# of Processors Installed1
MAX Processors1
Installed Memory Size16GB
Memory TypeDDR4
Hard Drive (Installed)None included, four LFF non-hot plug drives supported
Storage ControllerEmbedded Intel VROC SATA SW RAID
Ethernet ControllerEmbedded 1Gb 4-Port Intel i350-AM4 Controller
Expansion Slots1 standard (Low Profile) PCIe 4.0
Power Characteristics180W External Power Adapter
Dimensions4.68" x 9.65" x 9.65"
Shipping weight4.54 kg
Package size330 × 330 × 203 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install drives in the four LFF non-hot plug bays and what step is often missed?

Power down the server, remove the chassis cover, slide each 3.5-inch drive into a bay and secure it with the supplied screws, then connect both the SATA data and power cables; the step most often missed is attaching the power cable to each drive.

What maintenance will the 180 W external power adapter need over time?

Keep the adapter's ventilation slots clear of dust and verify the DC cable and connector remain undamaged; no internal fan service is required because the unit is passively cooled.

What limit appears first when the dual-core Pentium G6405 runs at 4.10 GHz under sustained load?

The processor's 58 W thermal design power becomes the limiting factor, causing the system firmware to throttle clock speeds once the cooling solution reaches its capacity.
