HPE
HPE ProLiant ML350 Gen9 8LFF rack server 2x Xeon E5-2699v4 192GB DDR4
Dual Xeon 22-core 2.2 GHz server with 192 GB DDR4, P440 SAS controller, and eight 3.5-inch drive bays
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size192GB
- Dual 22-core Xeon processors deliver high parallel throughput
- 192 GB DDR4 ECC memory supports large working sets
- Eight 3.5-inch drive bays provide flexible storage capacity
- HPE Smart Array P440 SAS controller enables hardware RAID
- Dual 10 GbE and dual 1 GbE ports ensure fast network connectivity
Rack server with dual Xeon E5-2699 v4

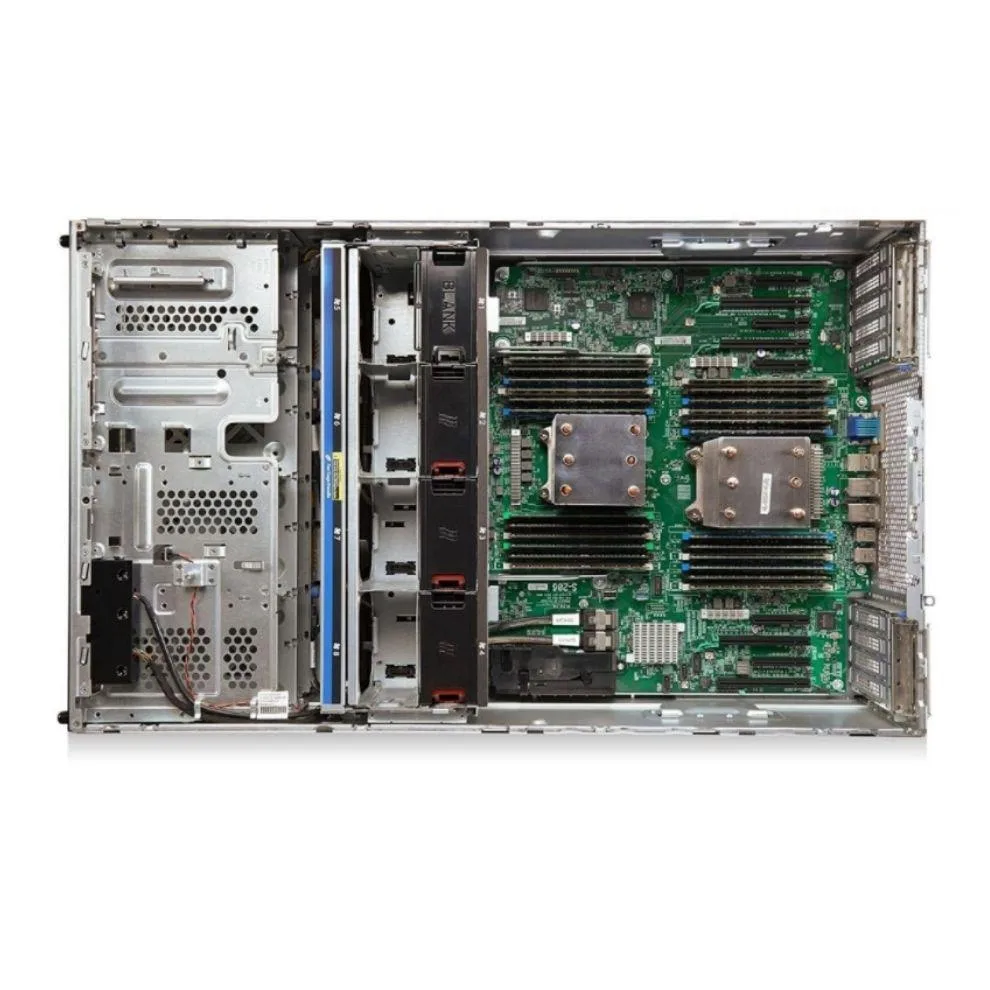

The HPE ProLiant ML350 Gen9 8LFF rack server ships with two Intel Xeon E5-2699 v4 processors running at 2.2 GHz, each providing 22 cores and 55 MB cache. A total of 192 GB DDR4 ECC registered memory is installed across the two-socket board. The chassis supports up to eight 3.5-inch drive bays, served by an HPE Smart Array P440 SAS controller with SATA interface. Remote management is handled by HPE iLO Advanced.
Suited for multi-threaded workloads
This configuration targets users who need high core counts and large memory capacity for virtualisation, database or compute tasks. The dual 500 W flex-slot power supplies and integrated Intel I350/X540 network card delivering two 10 GbE and two 1 GbE ports are included. Buyers who require drives pre-installed or who need a different drive-count chassis should look elsewhere. The unit is new with all firmware updated to the latest stable version.
Memory ceiling of 1536 GB DDR4
The platform maximum is 1536 GB of DDR4, so the installed 192 GB leaves substantial headroom for future expansion. Both CPU sockets are already populated, so processor upgrades are not possible beyond the current E5-2699 v4. The P440 controller manages the internal storage array, and the system includes rails on request.
Highlights
- Dual 22-core Xeon processors deliver high parallel throughput
- 192 GB DDR4 ECC memory supports large working sets
- Eight 3.5-inch drive bays provide flexible storage capacity
- HPE Smart Array P440 SAS controller enables hardware RAID
- Dual 10 GbE and dual 1 GbE ports ensure fast network connectivity
Specifications
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1536GB |
| Hard Drive (Installed) | 4,00 |
| Storage Controller | HPE Smart Array P440 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
Should I choose the 192 GB DDR4 configuration or add more memory up to the 1536 GB maximum?
The system ships with 192 GB of DDR4 ECC registered memory installed across the 24 DIMM slots. You can expand later up to the 1536 GB maximum using compatible DDR4 modules.
What does the 2.2 GHz base frequency on the dual Xeon E5-2699 v4 processors mean for actual throughput?
Each processor provides 22 cores at 2.2 GHz base clock with 55 MB cache, giving 44 total cores for parallel workloads such as virtualization or database tasks.
How does the P440 SAS controller and SATA interface limit drive performance in the 8 LFF bays?
The Smart Array P440 connects to the 8 large-form-factor bays via SAS, while the drive interface is SATA, so installed SATA drives will run at SATA speeds.
