Green rectangular M.2 2280 circuit board with exposed NAND chips and gold edge connector

HUADISK

HUADISK HYV1TBX4(GR) 1TB internal SSD

SKU CH-WPNF-VCKAZ MPN HYV1TBX4(GR)

1 TB M.2 2280 PCIe 4.0 x4 drive with 7200 MB/s read, 6400 MB/s write and 600 TBW endurance

  • Max Sequential ReadUp to 7200 MBps
  • Max Sequential WriteUp to 6400 MBps
  • 4KB Random ReadUp to 720,000 IOPS
  • 4KB Random WriteUp to 800,000 IOPS
  • Terabytes Written (TBW)600TB
  • MTBF1,000,000 hours

Capacity 1TB

  • Up to 7200 MBps sequential read for rapid file loading
  • Up to 6400 MBps sequential write for fast data saving
  • 720,000 IOPS random read keeps multitasking responsive
  • 800,000 IOPS random write handles heavy workloads smoothly
  • 600 TBW and 1,000,000 hours MTBF indicate long-term endurance

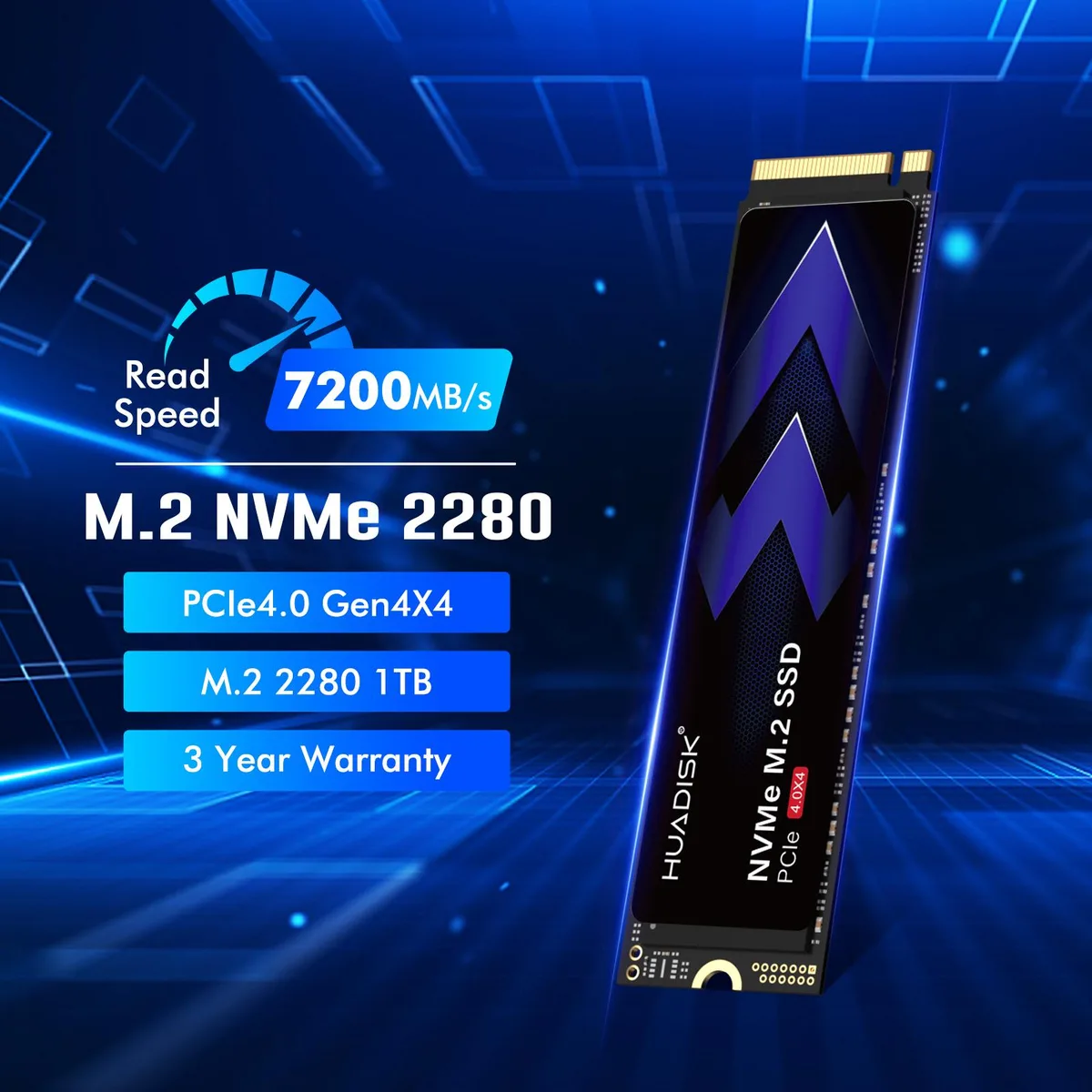

1TB PCIe 4.0 NVMe drive

This HUADISK model is a 1TB M.2 2280 internal SSD built on the NVMe 1.4 protocol and a PCIe 4.0 x4 interface. It is designed for consumer desktops, laptops and the PS5 where a heatsink-less module is required for tight clearances. The 80.0mm length and 2.10mm thickness allow installation in ultra-thin chassis.

Thermals noise and power

Without an attached heatsink the drive relies on system airflow and operates within a 0°C to 70°C range. Active power draw is 8.18W while idle consumption sits at 0.66W. The slim profile produces no mechanical noise and fits alongside other components without blocking ventilation paths.

Sustained load behaviour

Sequential reads reach up to 7200 MBps and writes up to 6400 MBps during extended transfers. Random performance holds at 720000 IOPS read and 800000 IOPS write under continuous multi-threaded workloads. Endurance is rated at 600TB written with a 1000000 hour MTBF for long-term reliability.

Highlights

  • Up to 7200 MBps sequential read for rapid file loading
  • Up to 6400 MBps sequential write for fast data saving
  • 720,000 IOPS random read keeps multitasking responsive
  • 800,000 IOPS random write handles heavy workloads smoothly
  • 600 TBW and 1,000,000 hours MTBF indicate long-term endurance

Specifications

Max Sequential ReadUp to 7200 MBps
Max Sequential WriteUp to 6400 MBps
4KB Random ReadUp to 720,000 IOPS
4KB Random WriteUp to 800,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Form FactorM.2 2280
Capacity1TB
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
Power Consumption (Active)8.18W
Power Consumption (Idle)0.66W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
BrandHUADISK
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Height80.0mm
Width22.0mm
Depth2.10mm
Weight30g
Shipping weight0.05 kg
Package size98 × 60 × 15 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install this M.2 2280 SSD and what step do people often miss?

Insert the drive at an angle into the PCIe 4.0 x4 slot, press it flat, and secure it with the motherboard screw; the step many miss is enabling the NVMe 1.4 drive in BIOS so the OS can see it.

What maintenance or replacement will this 1 TB drive need later?

No routine maintenance is required; the 600 TBW endurance rating and 1 000 000 hour MTBF indicate when the NAND may wear out, at which point the drive would be replaced.

What limit appears first during sustained heavy writes on this drive?

The 8.18 W active power draw and lack of a heatsink mean the controller will hit the 70 °C operating ceiling first, triggering thermal throttling to protect the 3D NAND.
