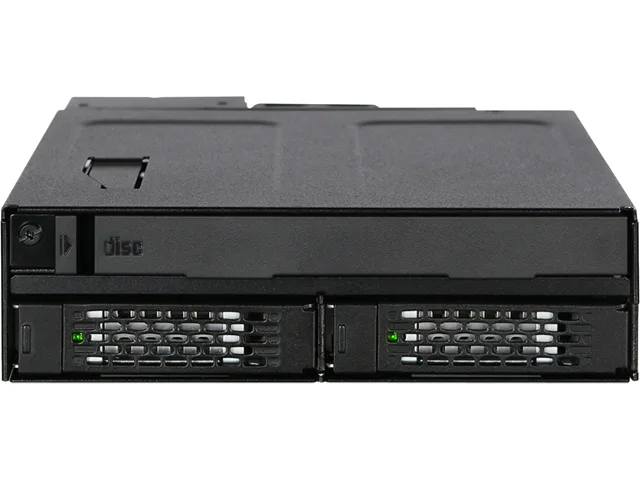

Black metal cage holding two 2.5 inch drive trays and a slim optical bay for a 5.25 inch slot

ICY DOCK

ICY DOCK MB602SPO-B 2 x 2.5" SAS/SATA HDD accessory

SKU CH-XDH1-AXNMM MPN MB602SPO-B

Holds two 2.5" SATA or SAS drives up to 15 mm and one 9.5 mm or 12.7 mm optical drive in a single external 5.25" bay with a 40 mm fan

  • ColorBlack
  • Mobile Rack Drives Support2 x 2.5" SAS/SATA SSD/HDD & (Ultra) Slim ODD Backplane Cage
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"
  • SpecificationsSupport Drive Size: 2 x 2.5" SSD / HDD & 1 x Ultra Slim or S
  • Hot-swap two 2.5" SAS/SATA drives up to 15 mm height
  • Add a 9.5 mm or 12.7 mm optical drive in one 5.25" bay
  • Rugged all-metal build for military, medical and industrial use
  • User-configurable 40 mm fan keeps drives cool
  • Removable anti-vibration trays with per-drive status LEDs

Rugged 5.25" cage for two 2.5" drives

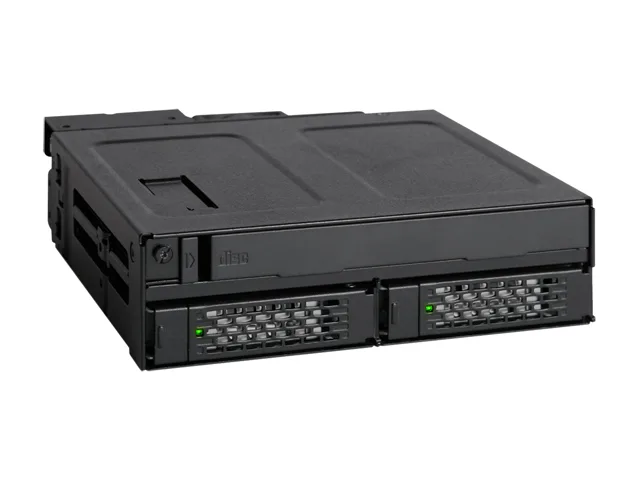

The ICY DOCK ToughArmor MB602SPO-B fits a single external 5.25" bay and holds two 2.5" SAS or SATA SSDs and HDDs up to 15 mm thick plus one 12.7 mm slim or 9.5 mm ultra-slim optical drive. Its full-metal chassis and anti-vibration trays are built for industrial, military, medical and in-vehicle systems. A user-configurable 40 mm fan and ventilation holes keep temperatures in check.

Suited for hot-swap SATA

This unit serves builders who need two hot-swappable 2.5" drives and an optical drive in one rugged enclosure with individual status LEDs. It does not serve buyers who require more than two drive bays, support for drives thicker than 15 mm, or interfaces other than SATA and SAS.

Requires a SAS host for SAS drives

Each drive connects through a SATA I/II/III or SAS 6 Gb/s backplane, but SAS drives will only operate when the system provides a SAS host connection; a SATA-only host will not activate them.

Highlights

  • Hot-swap two 2.5" SAS/SATA drives up to 15 mm height
  • Add a 9.5 mm or 12.7 mm optical drive in one 5.25" bay
  • Rugged all-metal build for military, medical and industrial use
  • User-configurable 40 mm fan keeps drives cool
  • Removable anti-vibration trays with per-drive status LEDs

Specifications

BrandICY DOCK
ModelMB602SPO-B
ColorBlack
Mobile Rack Drives Support2 x 2.5" SAS/SATA SSD/HDD & (Ultra) Slim ODD Backplane Cage for External 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsSupport Drive Size: 2 x 2.5" SSD / HDD & 1 x Ultra Slim or Slim ODD
Compatible Drive Type: SATA / SAS (SAS host required / single channel)
Number of Drives: 2
Max Drive Height: 2 x 2.5" up to 15mm
1 x Ultra Slim ODD (9.5mm) / Slim ODD (12.7mm)
Drive Bay: 1 x external 5.25" drive bay
Host Interface: 3 x SATA 7pin
Power Input: 2 x SATA 15pin power connector
Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation

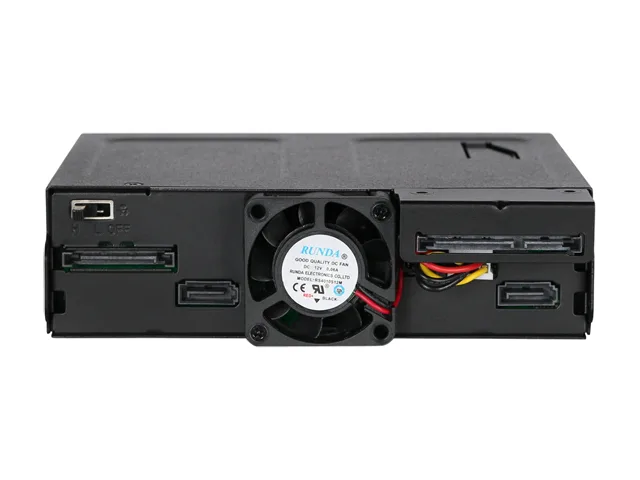

Drive Cooling: 1 x 40mm fan
Structure / Material: Metal
Support Hot-Swap: Yes
FeaturesRugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
Perfect for applications that must meet a flammability requirement
Fits 2x SSDs or HDDs between 5mm and 15mm in height
Supports SATA III and SAS single-channel
Supports Slim (12.7mm) or Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)
Spring-loaded ODD bracket for fast installation and removal
Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery
40mm cooling fan with h
Shipping weight1.36 kg
Package size305 × 229 × 102 mm

Questions about this item

What does the 6 Gb/s SAS interface mean for real-world transfer speed?

The 6 Gb/s SAS link caps each drive at 600 MB/s maximum throughput, so actual speed will not exceed that limit regardless of the drive's own rating.

Which drive interfaces are supported by the backplane?

The backplane accepts both SATA I, II, III and SAS drives, but a SAS host controller is required for SAS drives to function.

What bay size and drive heights does the cage fit?

The unit mounts in a single external 5.25" bay and holds two 2.5" drives up to 15 mm tall plus one 12.7 mm slim or 9.5 mm ultra-slim optical drive.
