Silver metal rack with eight sliding trays and dual fans visible through front vents

ICY DOCK

ICY DOCK ToughArmor MB873MP-B 8-Bay M.2 NVMe Rack Server

SKU CH-1EJR-ZX1J9

Holds eight M.2 NVMe SSDs in a single 5.25" bay with dual 40x20mm fans, aluminum trays, OCuLink SFF-8612 connections and PCIe 4.0 64Gbps per slot

  • TypeRack
  • Supports 8 M.2 NVMe SSDs from 30mm to 110mm length
  • Fits 1 standard external 5.25 inch optical drive bay
  • Connects via 8 OCuLink SFF-8612 ports per SFF-9402 Rev 1.1
  • PCIe 4.0 transfer rates up to 64Gbps per drive bay
  • Powers all 8 SSDs through 2 fifteen-pin SATA power connectors

Eight-bay M.2 NVMe rack for 5.25-inch bay

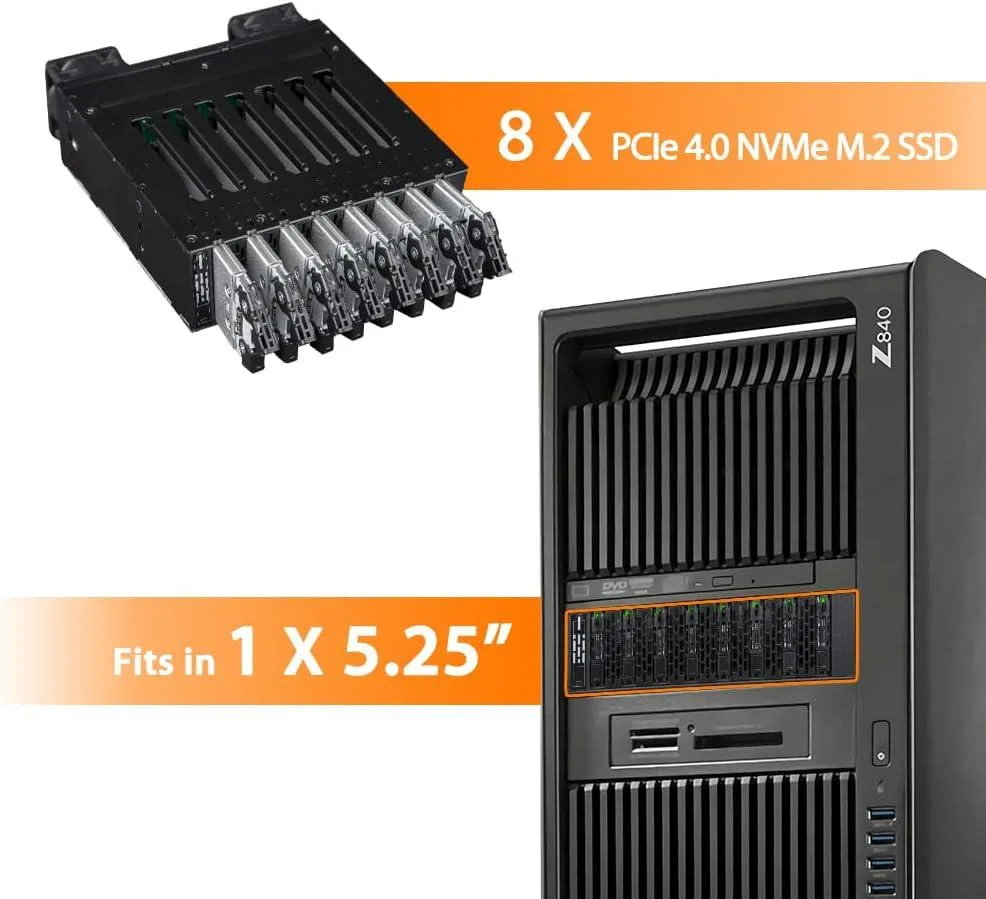

The ICY DOCK ToughArmor MB873MP-B fits eight PCIe M.2 NVMe SSDs into a single external 5.25-inch optical drive bay. It accepts drive lengths of 30mm, 42mm, 60mm, 80mm and 110mm. The unit connects through eight OCuLink SFF-8612 ports wired to the SFF-9402 Rev 1.1 pin-out. It is built for servers and workstations that need dense, removable NVMe storage.

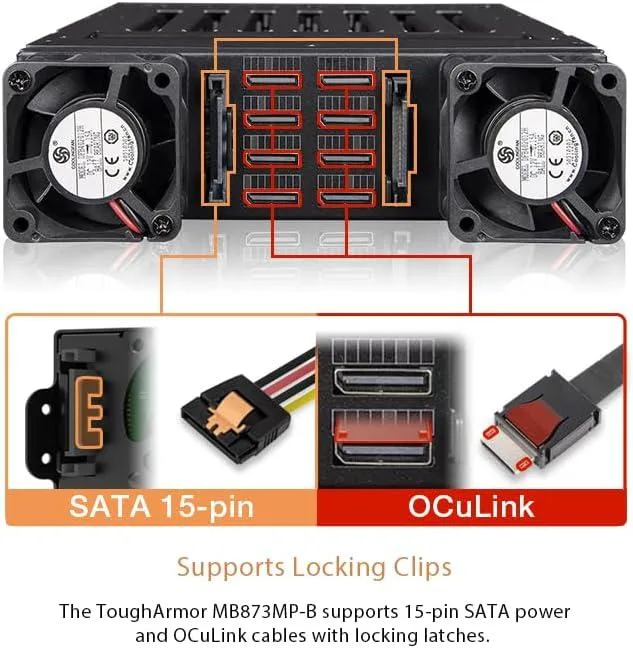

Check OCuLink ports and power connectors first

Your host system must provide eight OCuLink lanes to use every bay. The rack draws power for all eight SSDs from two 15-pin SATA power connectors. Verify that your backplane or controller supports the required lane count and that the cables reach the 5.25-inch mounting location. The enclosure does not support Tri-Mode operation.

Aluminium trays and dual fans sustain thermal

Each slimline tray uses thick aluminium to act as a heatsink, aided by included thermal pads that fill gaps between the SSD and tray. Dual 40x20mm fans move air through the entire enclosure during continuous workloads. EMI grounding clips the SSD to the tray and chassis, maintaining a grounded path when the unit is screwed into the system. Full-metal construction meets flammability requirements for industrial environments.

Highlights

  • Supports 8 M.2 NVMe SSDs from 30mm to 110mm length
  • Fits 1 standard external 5.25 inch optical drive bay
  • Connects via 8 OCuLink SFF-8612 ports per SFF-9402 Rev 1.1
  • PCIe 4.0 transfer rates up to 64Gbps per drive bay
  • Powers all 8 SSDs through 2 fifteen-pin SATA power connectors

Specifications

TypeRack

Questions about this item

Does the MB873MP-B include the M.2 NVMe SSDs or do I need to supply them?

The MB873MP-B is an empty enclosure; you must provide up to eight PCIe M.2 NVMe SSDs in 2230, 2242, 2260, 2280 or 22110 form factors.

How do I decide which M.2 length to buy for the eight bays?

Each tray accepts every listed length from 30 mm to 110 mm, so choose the capacity and performance you need; the hardware fits them all.

What does the 64 Gbps per bay figure mean once the drives are installed?

Each bay runs at PCIe 4.0 x4 speeds, delivering up to 64 Gbps raw bandwidth to the host through its dedicated OCuLink link.
