Compact black mini PC with mounting ears, fanless metal case

Inctel

Inctel I27-i7 8550U-8G512G mini PC 8GB 512GB

SKU CH-66NX-74HQ6

Fanless mini desktop with Intel Core i7 8550U, 8 GB DDR4, 512 GB SSD, six COM ports, dual LAN, GPIO, LPT and Windows 10 Pro

  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU Name1.80GHz

CPU Type Intel Core i7 8th Gen

CPU Name 1.80GHz

GPU · Memory · SSD Intel UHD Graphics 620 · 8GB DDR4 · 512GB

  • Quad-core i7-8550U reaches 4.0 GHz turbo for responsive multitasking
  • Fanless all-metal chassis runs silently in dusty or quiet environments
  • 8 GB DDR4 and 512 GB SSD give fast boot and app loads
  • Dual Intel LAN plus 2.4/5.0 GHz Wi-Fi keeps connections stable

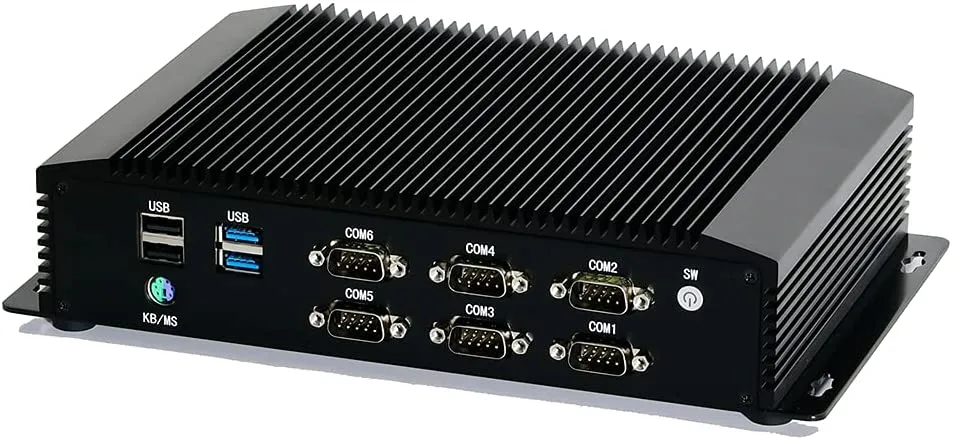

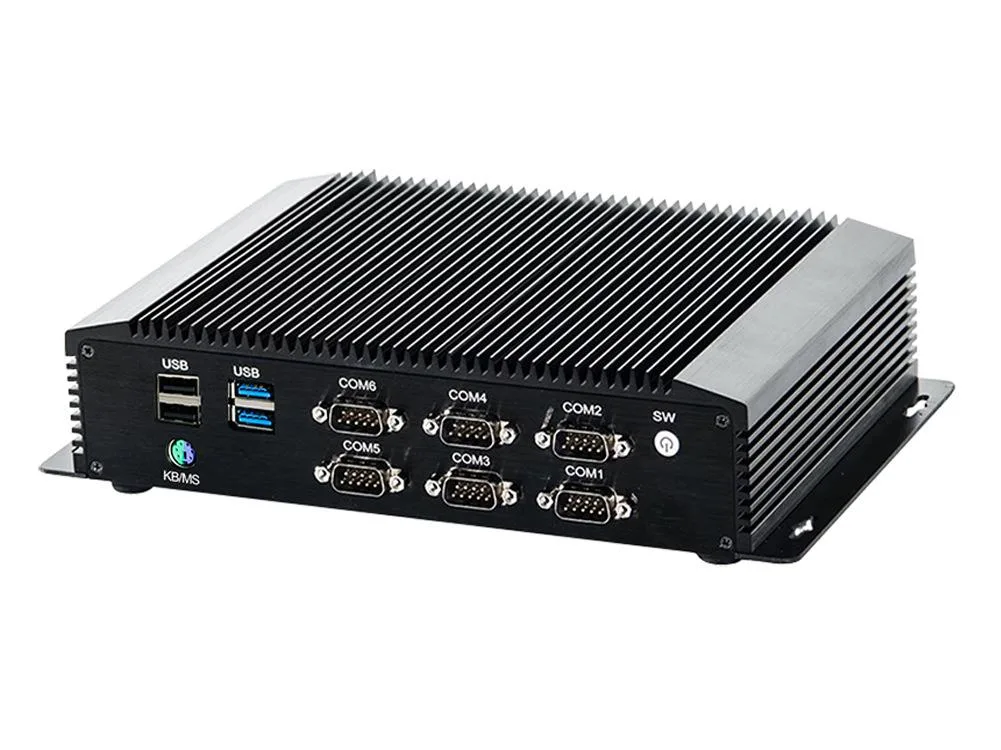

  • Six COM ports, GPIO, LPT and PS/2 support legacy industrial gear

Compact industrial desktop for embedded tasks

The Inctel I27-i7 8550U-8G512G is a fanless mini PC built around an Intel Core i7 8550U quad-core processor with 8 GB of DDR4 memory and a 512 GB SSD. Windows 10 Pro is pre-installed. Its all-metal chassis uses passive cooling, making it suited for continuous operation in noise-sensitive or dust-prone environments.

Suited for multi-port I/O and dual-display setups

This unit targets integrators who need six COM ports, GPIO, LPT, PS/2, dual LAN and both HD and VGA video outputs for legacy and industrial peripherals. Buyers requiring a dedicated graphics engine, higher single-thread speeds, or a larger number of USB 3.0 ports should evaluate other platforms.

Fits into DIN-rail or wall-mounted builds

Mounting ears allow direct installation without a separate bracket. Two mini-PCIe slots — one half-size, one full-size with SIM holder — accept Wi-Fi or 4G modules, while an internal 2.5-inch SATA bay and M.2 2280 slot provide storage expansion. Dual Intel LAN and 802.11ac wireless handle wired and wireless connectivity.

Highlights

  • Quad-core i7-8550U reaches 4.0 GHz turbo for responsive multitasking
  • Fanless all-metal chassis runs silently in dusty or quiet environments
  • 8 GB DDR4 and 512 GB SSD give fast boot and app loads
  • Dual Intel LAN plus 2.4/5.0 GHz Wi-Fi keeps connections stable
  • Six COM ports, GPIO, LPT and PS/2 support legacy industrial gear

Specifications

ModelI27-i7 8550U-8G512G
Part NumberI27-i7 8550U-8G512G
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 10 Pro
CPU TypeIntel Core i7 8th Gen
CPU Name1.80GHz
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What monitor connections do I need to use the HD and VGA ports on this mini PC?

The unit provides one HD port and one VGA port supporting dual-monitor output up to 4096x2304 at 24Hz, so you need displays with matching HD or VGA inputs and appropriate cables.

Will my existing 2.5-inch SATA drive fit inside the case alongside the installed 512GB SSD?

Yes, the chassis includes a 2.5-inch SATA bay and the specifications list one SATA3 6Gb/s connector, allowing you to add a 2.5-inch SATA SSD or HDD for extra storage.

How can I verify the Intel UHD Graphics 620 is active after installing Windows 10 Pro?

Open Device Manager, expand Display adapters, and confirm Intel UHD Graphics 620 appears; then check the display settings to ensure the resolution matches your monitor's native resolution.
