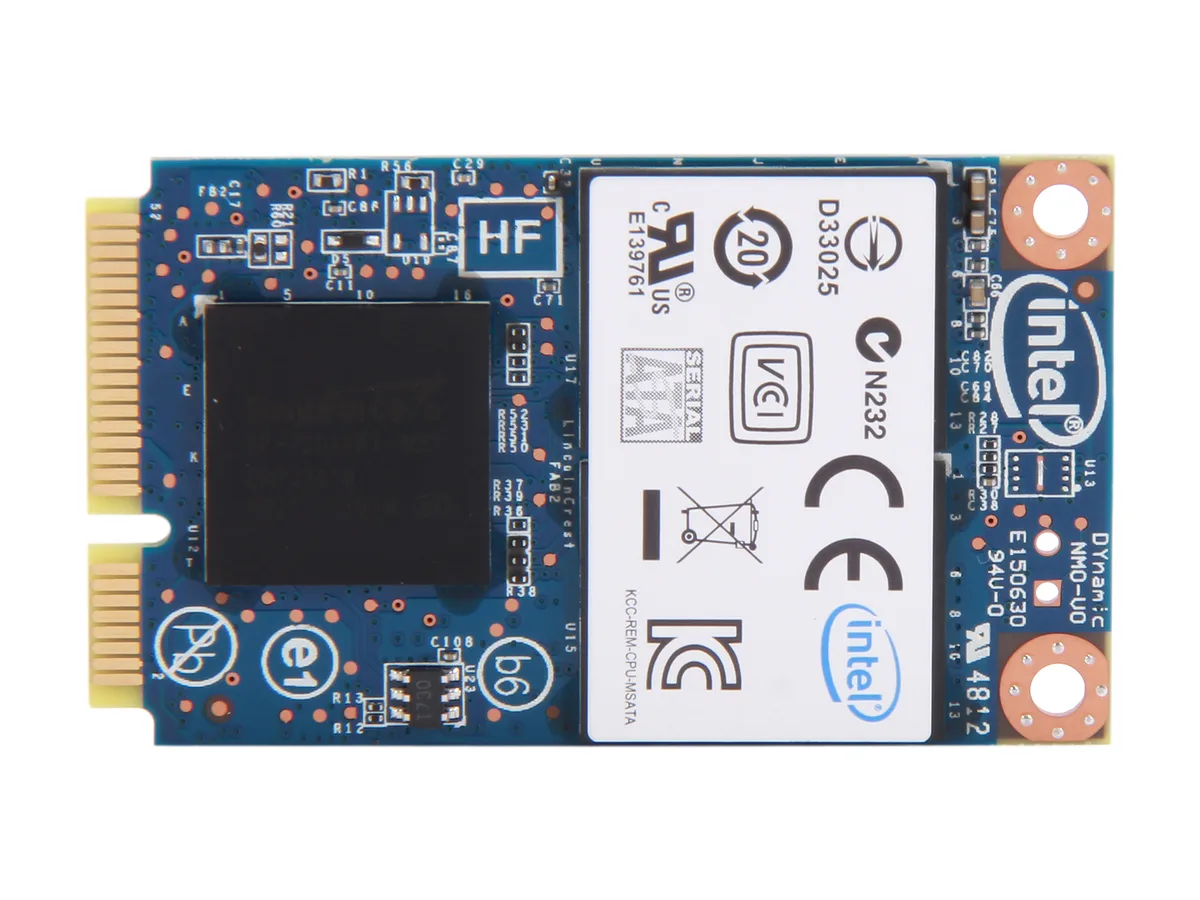

Small green circuit board with gold edge connector and black chips, about three point seven millimetres thick

Intel

Intel 525 Series 30GB mSATA Internal SSD SSDMCEAC030B301

SKU CH-HXVT-0SYG4 MPN SSDMCEAC030B301

A 30 GB mSATA solid-state drive with MLC memory delivering up to 500 MB/s sequential read and 275 MB/s sequential write in a 3.7 mm form factor

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Capacity30GB
  • Memory ComponentsMLC
  • InterfaceMini-SATA (mSATA)
  • Max Sequential ReadUp to 500 MB/s

Options 30GB

  • Fast boot and load times with up to 500 MB/s sequential read
  • Snappy multitasking from up to 50,000 IOPS random read
  • Low 275 mW idle draw extends laptop battery life
  • AES 128-bit encryption protects stored data
  • 1000 G shock rating survives drops and vibration

30 GB mSATA SSD for compact systems

The Intel 525 Series 30 GB mSATA drive fits laptops and small-form-factor desktops that accept a Mini-SATA module. MLC flash delivers up to 500 MB/s sequential read and 275 MB/s sequential write with 50,000 random read IOPS and 80,000 random write IOPS. AES 128-bit encryption and end-to-end data protection secure stored information. The 3.7 mm profile suits space-constrained builds.

Fits mSATA slots and frees 2.5-inch bays

The module installs directly into an mSATA connector on the motherboard or an adapter card, leaving any 2.5-inch drive bay available for additional storage. SATA III interface provides broad compatibility with existing chipsets. Low active power of 350 mW reduces demand on the system power budget. No cables are required beyond the slot itself.

Runs 0 °C to 70 °C with minimal heat and noise

Idle power is 275 mW and active power 350 mW, so the drive adds little thermal load inside a tight chassis. With no moving parts it produces no audible noise during operation. The controller is rated for 1,200,000 hours MTBF and withstands 1,000 G shock and up to 3.13 G non-operating vibration. Operating humidity range is 5 % to 95 % RH.

Highlights

  • Fast boot and load times with up to 500 MB/s sequential read
  • Snappy multitasking from up to 50,000 IOPS random read
  • Low 275 mW idle draw extends laptop battery life
  • AES 128-bit encryption protects stored data
  • 1000 G shock rating survives drops and vibration

Specifications

BrandIntel
Series525 Series
ModelSSDMCEAC030B301
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Capacity30GB
Memory ComponentsMLC
InterfaceMini-SATA (mSATA)
Max Sequential ReadUp to 500 MB/s
Max Sequential WriteUp to 275 MB/s
4KB Random ReadUp to 50,000 IOPS
4KB Random WriteUp to 80,000 IOPS
MTBF1,200,000 hours
FeaturesHigh I/O and throughput performance
Low power
Increased system responsiveness
High reliability
Enhanced ruggedness
Small form-factor
Minimum weight
Advanced Encryption Standard (AES) 128-bit Encryption
End-to-End Data Protection
Data Compression
Power Consumption (Idle)275 mW
Power Consumption (Active)350 mW
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +95°C
Operating Humidity5% to 95% RH
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 G (5-700 Hz)
Non-operating: 3.13 G (5-800 Hz)
Height3.7mm
Weight<10 g
Shipping weight0.04 kg
Package size98 × 61 × 25 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum power draw of the 30GB Intel 525 Series mSATA drive under sustained active workloads?

Active power consumption is rated at 350 mW, so sustained heavy writes will not exceed that figure.

How much heat and noise does the SSDMCEAC030B301 produce when running all day?

With no moving parts and a 350 mW active power rating, the drive generates minimal heat and zero audible noise during continuous operation.

Which motherboard slot is required for this mSATA SSD to function?

The drive needs a Mini-SATA (mSATA) slot with SATA III signalling; it will not fit a standard 2.5-inch bay or an M.2 key-M socket.
