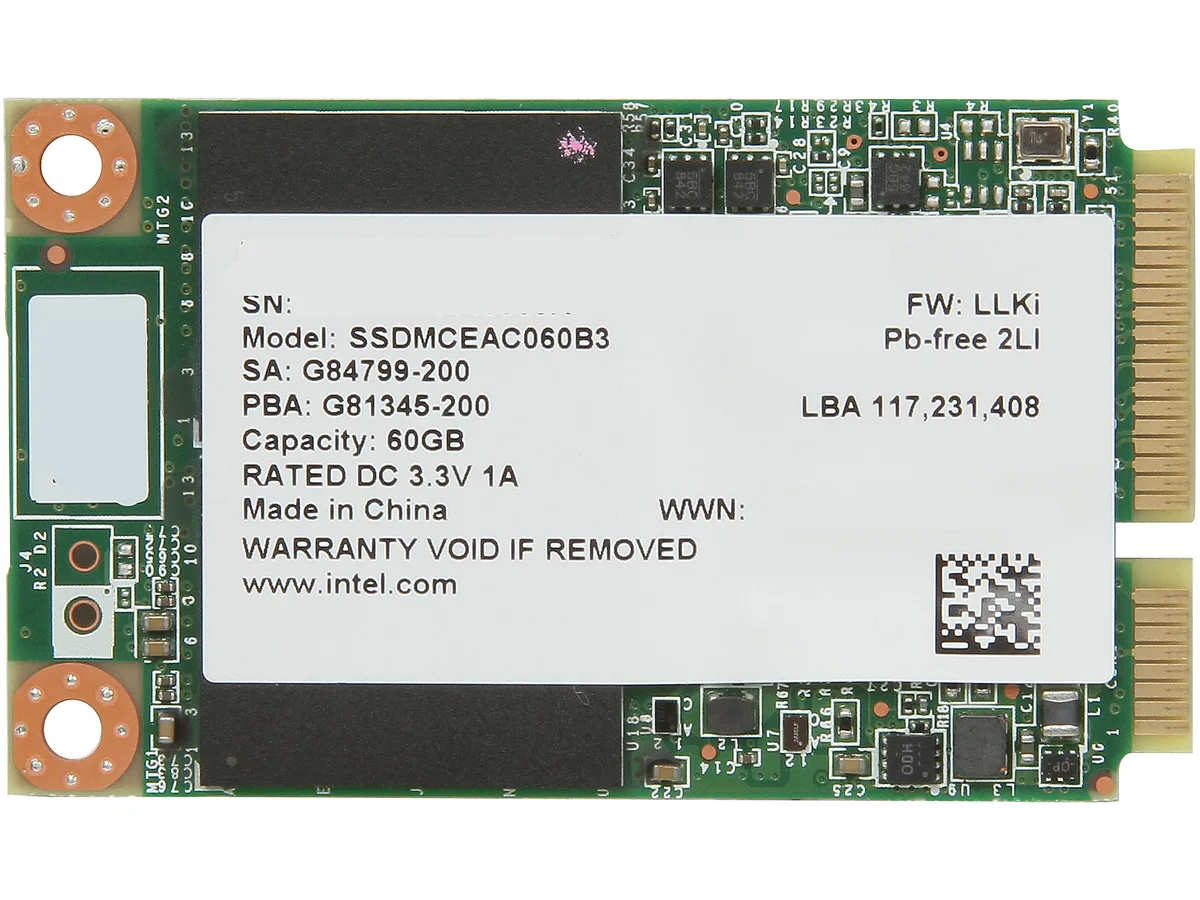

Small green mSATA circuit board with gold edge connector and black controller chip

Intel

Intel 525 Series 60GB mSATA internal SSD SSDMCEAC060B301

SKU CH-ZDFY-Y2SHS MPN SSDMCEAC060B301

A 60 GB mSATA solid-state drive with MLC memory, 550 MB/s read and 475 MB/s write speeds, plus hardware encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity60GB
  • Memory ComponentsMLC
  • InterfaceMini-SATA (mSATA)

Options 60GB

  • Fast boot and load times with 550 MB/s sequential read
  • Responsive multitasking from 80,000 IOPS random write
  • Data protected by 128-bit hardware encryption
  • Compact mSATA form factor weighs under 10 grams
  • Reliable MLC NAND rated for 1,200,000 hours MTBF

Intel 525 Series 60GB mSATA SSD

The Intel 525 Series is a 60GB mSATA internal solid-state drive built with MLC memory for consumer laptops and small-form-factor desktops. It connects through a Mini-SATA interface and fits into mSATA slots without adapters. The lightweight design weighs under 10 grams.

60GB capacity and performance headroom

Sequential reads reach 550 MB/s and writes reach 475 MB/s. Random 4KB performance delivers up to 50,000 read IOPS and up to 80,000 write IOPS. The 60GB capacity suits operating systems and core applications; heavier media libraries will require additional storage.

Thermals noise and power draw

With no moving parts the drive runs silently in normal use. Solid-state construction keeps heat output low inside tight chassis. Hardware-based 128-bit encryption and end-to-end data protection operate without adding measurable power draw or thermal load.

Highlights

  • Fast boot and load times with 550 MB/s sequential read
  • Responsive multitasking from 80,000 IOPS random write
  • Data protected by 128-bit hardware encryption
  • Compact mSATA form factor weighs under 10 grams
  • Reliable MLC NAND rated for 1,200,000 hours MTBF

Specifications

BrandIntel
Series525 Series
ModelSSDMCEAC060B301
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity60GB
Memory ComponentsMLC
InterfaceMini-SATA (mSATA)
Max Sequential Read550 MB/s
Max Sequential Write475 MB/s
4KB Random ReadUp to 50,000 IOPS
4KB Random WriteUp to 80,000 IOPS
MTBF1,200,000
FeaturesHardware Encryption: 128
End-to-End Data Protection
Weight<10 grams
Shipping weight0.04 kg
Package size99 × 62 × 25 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this mSATA drive work in a laptop that only has a SATA II slot?

The drive uses a SATA III interface and is backward compatible with SATA II slots, though sequential speeds will be limited to the older standard's maximum.

How can I verify the drive is delivering its rated 50,000 IOPS random read performance after installation?

Run a benchmark tool such as CrystalDiskMark or AS SSD using a 4 KB random read test and compare the reported IOPS figure to the 50,000 IOPS specification.

Does the retail box include a mounting screw or adapter bracket for the mSATA slot?

The drive weighs under 10 grams and ships as the bare mSATA module; mounting screws and any required adapters are supplied by the system or laptop manufacturer.
