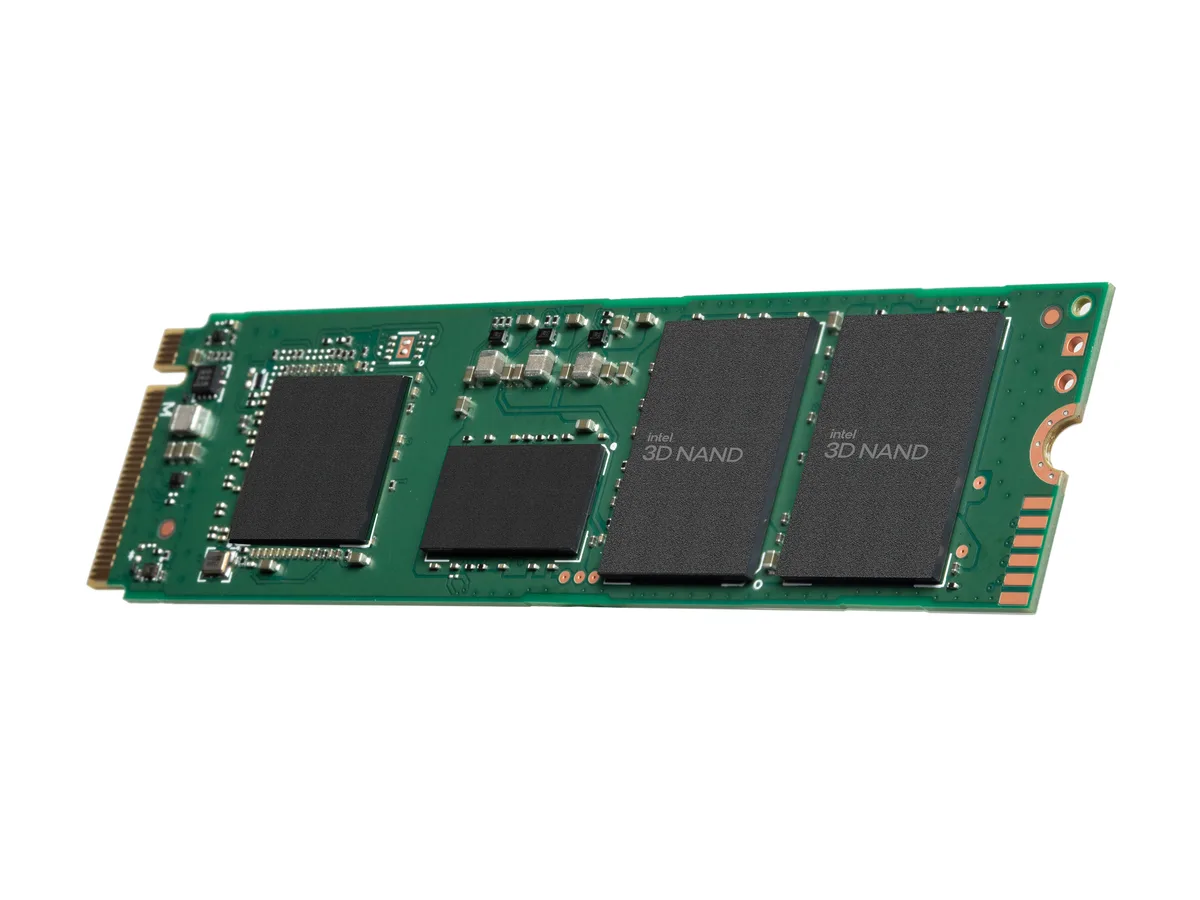

Green circuit board M.2 2280 SSD with black controller and silver label

Intel

Intel 670p Series 1TB M.2 2280 PCIe 3.0 x4 NVMe internal SSD SSDPEKNU010TZX1

SKU CH-KXX5-77KND MPN SSDPEKNU010TZX1

1TB M.2 2280 PCIe 3.0 x4 NVMe SSD with 3500 MBps read, 2500 MBps write, 220000 IOPS random read and 330000 IOPS random write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D4 QLC
  • InterfacePCIe 3.0 x4, NVMe

Options 1TB

  • Fast boot and load times with up to 3500 MBps sequential read
  • Responsive multitasking from up to 2500 MBps sequential write
  • Snappy app launches via up to 220000 IOPS random read
  • Quick file saves with up to 330000 IOPS random write
  • Fits thin laptops and desktops in M.2 2280 form factor

Intel 670p 1TB M.2 2280 NVMe SSD

This Intel 670p Series drive is a 1TB internal solid state drive built on 144-layer QLC NAND. It uses an M.2 2280 form factor with a PCIe 3.0 x4 NVMe interface. The drive targets everyday computing, mainstream gaming and productivity workloads that benefit from high capacity and responsive storage. Sequential speeds reach 3500 MBps read and 2500 MBps write.

Check motherboard M.2 slot and PCIe generation

Verify that your motherboard has an M.2 2280 slot keyed for NVMe and wired for PCIe 3.0 x4 or newer. The drive draws 25 mW idle and 80 mW active, so ensure the slot can supply that power. Operating temperature range is 0°C to 70°C; confirm adequate airflow in your chassis. No DRAM cache is present, so the controller relies on host memory buffer support from the platform.

Suits mainstream builds needing capacity over

This SSD suits laptops and desktops where large affordable storage and snappy NVMe response matter more than heavy sustained write endurance. Random performance of 220000 read IOPS and 330000 write IOPS handles typical workloads well. Users running constant large-file writes or enterprise workloads should consider drives with higher endurance ratings and DRAM cache.

Highlights

  • Fast boot and load times with up to 3500 MBps sequential read
  • Responsive multitasking from up to 2500 MBps sequential write
  • Snappy app launches via up to 220000 IOPS random read
  • Quick file saves with up to 330000 IOPS random write
  • Fits thin laptops and desktops in M.2 2280 form factor

Specifications

BrandIntel
Series670p Series
ModelSSDPEKNU010TZX1
Part NumberSSDPEKNU010TZX1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D4 QLC
InterfacePCIe 3.0 x4, NVMe
Cache0MB
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2500 MBps
4KB Random ReadUp to 220,000 IOPS
4KB Random WriteUp to 330,000 IOPS
MTBF1,600,000 hours
Power Consumption (Idle)25 mW
Power Consumption (Active)80 mW
Operating Temperature0°C ~ +70°C
Max Shock ResistanceOperating: 1,000G (Max) at 0.5 msec
Non-Operating: 1,500G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz) Max
Non-Operating: 3.13 GRMS (5-800 Hz) Max
Height2.38mm
Width22.00mm
Depth80.00mm
Shipping weight0.09 kg
Package size163 × 122 × 20 mm

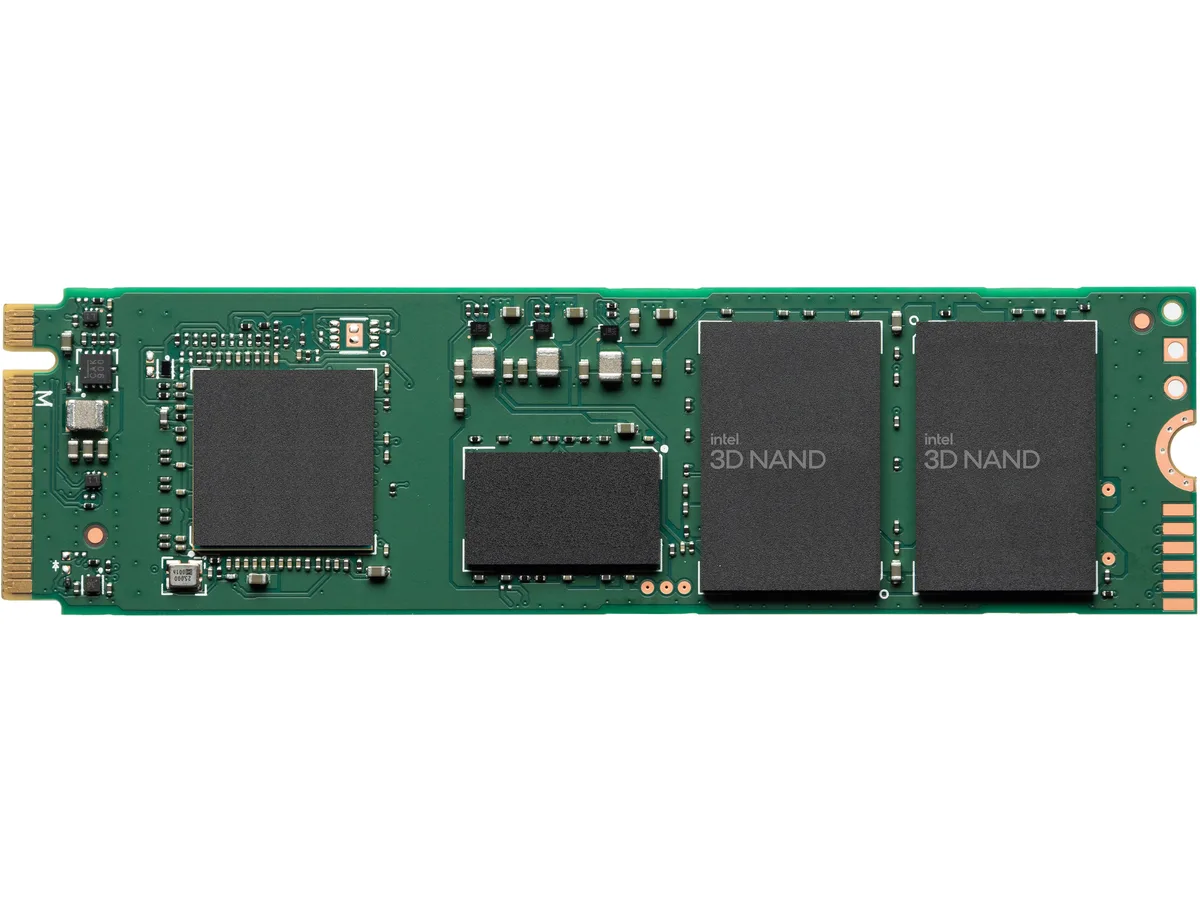

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Intel 670p 1TB drive include a heatsink or mounting screw, or must they be purchased separately?

The drive is supplied as the bare M.2 2280 module only; a motherboard mounting screw and any aftermarket heatsink are not included and must be sourced separately.

Should I choose the 1TB model or step up to the 2TB version for better endurance and sustained write speed?

The 1TB model delivers up to 2500 MBps sequential write and 330,000 IOPS random write with a 1.6 million-hour MTBF; the 2TB variant offers higher total bytes written and can sustain peak write rates longer under heavy workloads.

What does the 3500 MBps sequential read figure mean when the drive is installed in a laptop with a PCIe 3.0 x4 slot?

In a PCIe 3.0 x4 slot the drive can reach the rated 3500 MBps sequential read and 220,000 IOPS random read; thermal throttling may reduce sustained speeds during prolonged transfers.
