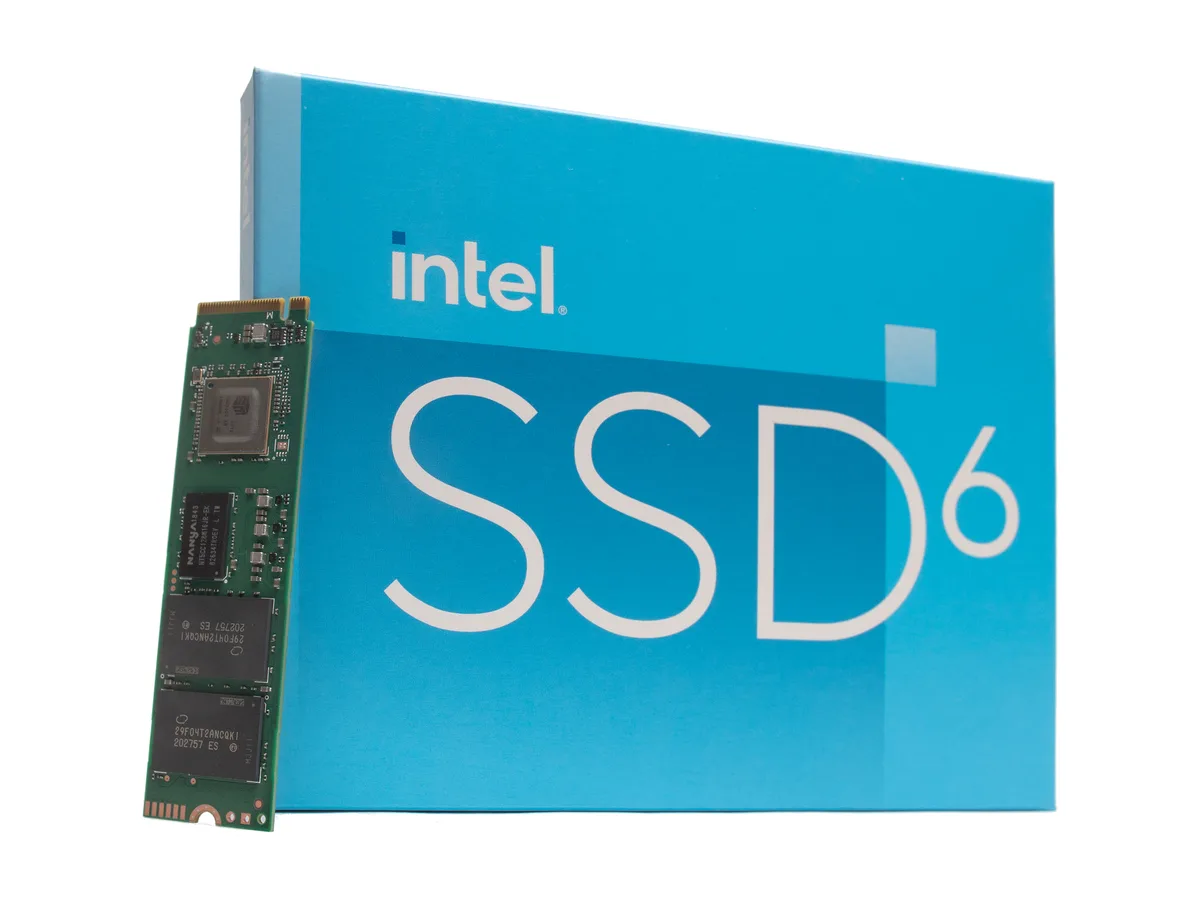

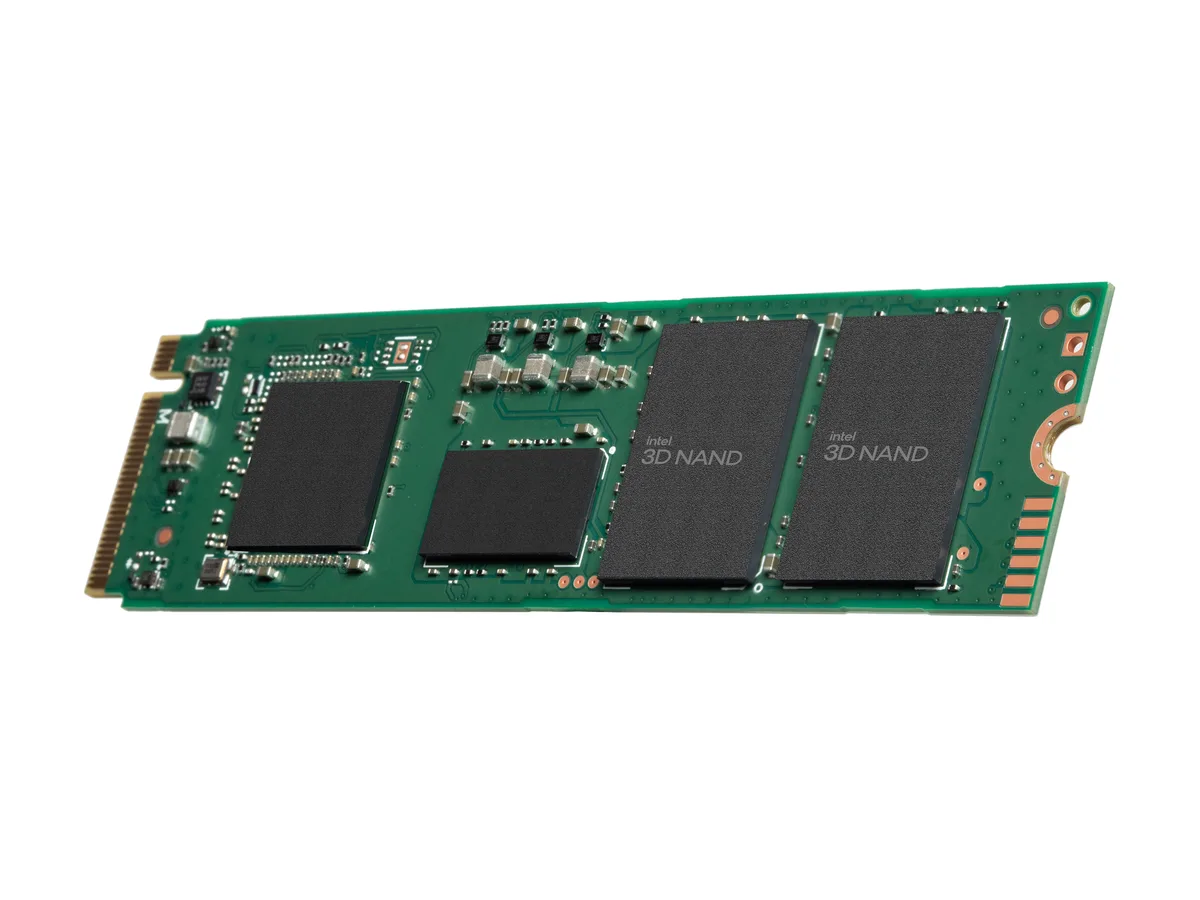

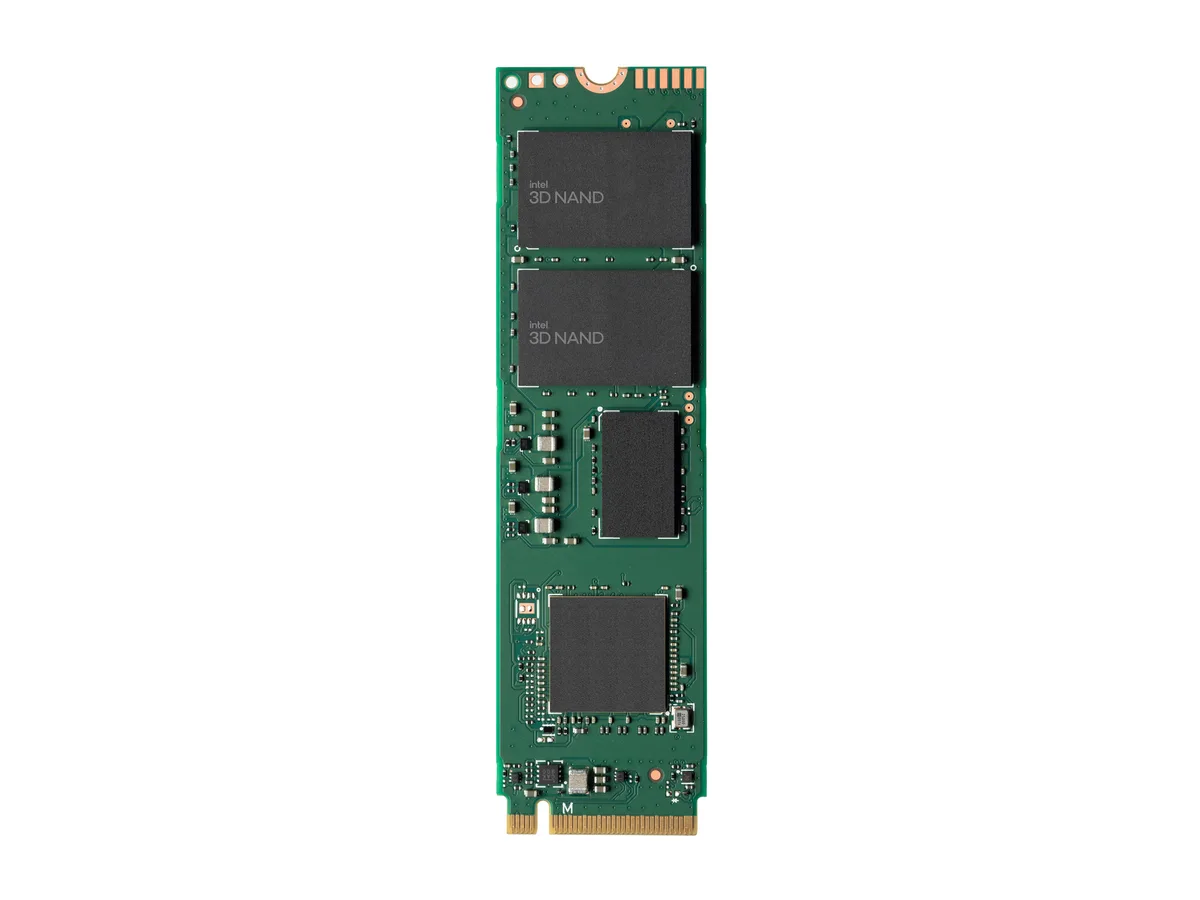

Green rectangular circuit board M.2 2280 SSD with black controller and silver label

Intel

Intel 670p Series M.2 2280 2TB PCIe 3.0 x4 NVMe Internal SSD SSDPEKNU020TZX1

SKU CH-X2RM-RJ2R7 MPN SSDPEKNU020TZX1

2 TB M.2 2280 NVMe drive with up to 3500 MBps read and 2700 MBps write, 740 TBW endurance and 1,600,000 hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D4 QLC
  • InterfacePCIe 3.0 x4, NVMe

Options 2TB

  • Up to 3500MB/s read and 2700MB/s write for fast system response
  • 2TB capacity on 144-layer QLC NAND for large game libraries and media
  • 740TBW endurance rating handles heavy daily workloads for years
  • 1,600,000 hour MTBF and 1000G shock resistance protect data in notebooks and desktops
  • Low 25mW idle and 80mW active power draw extends laptop battery life

Capacity and interface

This Intel 670p Series drive is a 2TB internal SSD built in the M.2 2280 form factor. It connects through a PCIe 3.0 x4 link using the NVMe protocol and stores data on 144-layer 3D4 QLC NAND. The drive is aimed at everyday computing and mainstream gaming workloads.

Build integration

The M.2 2280 module slots directly into a compatible motherboard or notebook connector, removing the need for cables or drive bays. It draws 25 mW at idle and 80 mW under load, leaving more thermal headroom for other components. Rated endurance reaches 740 TBW with a 1,600,000 hour MTBF.

Ideal user fit

Buyers who want a high-capacity NVMe drive for general productivity, media libraries and casual gaming will match the 3500 MBps read and 2700 MBps write speeds. Users planning sustained heavy write workloads or enterprise environments should consider drives with higher endurance ratings.

Highlights

  • Up to 3500MB/s read and 2700MB/s write for fast system response
  • 2TB capacity on 144-layer QLC NAND for large game libraries and media
  • 740TBW endurance rating handles heavy daily workloads for years
  • 1,600,000 hour MTBF and 1000G shock resistance protect data in notebooks and desktops
  • Low 25mW idle and 80mW active power draw extends laptop battery life

Specifications

BrandIntel
Series670p Series
ModelSSDPEKNU020TZX1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D4 QLC
InterfacePCIe 3.0 x4, NVMe
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2700 MBps
Terabytes Written (TBW)740TB
MTBF1,600,000 hours
Power Consumption (Idle)25 mW
Power Consumption (Active)80 mW
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz) Max
Non-Operating: 3.13 GRMS (5-800 Hz) Max
Shipping weight0.11 kg
Package size163 × 122 × 22 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the rated endurance of the 2 TB Intel 670p Series SSD before wear becomes a concern?

The drive is rated for 740 TBW, indicating the total amount of data that can be written over its warranted lifespan.

How much power does the SSDPEKNU020TZX1 draw during continuous operation and what is its thermal limit?

Active power consumption is 80 mW and the operating temperature range tops out at 70 °C, so sustained workloads stay within a low thermal envelope.

Which interface and form factor must the host system provide for this M.2 2280 NVMe drive to operate?

The system needs an M.2 2280 slot wired for PCIe 3.0 x4 with NVMe support.
