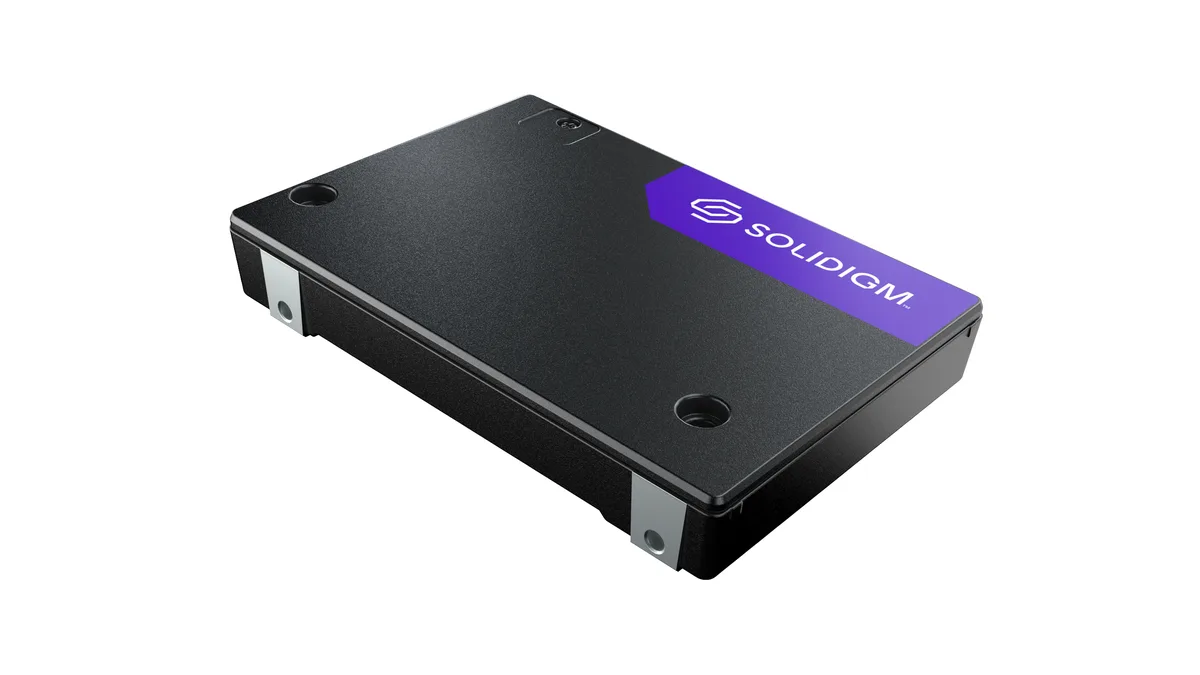

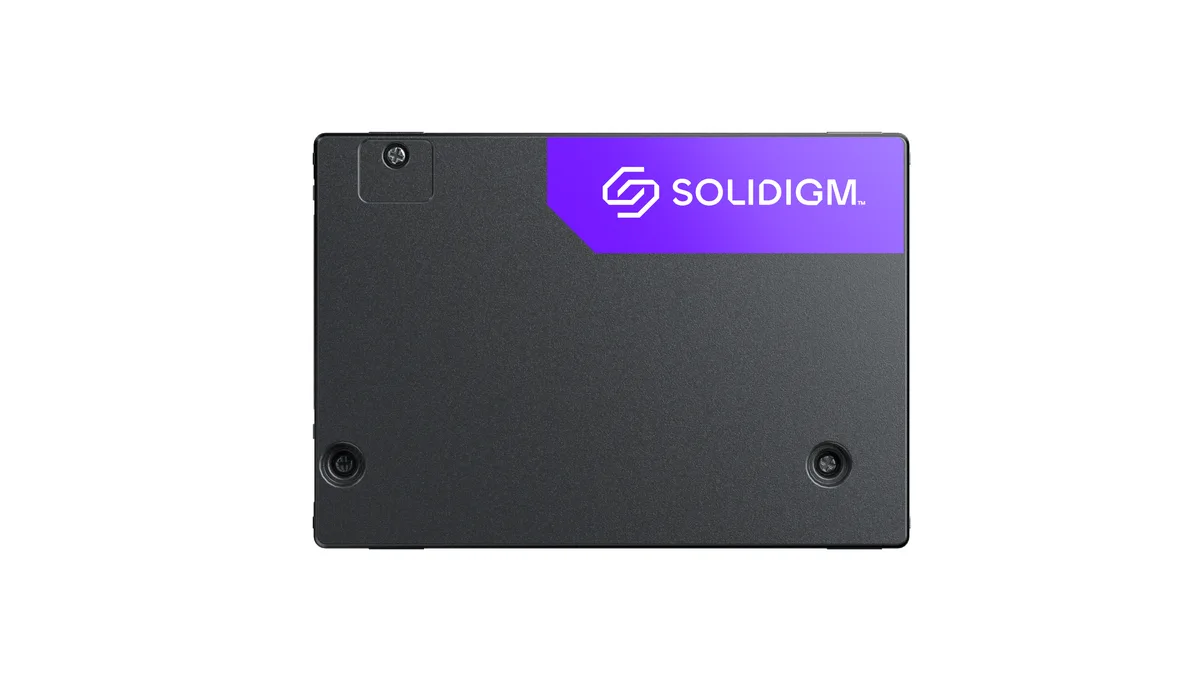

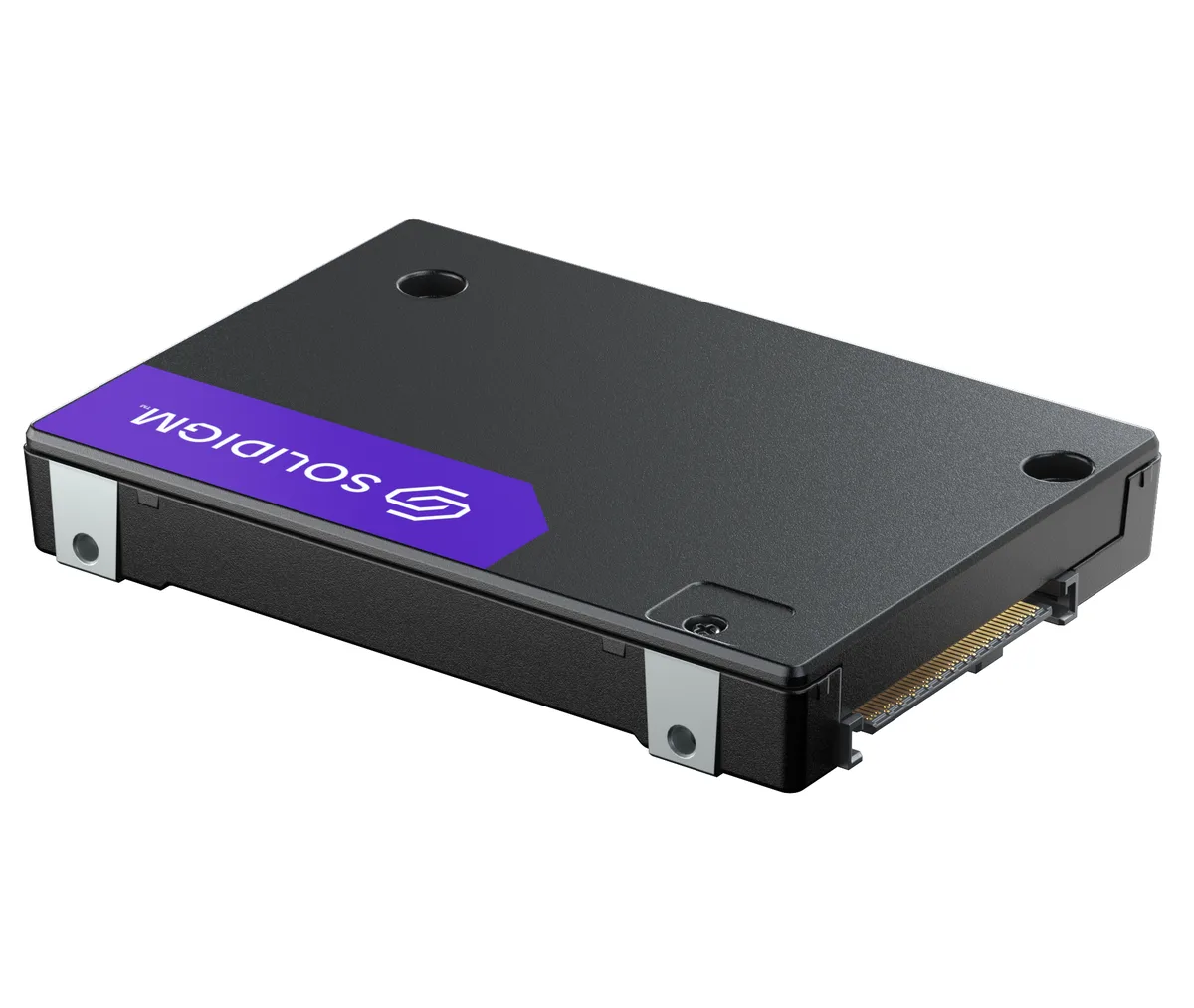

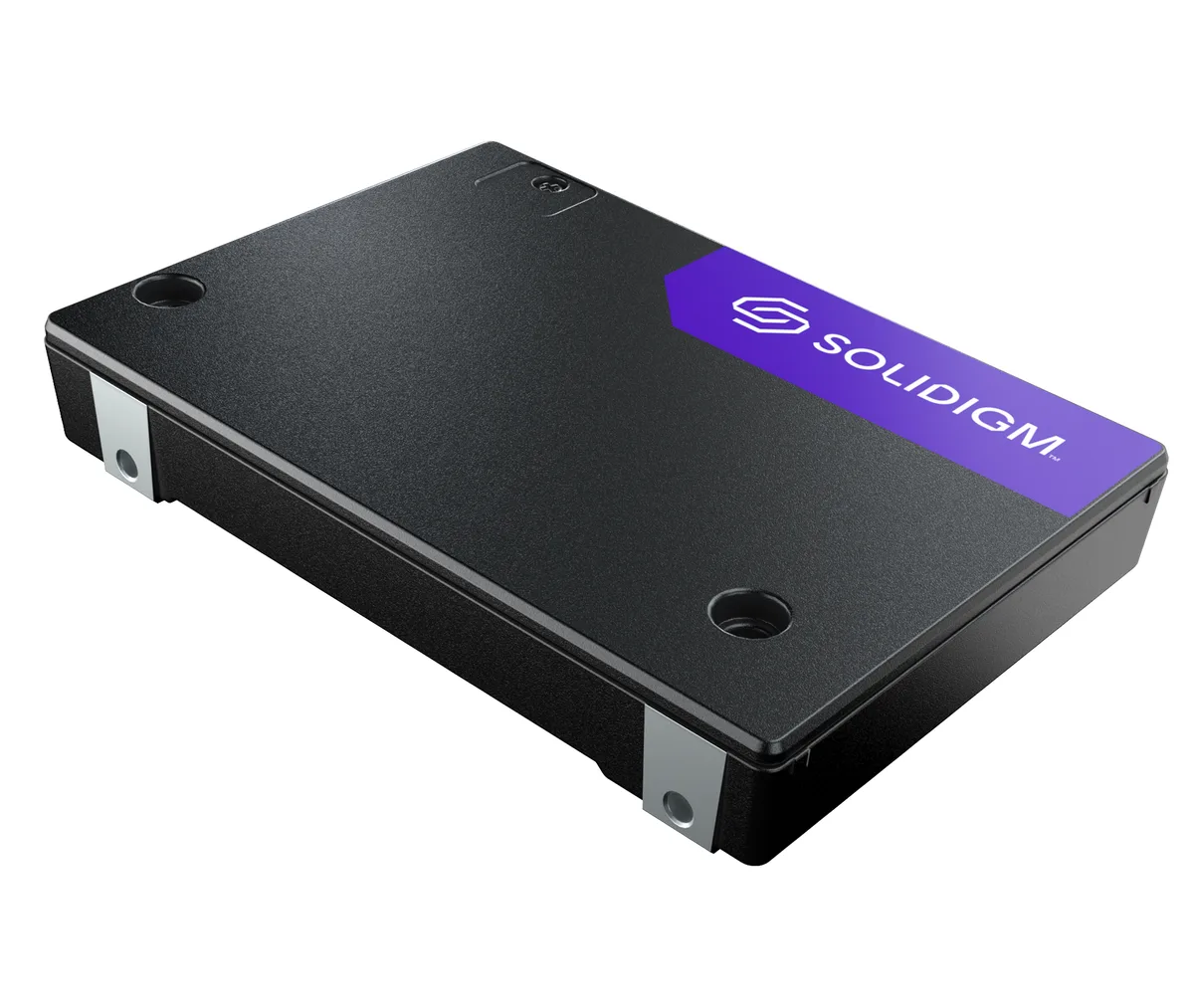

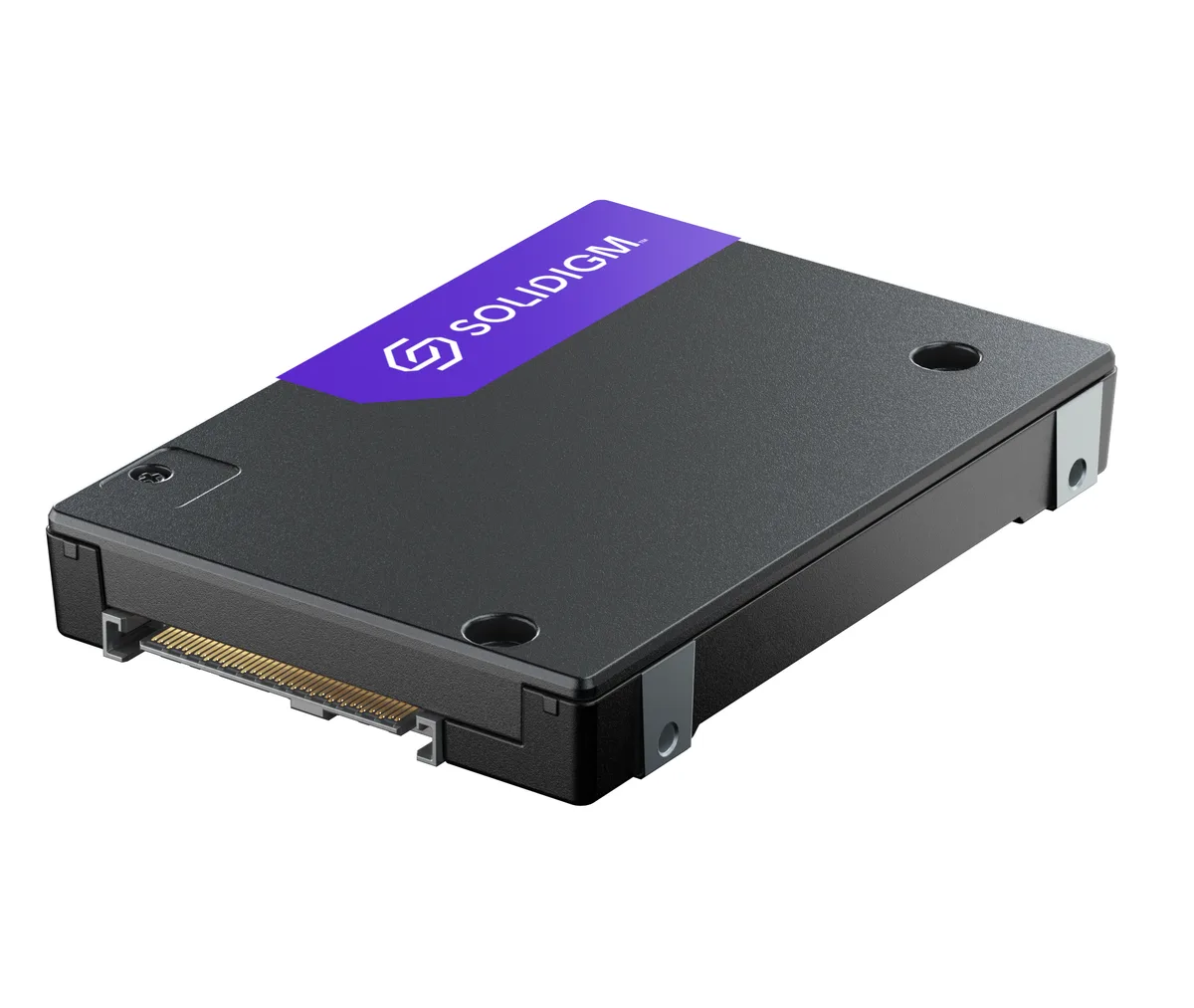

Rectangular silver U.2 15mm enterprise SSD with label showing capacity and model

Solidigm

Solidigm D7-PS1010 3.84TB U.2 15mm PCIe 5.0 enterprise SSD SB5PH27X038TOP1

SKU CH-VN09-6YERF MPN SB5PH27X038TOP1

A 3.84 TB U.2 15 mm PCIe 5.0 enterprise SSD delivering up to 14 500 MB/s sequential read, 8 200 MB/s write, 3 100 000 random read IOPS and 315 000 random write IOPS with 1 DWPD endurance

  • Form FactorU.2 15mm
  • Capacity3.84TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.84TB U.2 Opal

  • 1.92TB E3.S
  • 1.92TB E3.S FIPS
  • 1.92TB E3.S Opal
  • 1.92TB U.2
  • 1.92TB U.2 FIPS
  • 1.92TB U.2 Opal
  • 15.36TB E3.S
  • 15.36TB E3.S FIPS
  • 15.36TB E3.S Opal
  • 15.36TB U.2
  • 15.36TB U.2 FIPS
  • 15.36TB U.2 Opal
  • 3.84TB E1.S 15mm
  • 3.84TB E1.S 15mm Opal
  • 3.84TB E1.S 9.5mm
  • 3.84TB E1.S 9.5mm Opal
  • 3.84TB E3.S
  • 3.84TB E3.S FIPS
  • 3.84TB E3.S Opal
  • 3.84TB U.2
  • 3.84TB U.2 FIPS
  • 3.84TB U.2 Opal
  • 7.68TB E1.S 15mm
  • 7.68TB E1.S 15mm Opal
  • 7.68TB E1.S 9.5mm
  • 7.68TB E1.S 9.5mm Opal
  • 7.68TB E3.S
  • 7.68TB E3.S FIPS
  • 7.68TB E3.S Opal
  • 7.68TB U.2
  • 7.68TB U.2 FIPS
  • 7.68TB U.2 Opal

Struck-through versions exist but are not stocked here.

  • Up to 14500 MBps sequential read speed for rapid data access
  • Up to 8200 MBps sequential write throughput accelerates write-heavy workloads
  • 1 million random read IOPS handles intense transaction processing
  • 315000 random write IOPS sustains consistent low-latency performance
  • 1 DWPD endurance with 7 PBW rating supports demanding enterprise duty cycles

Enterprise U.2 15mm storage

The Solidigm D7-PS1010 is a 3.84TB enterprise SSD built on 176L TLC 3D NAND with a PCI-Express 5.0 x4 interface. It delivers up to 14500 MBps sequential read and 8200 MBps sequential write speeds. Random performance reaches 3100000 IOPS read and 315000 IOPS write. Rated at 1 DWPD and 7 PBW endurance with a 2,500,000-hour MTBF, it targets data centre workloads requiring sustained throughput and Opal security.

Upgrade from PCIe 4.0 or lower-capacity U.2 drives

Moving from a PCIe 4.0 U.2 device doubles the interface bandwidth, raising sequential read headroom toward 14500 MBps and write toward 8200 MBps. The jump is worth it when queue depths are high and latency-sensitive services hit the current bus ceiling. If your workloads are sequential-light or capacity-bound without throughput pressure, the existing drive may suffice until the next refresh cycle.

Verify U.2 15mm bay clearance

Confirm the server or array accepts a 15mm U.2 form factor and that the backplane or cabling is rated for PCI-Express 5.0 signalling. Check that the platform can supply up to 19W active power and operates within the 0°C to 77°C range. Ensure the firmware stack supports Opal encryption if security policies require it.

Highlights

  • Up to 14500 MBps sequential read speed for rapid data access
  • Up to 8200 MBps sequential write throughput accelerates write-heavy workloads
  • 1 million random read IOPS handles intense transaction processing
  • 315000 random write IOPS sustains consistent low-latency performance
  • 1 DWPD endurance with 7 PBW rating supports demanding enterprise duty cycles

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PH27X038TOP1
Form FactorU.2 15mm
Capacity3.84TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write315000 IOPS (4K Blocks)
Endurance1 DWPD / 7 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight140g +/- 10g
Shipping weight0.18 kg
Package size140 × 108 × 19 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the U.2 15mm form factor of the D7-PS1010 fit a standard 2.5-inch U.2 drive bay?

Yes, the U.2 15mm form factor is designed for standard 2.5-inch U.2 bays that accept 15mm drives. Verify your chassis supports 15mm height before installation.

What PCIe slot generation is required to install the SB5PH27X038TOP1 at full PCI-Express 5.0 speed?

Install it in a PCIe 5.0 x4 slot or U.2 backplane wired for PCIe 5.0. A common mistake is using a PCIe 4.0 or 3.0 slot, which limits the drive to the slower generation speed.

When should the 3.84TB D7-PS1010 be replaced based on its 1 DWPD endurance rating?

The drive is rated for 1 DWPD, allowing 3.84TB of writes per day over five years (7 PBW total). Monitor SMART wear indicators and plan replacement when remaining endurance approaches zero.
