Intel
Intel Optane SSD DC P4801X 200GB M.2 22110 enterprise SSD SSDPEL1K200GA01
200 GB enterprise SSD with 3D XPoint memory, PCIe NVMe 3.0 x4, M.2 22110 form factor, up to 550,000 read IOPS and 10 µs latency
- Form FactorM.2 22110
- Capacity200GB
- Memory Components3D XPoint
- InterfacePCIe NVMe 3.0 x4
- ControllerIntel
- Max Sequential ReadUp to 2200 MBps
- Low latency reads with 10 µs response
- High random read throughput up to 550000 IOPS
- Consistent write performance at 12 µs latency
- Enterprise reliability rated at 2000000 hours MTBF
- Compact M.2 22110 form factor fits dense servers
Intel Optane DC P4801X 200GB M.2 22110

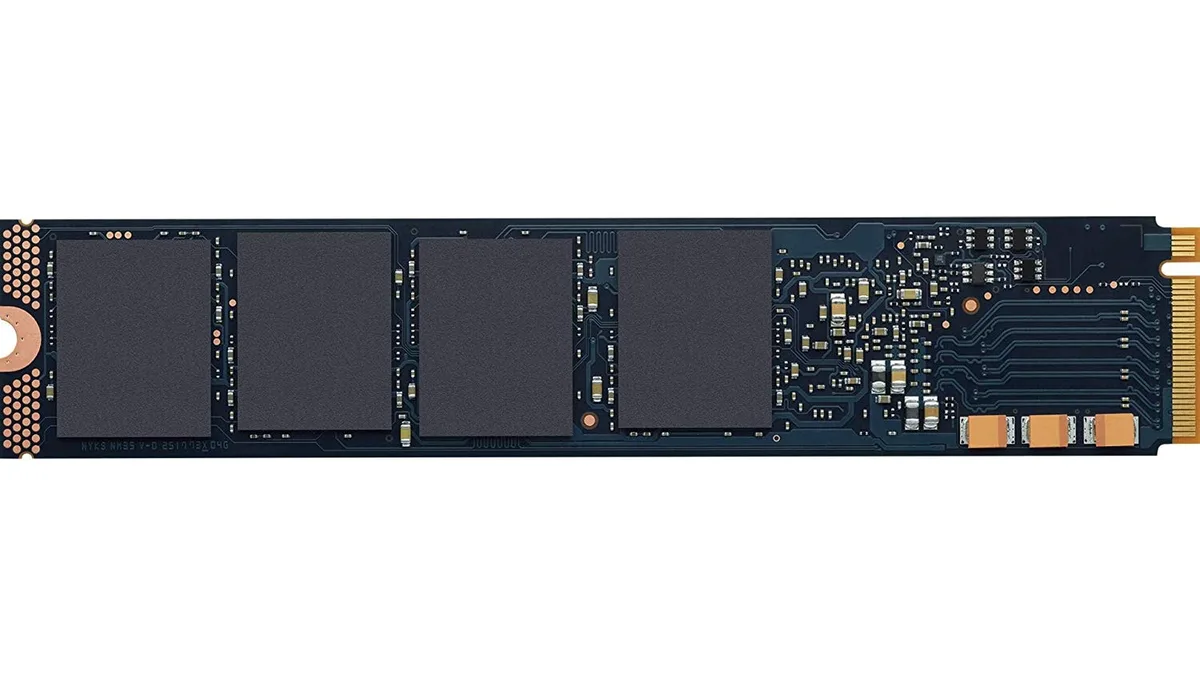

This Intel Optane SSD DC P4801X provides 200GB of 3D XPoint storage in an M.2 22110 form factor. It connects through a PCIe NVMe 3.0 x4 interface and is built for enterprise server environments. The drive delivers up to 2200 MBps sequential read and 2000 MBps sequential write speeds.
Suits low-latency enterprise workloads.
This drive targets applications that demand consistent low latency with 10 µs read and 12 µs write latency. High random performance of 550,000 read IOPS and 400,000 write IOPS supports transactional databases and caching tiers. Buyers who want more storage per pound or standard consumer endurance should look at something else.
M.2 22110 length requires compatible slot
The module measures 22 by 110 millimetres and fits only M.2 slots that accept the 22110 form factor. Verify that your server board or adapter provides the full 110 millimetre clearance and PCIe NVMe 3.0 x4 signalling before purchase.
Highlights
- Low latency reads with 10 µs response
- High random read throughput up to 550000 IOPS
- Consistent write performance at 12 µs latency
- Enterprise reliability rated at 2000000 hours MTBF
- Compact M.2 22110 form factor fits dense servers
Specifications
| Brand | Intel |
|---|---|
| Series | Optane SSD DC P4801X |
| Model | SSDPEL1K200GA01 |
| Form Factor | M.2 22110 |
| Capacity | 200GB |
| Memory Components | 3D XPoint |
| Interface | PCIe NVMe 3.0 x4 |
| Controller | Intel |
| Max Sequential Read | Up to 2200 MBps |
| Max Sequential Write | Up to 2000 MBps |
| 4KB Random Read | Up to 550,000 IOPS |
| 4KB Random Write | Up to 400,000 IOPS |
| Read Latency | 10 µs |
| Write Latency | 12 µs |
| MTBF | 2,000,000 hours |
| Power Consumption (Idle) | 3W |
| Power Consumption (Active) | 9W |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1000G / 0.5 msec |
| Max Vibration Resistance | Operating: 2.17 GRMS Non-Operating: 3.13 GRMS |
| Width | 22.00mm |
| Depth | 110.00mm |
| Shipping weight | 0.23 kg |
| Package size | 118 × 90 × 20 mm |
Questions about this item
What practical throughput limit does the PCIe 3.0 x4 NVMe interface impose on this drive?
The PCIe 3.0 x4 link caps sequential throughput at roughly 4 GB/s, so the drive's rated 2200 MB/s read and 2000 MB/s write operate well within the bus ceiling.
What physical slot length is required for the M.2 22110 form factor?
The module measures 110 mm long, so the motherboard or riser must provide an M.2 slot keyed for 22110 length.
How is the drive installed and which step is commonly missed?
Insert the drive at an angle into the M.2 slot, press flat and secure with the single retention screw; the step often missed is confirming the motherboard BIOS detects the NVMe device before loading the OS.
