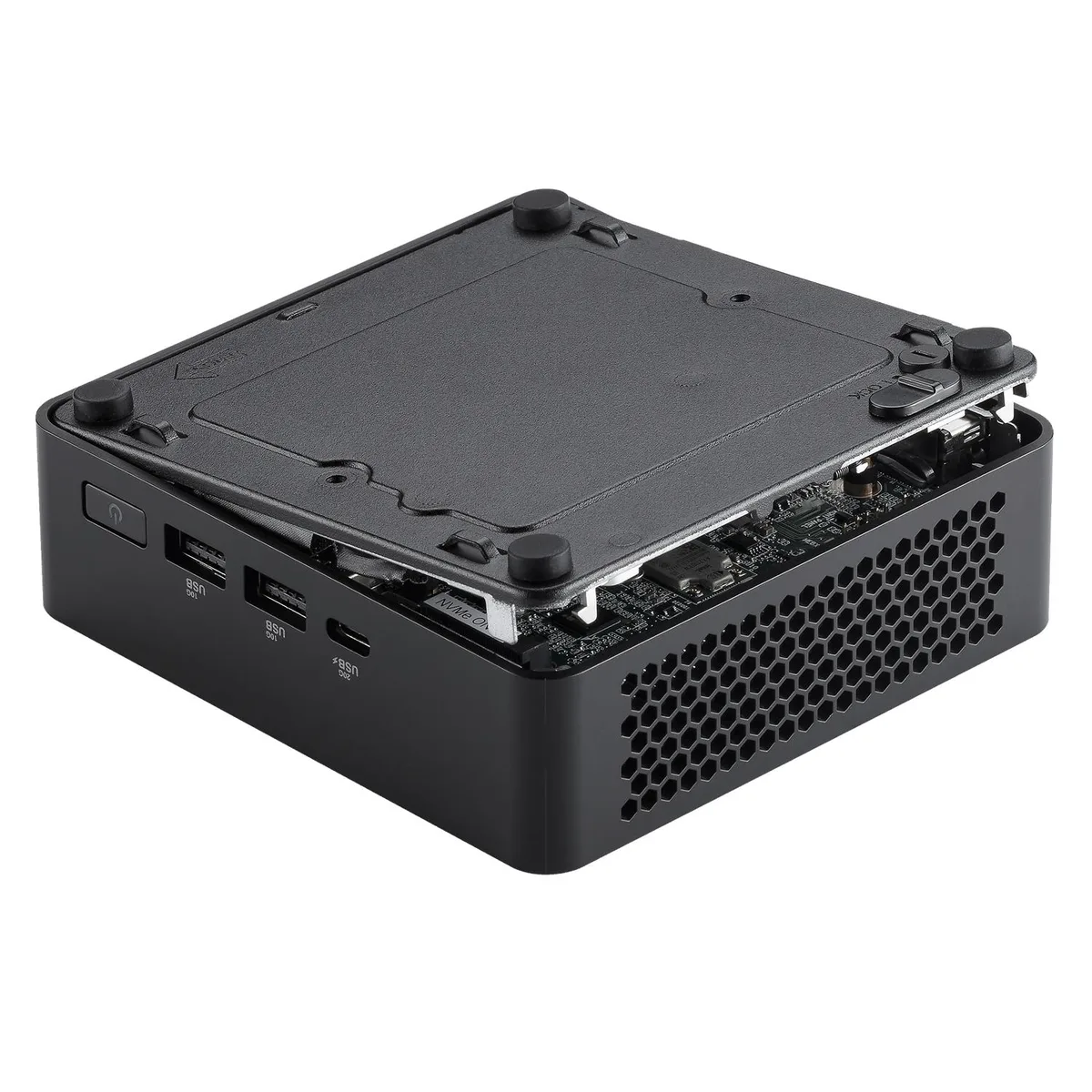

Compact black mini PC barebone, slim square chassis with rounded corners

Intel

Intel NUC14RVKU7 barebone mini PC Core Ultra 7 155H Arc DDR5 96GB

SKU CH-N9GP-XS45Q MPN NUC14RVKU7

A barebone mini PC with a Core Ultra 7 155H, Arc graphics and an integrated NPU, supporting up to 96 GB of DDR5-5600, dual M.2 NVMe slots, 2.5 Gb Ethernet, Wi-Fi 6E.

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core Ultra 7
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 8gb / 1tb ssd

  • Intel Core Ultra 7 155H with 16 cores and 22 threads up to 4.80 GHz
  • Integrated Intel Arc graphics at 2.2 GHz with dedicated NPU for AI workloads
  • Dual-channel DDR5 5600 memory support up to 96 GB via two SO-DIMM slots
  • Two M.2 slots for NVMe SSD storage including 2280 Gen4 x4 and 2242 x4
  • 5 Gbps Ethernet Wi-Fi 6E AX211 Bluetooth 5.3 two Thunderbolt 4 ports two HDMI 2.1 ports

Intel Core Ultra 7 155H barebone

The Intel NUC14RVKU7 is a slim mini PC barebone built around the Core Ultra 7 155H processor with 16 cores and 22 threads. It targets system builders who want a compact platform for productivity, media playback or light creative work. The chassis measures 117 x 112 x 37 mm and includes a VESA mount for behind-display installation. No memory or storage is included, so the buyer supplies both.

DDR5 5600 up to 96 GB

Two SO-DIMM slots accept DDR5 5600 memory in dual-channel mode, with a maximum of 48 GB per module for 96 GB total. Storage uses one M.2 2280 PCIe Gen4 x4 NVMe slot and one M.2 2242 PCIe x4 NVMe slot; no drives are installed. Graphics are provided by the integrated Intel Arc GPU at 2.2 GHz alongside an on-package NPU for AI-assisted tasks such as video-conferencing effects. The 120 W 19 V adapter powers the system, which also accepts 12 V to 20 V DC input.

Thunderbolt 4 and 2.5 GbE

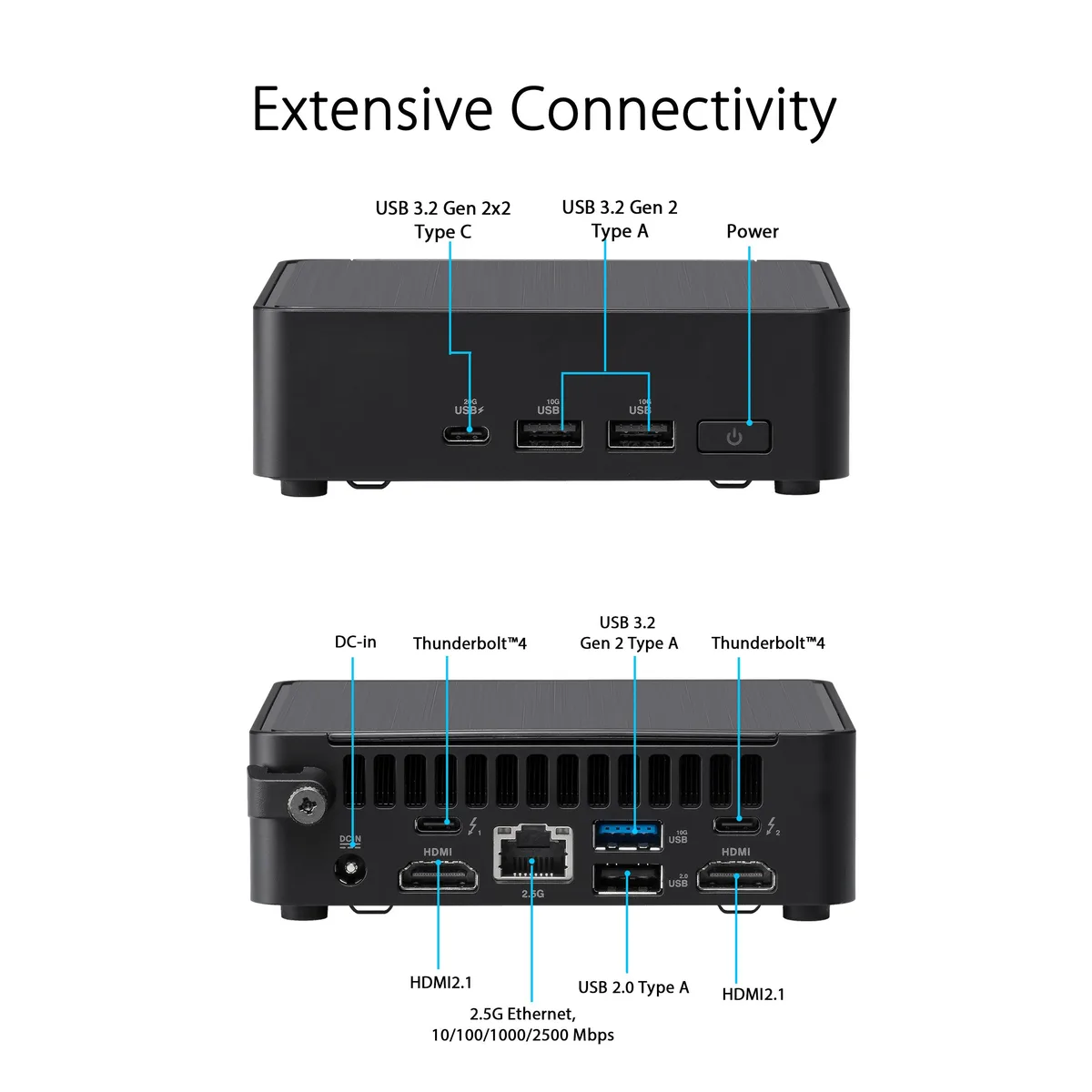

Front and rear I/O includes two Thunderbolt 4 Type-C ports, one USB 3.2 Gen 2x2 Type-C at 20 Gbps, three USB 3.2 Gen 2 Type-A ports, one USB 2.0 Type-A port, two HDMI 2.1 TMDS outputs and a single 2.5 GbE RJ45 jack. Wireless connectivity comes from Intel Wi-Fi 6E AX211 with Bluetooth 5.3. The platform supports up to four simultaneous displays and runs Windows 11 or Linux. Builders needing legacy serial ports, internal 2.5-inch drive bays or discrete graphics expansion should look elsewhere.

Highlights

  • Intel Core Ultra 7 155H with 16 cores and 22 threads up to 4.80 GHz
  • Integrated Intel Arc graphics at 2.2 GHz with dedicated NPU for AI workloads
  • Dual-channel DDR5 5600 memory support up to 96 GB via two SO-DIMM slots
  • Two M.2 slots for NVMe SSD storage including 2280 Gen4 x4 and 2242 x4
  • 5 Gbps Ethernet Wi-Fi 6E AX211 Bluetooth 5.3 two Thunderbolt 4 ports two HDMI 2.1 ports

Specifications

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVKU7
ColorBlack
Form FactorSlim
CPU TypeIntel Core Ultra 7
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2.5 Gbps Intel i226-LM LAN port work with my existing 1 Gbps network switch?

Yes, the 2.5 Gbps port is backward compatible with 1 Gbps and 100 Mbps switches and will negotiate the highest common speed automatically.

How can I confirm the Core Ultra 7 155H and Arc graphics are running correctly after I install memory and storage?

Check Device Manager for the Intel Core Ultra 7 155H processor and Intel Arc graphics entries, then run the Intel Processor Diagnostic Tool and Intel Graphics Command Center to verify clocks and NPU activity.

What does the box contain and which parts must I purchase separately to complete the build?

The box includes the NUC14RVKU7 chassis, 120 W 19 V power adapter with US cord, VESA mount hardware, collateral flyer and warranty card. You must buy DDR5-5600 SO-DIMMs up to 96 GB total and one or two NVMe SSDs for the M.2 2280 and 2242 slots.
