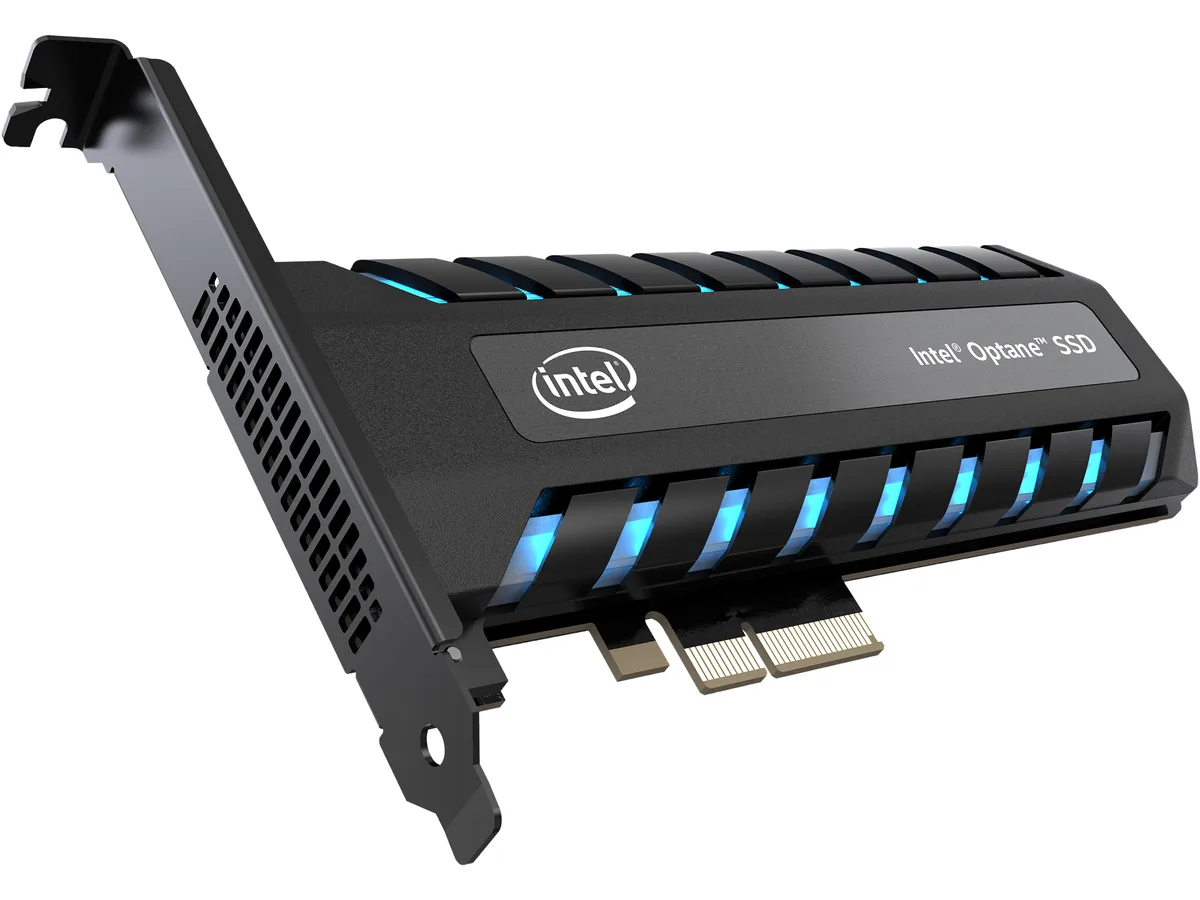

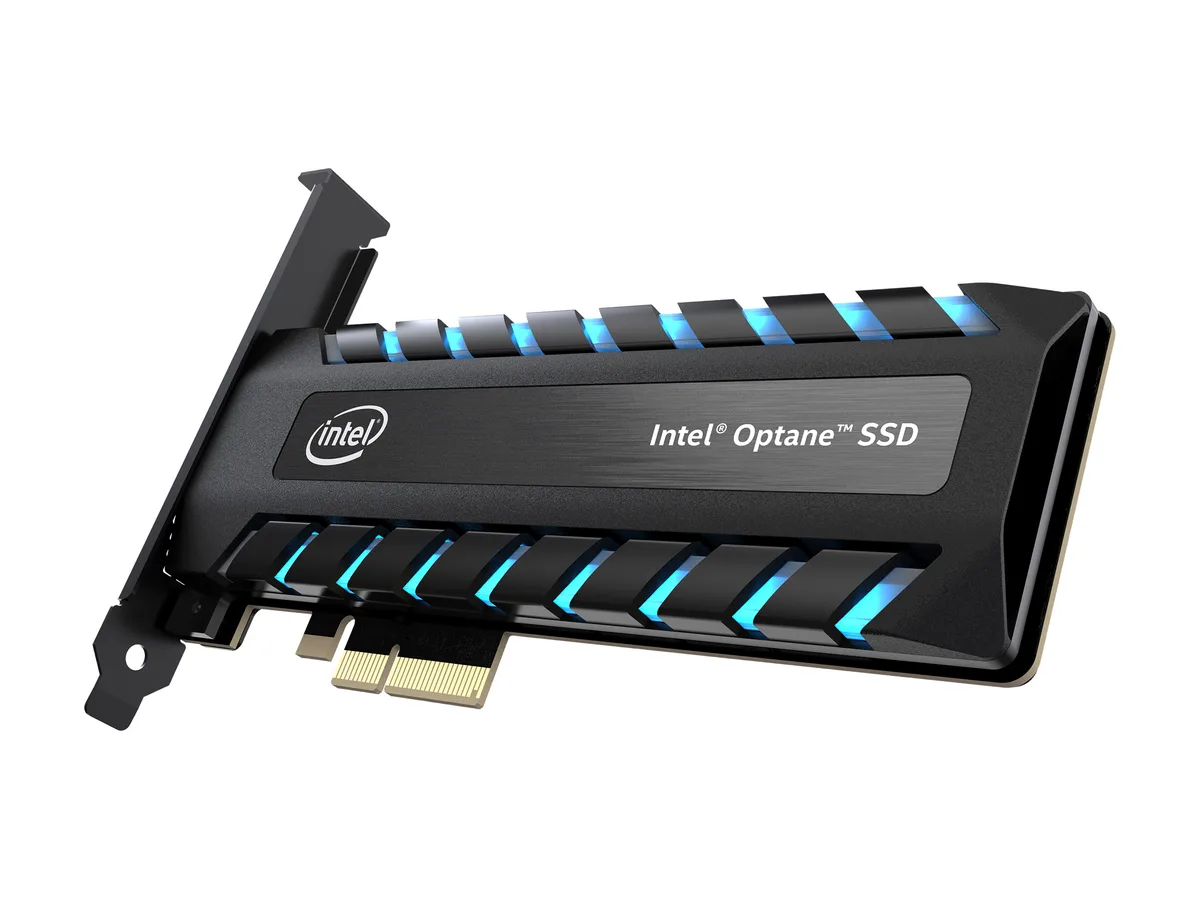

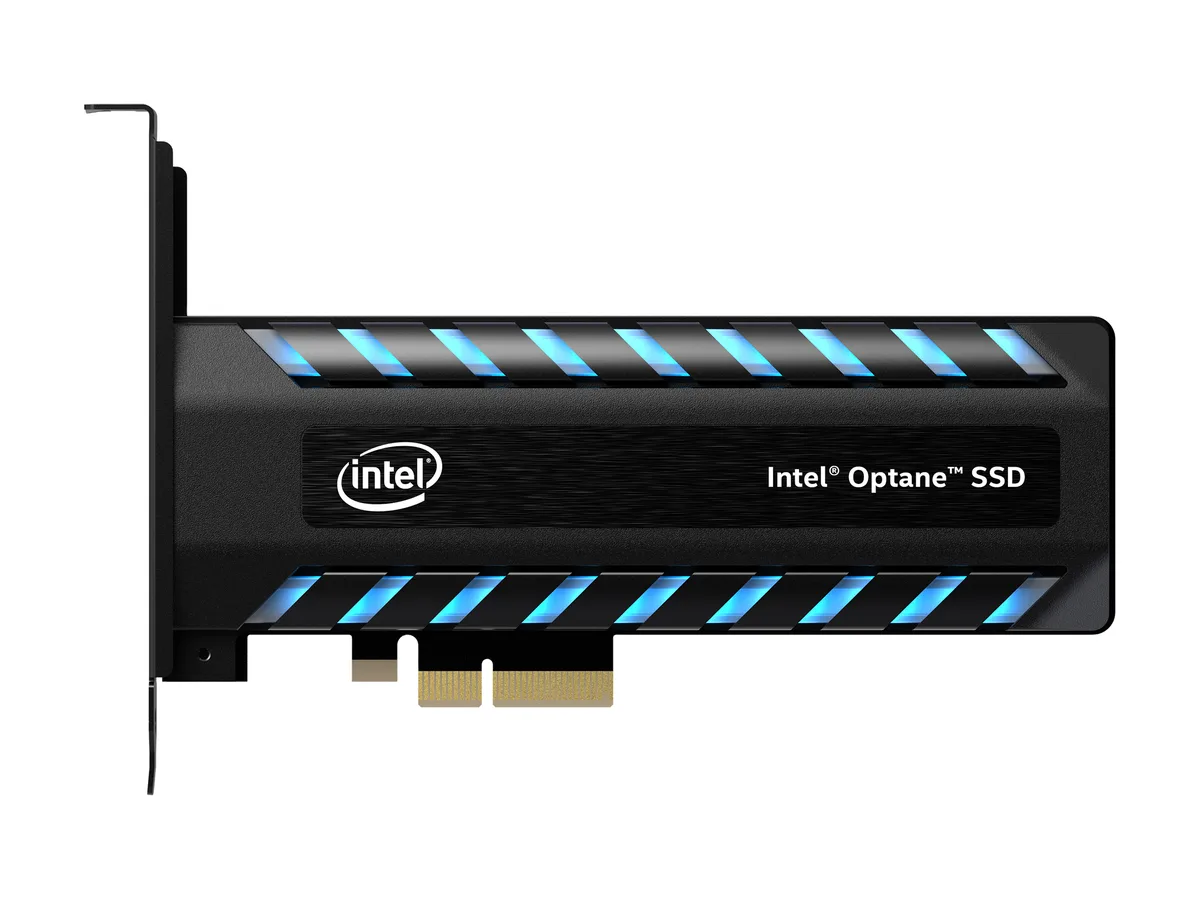

Black add-in card SSD with gold PCIe edge connector and silver heatsink cover

Intel

Intel Optane 905P 1.5TB SSDPED1D015TAX1 internal SSD

SKU CH-Q9J8-17CDZ MPN SSDPED1D015TAX1

An add-in card SSD using 3D XPoint memory for 1.5TB capacity with PCIe 3.0 x4 interface delivering 2600 MBps read and 2200 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorAIC
  • Capacity1.5TB
  • Memory Components3D XPoint
  • InterfacePCIe NVMe 3.0 x4

Options 1.5TB AIC

  • Breakthrough performance for demanding workloads with up to 2600 MBps sequential read
  • Ultra-low 10 µs latency accelerates random access for heavy multitasking
  • 5 TB capacity on 3D XPoint memory stores large datasets without compromise
  • PCIe NVMe 3.0 x4 interface delivers up to 575,000 IOPS random read
  • 6 million-hour MTBF ensures long-term reliability under continuous operation

Optane 905P 1.5TB AIC SSD

The Intel Optane 905P 1.5TB add-in-card SSD is built for desktop and workstation users who need consistently low latency. It uses 3D XPoint memory and a PCIe NVMe 3.0 x4 interface to deliver up to 2600 MBps sequential read and 2200 MBps sequential write speeds. Random performance reaches 575,000 read IOPS and 550,000 write IOPS at 4KB. Both read and write latency are rated at 10 µs.

PCIe NVMe 3.0 x4 interface limits

The drive connects through a PCIe NVMe 3.0 x4 slot, so maximum throughput is bounded by that generation's signalling rate. Sustained workloads will not exceed the 2600 MBps read or 2200 MBps write ceilings, and random IOPS top out at the quoted 575,000 and 550,000 figures. Active power draw reaches 18.6W while idle consumption sits at 6.2W, which the host slot and system cooling must accommodate.

Upgrading from NAND NVMe SSDs

Moving from a conventional NAND-based NVMe SSD to this Optane 905P replaces variable latency with a steady 10 µs figure for both reads and writes. The jump is most valuable for workloads sensitive to tail latency, such as database logging, real-time analytics or high-queue-depth virtualisation. Endurance is rated at 1,600,000 hours MTBF, reflecting the durability of the 3D XPoint medium.

Highlights

  • Breakthrough performance for demanding workloads with up to 2600 MBps sequential read
  • Ultra-low 10 µs latency accelerates random access for heavy multitasking
  • 5 TB capacity on 3D XPoint memory stores large datasets without compromise
  • PCIe NVMe 3.0 x4 interface delivers up to 575,000 IOPS random read
  • 6 million-hour MTBF ensures long-term reliability under continuous operation

Specifications

BrandIntel
SeriesOptane SSD 905P Series
ModelSSDPED1D015TAX1
Part NumberSSDPED1D015TAX1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorAIC
Capacity1.5TB
Memory Components3D XPoint
InterfacePCIe NVMe 3.0 x4
ControllerIntel
Max Sequential ReadUp to 2600 MBps
Max Sequential WriteUp to 2200 MBps
4KB Random ReadUp to 575,000 IOPS
4KB Random WriteUp to 550,000 IOPS
Read Latency10 µs
Write Latency10 µs
MTBF1,600,000 hours
Power Consumption (Idle)6.2W
Power Consumption (Active)18.6W
Operating Temperature0°C ~ +85°C
Max Shock Resistance50G (11 ms)
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Height2.000
Width7.100
Weight230.00g
Shipping weight0.91 kg
Package size305 × 229 × 102 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this add-in card fit in my desktop case and motherboard?

The drive uses a PCIe 3.0 x4 add-in card form factor, so you need a full-height x4 or x16 slot and enough physical clearance for a half-length card.

What power supply capacity is needed for the 18.6 W active draw?

The card draws up to 18.6 W under load and 6.2 W at idle, powered entirely from the PCIe slot, so any modern PSU with a free x4 or x16 slot will supply it.

How do the 575,000 read and 550,000 write IOPS translate to real workloads?

Those 4 KB random figures mean very low 10 µs latency for both reads and writes, giving snappy response in heavy multitasking, database work and content creation.
