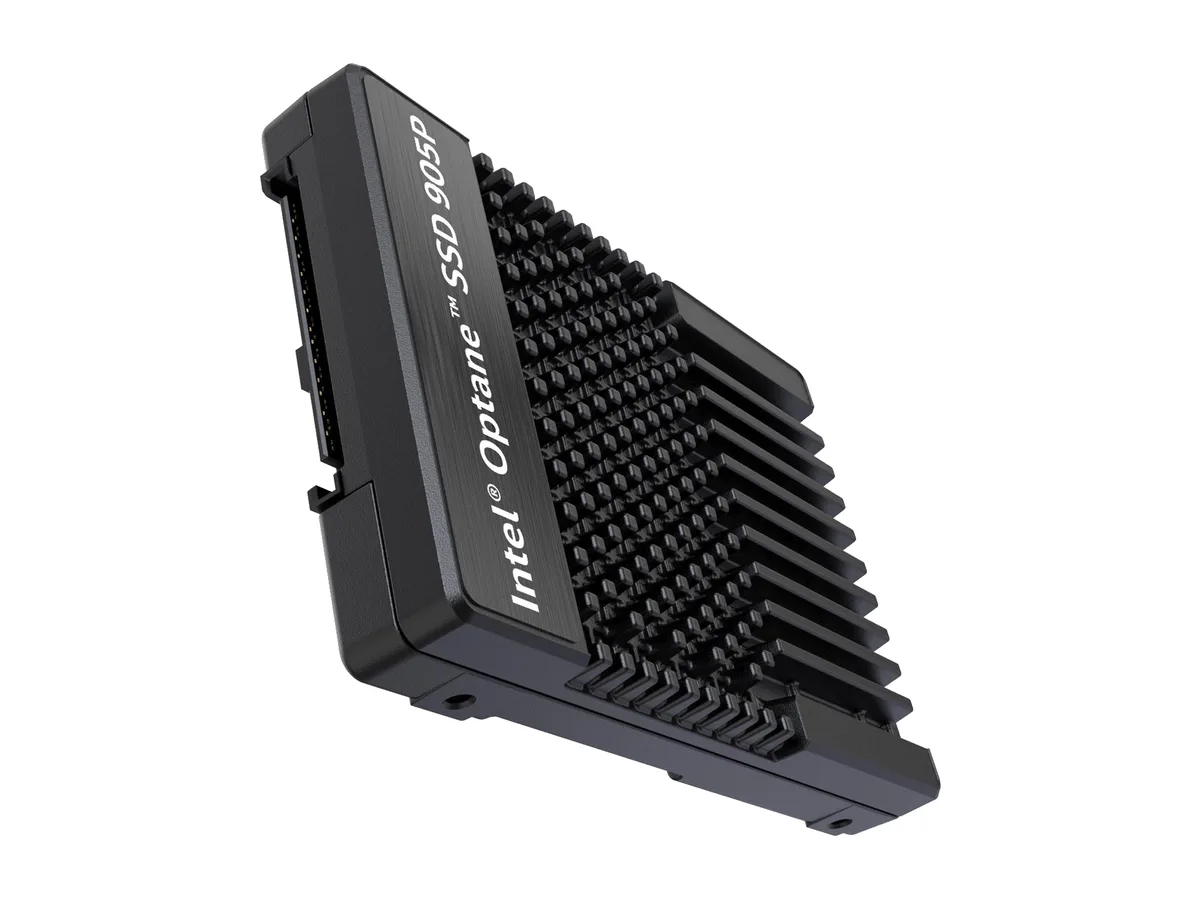

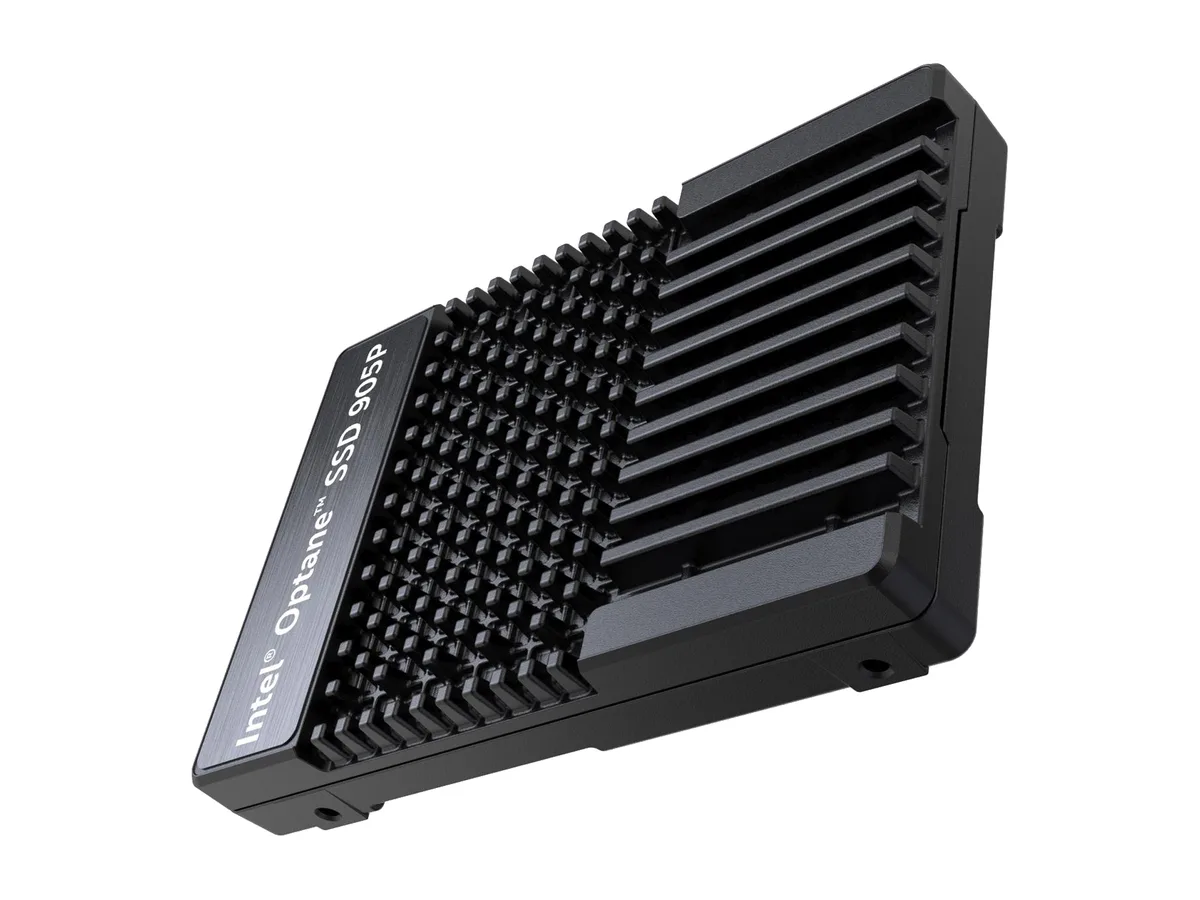

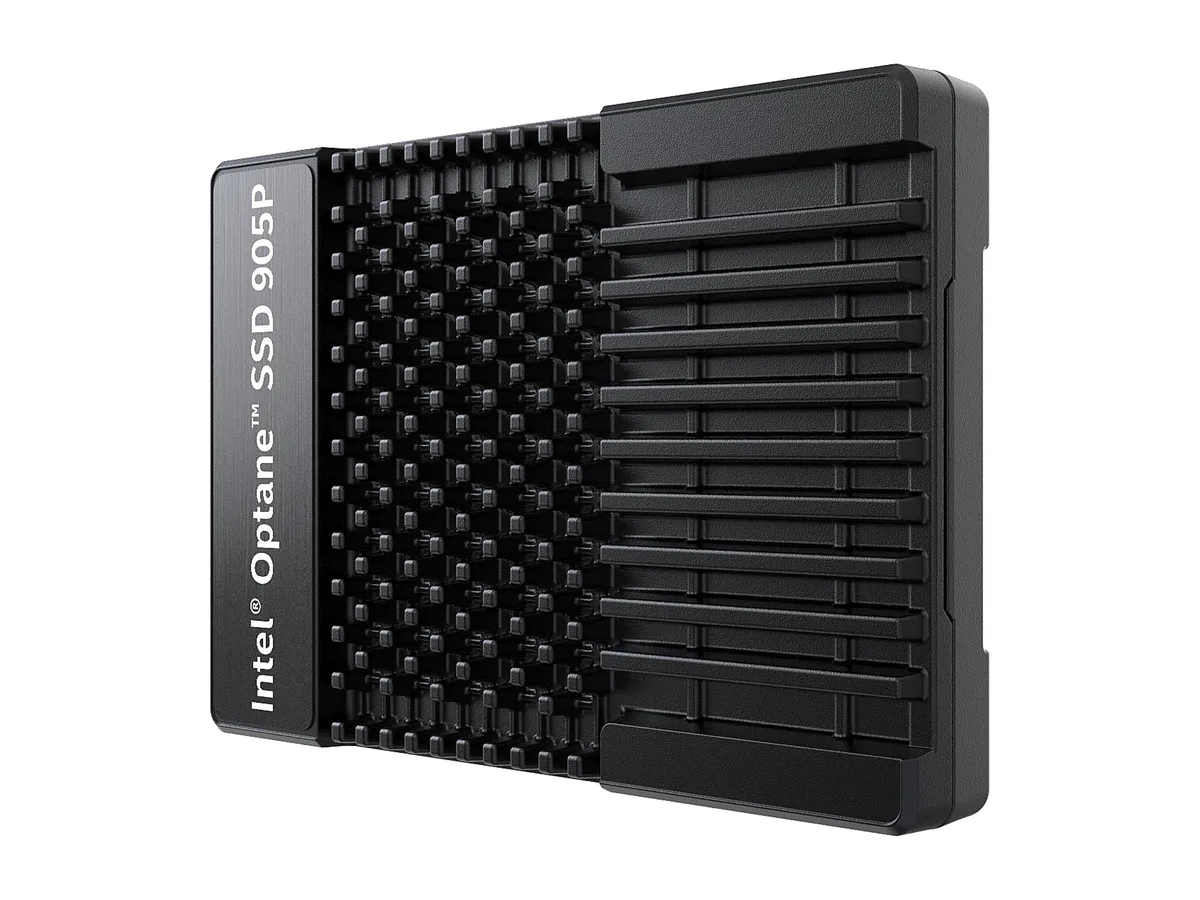

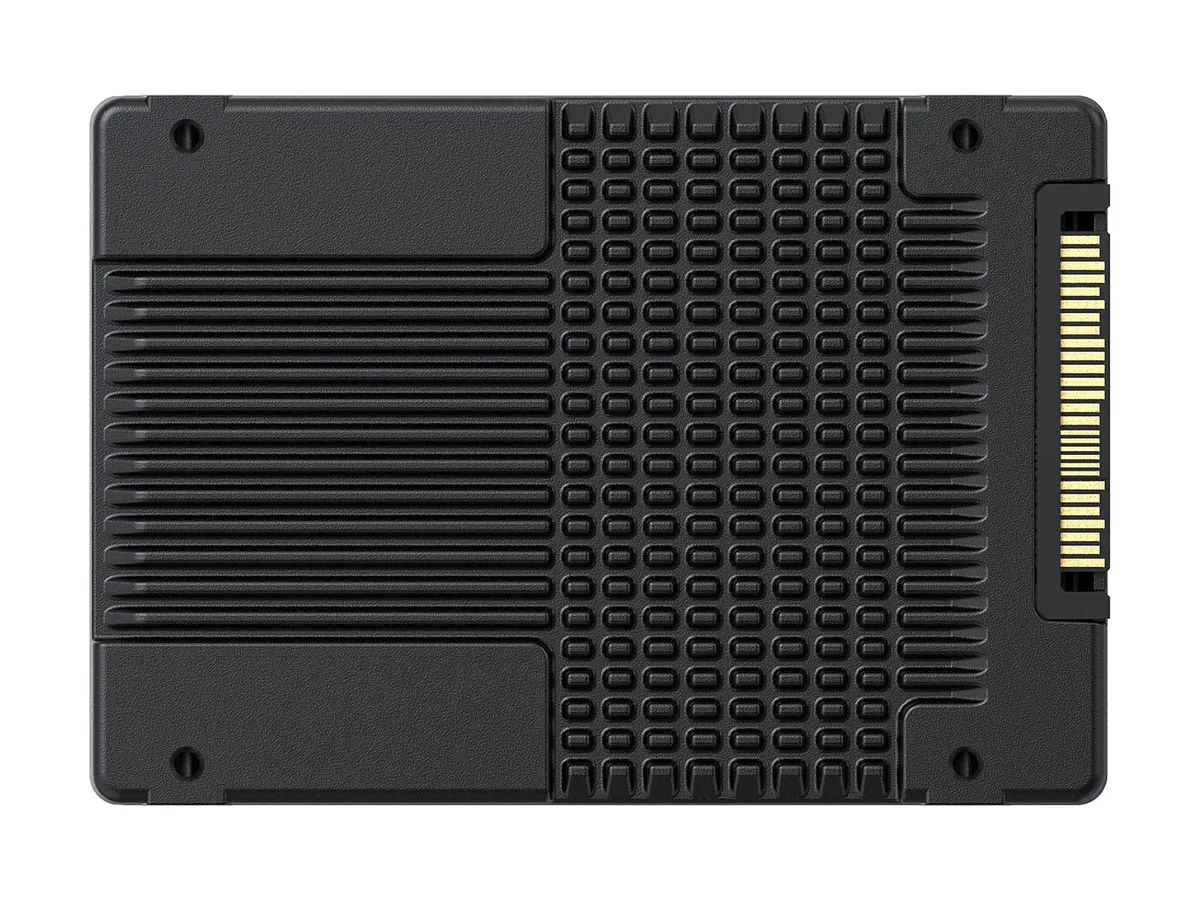

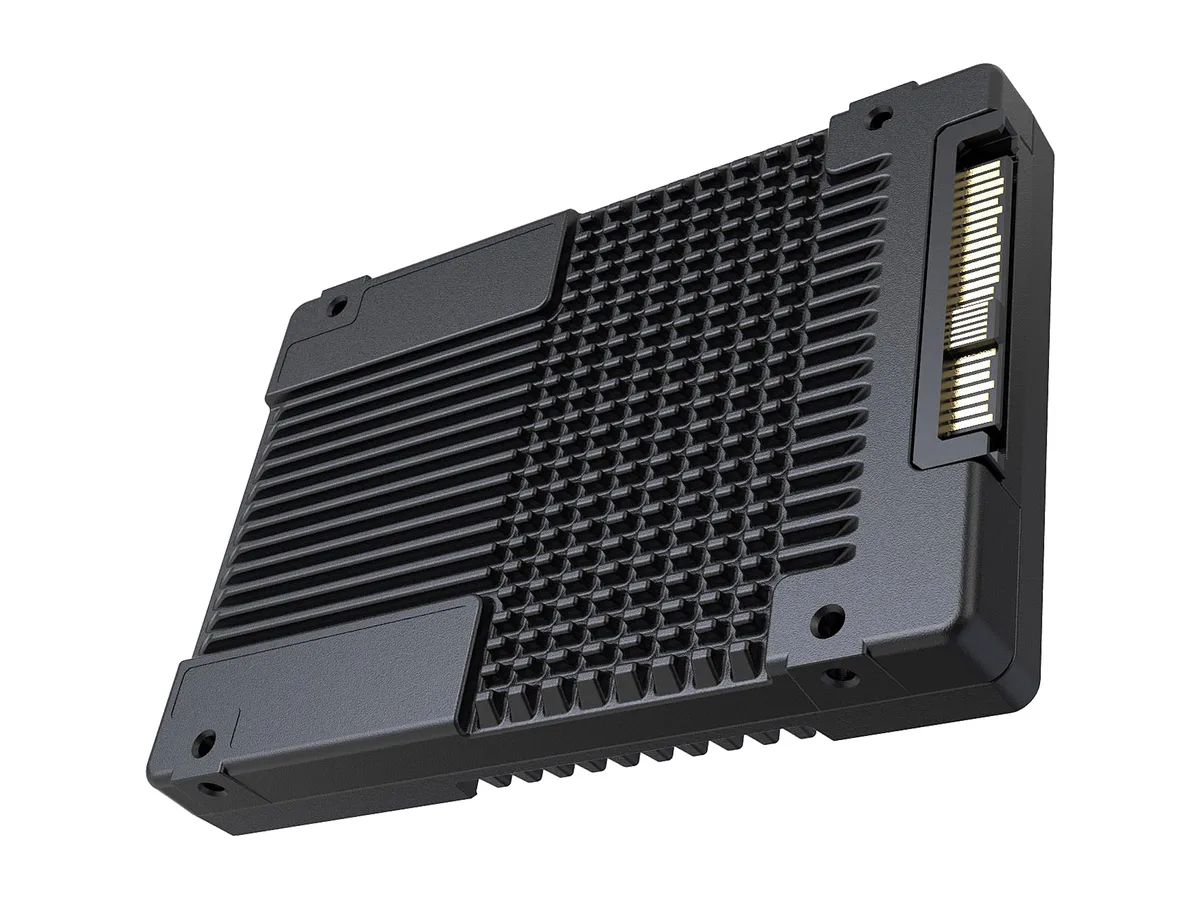

A 2.5 inch U.2 internal SSD with a dark metal casing and gold edge connector

Intel

Intel Optane SSD 905P 1.5TB 2.5" U.2 PCIe NVMe 3.0 x4 internal SSD SSDPE21D015TAX1

SKU CH-DQ21-F6ZN9 MPN SSDPE21D015TAX1

A 2.5" U.2 internal SSD with 1.5TB of 3D XPoint memory, PCIe NVMe 3.0 x4 interface, up to 2600 MBps sequential read, 2200 MBps sequential write, 575000 IOPS random read, 550000 IOPS random write.

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5" U.2
  • Capacity1.5TB
  • Memory Components3D XPoint
  • InterfacePCIe NVMe 3.0 x4

Options 1.5TB

  • Breakthrough performance with up to 2600 MBps sequential read speed
  • Responsive workloads from 575,000 IOPS 4K random read performance
  • Low 10 µs read latency cuts processor wait time
  • High endurance backed by 1,600,000 hours MTBF
  • 5TB capacity in 2.5" U.2 PCIe NVMe 3.0 x4 form factor

What this drive is

The Intel Optane SSD 905P 1.5TB is a 2.5-inch U.2 internal solid-state drive that connects through a PCIe NVMe 3.0 x4 interface. It uses 3D XPoint memory and an Intel controller to deliver sequential reads up to 2600 MBps and writes up to 2200 MBps.

Who it suits

This drive is built for consumer desktops and single-user workstations that need high random performance, with 4KB random reads up to 575,000 IOPS and writes up to 550,000 IOPS at 10 µs latency. Systems without a U.2 backplane or PCIe NVMe 3.0 x4 support cannot install it.

The deciding spec

The U.2 form factor combined with the PCIe NVMe 3.0 x4 interface determines compatibility; the drive only fits bays and motherboards wired for that exact connector and protocol.

Highlights

  • Breakthrough performance with up to 2600 MBps sequential read speed
  • Responsive workloads from 575,000 IOPS 4K random read performance
  • Low 10 µs read latency cuts processor wait time
  • High endurance backed by 1,600,000 hours MTBF
  • 5TB capacity in 2.5" U.2 PCIe NVMe 3.0 x4 form factor

Specifications

BrandIntel
SeriesOptane SSD 905P Series
ModelSSDPE21D015TAX1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5" U.2
Capacity1.5TB
Memory Components3D XPoint
InterfacePCIe NVMe 3.0 x4
ControllerIntel
Max Sequential ReadUp to 2600 MBps
Max Sequential WriteUp to 2200 MBps
4KB Random ReadUp to 575,000 IOPS
4KB Random WriteUp to 550,000 IOPS
Read Latency10 µs
Write Latency10 µs
MTBF1,600,000 hours
Power Consumption (Idle)6.2W
Power Consumption (Active)18.6W
Operating Temperature0°C ~ +85°C
Max Shock Resistance1000G (0.5 ms)
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Height15.00mm
Weight140.00g
Shipping weight0.91 kg
Package size305 × 229 × 102 mm
