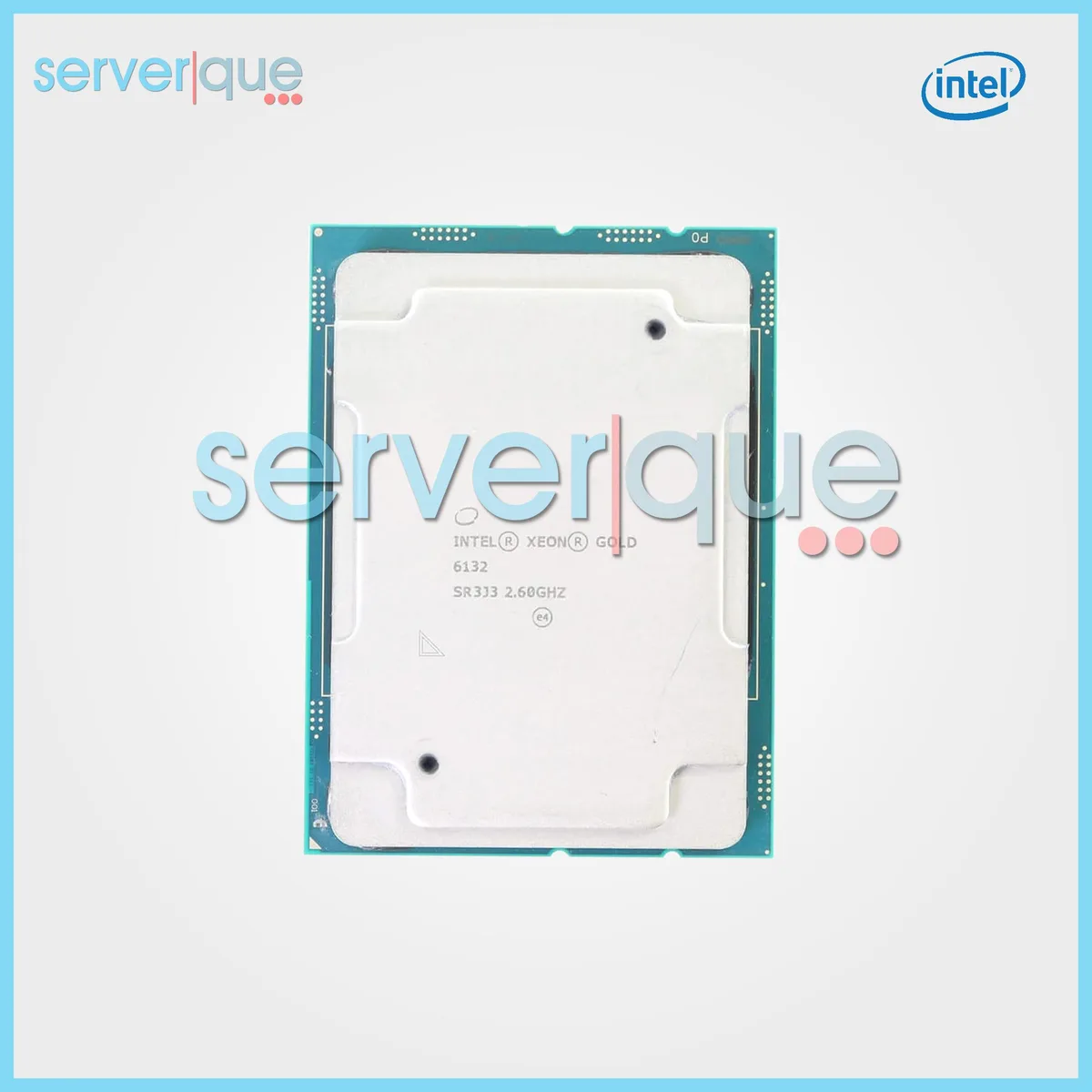

Intel Xeon Gold 6132 server processor, rectangular green PCB with gold LGA 3647 contacts, silver metal heat spreader, new condition

Intel

Intel Xeon Gold 6132 14-Core 2.60GHz 19.25MB 140W LGA 3647 server processor

SKU CH-H4VR-Z2TVN

14-core server CPU with 28 threads, 2.60 GHz base clock, 3.70 GHz turbo, 19.25 MB L3 cache, six memory channels at 2666 MHz and 48 PCIe 4.0 lanes

  • CPU Socket TypeLGA 3647
  • Core NameSkyLake
  • # of Cores14-Core
  • # of Threads28
  • Operating Frequency2.60GHz
  • Max Turbo Frequency3.70GHz
  • 14 cores and 28 threads accelerate multi-threaded workloads
  • Turbo up to 3.70 GHz lifts single-thread performance
  • 25 MB L3 cache keeps hot data close to cores
  • Six memory channels at 2666 MHz feed data-hungry applications
  • 48 PCIe 4.0 lanes provide high-speed I/O expansion

Server CPU for multi-threaded workloads

The Intel Xeon Gold 6132 is a 14-core server processor with 28 threads built on the SkyLake architecture. It runs at a 2.60GHz base frequency and can reach 3.70GHz max turbo frequency. The chip provides 19.25MB of L3 cache and a 140W thermal design power for sustained compute tasks.

LGA 3647 socket with six-channel memory

The processor uses the FCLGA3647 socket and integrates a memory controller rated for 2666 MHz across six channels. A 10.4 GT/s bus speed links the CPU to the platform. These traits dictate motherboard selection and cooling capacity in a rack or tower chassis.

PCIe 4.0 with 48 lanes maximum

The part supports PCI Express 4.0 and offers up to 48 lanes for add-in cards and storage. Virtualization technology is included for hypervisor deployments. Workloads demanding higher lane counts or newer interface revisions will need a different processor generation.

Highlights

  • 14 cores and 28 threads accelerate multi-threaded workloads
  • Turbo up to 3.70 GHz lifts single-thread performance
  • 25 MB L3 cache keeps hot data close to cores
  • Six memory channels at 2666 MHz feed data-hungry applications
  • 48 PCIe 4.0 lanes provide high-speed I/O expansion

Specifications

BrandIntel
SeriesIntel Xeon Gold
Part NumberSR3J3
CPU Socket TypeLGA 3647
Core NameSkyLake
# of Cores14-Core
# of Threads28
Operating Frequency2.60GHz
Max Turbo Frequency3.70GHz
Bus Speed10.4 GT/s
L3 Cache19.25MB
64-Bit SupportYes
Hyper-Threading SupportYes
Manufacturing Tech14 nm
Integrated Memory Controller Speed2666 MHz
Memory Channel6 Channel
Virtualization Technology SupportYes
PCI Express Revision4.0
Max # of PCI Express Lanes48
Thermal Design Power140W
Cooling DeviceCooling device not included - Processor Only

Questions about this item

What PCIe revision and lane count does the Xeon 6132 provide?

The processor supports PCI Express 4.0 with up to 48 lanes for add-in cards and storage.

Which socket and cooler mounting pattern does the Xeon 6132 require?

It fits the LGA 3647 socket and uses the matching square ILM mounting holes for server heatsinks.

How is the Xeon 6132 installed, and what step is often missed?

Align the gold triangle on the chip with the socket corner, lower the load plate, then torque the four captive screws in a cross pattern to seat the ILM evenly.
