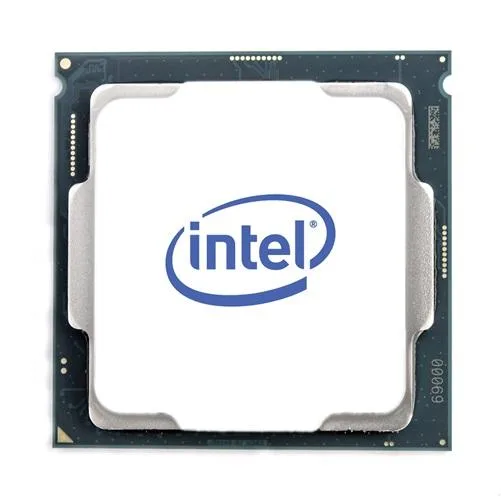

Intel Xeon Gold 6336Y server CPU, LGA 4189 socket, green PCB with gold contacts, silver metal heat spreader, rectangular chip package

Intel

Intel Xeon Gold 6336Y 2.4 GHz 24-core CD8068904658702 server processor

SKU CH-ABWR-A63J6 MPN CD8068904658702

A 24-core server processor with 48 threads, 36 MB L3 cache, 2.4 GHz base clock, 3.60 GHz max turbo, eight-channel DDR4 3200 support, 64 PCIe 4.0 lanes and 185 W TDP

  • NameXeon Gold 6336Y
  • CPU Socket TypeLGA 4189
  • Core NameIce Lake
  • # of Cores24-Core
  • # of Threads48
  • Operating Frequency2.4 GHz
  • 24 cores and 48 threads handle heavy parallel workloads
  • 60 GHz max turbo frequency speeds up burst tasks
  • 36 MB L3 cache keeps frequent data close to cores
  • 8-channel DDR4 3200 memory controller feeds data fast
  • 64 PCIe 4.0 lanes connect high-bandwidth peripherals

Xeon Gold 6336Y 24-core server processor

The Intel Xeon Gold 6336Y is a 24-core, 48-thread server CPU built on 10 nm Ice Lake architecture. It targets data-centre workloads such as virtualisation, database hosting and high-performance computing. The LGA 4189 socket and eight-channel DDR4 3200 memory controller support large memory configurations. Sixty-four PCIe 4.0 lanes provide ample I/O bandwidth for storage and networking cards.

185 W TDP with base 2.4 GHz and 3.60 GHz turbo

At its 185 W thermal design power the processor runs at a 2.4 GHz base frequency and can reach a 3.60 GHz maximum turbo frequency. The 36 MB L3 cache helps sustain throughput across all 24 cores under sustained load. Cooling solutions must be rated for the full 185 W envelope to maintain stable clocks in dense chassis. Power draw scales with active core count and AVX workload intensity.

Upgrades from lower-core Ice Lake

Moving to this 24-core part makes sense when thread count, memory channels or PCIe lanes become bottlenecks. The eight-channel memory controller and 64 PCIe 4.0 lanes remove constraints found on smaller SKUs. Buyers who need higher single-thread frequency or lower power envelopes should evaluate other models. Systems limited to six memory channels or fewer PCIe lanes will not utilise the full capability.

Highlights

  • 24 cores and 48 threads handle heavy parallel workloads
  • 60 GHz max turbo frequency speeds up burst tasks
  • 36 MB L3 cache keeps frequent data close to cores
  • 8-channel DDR4 3200 memory controller feeds data fast
  • 64 PCIe 4.0 lanes connect high-bandwidth peripherals

Specifications

BrandIntel
SeriesIntel Xeon Gold
NameXeon Gold 6336Y
ModelCD8068904658702
CPU Socket TypeLGA 4189
Core NameIce Lake
# of Cores24-Core
# of Threads48
Operating Frequency2.4 GHz
Max Turbo Frequency3.60 GHz
L3 Cache36MB
64-Bit SupportYes
Hyper-Threading SupportYes
Manufacturing Tech10 nm
Integrated Memory Controller SpeedDDR4 3200
Memory Channel8 Channel
Virtualization Technology SupportYes
PCI Express Revision4.0
Max # of PCI Express Lanes64
Thermal Design Power185W
Shipping weight0.09 kg
Package size116 × 101 × 44 mm

Questions about this item

How do I install the Xeon Gold 6336Y into the LGA 4189 socket, and what is the step people get wrong?

Align the processor notches with the socket keys, lower it straight down without forcing, then close the load plate and secure the lever; the common error is skipping the alignment check and bending the delicate socket pins.

What maintenance or replacement will the Xeon Gold 6336Y need later?

The processor itself has no serviceable parts; plan to replace the thermal interface material between the CPU and heatsink every few years to maintain the 185W thermal design power dissipation.

What limit shows up first on the Xeon Gold 6336Y under sustained use?

The 185W thermal design power envelope is the first ceiling reached during prolonged all-core workloads, causing the 24 cores to throttle from the 3.60 GHz max turbo toward the 2.4 GHz base frequency.
