Compact black steel NAS chassis with walnut wood front panel, cube form factor

JONSBO

JONSBO N4 Black Walnut NAS PC Case

SKU CH-DTDB-F6SK1

Holds six 3.5-inch drives and two 2.5-inch SSDs in a Micro-ATX chassis with a solid walnut front panel

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialSteel/Wood
  • Motherboard CompatibilityMicro ATX / ITX
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays2

Options N4 (Black)

  • Holds six 3.5-inch drives with four hot-swap bays for easy swaps
  • Fits Micro-ATX or ITX boards in a compact 228 by 286 by 300 mm frame
  • Front USB 3.2 Gen 2 Type-C plus USB 3.0 for fast external access
  • 8 mm North American black walnut panel adds natural texture to any desk
  • Supports GPU up to 230 mm and CPU cooler up to 70 mm height

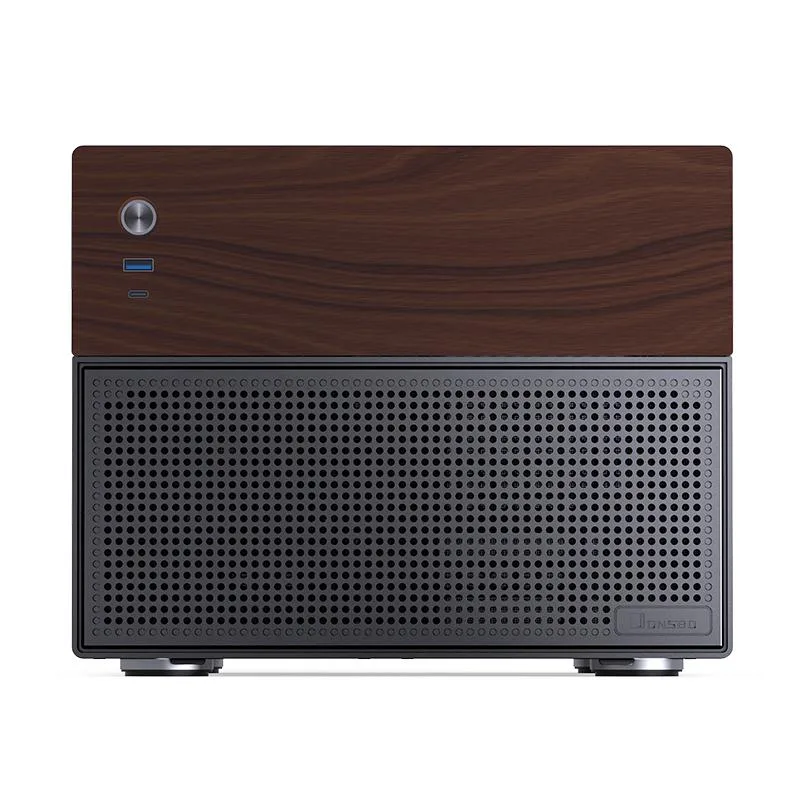

Walnut NAS Chassis for Micro ATX Builds

The JONSBO N4 Black Walnut is a compact steel-and-wood case designed around Micro ATX and Mini-ITX motherboards. It integrates an 8 mm North American black walnut front panel that blends into home-office or living-room environments. The internal layout separates the motherboard compartment from the drive bay zone, allowing half-height expansion cards and downdraft coolers up to 70 mm tall.

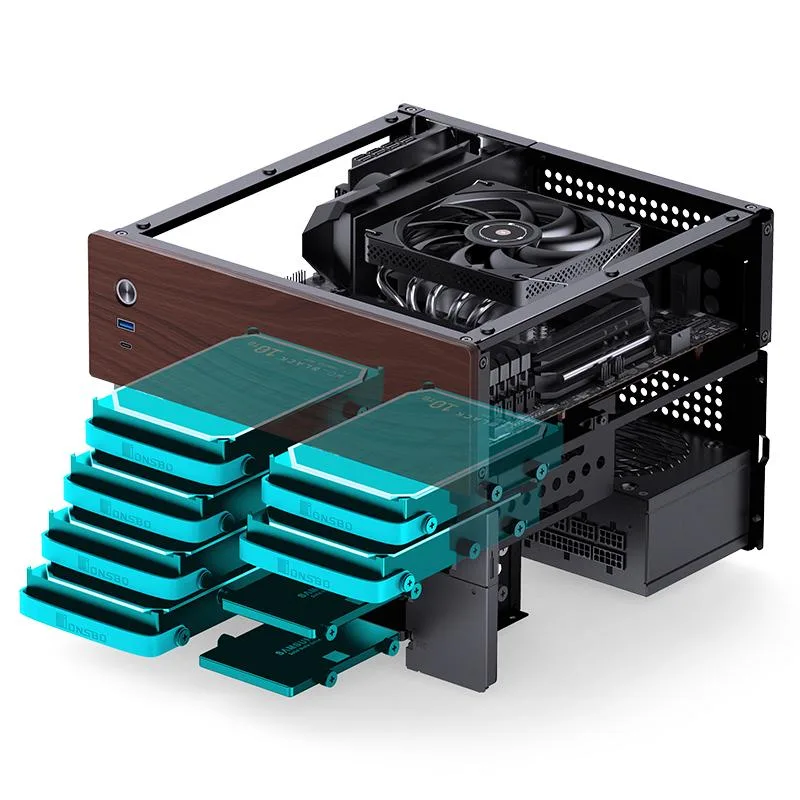

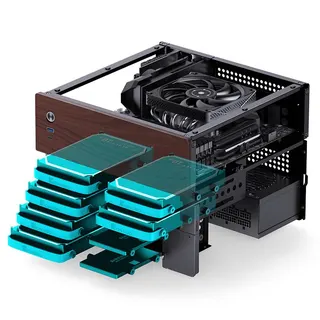

Eight-Drive Density for Storage-First Users

This chassis suits builders who need six 3.5-inch hard drives — four hot-swap and two fixed — plus two 2.5-inch SSDs in a footprint of 228 x 286 x 300 mm. It is not for users who require full-height graphics cards longer than 230 mm, standard ATX power supplies beyond 125 mm depth, or tower coolers exceeding the 70 mm clearance. Builders needing more than four expansion slots or additional 5.25-inch bays should look elsewhere.

Front USB 3.2 Gen 2 Type-C and Pre-Fitted Rear Fan

The single front-panel USB 3.2 Gen 2 Type-C port and one USB 3.0 port give direct high-speed access to external drives or peripherals. A 120 mm rear fan ships installed, providing baseline exhaust airflow without extra purchase. The split-compartment design routes cables away from the drive bays, simplifying assembly and ongoing drive swaps.

Highlights

  • Holds six 3.5-inch drives with four hot-swap bays for easy swaps
  • Fits Micro-ATX or ITX boards in a compact 228 by 286 by 300 mm frame
  • Front USB 3.2 Gen 2 Type-C plus USB 3.0 for fast external access
  • 8 mm North American black walnut panel adds natural texture to any desk
  • Supports GPU up to 230 mm and CPU cooler up to 70 mm height

Specifications

BrandJonsbo
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialSteel/Wood
Motherboard CompatibilityMicro ATX / ITX
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Hot-Swap Drive Bays4
Expansion Slots4
Front PortsUSB 3.2 Gen 2 Type-C x1 /USB3.0x1
Fan OptionsRear - 1 x 120mm
Max GPU Length230 mm
Max CPU Cooler Height70 mm
Max PSU Length125 mm
Dimensions228x286x300mm/8.98x11.26x11.81 inch
Weight3.75KGS
FeaturesApplications for Home Office, Network storage,Enterprise Storage etc.
8-Drive Bay: 6*3.5 "HDD (4 hot-swap,2 non hot-swap), 2*2.5“SSD
Solid Wood Panel: Adopt 8mm thickness North American black walnut solid wood, natural texture, fusion home
High-performance configurations are newly upgraded
5-inch disc bay: Split top and bottom compartments :Motherboard compartment supports MATX motherboards and half-height expansion cards,also supports downdraft coolers’ front panel vents with North American walnut veneer accents

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a standard ATX power supply fit inside the case?

The case accepts power supplies up to 125 mm long, so most standard ATX units will not fit; choose an SFX or SFX-L unit instead.

Can I install a full-height graphics card for GPU transcoding?

The maximum graphics card length is 230 mm, which accommodates many dual-slot ITX cards but rules out most full-length models.

What CPU cooler clearance do I have for a quiet NAS build?

The cooler height limit is 70 mm, so only low-profile air coolers or thin AIO cold plates will fit.
