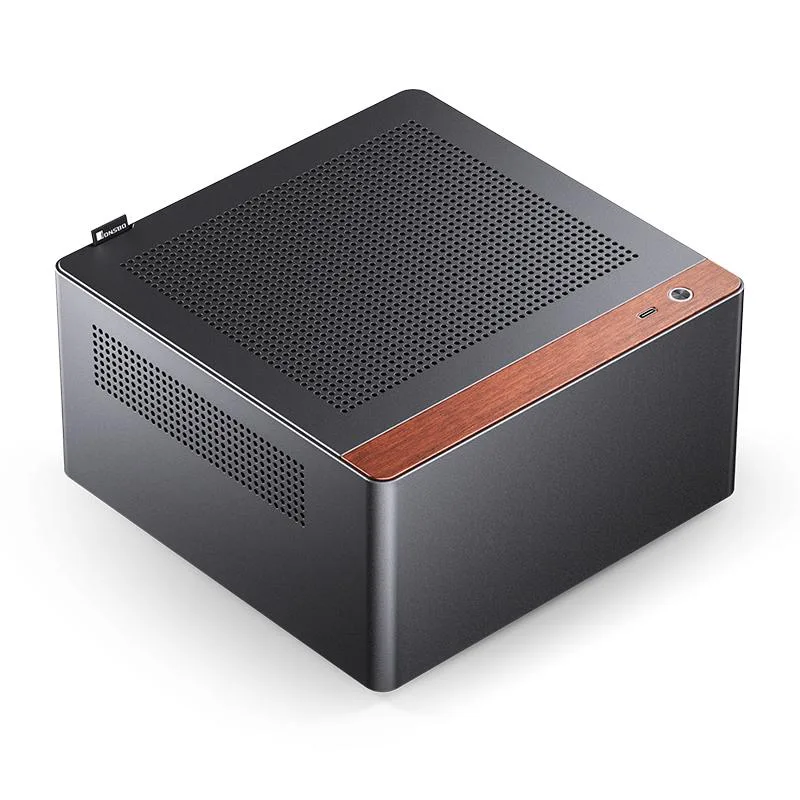

Black aluminium mini-ITX case with walnut trim, top carry handle, 4.5L footprint

JONSBO

JONSBO NV10 BLACK 4.5L Mini ITX PC Case

SKU CH-HAHJ-6KBSB

An aluminium Mini-ITX chassis with walnut trim that fits a 190 mm GPU, 38 mm cooler and 1U Flex PSU in 4.5 litres

  • ColorBlack
  • Case MaterialAluminum
  • Motherboard CompatibilityITX
  • Internal 2.5" Drive Bays4
  • Fan Options2x5000 rpm 40mm Fans
  • Max GPU Length190 mm

Options NV10 (Black)

  • Aluminium shell with walnut trim delivers a premium desktop look
  • 5 L volume fits upright or flat for flexible placement
  • Two 40 mm fans spinning at 5000 rpm push air through perforated panels
  • Supports graphics cards up to 190 mm and CPU coolers up to 38 mm
  • Four 2.5" drive bays and a PCIe 4.0 riser cable included

Compact 4.5L ITX Chassis

The JONSBO NV10 BLACK is a 4.5L Mini-ITX case built from aluminum alloy with walnut trim. It supports Mini-ITX motherboards and fits in tight desktop spaces. The compact frame works in both standing and lying orientations. It suits builders who want a small, portable system with a premium metal finish.

Tool-Free Build with Fixed Constraints

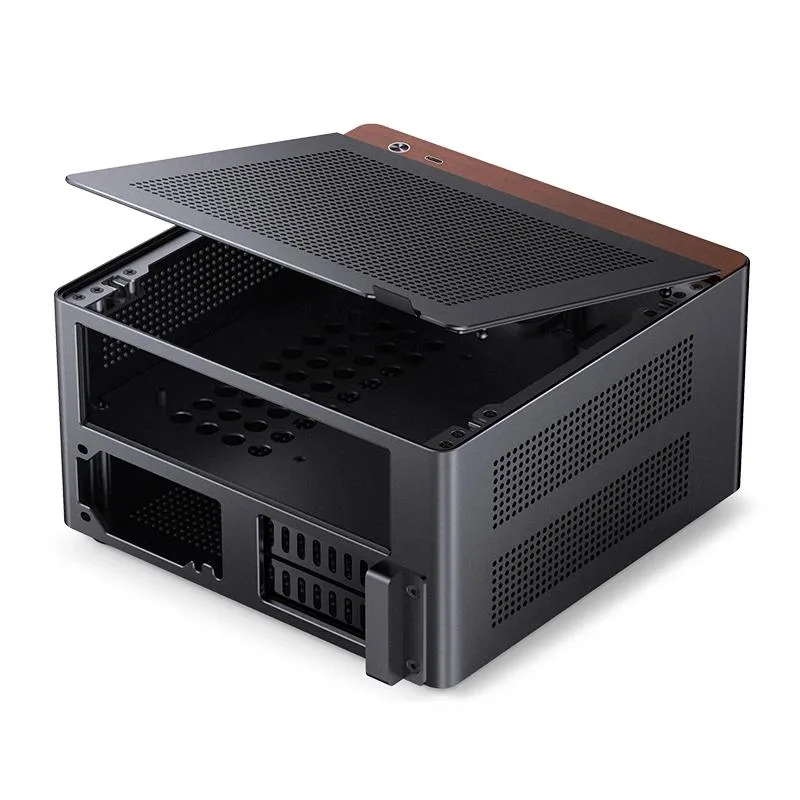

A removable top cover and tool-free design let you access the interior quickly. Two 40mm fans spinning at 5000 rpm are pre-installed for airflow. The maximum GPU length is 190mm and the CPU cooler height limit is 38mm. Builders needing longer graphics cards or taller coolers cannot use this chassis.

Verify PSU and Drive Needs First

The case accepts only 1U Flex PSUs up to 150mm in length. It provides four internal 2.5-inch drive bays and no 3.5-inch mounts. A PCIe 4.0 riser cable is included for GPU installation. Confirm your power supply form factor and storage type before ordering.

Highlights

  • Aluminium shell with walnut trim delivers a premium desktop look
  • 5 L volume fits upright or flat for flexible placement
  • Two 40 mm fans spinning at 5000 rpm push air through perforated panels
  • Supports graphics cards up to 190 mm and CPU coolers up to 38 mm
  • Four 2.5" drive bays and a PCIe 4.0 riser cable included

Specifications

BrandJonsbo
ModelNV10 BLACK
Part NumberNV10 BLACK
ColorBlack
Case MaterialAluminum
Motherboard CompatibilityITX
Internal 2.5" Drive Bays4
Fan Options2x5000 rpm 40mm Fans
Max GPU Length190 mm
Max CPU Cooler Height38mm
Max PSU Length150 mm

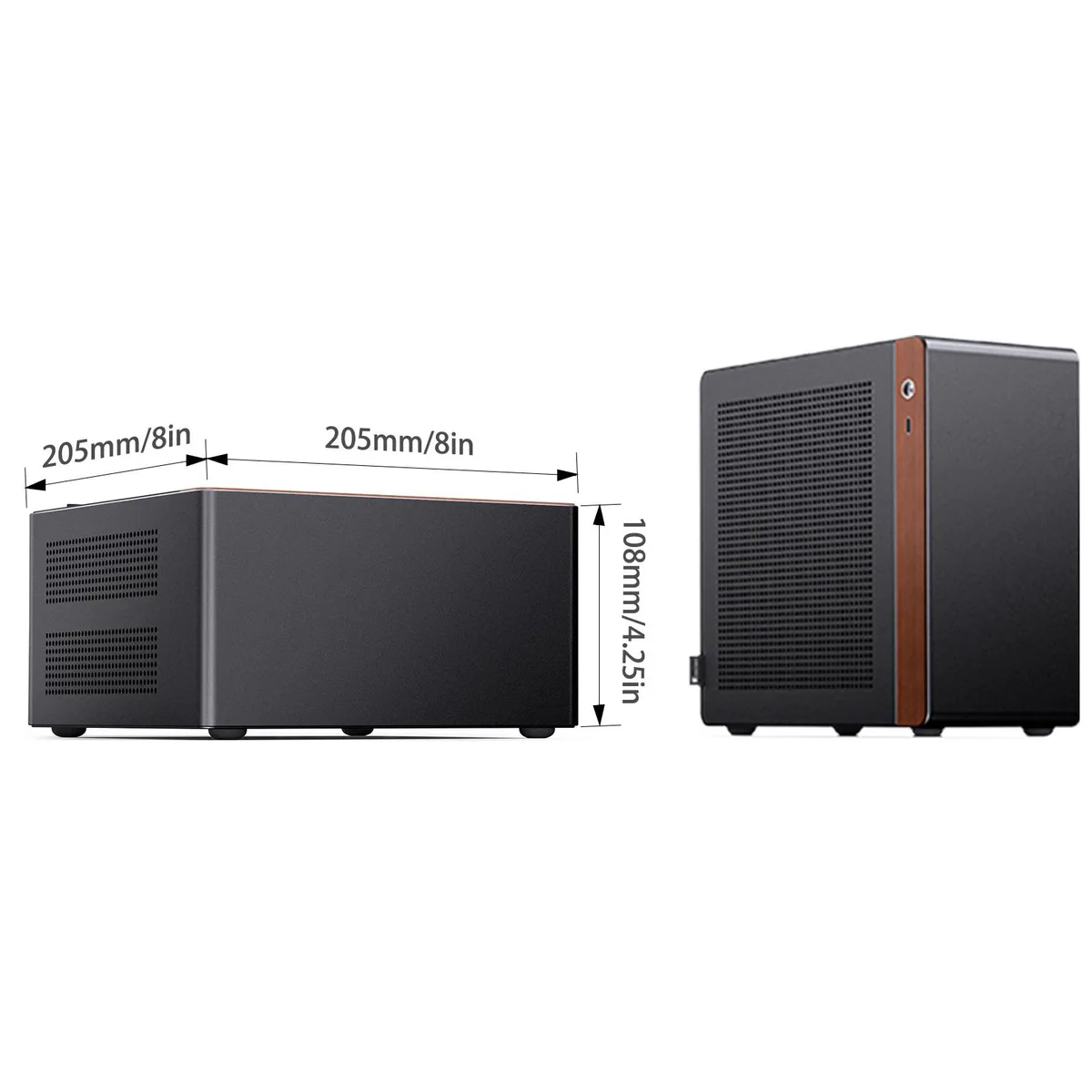

Dimensions108x205x205mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the case is cooling properly once assembled?

The two included 40 mm fans spin at 5000 rpm and the perforated panels on multiple sides are designed to improve airflow circulation.

What comes in the box and what must I purchase separately?

The box contains the aluminium chassis with walnut trim, two 40 mm fans, a PCI-E 4.0 riser cable and mounting hardware; you will need to supply a Mini-ITX motherboard, a 1U Flex PSU up to 150 mm long, a CPU cooler no taller than 38 mm, a graphics card up to 190 mm and up to four 2.5 inch drives.

Which version should I choose if I want the black finish with walnut accents?

The NV10 BLACK model is the only version offered in black with North American walnut trim.
