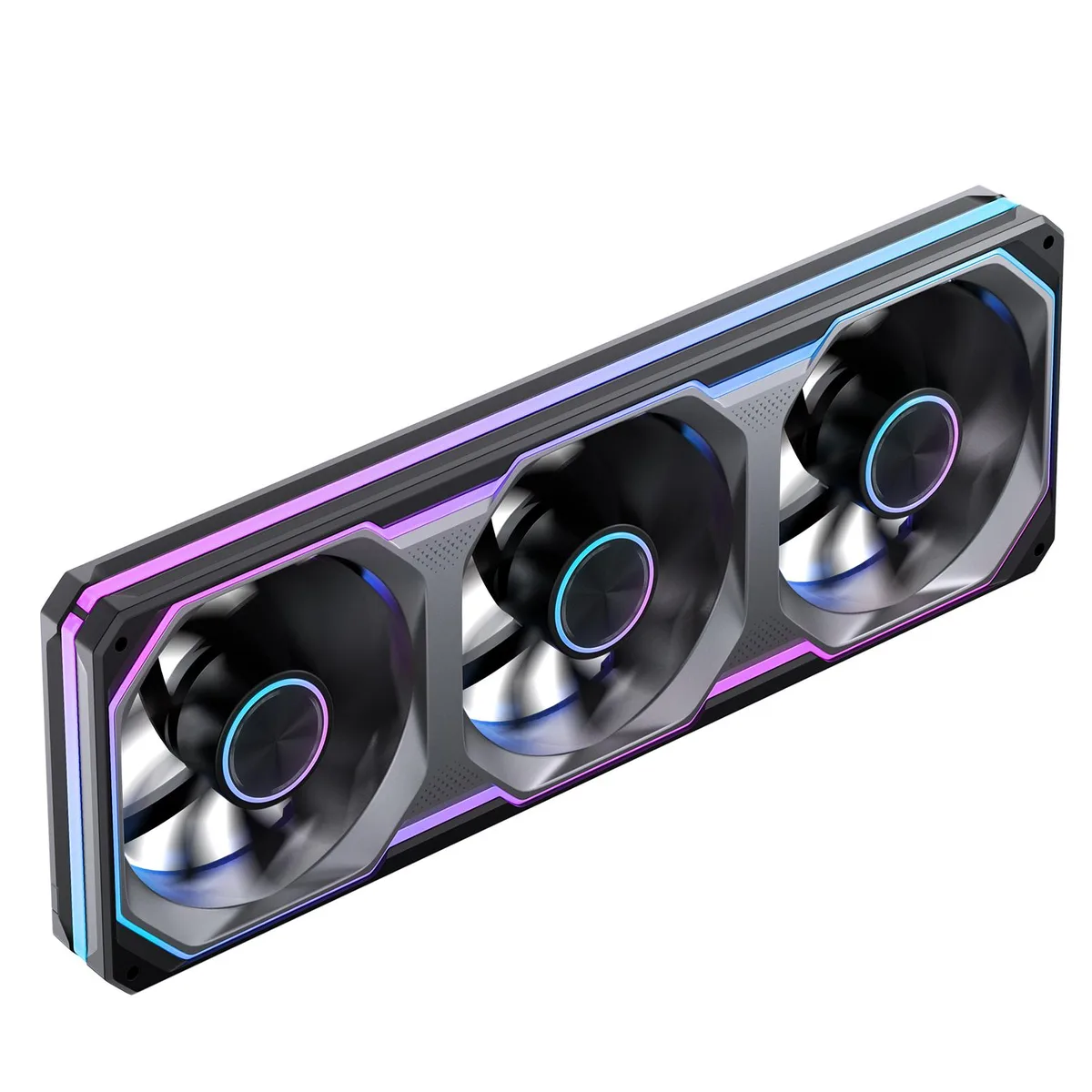

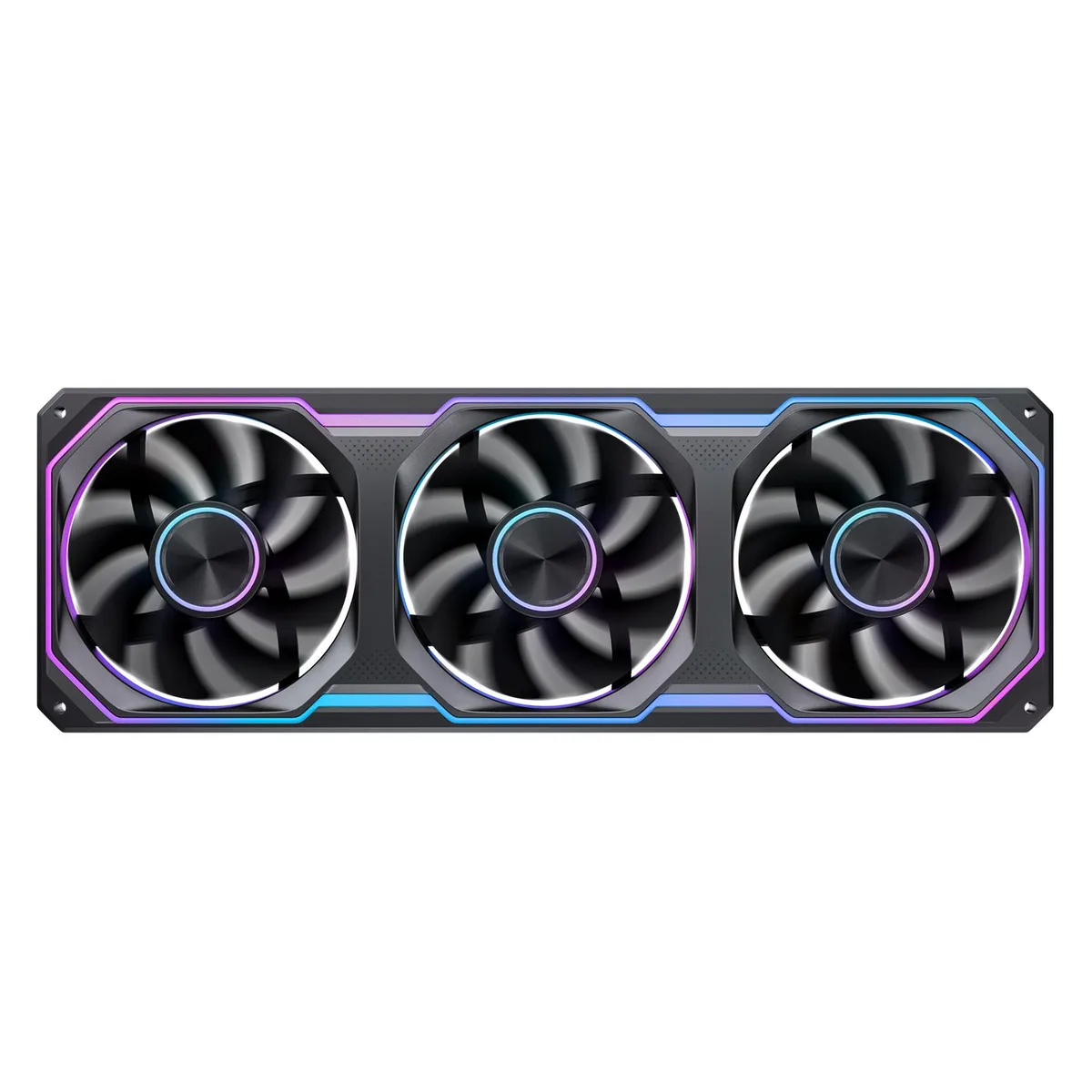

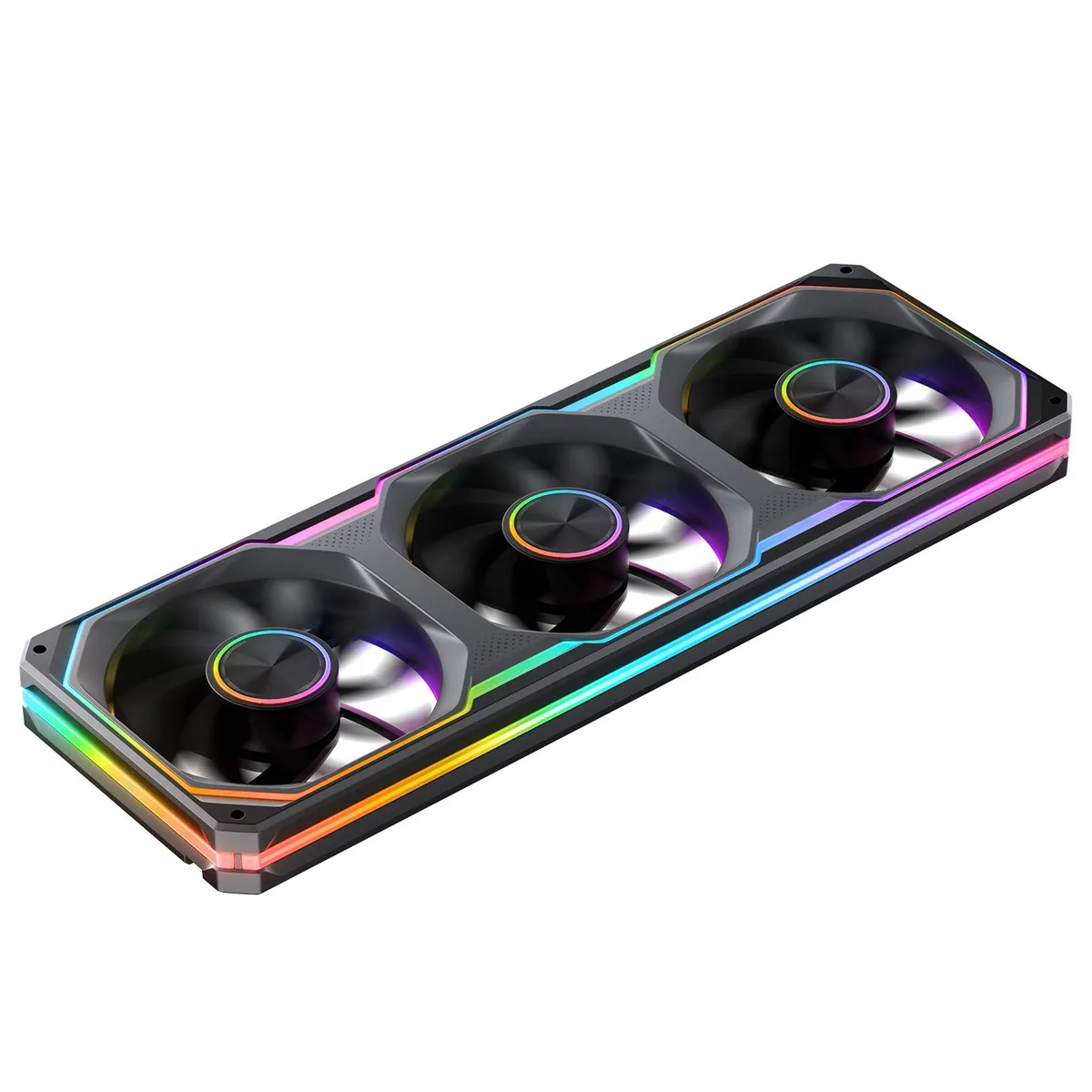

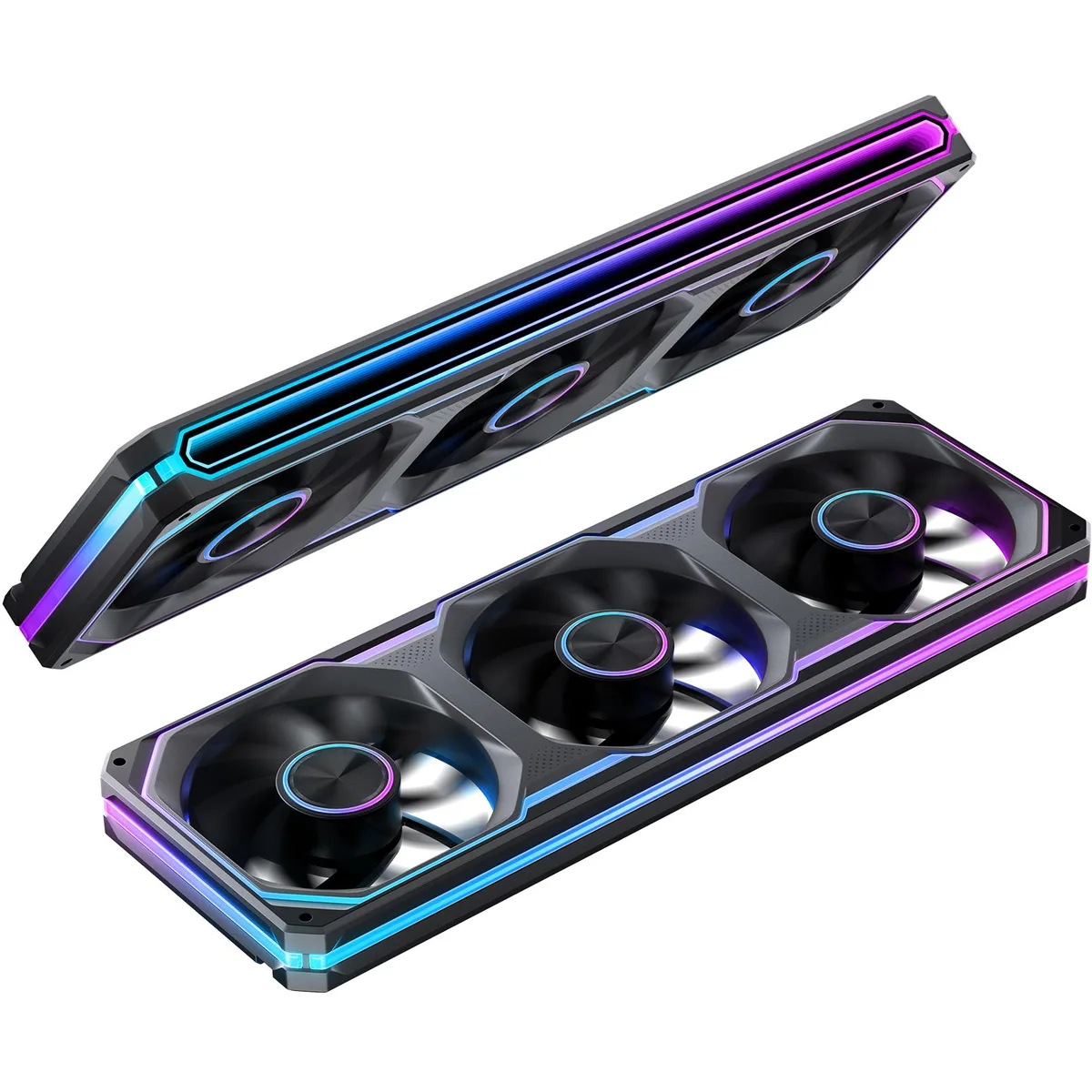

Three black 120 mm ARGB fans in a single 360 mm frame, 28 mm thick

JONSBO

JONSBO XA360BR (Reverse) 3×120mm ARGB case fan 360mm 28mm 1800RPM Black

SKU CH-B460-CQERZ

Three 120 mm ARGB fans in a single 360 mm frame with reverse blades, hydraulic bearings and unified PWM control

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • Bearing TypeHydraulic
  • RPM700-2400(+-10%)RPM
  • Noise Level21.3-37.3 dB(A)

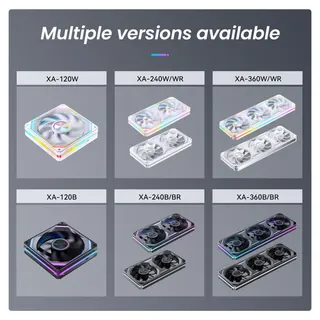

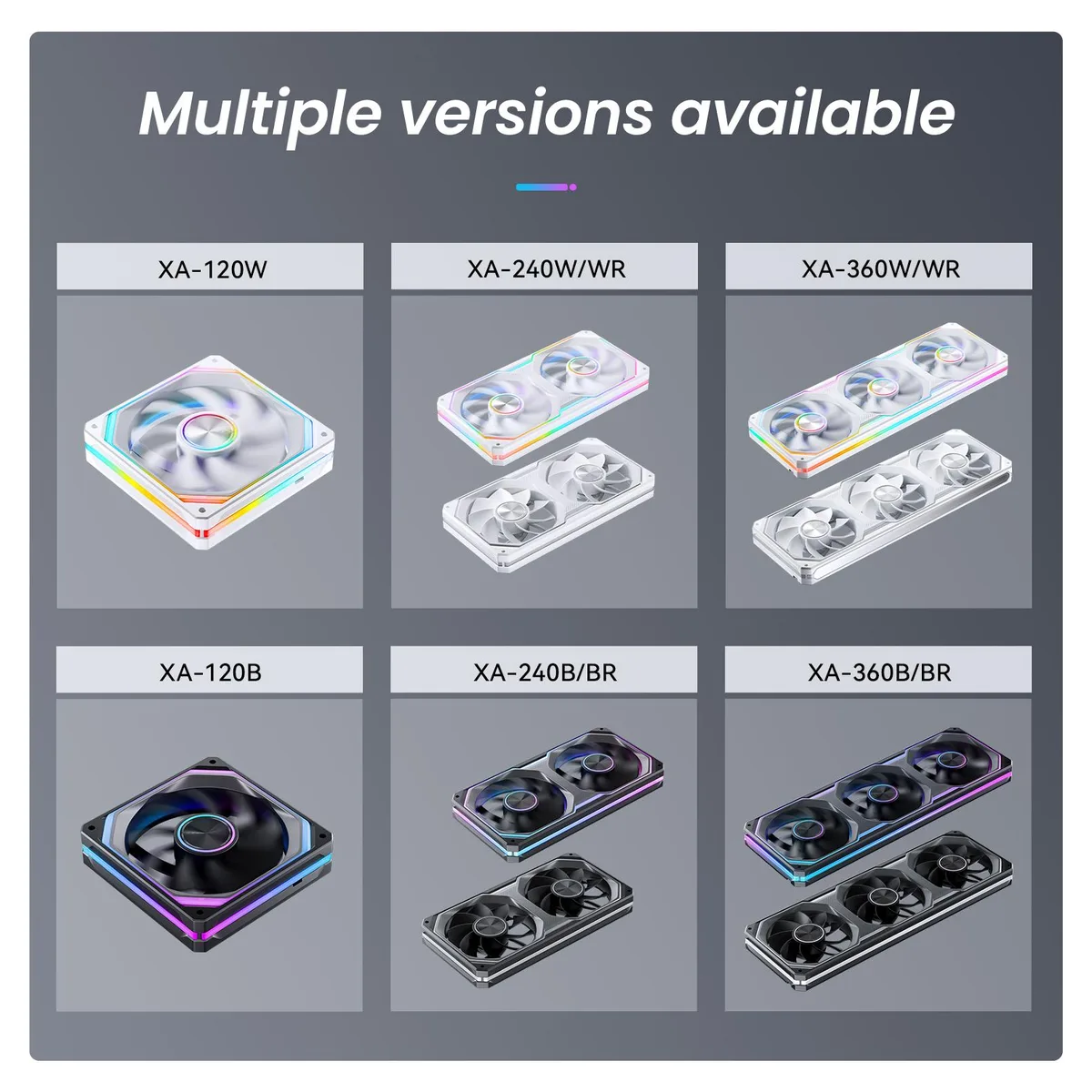

XA-120B Black

  • 120mm
  • Regular Blade
  • Black

Struck-through versions exist but are not stocked here.

XA-360B 3x120mm

  • 3x120mm
  • Regular Blade

Struck-through versions exist but are not stocked here.

XA-360BR Reversed Blade

  • Reversed Blade
  • Black

Struck-through versions exist but are not stocked here.

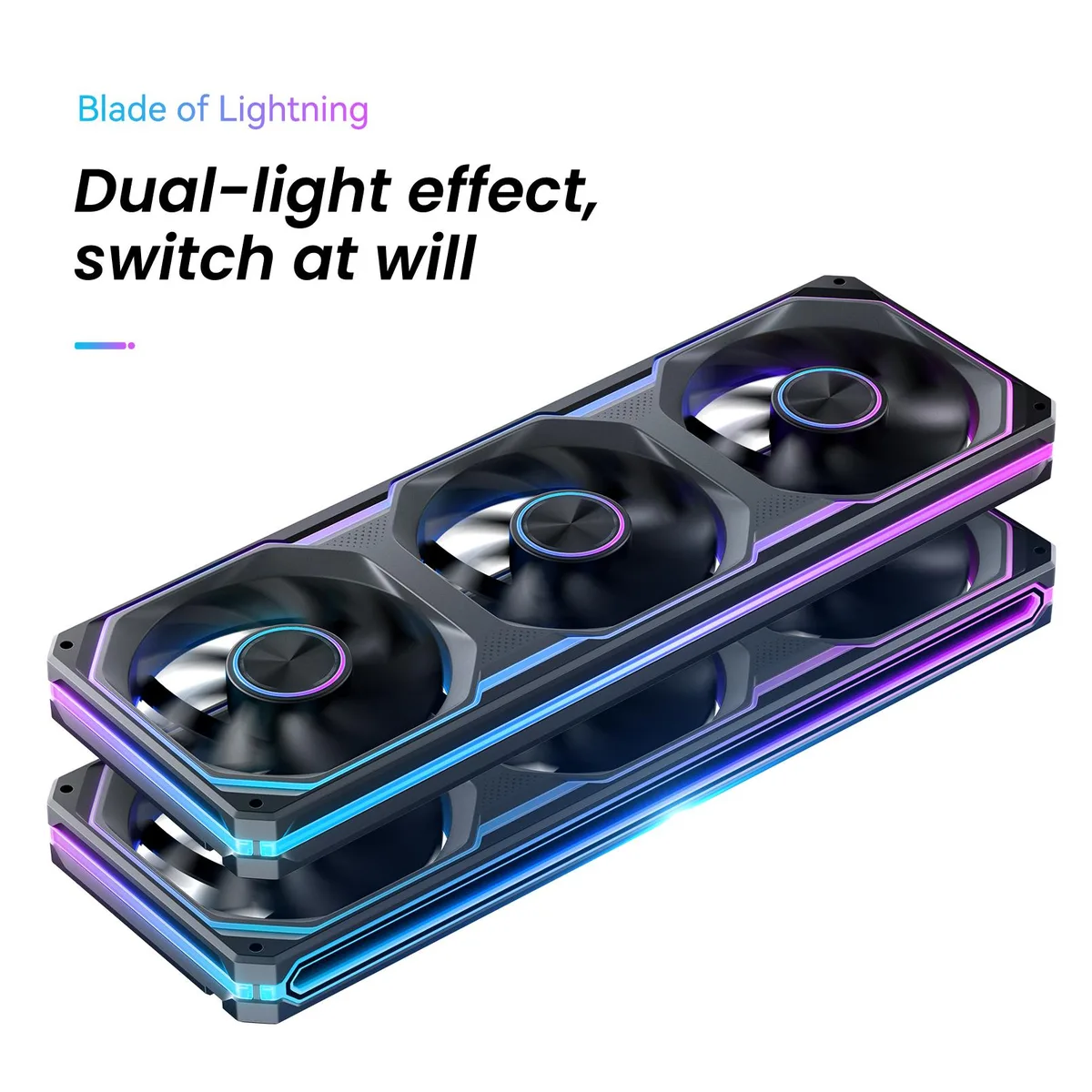

  • Dual-light effect with infinity mirror on one side
  • 76 frame LEDs plus 27 parallel LEDs per unit
  • 360 mm single frame holds three 120 mm fans
  • Hydraulic bearing runs 700-2400 RPM at 21.3-37.3 dB(A)
  • PWM 4-pin and ARGB 3-pin connectors unify speed and lighting

All-in-One 360 mm Fan Unit

The JONSBO XA360BR (Reverse) combines three 120 mm ARGB fans in a single frame that mounts as one piece. PWM 4-pin and ARGB 3-pin connectors link speed and lighting through a single cable run. The integrated design removes the need to wire individual fans and suits builders who want a unified 360 mm cooling block with addressable RGB.

Sustained Operation at 1800 RPM

Hydraulic bearings support a speed range of 700 to 2400 RPM with a ±10 % tolerance, while noise stays between 21.3 and 37.3 dB(A). At the typical 1800 RPM operating point the fans deliver steady airflow for continuous loads such as rendering or long gaming sessions. The MTTF rating of 20000 hours at 25 °C ambient indicates the bearing life expected under constant running rather than brief bursts.

ARGB Channel Limits

The frame carries 76 border LEDs plus 27 parallel LEDs per fan, totalling more LEDs than a single 5 V ARGB header on many entry-level motherboards can address. If the motherboard header cannot drive the full count, an external ARGB controller that supports at least 76 LEDs per channel is required. The 5 V ARGB connectors are keyed male and female so additional lighting devices can be daisy-chained on the same signal line.

Highlights

  • Dual-light effect with infinity mirror on one side
  • 76 frame LEDs plus 27 parallel LEDs per unit
  • 360 mm single frame holds three 120 mm fans
  • Hydraulic bearing runs 700-2400 RPM at 21.3-37.3 dB(A)
  • PWM 4-pin and ARGB 3-pin connectors unify speed and lighting

Specifications

BrandJONSBO
ModelXA-120B
Fan Size120mm
LEDARGB
TypeCase Fan
Bearing TypeHydraulic
RPM700-2400(+-10%)RPM
Noise Level21.3-37.3 dB(A)
Power ConnectorPWM 4PIN ARGB 3PIN
ColorBlack / Gray
CompatibilityCase
Dimensions360mm(L)*120mm(W)*28mm(H)

Questions about this item

How loud does the 360 mm unit get at its top 2400 RPM?

The assembly runs at 21.3 dB(A) at minimum speed and reaches 37.3 dB(A) when the fans hit 2400 RPM.

What motherboard headers must be free to run the 360 mm fan assembly?

One PWM 4-pin header for speed control and one 5 V ARGB 3-pin header for lighting are required.

Will the 76 frame LEDs and 27 inner LEDs per fan work on an older board with limited ARGB channels?

Boards that cannot address more than 76 LEDs per channel need a separate ARGB controller; ASUS boards may increase the limit via Aura Sync.
