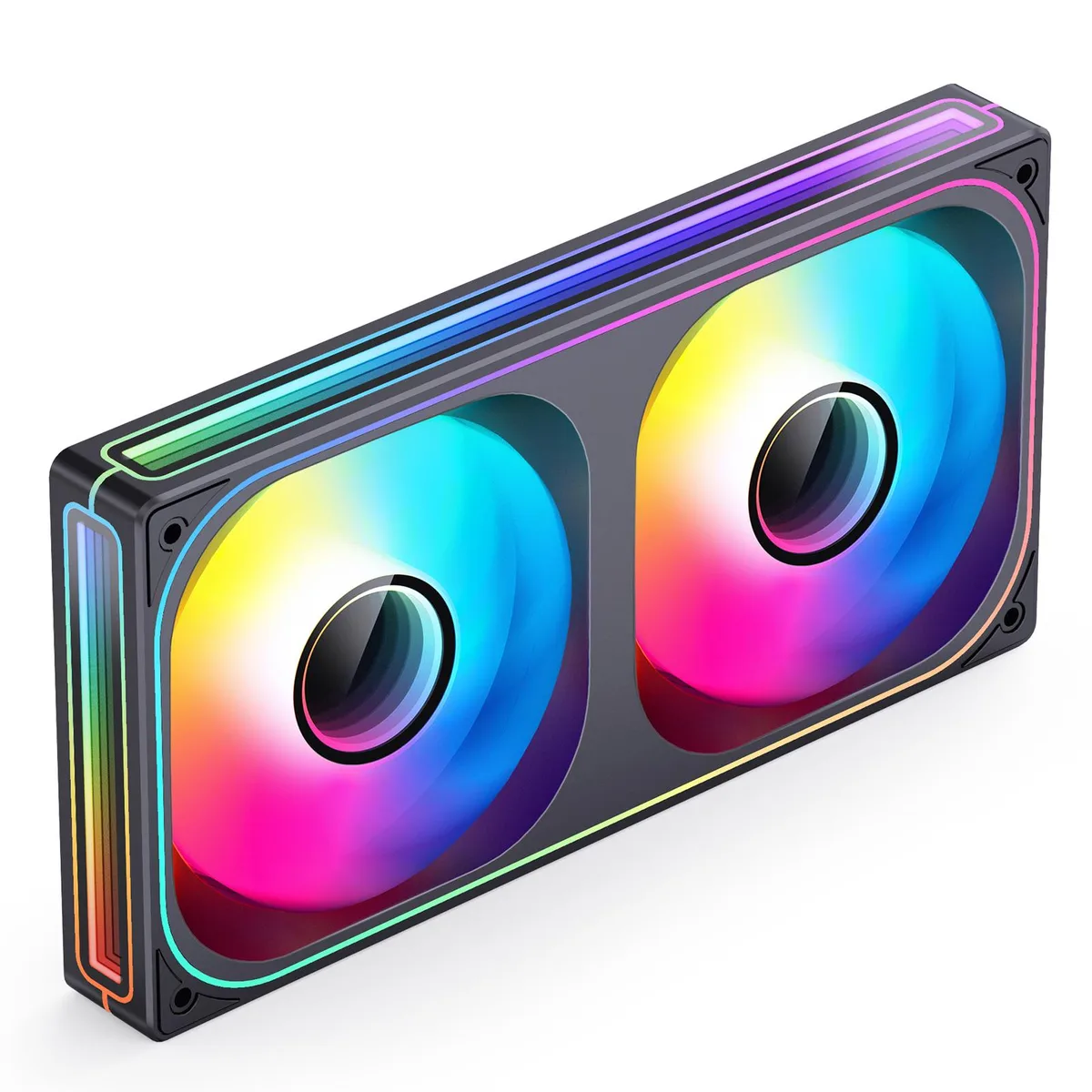

Black 240mm dual-fan unit with infinity mirror lighting on front and sides

JONSBO

JONSBO ZB-240B 240mm 28mm 2x120mm ARGB case fan

SKU CH-9M8P-0E3PM MPN ZB-240B

A 240 mm dual-fan unit with 28 mm thickness, 700-2400 RPM, 20.95-65.26 CFM airflow, 0.45-3.20 mmH₂O pressure, 20.3-36.6 dB(A) noise, and 4-sided infinity-mirror ARGB lighting

  • Fan Counts2 Fans
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size240mm
  • Fan Thickness28mm
  • RPM700-2400rpm(±10%)

Model ZB-240B

Show 9 more configurations

Struck-through versions exist but are not stocked here.

  • Four-sided infinity mirror creates depth illusion
  • Single frame unifies two 120 mm fans for tidy build
  • PWM range 700–2400 rpm balances airflow and noise
  • 5 V ARGB header with pass-through simplifies lighting sync
  • 28 mm thick radiator-optimised profile fits standard mounts

Dual-fan ARGB unit

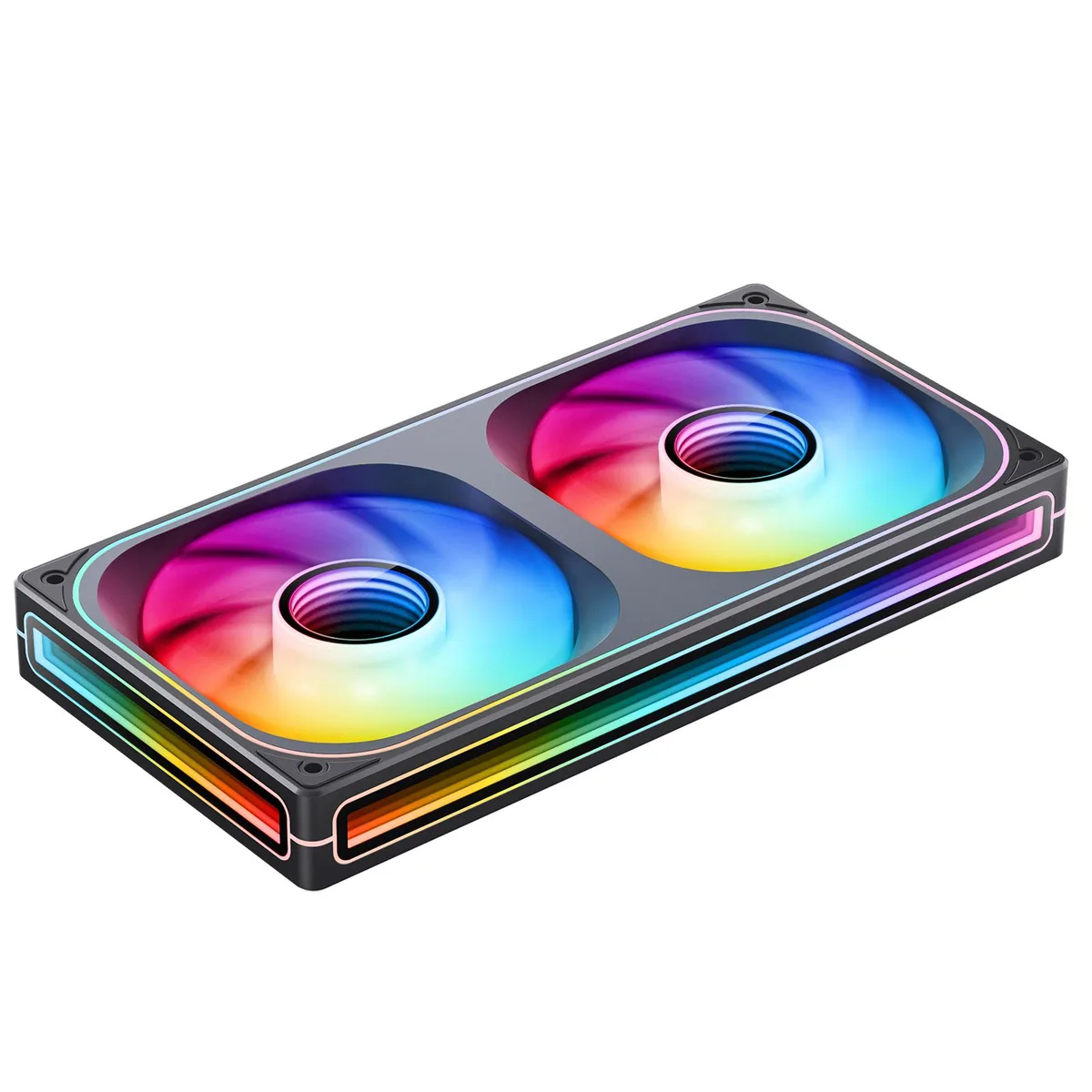

The JONSBO ZB-240B integrates two 120mm ARGB fans into a single 240mm by 28mm frame that mounts in standard case locations. It targets builders who want co-ordinated lighting and airflow without managing separate fan headers or cables.

PWM and 5V ARGB limits

Speed is regulated by a 4-pin PWM signal across a 700-2400rpm range, delivering 20.95-65.26 CFM at 0.45-3.20 mmH2O with noise between 20.3-36.6 dB(A). The 5V ARGB interface requires a compatible motherboard header or controller that can address 52 circumference LEDs plus 18 axis LEDs per unit.

Unified frame and daisy-chain wiring

A one-piece frame removes the gap between fans and uses a joint structure for straightforward screw mounting. One combined cable carries both PWM and ARGB signals to the motherboard, while male and female 5V ARGB connectors allow daisy-chaining to other lighting devices.

Highlights

  • Four-sided infinity mirror creates depth illusion
  • Single frame unifies two 120 mm fans for tidy build
  • PWM range 700–2400 rpm balances airflow and noise
  • 5 V ARGB header with pass-through simplifies lighting sync
  • 28 mm thick radiator-optimised profile fits standard mounts

Specifications

BrandJONSBO
SeriesZB SERIES
ModelZB-240B
Fan Counts2 Fans
TypeCase Fan
CompatibilityCase
Fan Size240mm
Fan Thickness28mm
RPM700-2400rpm(±10%)
Air Flow20.95-65.26 CFM
Air Pressure0.45-3.20 mmH2O
Noise Level20.3-36.6 dB(A)
ColorBlack
LEDARGB
FeaturesJONSBO ZB-240 28MM ARGB Infinity Mirror Series Case Fan-
Axis /4-Sides infinity mirror : Front thousand- layer Mirror Illusion, Internal and external dual zone infinity Mirror, Full light effect/echoing embellishment
All-IN-One: Single Frame unit with 2x120 ARGB fans, No need to connect individual fans, Speed & Lighting Unified Regulation
Easy Installation of the Joint Structure
One Line Connection to Motherboard Simplifies Wiring
5VARGB plug male and female design, can be connected in series with other light efficiency devices
Dimensions242mm（L）*123mm（W）*28mm（H）

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 240 mm 28 mm version or a thinner 120 mm fan for my case?

The ZB-240B is a single 242 mm long frame holding two 120 mm fans at 28 mm thickness, so it fits 240 mm radiator mounts and delivers 20.95-65.26 CFM without needing separate fan headers.

What does the 2400 RPM top speed actually give me inside a build?

At 2400 RPM the pair pushes up to 65.26 CFM and 3.20 mmH2O static pressure while staying at 36.6 dB(A), making it strong enough for radiator or high-restriction mesh panels.

How does the 4-pin PWM and 3-pin 5V ARGB connector limit what I can control?

The 4-pin PWM header lets the motherboard regulate 700-2400 RPM speed automatically, while the 3-pin 5V ARGB link (with male and female ends) chains lighting to other 5V ARGB devices for unified effects.
