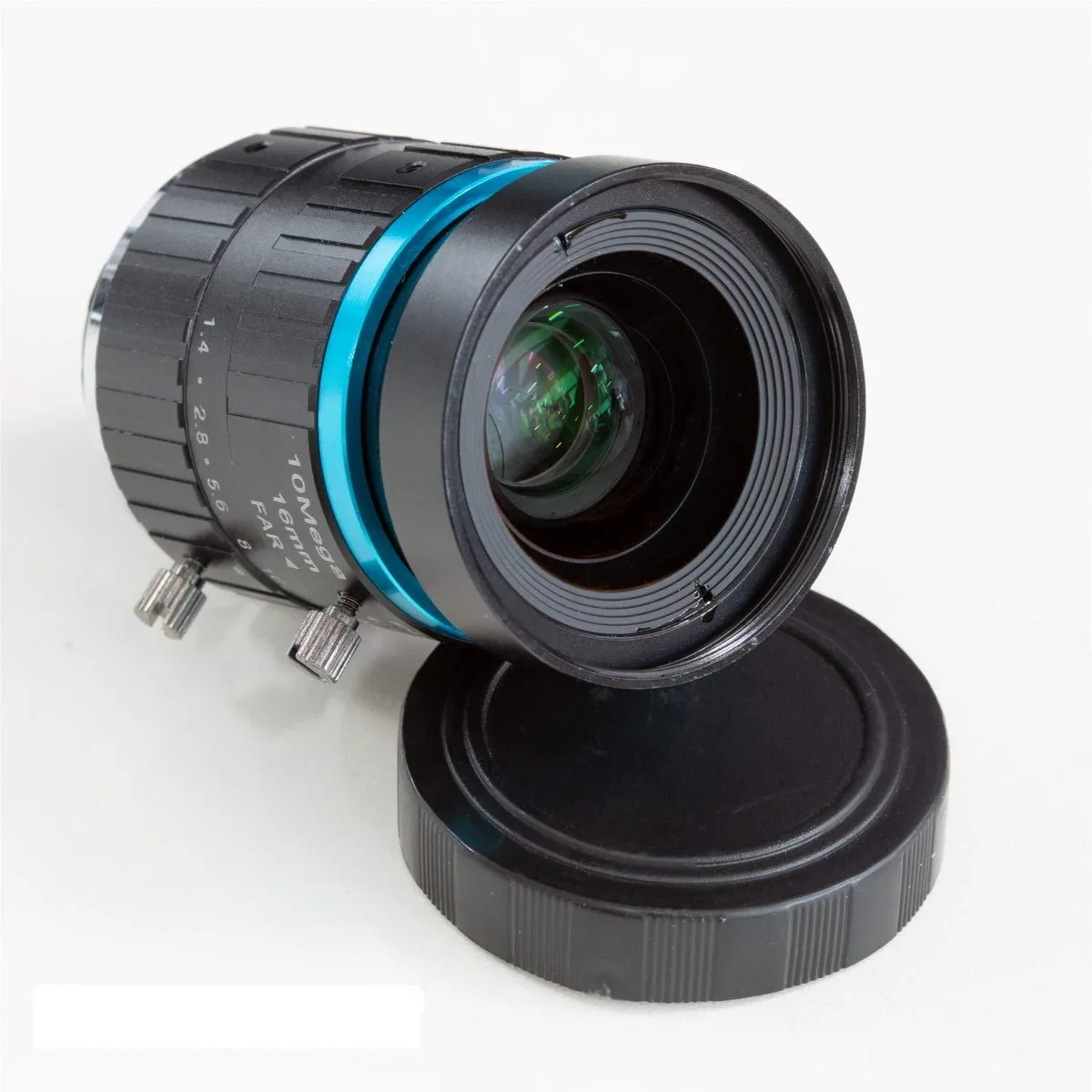

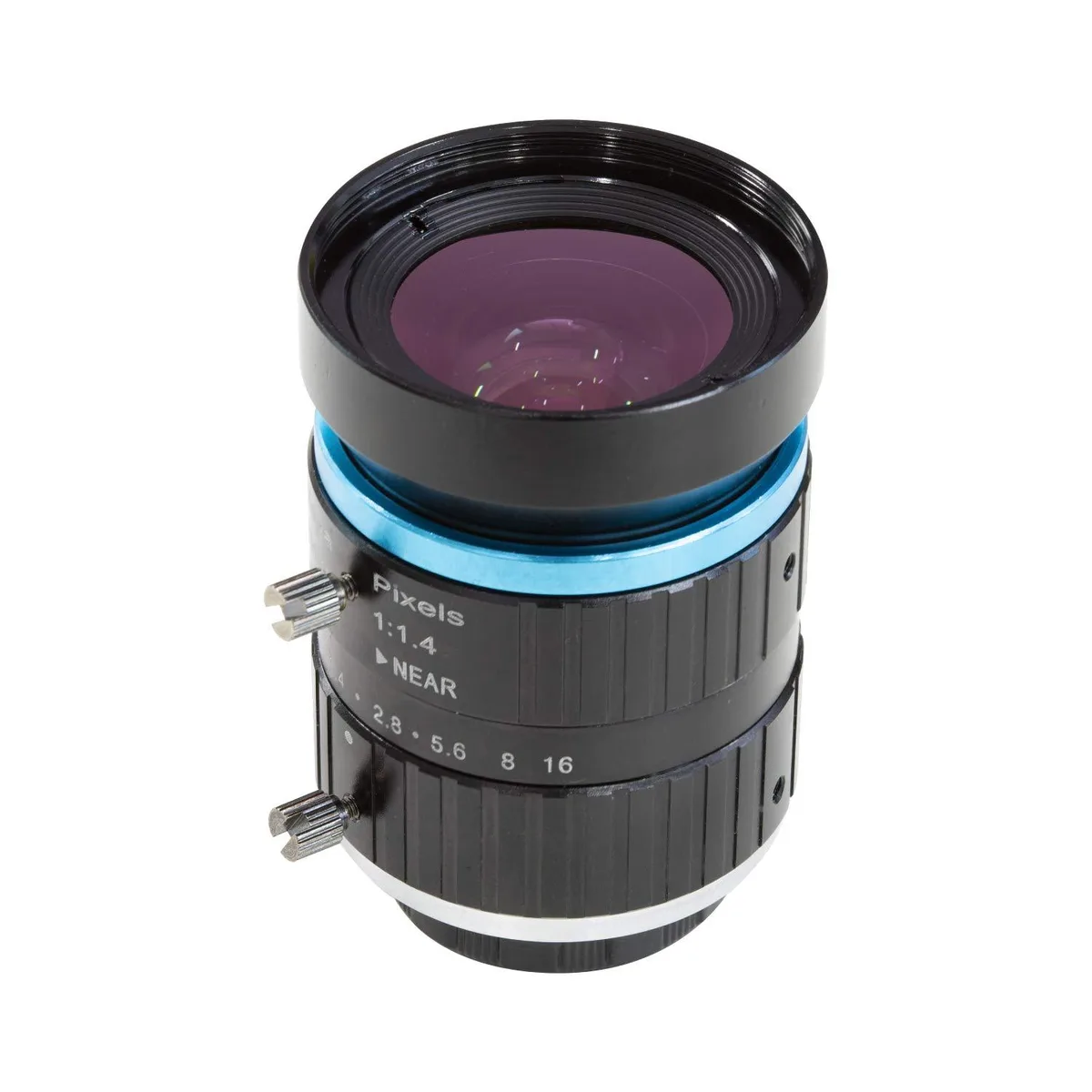

KEHIPI 16mm C-Mount Lens for IMX477 HQ Camera with C-CS Adapter

Lens and adapter for IMX477 HQ Camera

This 16 mm C-mount lens ships with a C-CS adapter ring so it mounts directly on the 12 MP IMX477 Raspberry Pi High Quality Camera. Manual focus and an adjustable aperture from F1.4 to F16 give control over depth of field and exposure. The 1 inch optical format covers the sensor without vignetting. It weighs 133.7 g and measures 39×50 mm.

Build integration and clearance

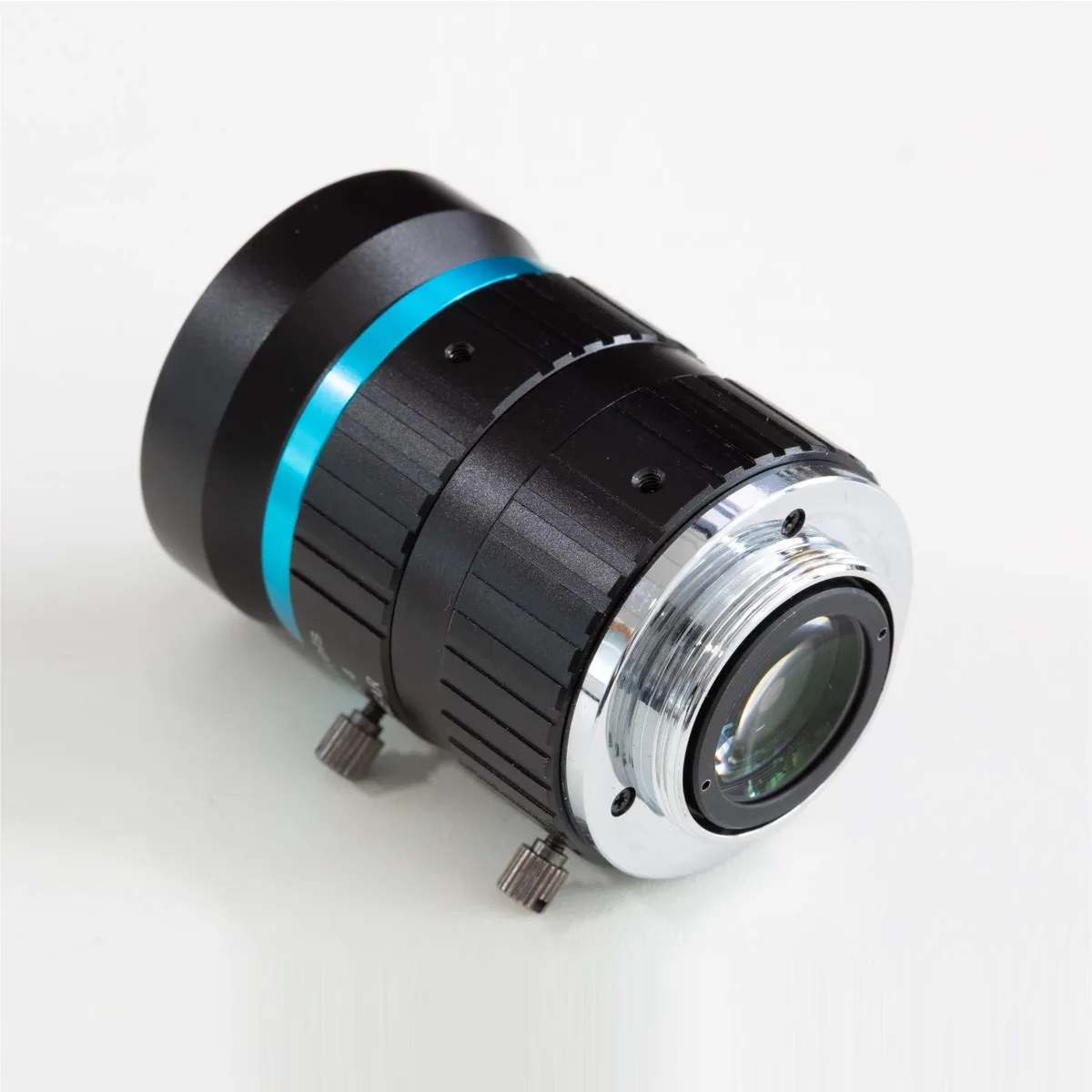

The lens threads into the camera's CS mount via the supplied adapter, requiring no extra spacers or tools. Back focal length is 17.53 mm, matching the module's flange distance. Minimum object distance is 0.2 m, allowing close-up work on a bench or in a fixed rig. The compact barrel leaves room for cable routing and enclosure walls in tight IoT edge devices.

Suited uses and limits

Makers building vision prototypes, fixed-focus inspection rigs or low-light camera nodes will find the wide 44.6° horizontal field of view on the native sensor useful. Buyers who need autofocus, motorised iris or an integrated IR-cut filter should look elsewhere. The fixed 16 mm focal length also rules out zoom or interchangeable focal-length requirements.
